Description

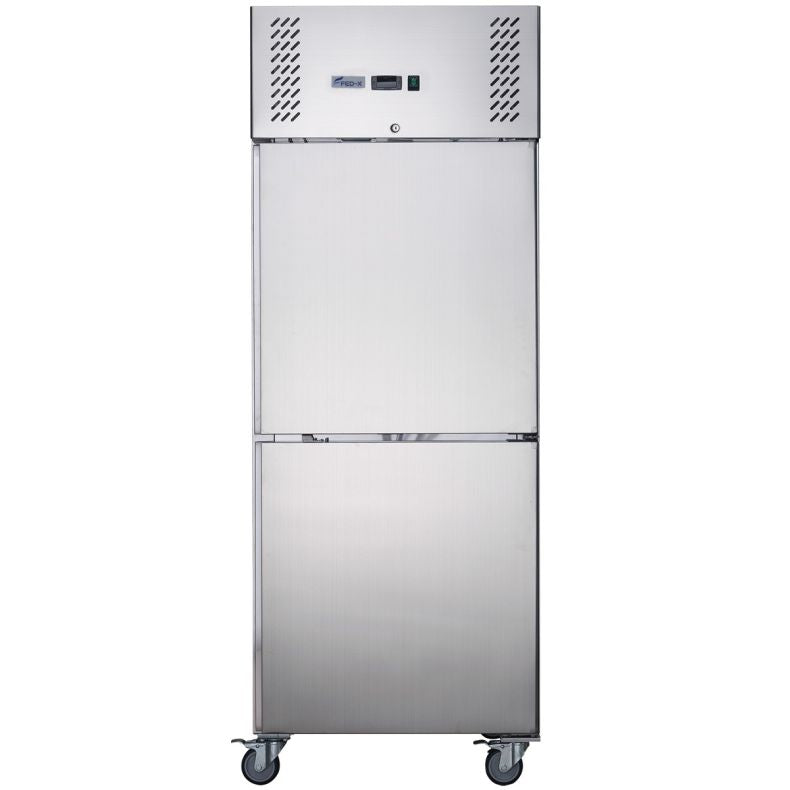

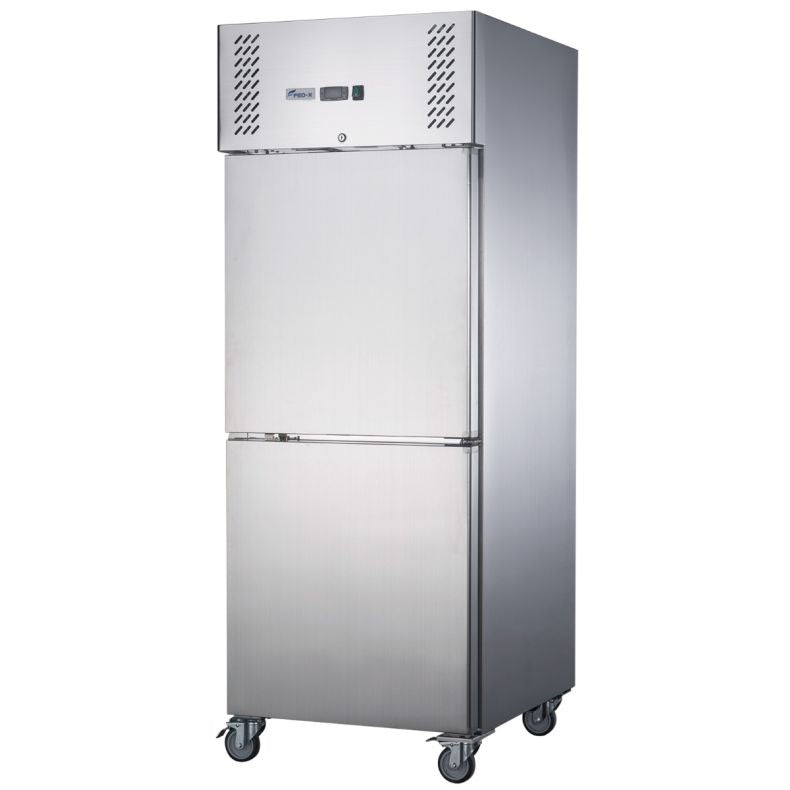

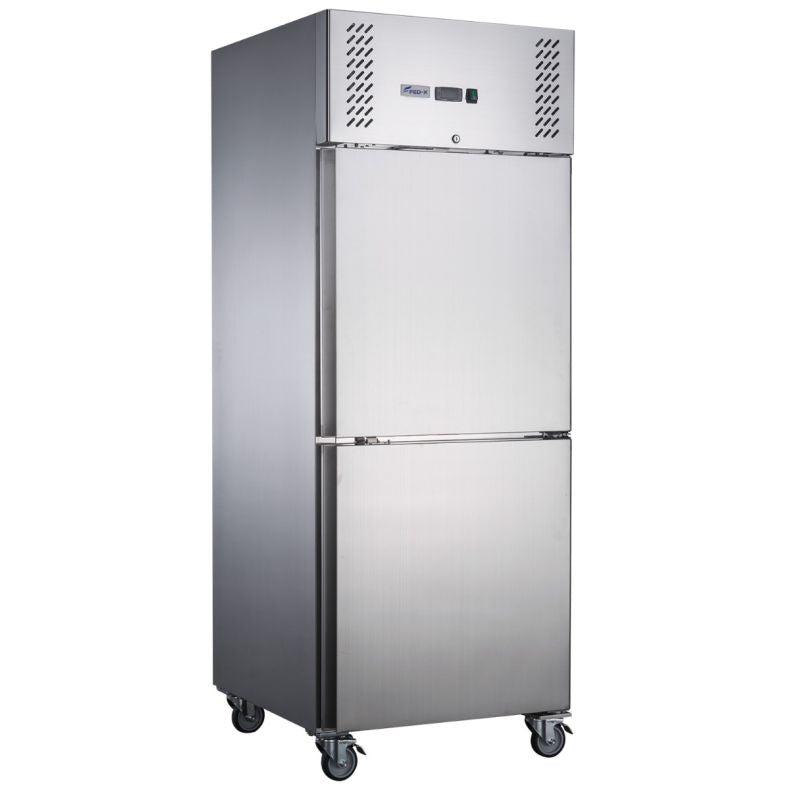

The FED-X XURF600S1V is a commercial upright storage freezer designed for high-throughput kitchens that need fast access to frozen product without sacrificing energy efficiency. Its 1/2 split-door system divides the cabinet into two independently opening half-doors, dramatically reducing cold-air loss per opening and cutting yearly running costs by up to 30% compared with a full-swing single door.
Why operators choose the XURF600S1V
-
Split half-door efficiency — two stacked half-doors mean only half the cabinet is exposed per reach-in, recovering temperature faster and reducing compressor load
-
388L net capacity — fits a full par-stock of frozen proteins, pastry, and ice cream for a busy service without a walk-in
-
R290 natural refrigerant — zero ODP, ultra-low GWP, HFC/CFC-free foam body insulation, and tropicalised to operate in Australian ambient conditions up to 43°C
-

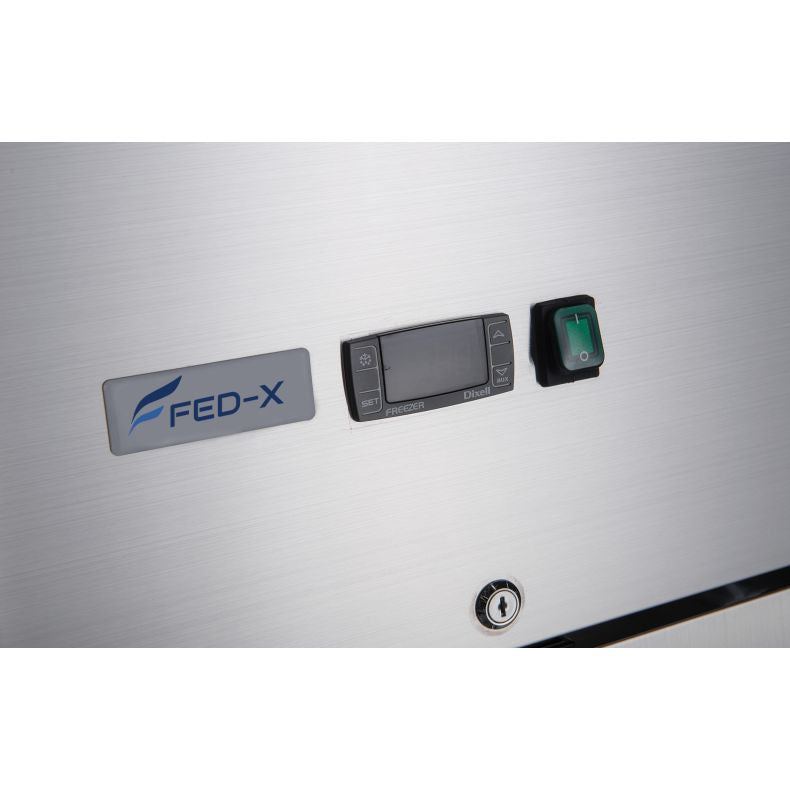

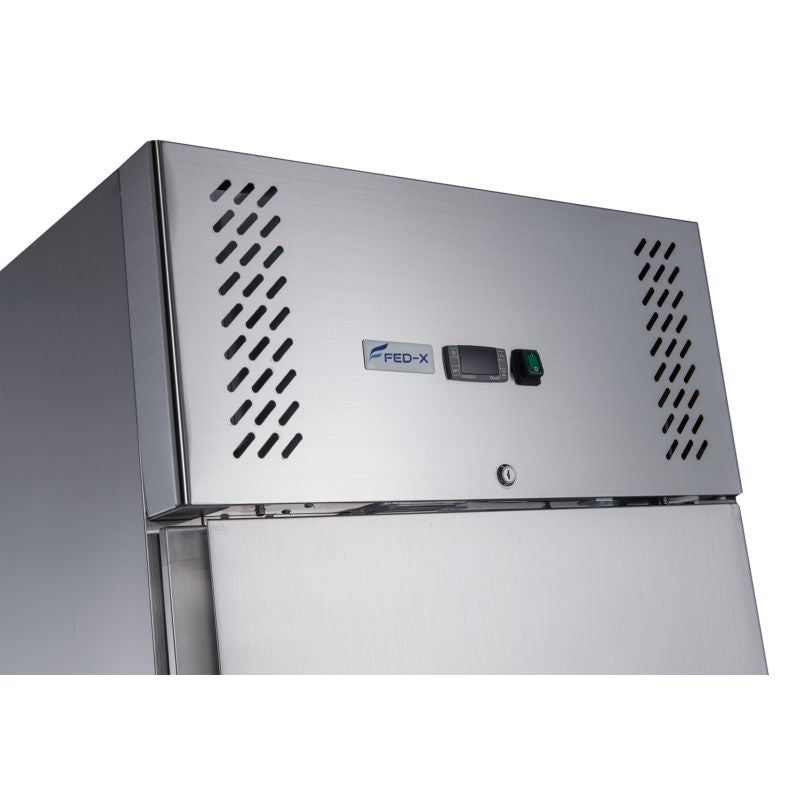

Dixell digital controller with auto-defrost — precise temperature management at -18 to -22°C with internal LED lighting and user-friendly digital display
-

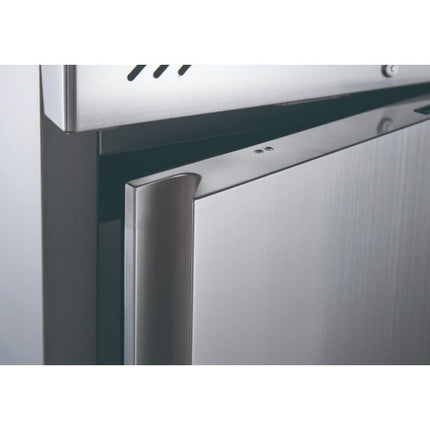

Commercial-grade construction — stainless steel interior and exterior with rounded corners, heavy-duty evaporator and condenser fans, self-closing lockable doors with magnetic seals, and 40kg shelf loading per level
Specifications
| Brand |
FED-X |
| Model / MPN |
XURF600S1V |
| Type |
Upright Storage Freezer |
| Net Capacity |
388 L |
| Gross Volume |
618 L |
| Door Count |
1 (1/2 split — two half-doors) |
| Door Type |
Solid hinged, self-closing, lockable |
| Temperature Range |
-18 to -22°C |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced |
| Controller |
Dixell digital |
| Ambient Temperature Rating |
43°C, 60% RH (tropical-rated) |
| Power |
240V / 465W / 10A single phase |
| Energy Consumption |
7.26 kWh/24h |
| Construction |
Stainless steel interior & exterior |
| Shelving |

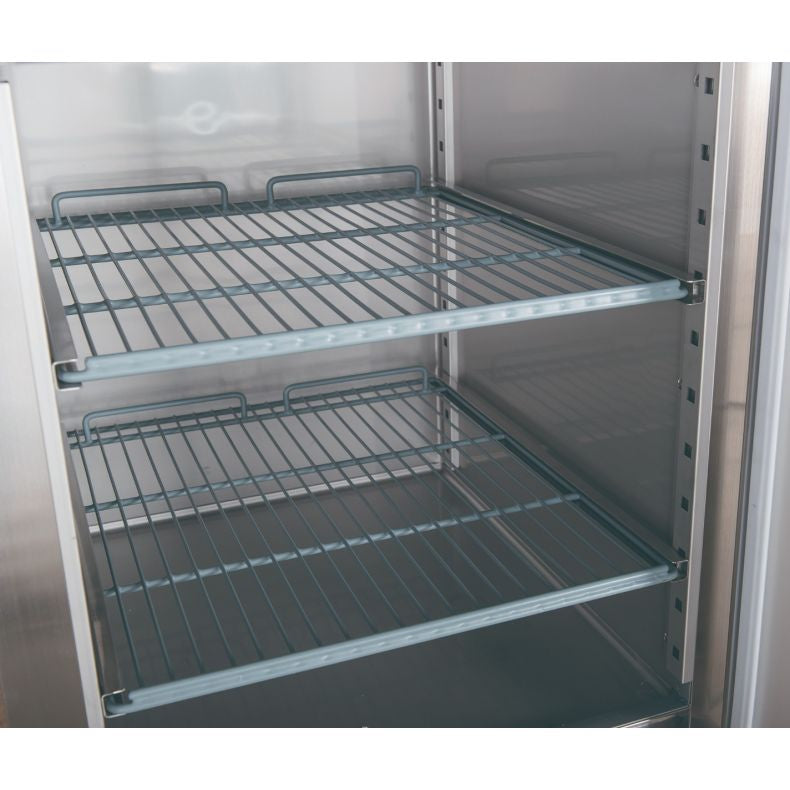

3 levels + base; 40kg load per shelf; GN 1/1 compatible |
| Internal Dimensions |
564mm W x 682mm D x 1394mm H |
| Product Dimensions (W x D x H) |
680 x 840 x 2000mm |
| Packed Dimensions (W x D x H) |
710 x 855 x 2150mm |
| Net Weight |
117 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for commercial kitchens, restaurants, cafes, hotels, catering operations, and food service venues requiring a reliable upright freezer with fast-access split-door convenience. Suits venues with limited floor space that need a full-height cabinet without walk-in freezer infrastructure.
Browse the full range of Commercial Upright Freezers or shop all FED-X refrigeration equipment available at Commercial Kitchen Store.

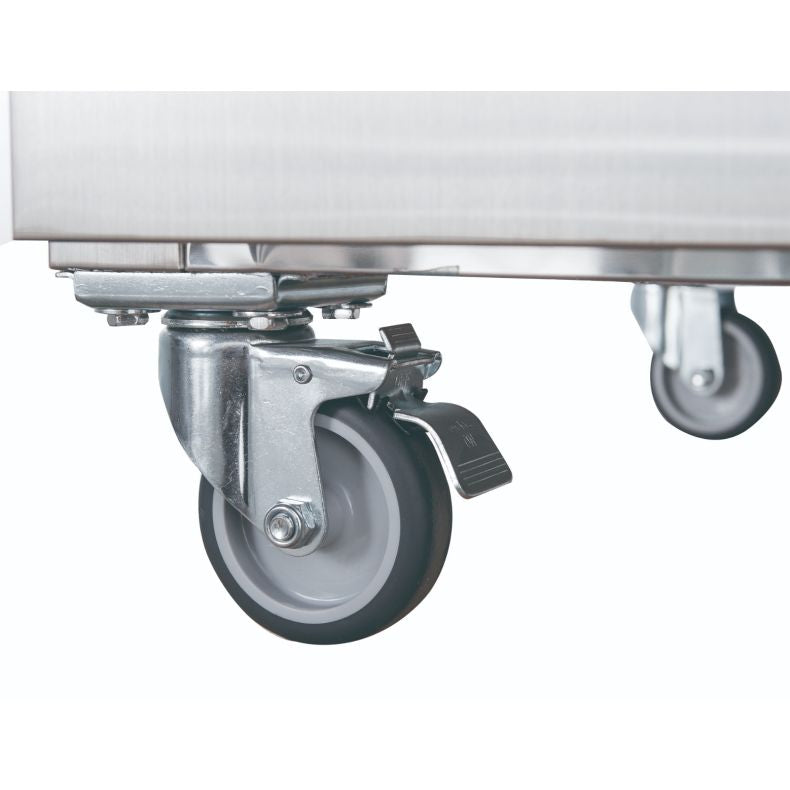

Installation & delivery: The XURF600S1V ships on heavy-duty castors and requires a standard 10A single-phase power outlet. Allow 50mm clearance at the rear and sides for condenser airflow. Review our warranty information and register your product within 14 days of invoice to activate the full 4-year coverage. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XURF600S1V?
The net usable capacity is 388 litres. The gross cabinet volume is 618 litres — the difference accounts for insulation and the evaporator coil space.
What does the 1/2 split-door design mean in practice?
The cabinet is divided into two independently opening half-doors stacked vertically. When you open the top half to retrieve product, the bottom half stays closed, retaining cold air. FED-X states this can reduce yearly running costs by up to 30% compared with a single full-swing door.
What refrigerant does the XURF600S1V use?
It uses R290 (propane), a natural refrigerant with zero ozone depletion potential and a very low global warming potential. The foam body insulation is also HFC/CFC-free.
Is it suitable for Australian summer conditions?
Yes. The unit is tropicalised and rated to maintain -18 to -22°C at ambient temperatures up to 43°C and 60% relative humidity — covering all Australian climate zones including Far North Queensland.
What warranty does the XURF600S1V carry?
It carries a 2-year Parts & Labour warranty plus an additional 2-year Parts Only warranty (4 years total) when you register the product within 14 days of your invoice. Registration can be completed at the FED-X product registration page.
