Description

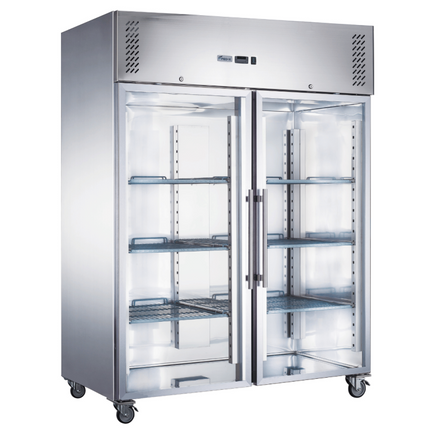

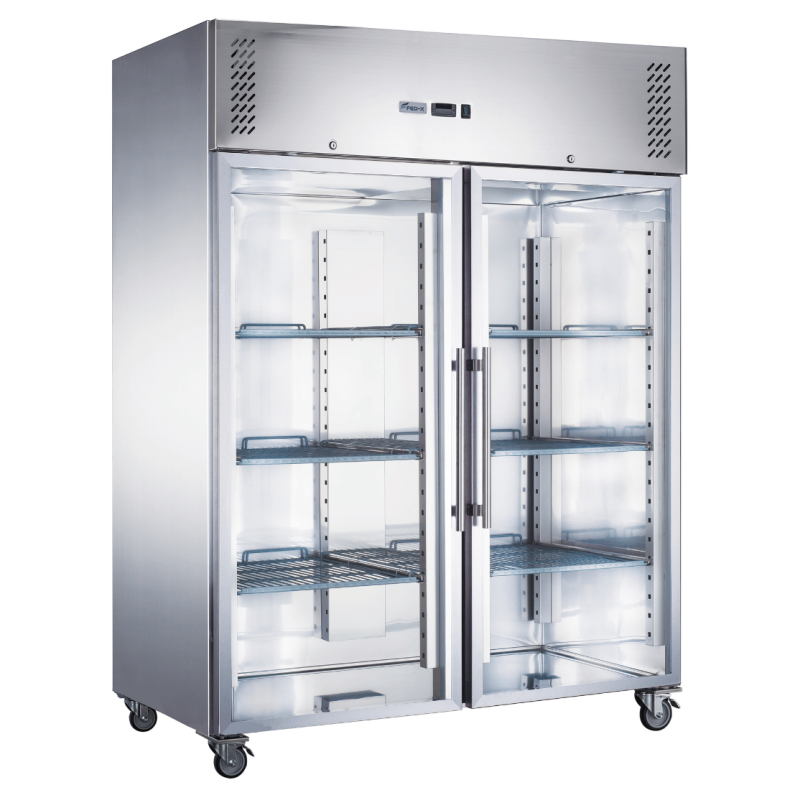

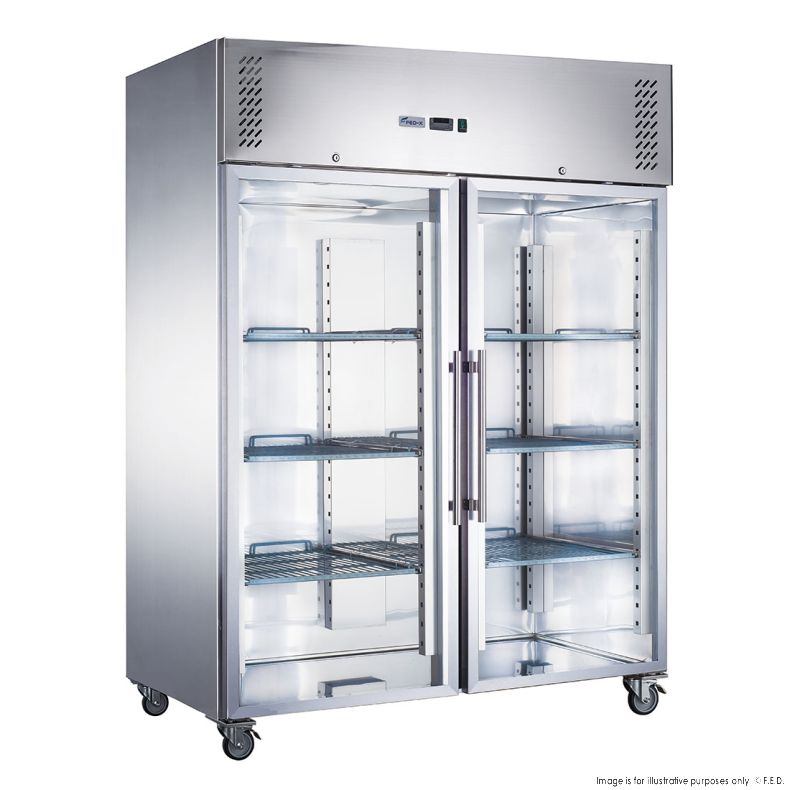

The FED-X XURF1200G2V is a commercial upright display freezer that gives cafes, restaurants, and catering operations 791 litres of refrigerated storage behind two full-height glass doors — keeping frozen product highly visible while maintaining a precise -15 to -18°C operating temperature.
Why operators choose the XURF1200G2V
-
791L net capacity — substantial two-door footprint handles high-volume frozen product without a second unit.
-
Full-height glass doors — staff can locate product at a glance; reduces door-open time and cold loss.
-
R290 refrigerant — HFC/CFC-free, lower global warming potential, meets current AU environmental standards.
-

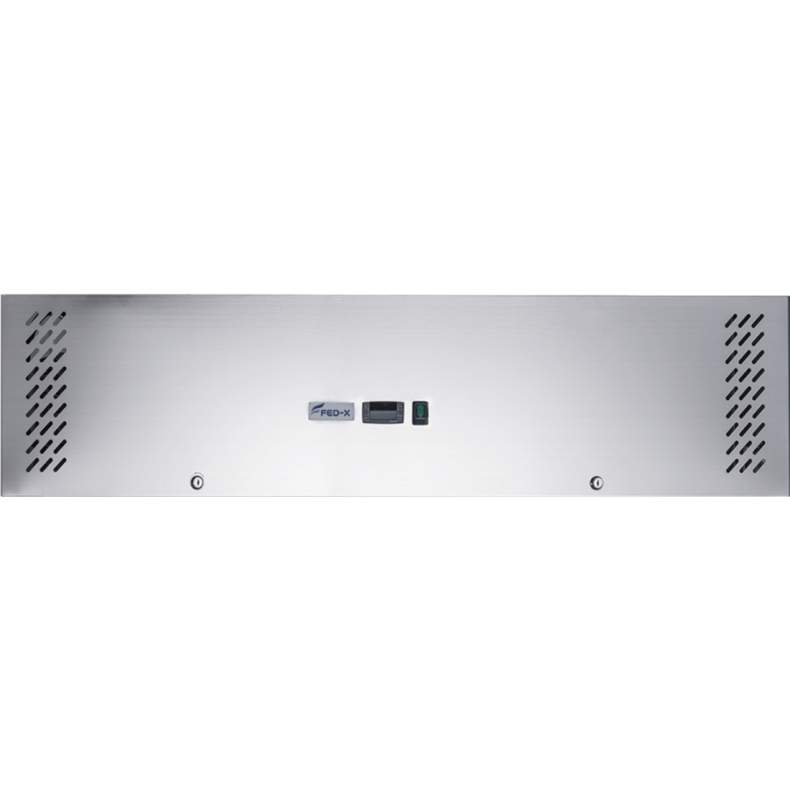

Fan-forced cooling with Dixell controller — even temperature distribution and precise digital control with auto defrost.
-
Stainless steel interior and exterior — rounded corners for fast, compliant cleaning; heated door frames prevent condensation on glass.
Specifications
| Brand |
FED-X |
| Model / MPN |
XURF1200G2V |
| Type |
Upright Display Freezer |
| Net Capacity |
791 L |
| Gross Volume |
1236 L |
| Doors |
2 (full glass, hinged, self-closing, lockable) |
| Temperature Range |
-15 to -18°C |
| Ambient Temperature |
38°C, 60% RH |
| Cooling System |
Fan-forced cooling |
| Controller |
Dixell (digital) |
| Refrigerant |
R290 (HFC/CFC-free) |
| Power |
240V; 50Hz; 10A; 700W |
| Energy Consumption |
12.33 kWh/24h |
| Construction |
Stainless steel interior & exterior, rounded corners |
| Shelving |

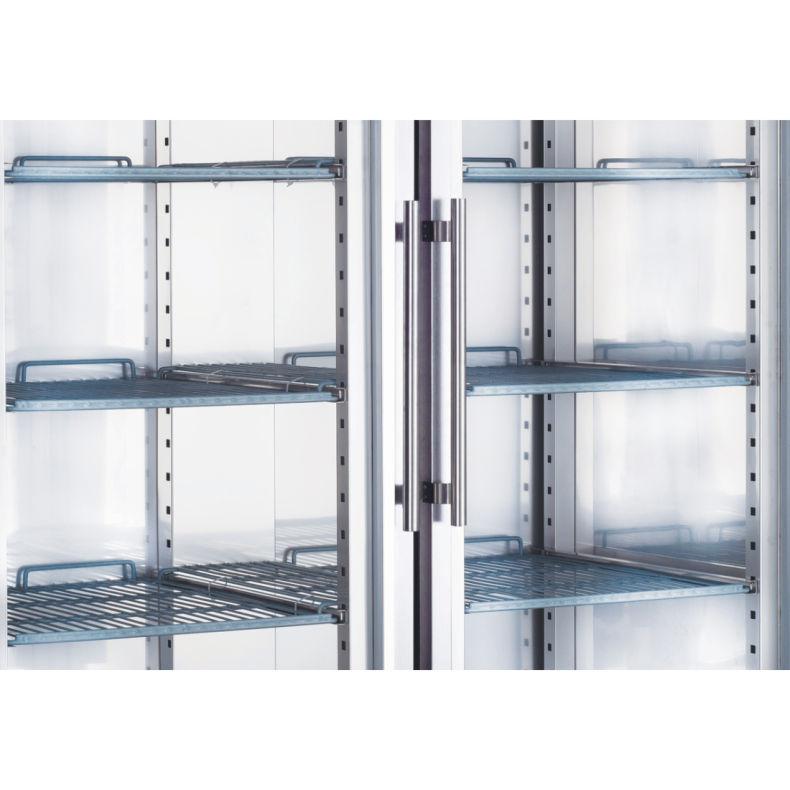

Three levels plus base; each shelf rated 40kg; designed for 2 x GN 1/1 pans |
| Internal Dimensions |
1224 x 682 x 1394mm (W x D x H) |
| Product Dimensions |
1340(W) x 840(D) x 2000(H)mm |
| Packed Dimensions |
1365(W) x 855(D) x 2070(H)mm |
| Net Weight |
167 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (product registration within 14 days of invoice required) |
Venue suitability: The XURF1200G2V suits cafes, restaurants, catering kitchens, convenience stores, and bakeries that require high-capacity upright freezer storage with clear product visibility. Glass doors make it equally suited to front-of-house display use. Browse the full Display Freezers range or shop all FED-X commercial refrigeration.

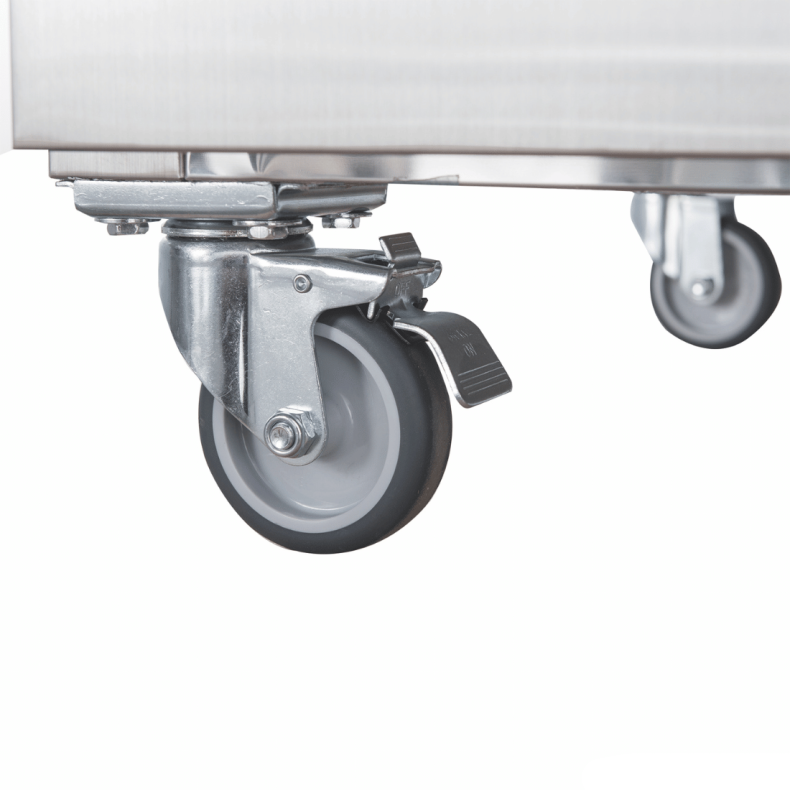

Installation & delivery: Standard electrical connection (240V single phase, 10A). Ensure adequate clearance for door swing and condenser ventilation. Heavy-duty castors with front wheel brakes allow in-kitchen repositioning. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the XURF1200G2V?
The net usable capacity is 791 litres across both glass door compartments — sufficient for large-volume frozen product, pre-portioned meals, or display stock.
What refrigerant does the XURF1200G2V use?
It uses R290 (propane), a natural refrigerant that is HFC- and CFC-free, meeting current Australian and international environmental standards.
Does this freezer require a dedicated circuit?
The unit runs on 240V single phase, 10A — a standard GPO. No dedicated circuit is required in most commercial fit-outs, though your electrician should verify the installation environment.
What is the operating temperature range?
The XURF1200G2V operates between -15°C and -18°C, suitable for holding frozen food at safe commercial standards.
What shelf load capacity does each shelf have?
Each shelf is rated to 40 kg and is designed to accommodate two GN 1/1 pans, with three shelf levels plus the base available for storage.
SKU: XURF1200G2V
In Stock
