Description

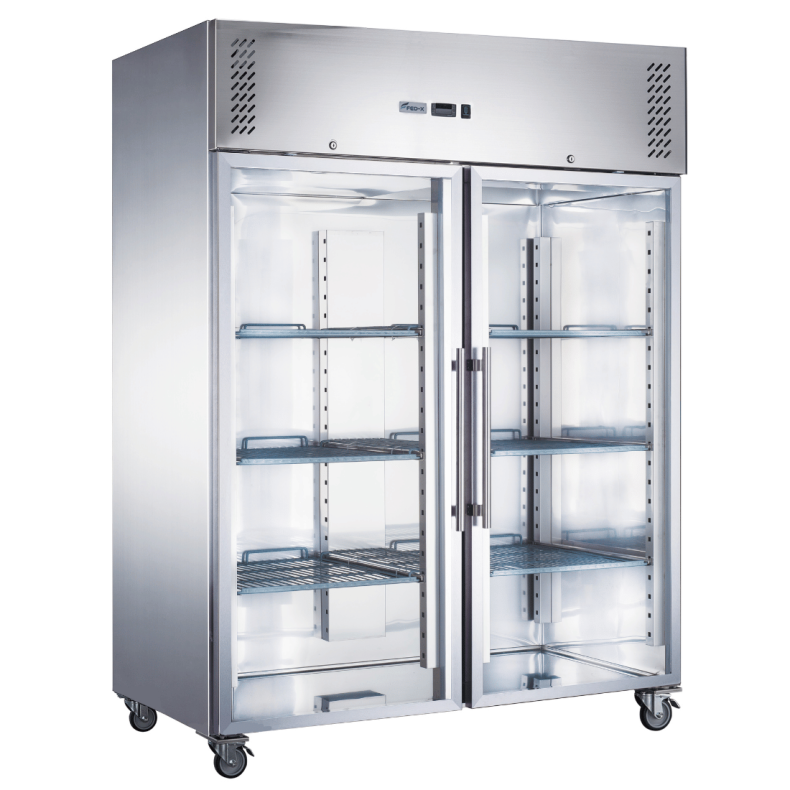

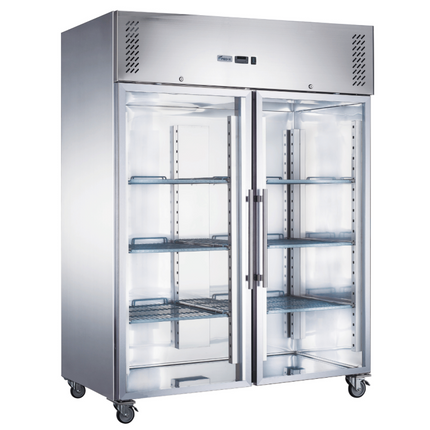

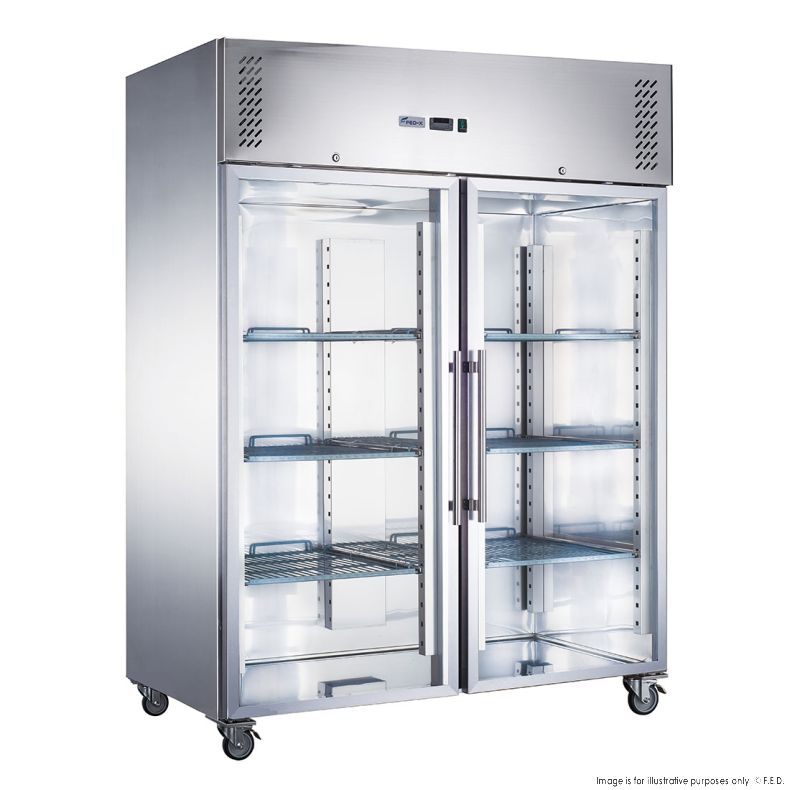

The FED-X XURF1410G2V is a two full glass door upright display freezer that keeps commercial inventory visible and accessible while maintaining consistent blast-freeze temperatures down to -18°C. With 945L net capacity across two independently sealed compartments, it is designed for supermarkets, food service operators, convenience stores, and hospitality venues that need high-volume frozen display at ambient temperatures up to 38°C.
Why operators choose the XURF1410G2V
-
945L net capacity — 1480mm-wide double bay holds full product range without overcrowding or temperature recovery lag.
-
Full glass doors with heated frames — maximises product visibility and prevents condensation on the door seals, reducing energy waste from warm air ingress.
-
R290 natural refrigerant — ultra-low GWP (GWP=3), HFC- and CFC-free foam insulation, fully compliant with AU environmental requirements.
-

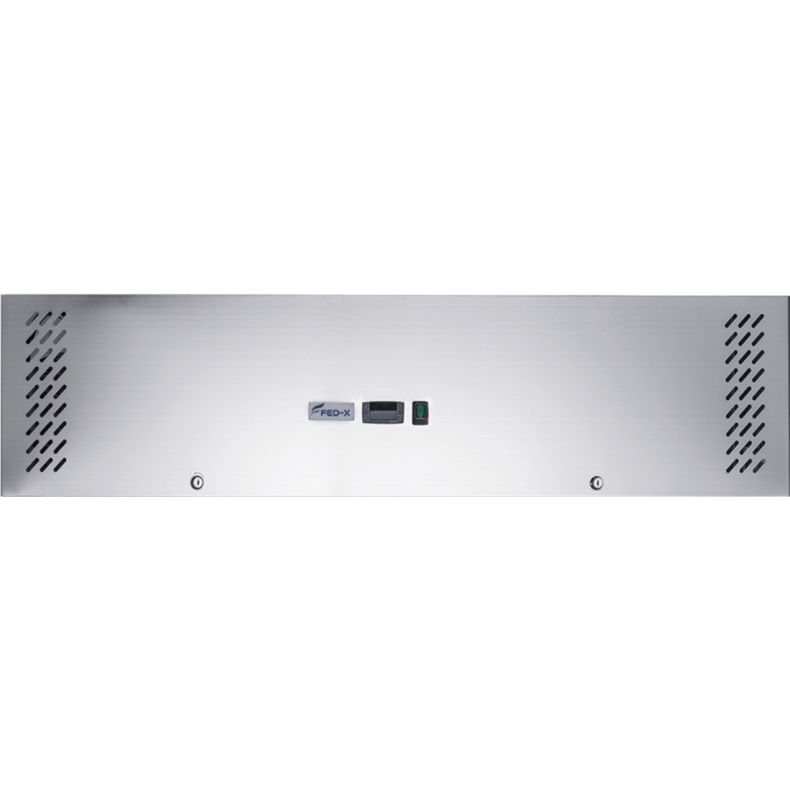

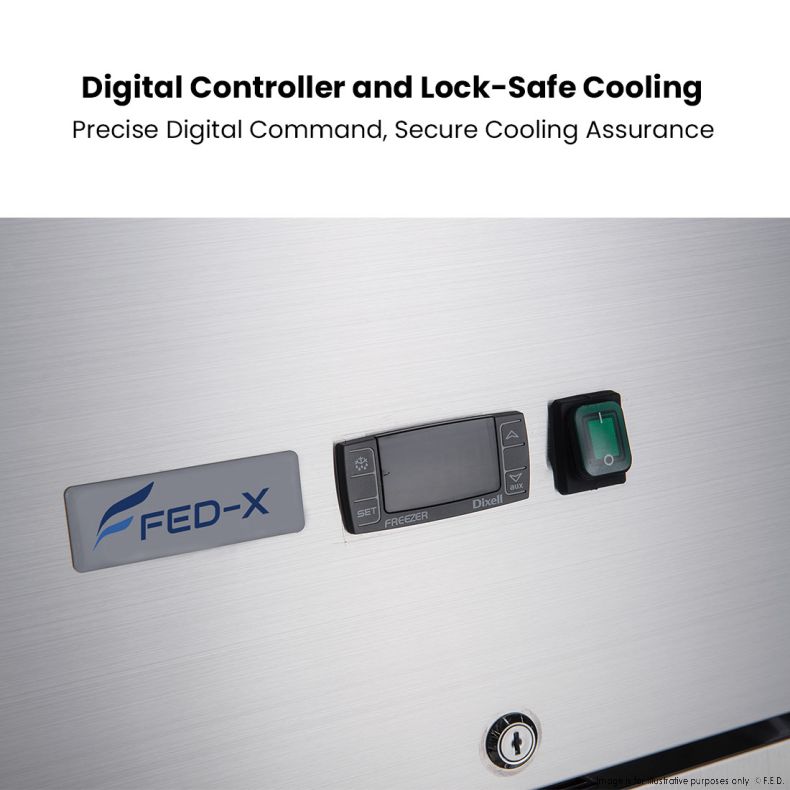

Fan-forced Dixell-controlled cooling — uniform temperature distribution across all shelf levels; auto defrost cycle prevents ice build-up without operator intervention.
-

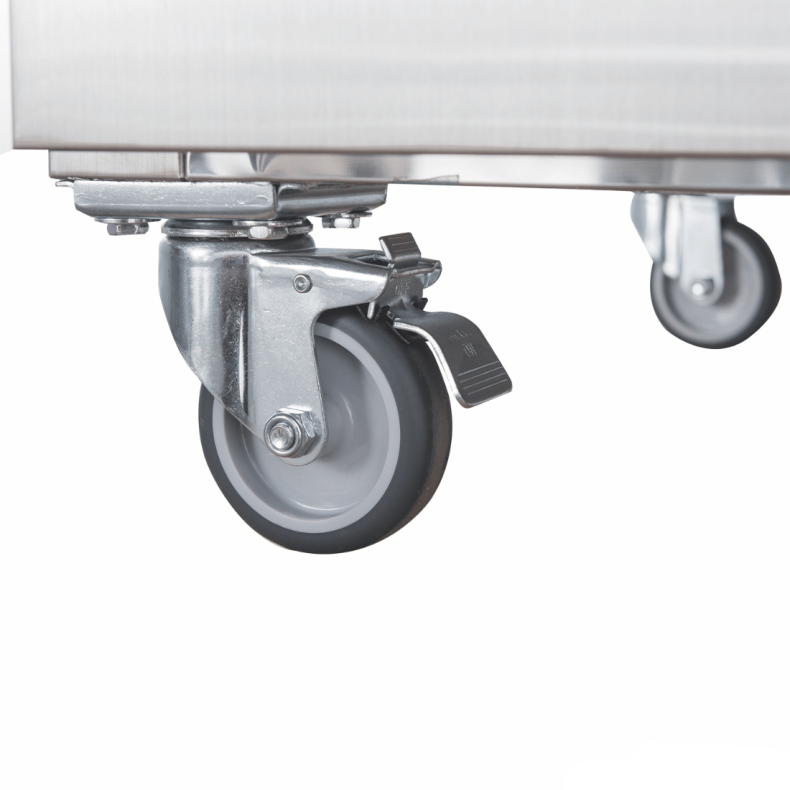

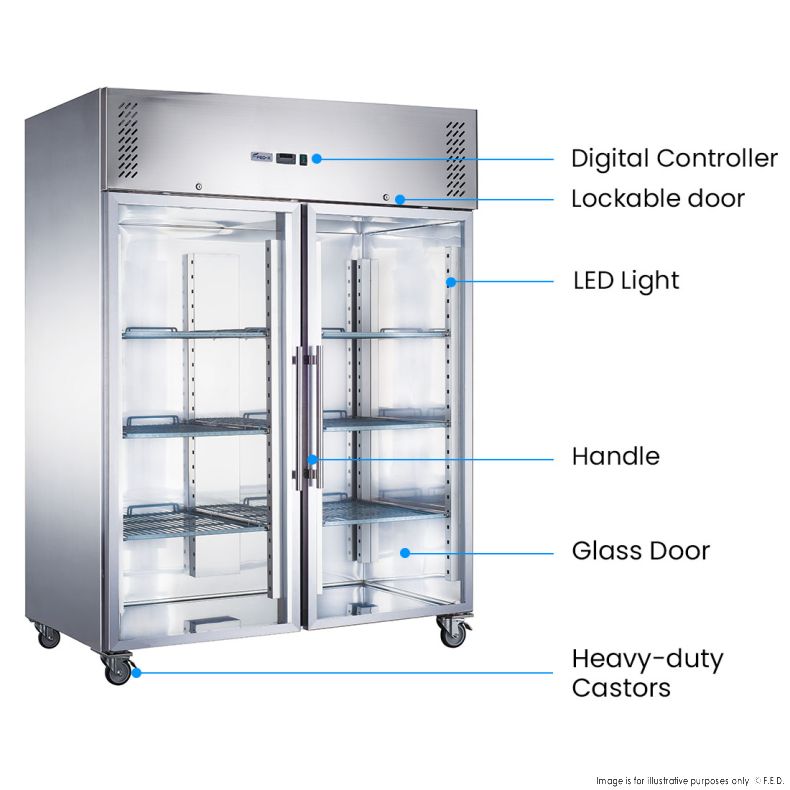

Self-closing, lockable doors with heavy-duty magnetic seals — security-ready and energy-efficient; castors with front wheel brakes for safe repositioning on the floor.
Specifications
| Brand |
FED-X |
| Model / MPN |
XURF1410G2V |
| Type |
Upright Display Freezer |
| Capacity (Net) |
945 L |
| Capacity (Gross) |
1410 L |
| Doors |
2 × full glass, hinged, self-closing, lockable |
| Shelves |

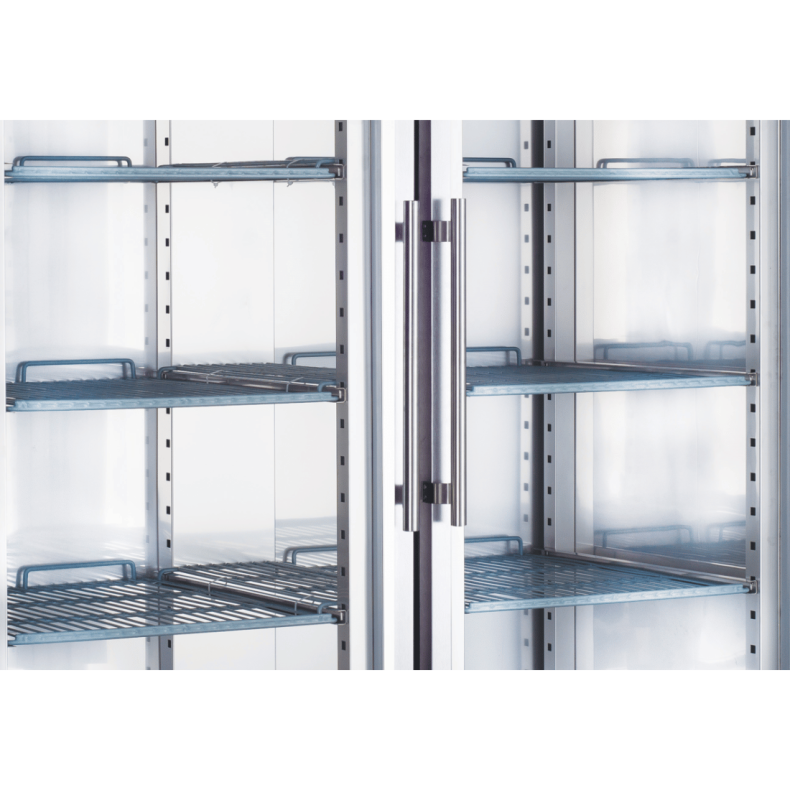

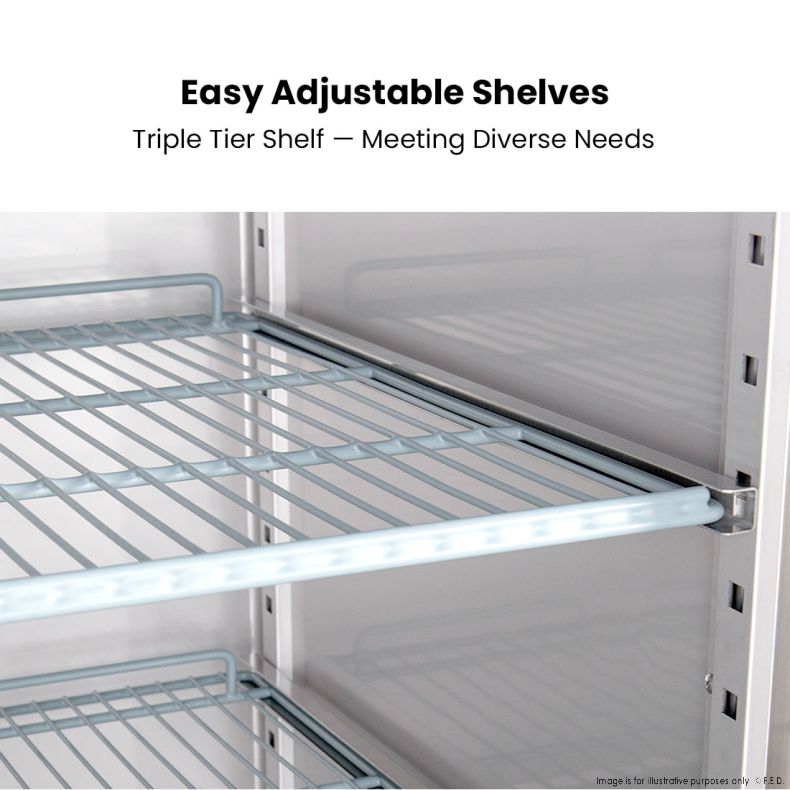

3 levels + base (accommodates 2 × GN 1/1 per shelf); max 40kg per shelf |
| Temperature Range |
-15 to -18°C |
| Ambient Temperature |
38°C, 60% RH |
| Cooling System |
Fan-forced |
| Refrigerant |
R290 |
| Controller |
Dixell |
| Compressor |
Cubigel |
| Power |
240V; 50Hz; 10A; 865W |
| Energy Consumption |
10.33 kWh/24h |
| Lighting |
Internal LED |
| Construction |
Stainless steel interior and exterior with rounded corners |

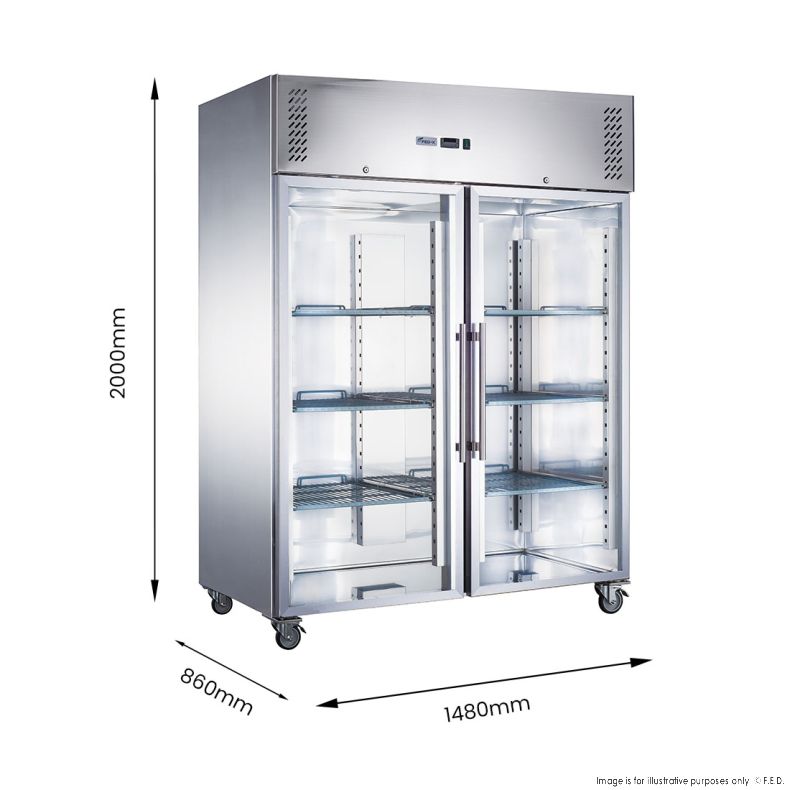

| External Dimensions |
1480(W) x 860(D) x 2000(H)mm |
| Internal Dimensions |
1364(W) x 702(D) x 1401(H)mm |
| Net Weight |
232 kg |
| Package Dimensions |
1505(W) x 1480(D) x 2070(H)mm |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: The XURF1410G2V is ideal for supermarkets, convenience stores, service stations, food halls, cafes, and catering venues that need a visible frozen inventory display. The full glass doors make it suitable for high-traffic retail floors where impulse purchase and product clarity matter. Its 38°C ambient rating makes it suited to warm Australian kitchen and service environments.
Explore the full range of Display Freezers or browse all FED-X refrigeration equipment available at Commercial Kitchen Store.
Installation & delivery: The XURF1410G2V arrives on castors and requires a standard 10A single-phase 240V outlet. Ensure at least 100mm clearance at the rear and sides for condenser airflow. Dispatched Australia-wide.
Frequently asked questions
What is the difference between the gross and net capacity?
The gross capacity (1410L) is the total internal volume; the net capacity (945L) is the usable storage volume after accounting for the evaporator, fans, and internal components. Plan stock levels around the 945L net figure.
Is R290 refrigerant safe for commercial kitchens?
Yes. R290 (propane) is a natural refrigerant with a global warming potential (GWP) of 3 — far lower than HFCs — and is widely used in commercial display equipment. Units are leak-tested and factory-charged; no special site permits are required for standard commercial installation.
Can the shelves accommodate GN pans?
Yes. Each shelf level is designed to hold two GN 1/1 pans side by side, with a maximum load of 40kg per shelf. The base also provides additional storage capacity.
Does the unit require a dedicated circuit?
The XURF1410G2V draws 10A at 240V (865W). A standard 10A single-phase outlet is sufficient; however, if the unit is part of a bank of refrigeration equipment, consult an electrician to ensure the circuit is not overloaded.
What does the 4-year warranty cover?
The warranty is 2 years parts and labour plus 2 years parts only, provided the product is registered within 14 days of invoice. Registration extends the standard 2-year cover to the full 4-year term. Contact the FED-X support team for warranty claims.
SKU: XURF1410G2V
In Stock
