Description

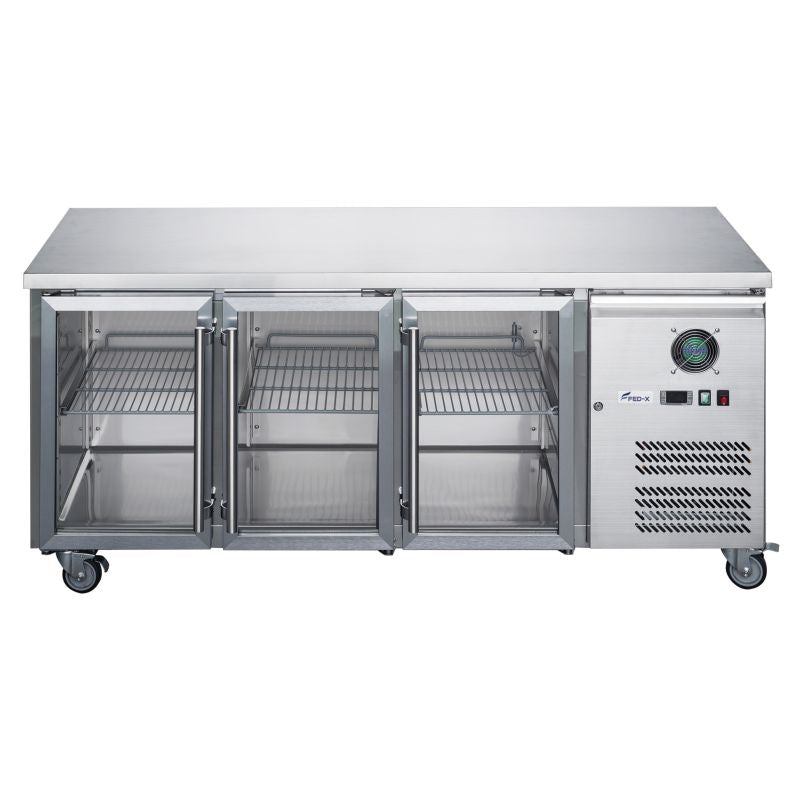

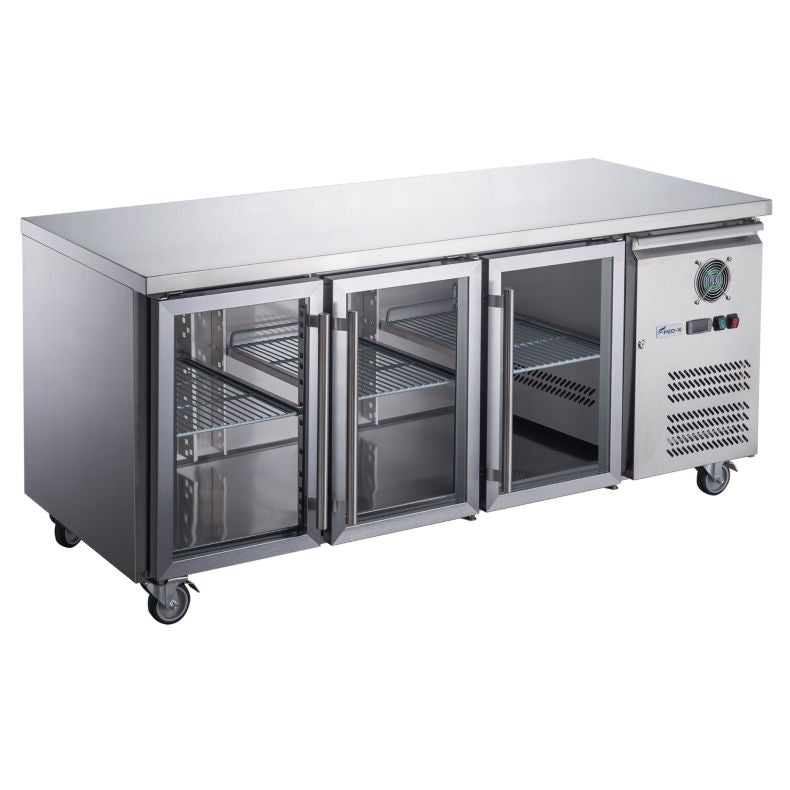

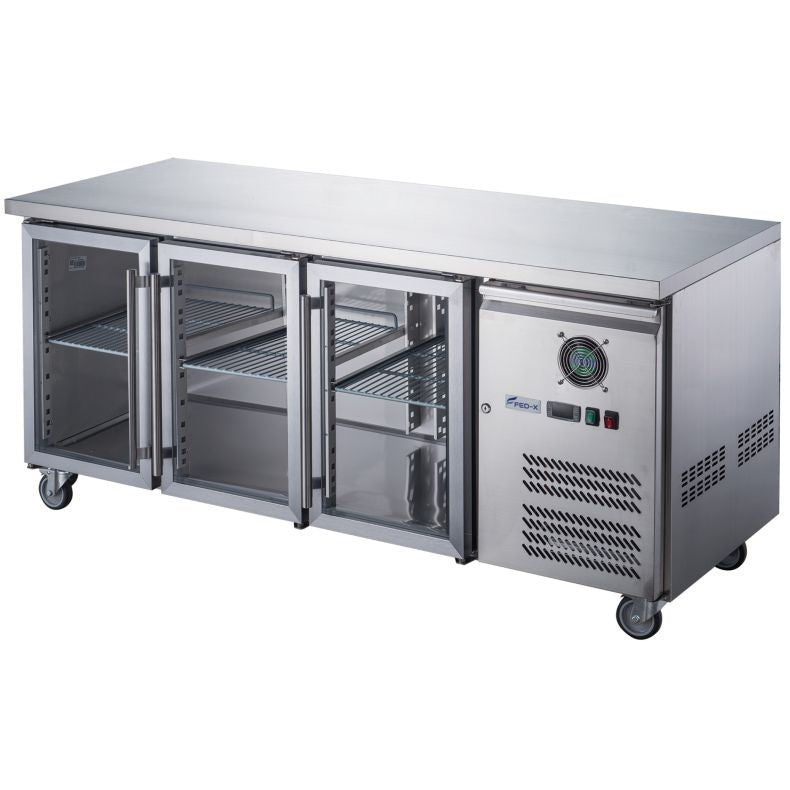

The FED-X XUB7C18G3V is a 311L three-glass-door underbench refrigerator designed for high-throughput commercial kitchens where stock visibility and rapid access are essential. Running on eco-friendly R290 refrigerant with a Dixell digital controller and Ebm-papst fan-forced cooling, this 700-series unit keeps contents at a stable -2 to +8°C across all three chambers, making it equally at home under a prep counter or bar top.
Why operators choose the XUB7C18G3V
-

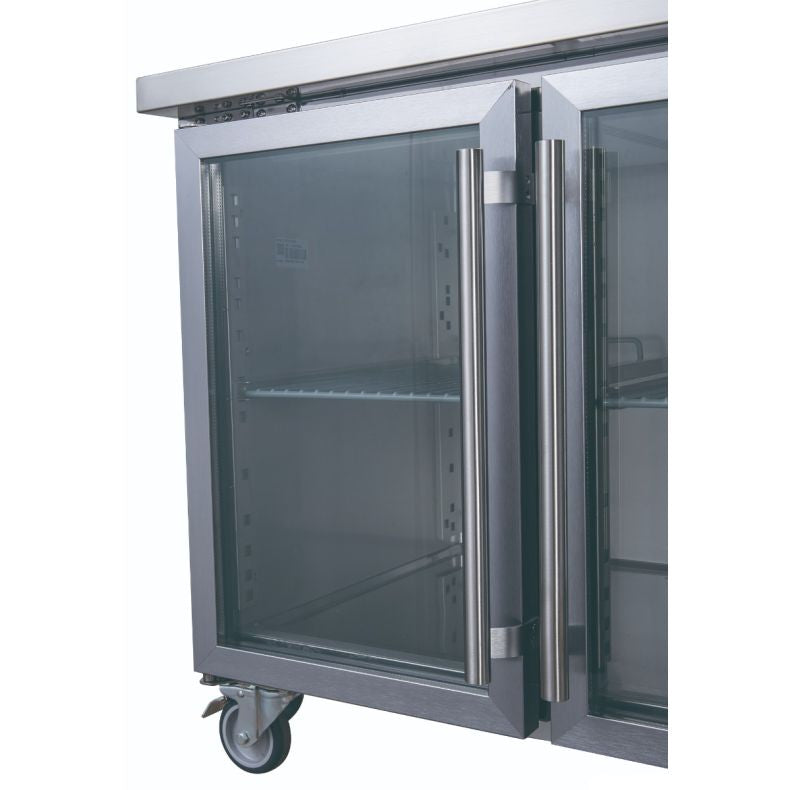

Full-view glass doors — see and select stock without opening, reducing cold-air loss during peak service
-
GN1/1 pan compatibility — one shelf per door slides in standard gastronorm pans for seamless prep integration
-
Fan-forced even cooling — Ebm-papst evaporator and condenser fans eliminate warm spots; rapid temperature recovery after door openings
-

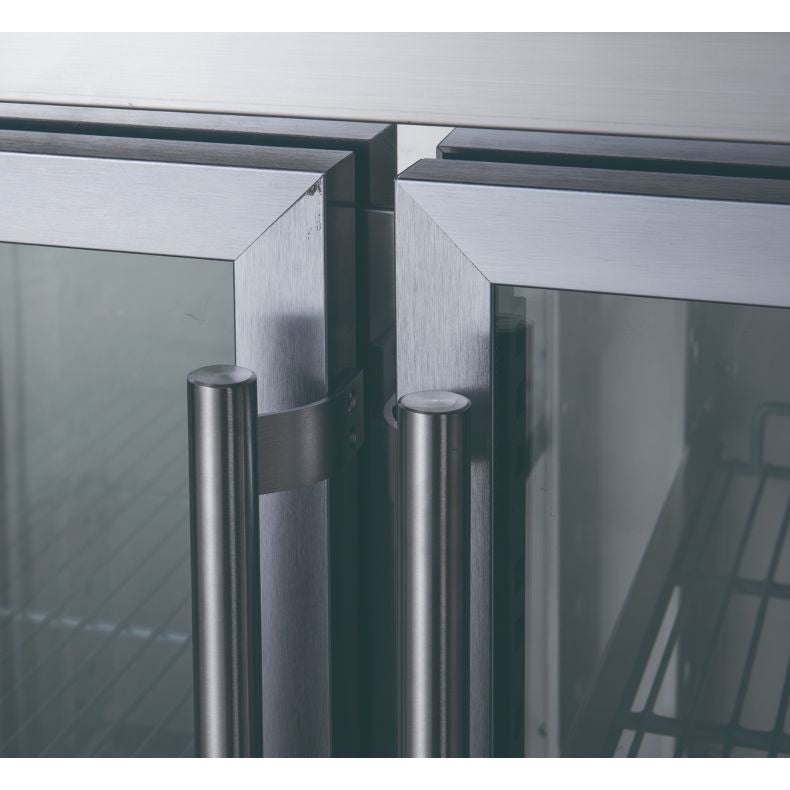

Self-closing doors with heavy-duty magnetic seals — maintains food safety without staff intervention
-
Heavy-duty castors with front brakes — rolls out for cleaning or repositioning; can be placed flush against the wall
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C18G3V |
| Type |
Undercounter Glass Door Fridge |
| Net Capacity |
311 L |
| Gross Capacity |
417 L |
| Doors |
3 × Hinged Glass Doors |
| Temperature Range |
-2 to +8°C |
| Max Ambient Temperature |
35°C / 60% RH (tropicalised for AU conditions) |
| Refrigerant |
R290 |
| Cooling System |
Fan-forced cooling |
| Compressor |
Embraco/Secop |
| Controller |

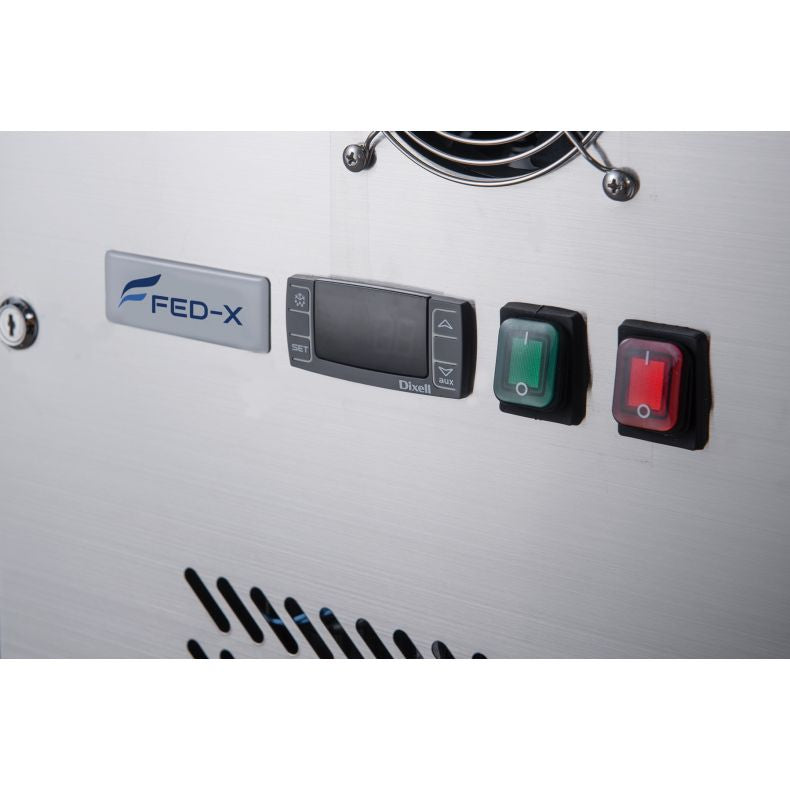

Dixell digital |
| Fans |
Ebm-papst evaporator & condenser |
| Insulation |
60mm HFC/CFC-free foam body |
| Shelves |
1 per door, GN1/1 compatible, 40 kg load each |
| Internal Dimensions |
1234 x 580 x 564mm |
| Product Dimensions (W × D × H) |
1795 × 700 × 850mm |
| Packed Dimensions (W × D × H) |
1825 × 730 × 910mm |
| Net Weight |
134 kg |
| Power Supply |
240V; 50Hz; 1.3A; 230W |
| Energy Consumption |
3.577 kWh/24h |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Ideal for restaurants, cafes, fast-food operations, butcheries, and convenience stores that need quick visual stock access and reliable temperature holding under a prep counter or bar. Browse our full range of Under Bench Fridges or explore more from FED-X commercial refrigeration.
Installation & delivery: No gas connection required — plugs into a standard 10A GPO. Can be positioned against the wall (rear-exhaust design). Dispatched Australia-wide.
Frequently asked questions
What is the net capacity of the XUB7C18G3V?
The net usable capacity is 311 litres (gross volume is 417L). Each of the three sections holds one GN1/1-compatible shelf rated to 40 kg.
What refrigerant does this unit use?
The XUB7C18G3V uses R290 (propane), a low-GWP natural refrigerant that meets current Australian environmental standards.
What temperature range does it operate at?
The unit is designed to hold -2 to +8°C, suitable for chilled food storage, and is tropicalised for Australian ambient conditions up to 35°C / 60% RH.
What warranty is included?
The XUB7C18G3V comes with 2 Years Parts & Labour plus a further 2 Years Parts Only — 4 years total — when registered within 14 days of invoice.
Can the unit be placed against a wall?
Yes — the FED-X 700-series is designed for wall placement. The condenser/fan system does not require rear clearance, and the heavy-duty castors allow it to be rolled out for maintenance when needed.
