Description

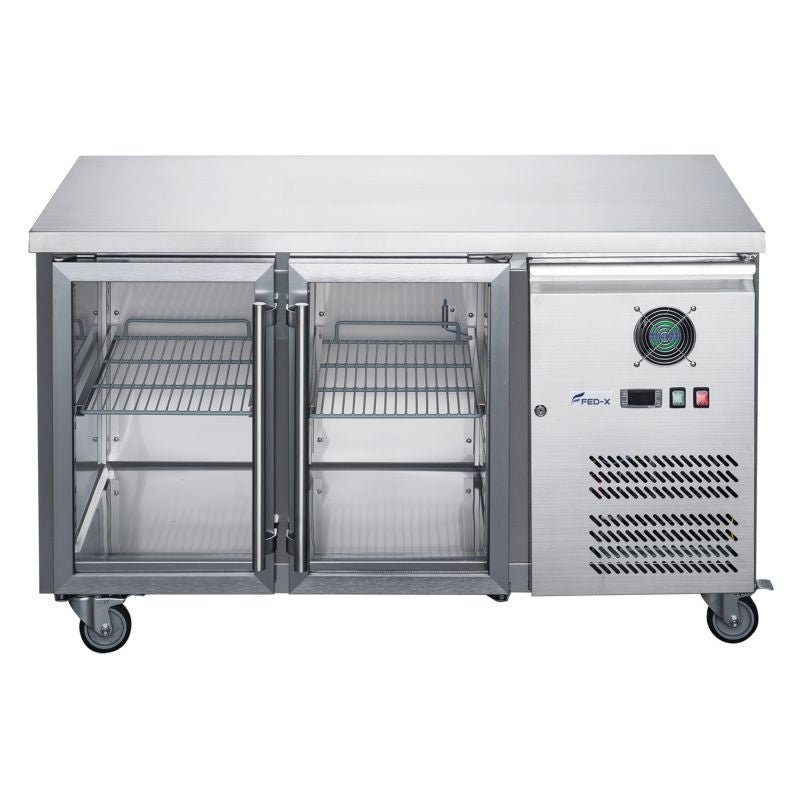

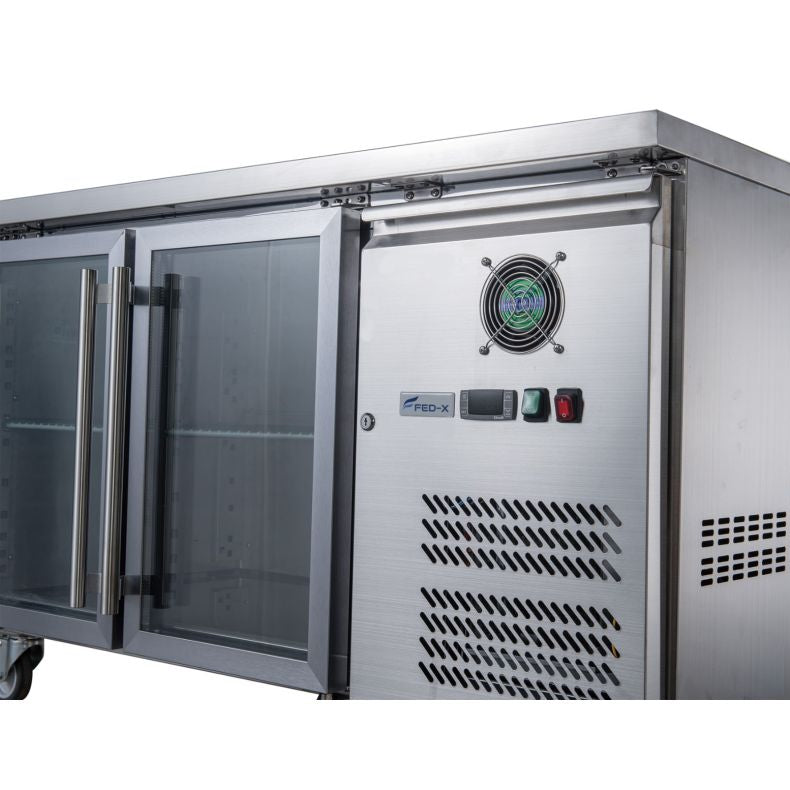

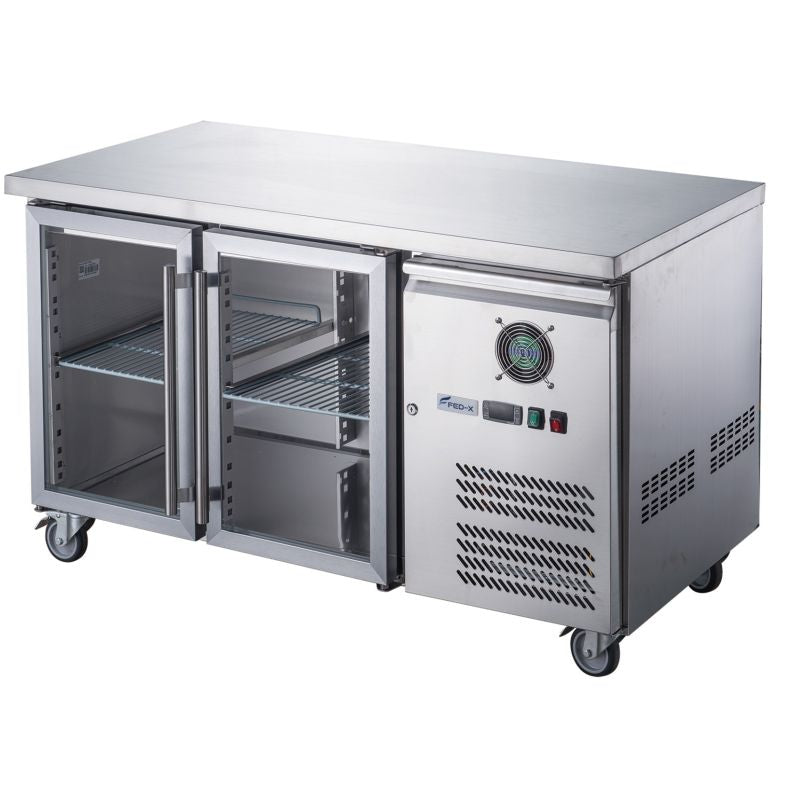

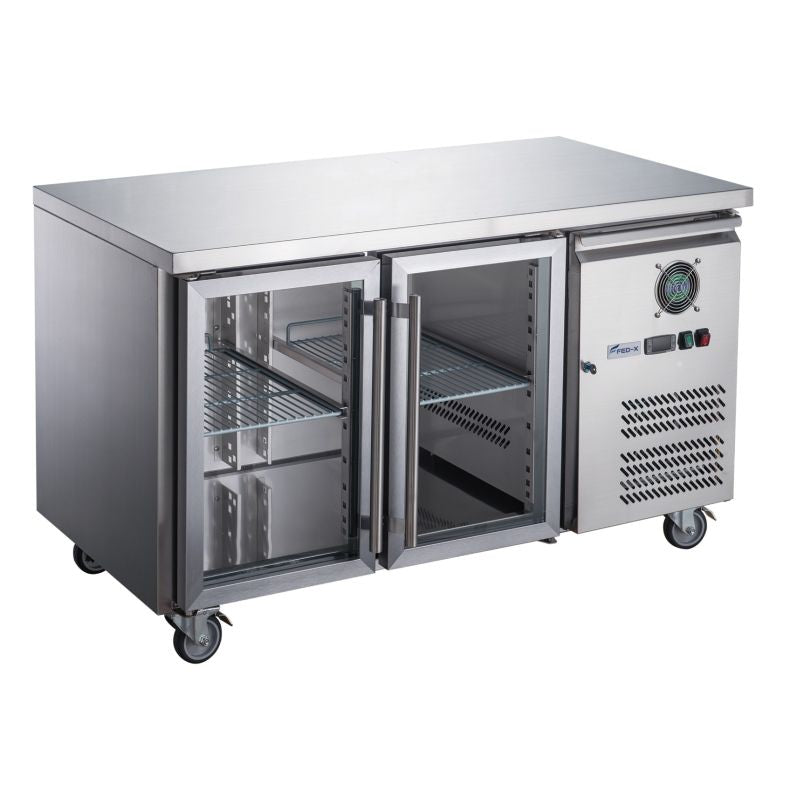

The FED-X XUB7C13G2V is a two-section underbench glass door refrigerator designed for high-throughput commercial kitchens that need easy ingredient access and consistent cold-chain performance without sacrificing bench space.
Why operators choose the XUB7C13G2V
-
Fan-forced cooling — Ebm-papst evaporator and condenser fans circulate cold air evenly, eliminating warm spots and keeping food safe at every shelf level.
-
See-through glass doors — Staff can identify and retrieve ingredients without breaking the cold chain, reducing door-open time during service.
-
R290 refrigerant — Low global-warming-potential refrigerant tropicalised for Australian conditions, rated to a 43°C ambient environment.
-
Full stainless steel construction — Interior and exterior stainless with rounded corners for fast, compliant cleaning between service periods.
-
Heavy-duty castors with front-wheel brakes — Unit can be positioned against the wall or rolled out for maintenance; suits any kitchen layout.
Specifications
| Brand |
FED-X |
| Model / MPN |
XUB7C13G2V |
| Type |
Underbench Glass Door Refrigerator |
| Capacity (Gross) |
282 L |
| Capacity (Net) |
207.5 L |
| Doors |
2 |
| Door Type |
Hinged Glass |
| Refrigerant |
R290 |
| Temperature Range |
-2 to +8°C |
| Ambient Temperature Rating |
43°C, 60% RH |
| Cooling System |
Fan-forced |
| Compressor |
Embraco/Secop |

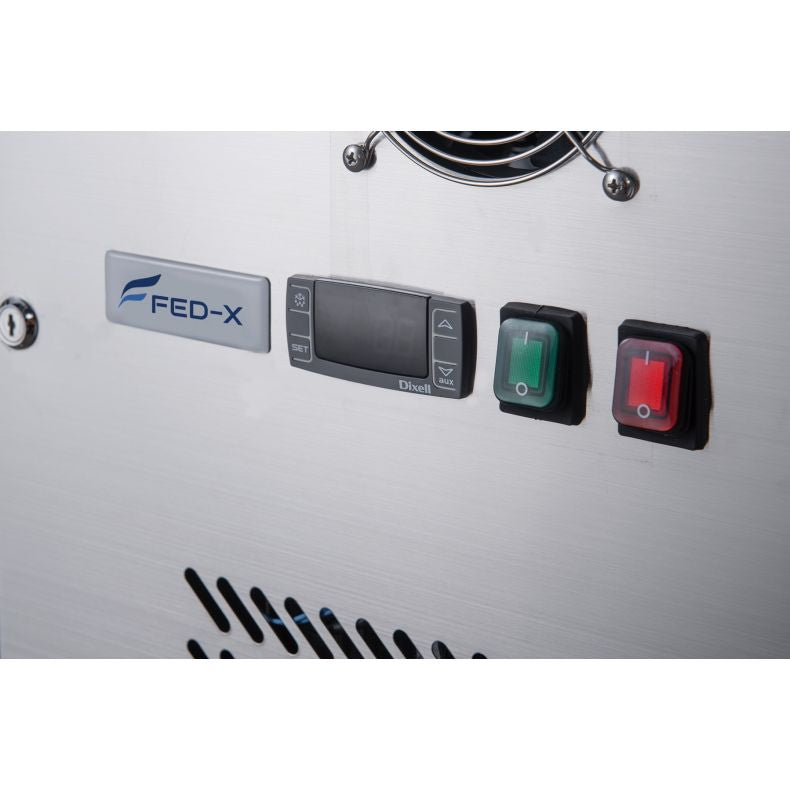

| Controller |
Dixell digital |
| Power |
240V; 215W / 1.3A |
| Lighting |
LED |
| Shelf Load Capacity |
40 kg per shelf |
| Shelves Included |
1 shelf per door (GN 1/1 compatible) |
| External Dimensions (W × D × H) |
1360 × 700 × 850 mm |
| Internal Dimensions (W × D × H) |
799 × 580 × 564 mm |
| Packed Dimensions (W × D × H) |
1390 × 730 × 910 mm |
| Net Weight |
108 kg |
| Packed Weight |
144 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Suited to cafes, restaurants, fast-food operations, butcheries, and convenience stores where bench space is premium and quick visual stock-checking is essential during service. The 700-series depth (700 mm) fits under most standard bench heights.
Pair this unit with our full range of Under Bench Fridges or explore the complete FED-X commercial refrigeration range for matching equipment.
Installation & delivery: No gas connection required — single-phase 240V plug-in. Heavy-duty front-wheel brakes allow safe repositioning once placed. Dispatched Australia-wide.
Frequently asked questions
What refrigerant does the XUB7C13G2V use?
The XUB7C13G2V uses R290 (propane), a natural refrigerant with a low global-warming potential that is fully compliant with Australian environmental standards.
What is the internal temperature range?
The unit operates between -2°C and +8°C, making it suitable for dairy, fresh produce, beverages, and prepared foods.
Is the unit GN-compatible?
Yes — each door section includes one GN 1/1 compatible shelf, and the interior is sized to accept standard gastronorm pans.
Can the fridge be placed against a wall?
Yes. The compressor and condenser are positioned on the right side of the unit, so the rear can sit flush against a wall without restricting airflow.
What warranty applies?
The XUB7C13G2V carries a 2-year parts-and-labour warranty plus a further 2 years parts-only warranty when the product is registered within 14 days of invoice — 4 years total protection.
SKU: XUB7C13G2V
In Stock
