Description

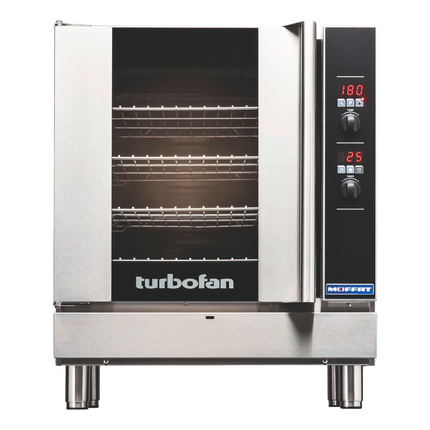

The Turbofan G32D4 is a full-size tray digital gas convection oven that delivers fast, even baking and roasting for high-output commercial kitchens, bakeries and catering operations. It holds four full-size 460mm x 660mm sheet pans and runs on a 35 MJ/h infrared burner with a bi-directional reversing fan for consistent results across every shelf.
Why operators choose the G32D4
- 35 MJ/h patented infrared gas burner with electronic ignition and bi-directional reversing fan for even heat distribution
- Digital time and temperature controls with manual and program modes (20 programs, 3-stage cooking and stage-end alarms)
- Five-level moisture injection plus manual injection for breads, pastries and roasts
- Compact 735mm width with a vitreous enamel chamber and safe-touch, field-reversible side-hinged door
- Supplied with a gas type conversion kit for either Natural Gas or LPG operation
Specifications
| Brand |
Turbofan |
| Model / MPN |
G32D4 |
| Type |
Gas Convection Oven |
| Tray Capacity |
4 x 460mm x 660mm full-size sheet pans (4 x 400mm x 600mm trays), 110mm spacing |
| Gas Input |
35 MJ/h infrared burner |
| Gas Type |
Natural Gas or LPG (conversion kit supplied) |
| Gas Connection |
1/2" BSPT male |
| Electrical |
230-240V, 50/60Hz, 1 Phase, 0.5A, 10A cordset |
| Temperature Range |
50-260°C |
| Controls |
Electronic digital time & temperature; manual + program modes |
| External Dimensions |
735(W) x 810(D) x 910(H)mm |
| Internal Dimensions |
465(W) x 700(D) x 515(H)mm |
| Net Weight |
113 kg |
| Packed Weight |
131 kg |
| Construction |
Stainless steel top & sides, vitreous enamel oven chamber |
| Warranty |
24 months parts & labour |
Venue suitability: Ideal for bakeries, cafes, hotels, function venues and production kitchens that need high-volume baking and roasting from a compact 735mm footprint. Browse the full bench top convection ovens range or compare it against the wider selection of commercial ovens to match the right capacity to your kitchen.
Installation & delivery: Connects to Natural Gas or LPG (conversion kit included) via a 1/2" BSPT male connection and a standard 10A power outlet. Professional gas installation by a licensed gasfitter is required. Dispatched Australia-wide.
Frequently asked questions
How many trays does the Turbofan G32D4 hold? It holds four full-size 460mm x 660mm sheet pans (or four 400mm x 600mm trays) with 110mm tray spacing.
Does the G32D4 run on natural gas or LPG? It runs on either — the oven is supplied with a gas type conversion kit so it can be configured for Natural Gas or LPG.
What is the gas input of the G32D4? The oven uses a 35 MJ/h patented infrared burner system with electronic ignition.
What temperature range does the G32D4 cover? The electronic thermostat is adjustable from 50°C to 260°C.
Does it need a power connection as well as gas? Yes — it requires a 230-240V single-phase 10A power outlet for the controls, fan and ignition, in addition to the gas supply.
