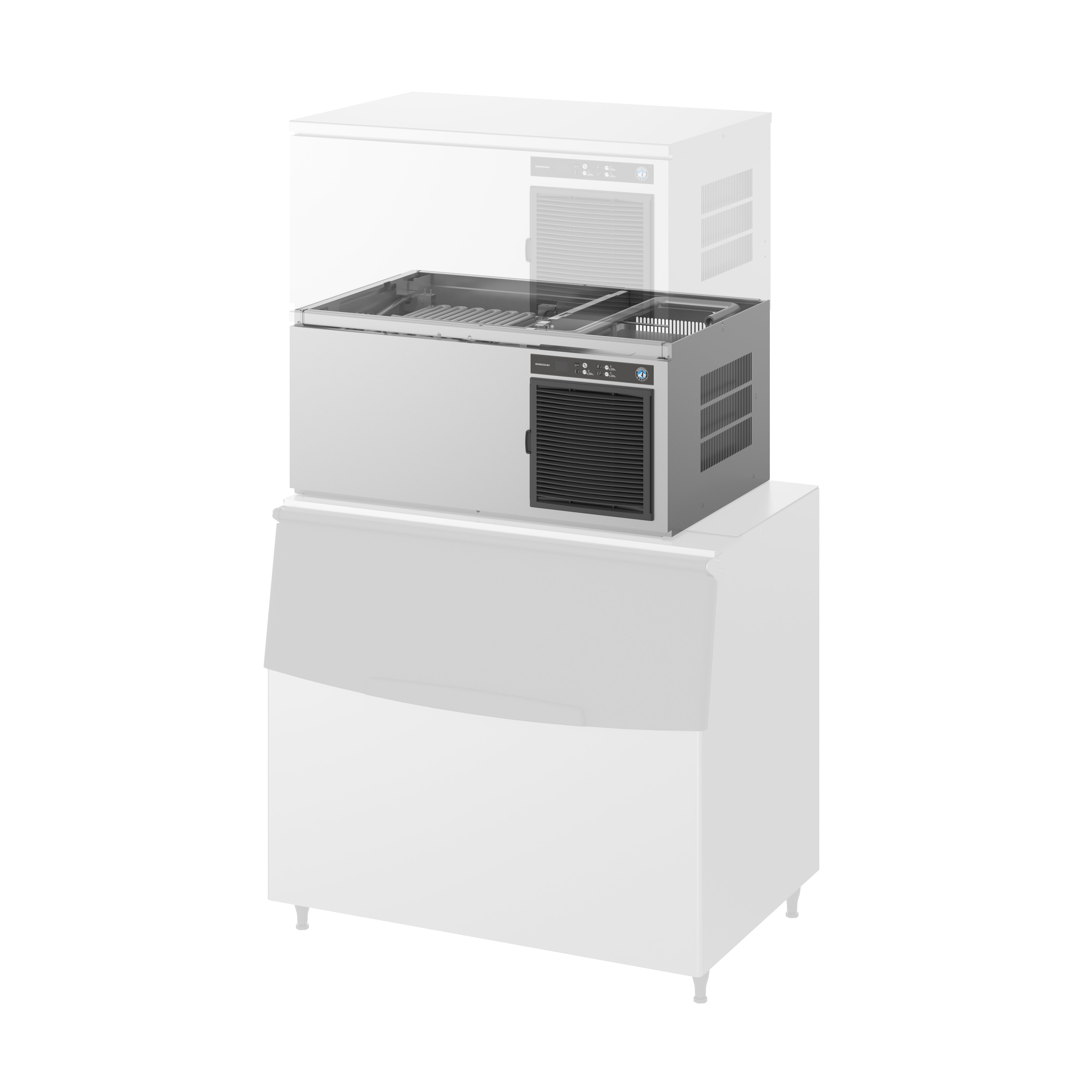

Hoshizaki 205Kg Cube Ice Maker Stackable

Description

The Hoshizaki IM-240XNE is a cube ice maker that can be stacked, capable of producing an impressive 205 kg of premium cube ice within a 24-hour timeframe.


New intelligent control circuit dedicated to saving power and water consumption.
Produces individually made cubes which are crystal-clear and slow melting.
Unique closed cell water circuit for ultimate contamination protection.
Auto rinse and flush cycle.
Micro computer controller controls ice making process to work at peak performance in any conditions.
Easily removable and cleanable air filters on front panel.
Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
Durable stainless-steel exterior.
Can be stacked and combined with modular bins and bases
Smart plug-and-play design comes complete with ice chute for an easy and quick setup


Production Capacity per 24hours Approx. 205kg /220kg @ 21°C Air temp; 15°C Water
Approx. 160kg /190kg @ 32°C Air temp; 21°C Water
Max Storage Capacity Select Bin & Kit
Freeze Cycle Time Approx. 19 Min
Ice Production Per cycle Approx. 3.2kg/140pcs
Width 1084mm
Depth 700mm
Height 500mm
Weight Net 84kg
Packed Weight 98kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
Amperage Running: 6.6A
Refrigerant Charge R404A / 480g
Operating Conditions Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage
Range: Rated Voltage ±6%
Additional Parts 87000105 High capacity Water Filter System
87000149 Water Filter System & Guage
81000116 Stainless Steel Hose
6000036 Ice Machine Installation Kit

Product Dimensions: 1084(W) x 700(D) x 500(H)mm

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

HoshizakiSKU: IM-240XNE Out of Stock

$6,938.40+GST $9,912.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code:
    VIPBRAND5

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $12.58/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN IM-240XNE
    Product Dimensions 1084(W) x 700(D) x 500(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor

    Product Documents

    Product Specification PDF

    Description

    The Hoshizaki IM-240XNE is a cube ice maker that can be stacked, capable of producing an impressive 205 kg of premium cube ice within a 24-hour timeframe.


    New intelligent control circuit dedicated to saving power and water consumption.
    Produces individually made cubes which are crystal-clear and slow melting.
    Unique closed cell water circuit for ultimate contamination protection.
    Auto rinse and flush cycle.
    Micro computer controller controls ice making process to work at peak performance in any conditions.
    Easily removable and cleanable air filters on front panel.
    Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
    Durable stainless-steel exterior.
    Can be stacked and combined with modular bins and bases
    Smart plug-and-play design comes complete with ice chute for an easy and quick setup


    Production Capacity per 24hours Approx. 205kg /220kg @ 21°C Air temp; 15°C Water
    Approx. 160kg /190kg @ 32°C Air temp; 21°C Water
    Max Storage Capacity Select Bin & Kit
    Freeze Cycle Time Approx. 19 Min
    Ice Production Per cycle Approx. 3.2kg/140pcs
    Width 1084mm
    Depth 700mm
    Height 500mm
    Weight Net 84kg
    Packed Weight 98kg
    Cooling Air
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 AMP Plug
    Amperage Running: 6.6A
    Refrigerant Charge R404A / 480g
    Operating Conditions Ambient Temp.: 1-40°C
    Water Supply Temp.: 5-35°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage
    Range: Rated Voltage ±6%
    Additional Parts 87000105 High capacity Water Filter System
    87000149 Water Filter System & Guage
    81000116 Stainless Steel Hose
    6000036 Ice Machine Installation Kit

    Product Dimensions: 1084(W) x 700(D) x 500(H)mm

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
