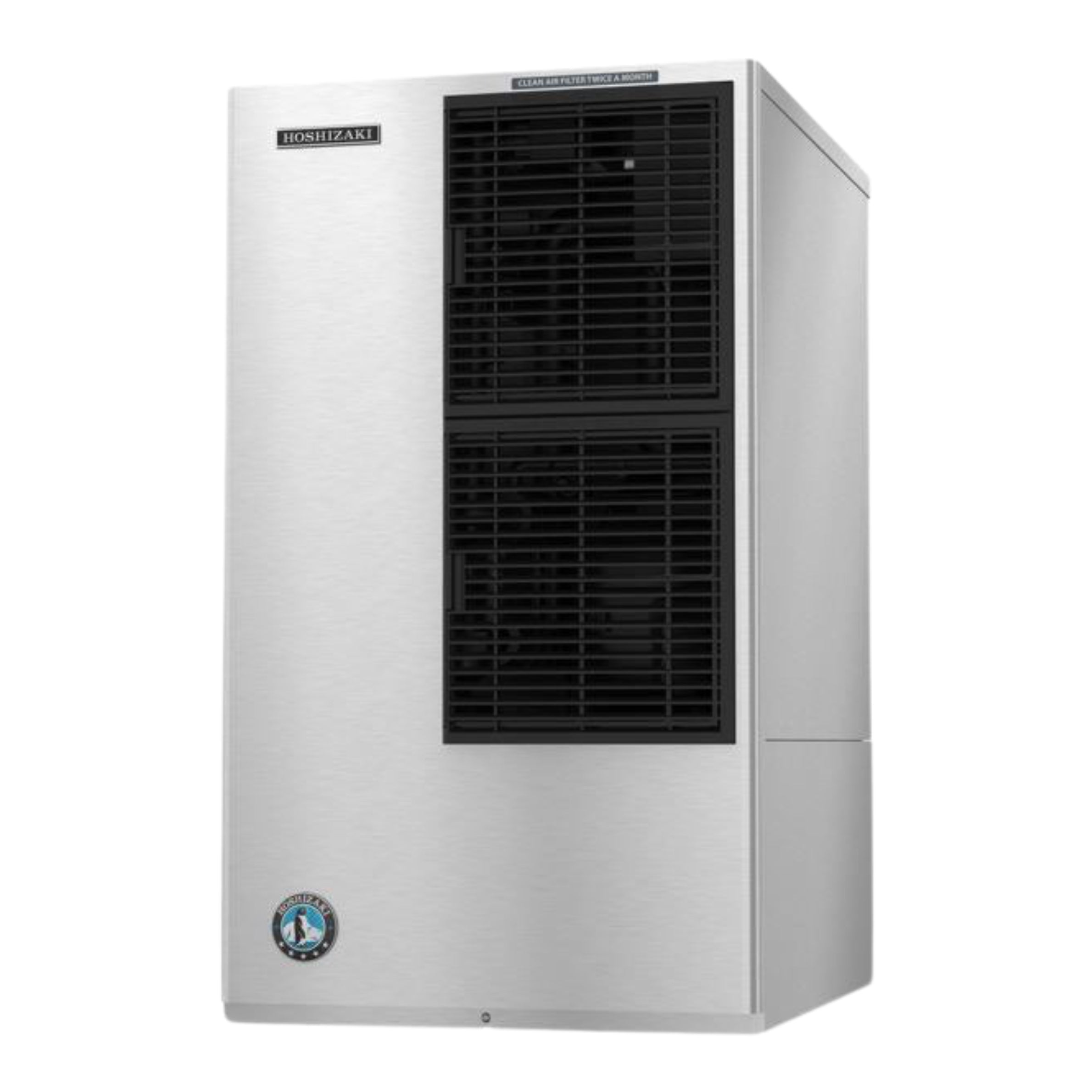

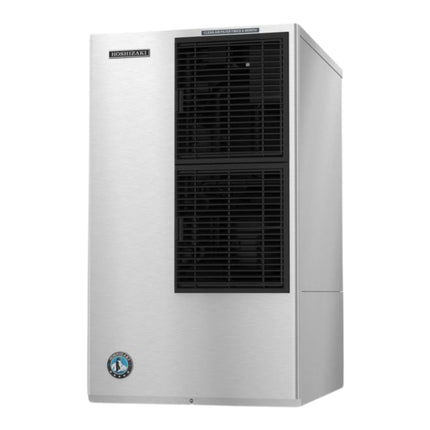

Hoshizaki 280Kg Crescent Ice Maker

Description

LEADING THE FUTURE OF ICE PRODUCTION
This modular ice maker produces clear, crescent shaped ice that is extremely versatile. The Hoshizaki KM-660MAJ ice machine produces up to 262kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.


Individual premium crescent cube.
Stainless steel evaporator.
Snap fit parts for easy cleaning.
Air-Cooled, Crescent Cuber, Ice, Ice Maker, Modular
CycleSaver Design.
EverCheck alert system.
Durable stainless steel exterior.
Removable air filters.
3 year parts & labour on the entire unit, 5 year parts & labour on the evaporator, 5 year (parts only) on compressor and air cooled condenser coil.


Production Capacity per 24hours Approx. 280kg @ 21°C Air temp; 15°C Water
Approx. 262kg @ 32°C Air temp; 21°C Water

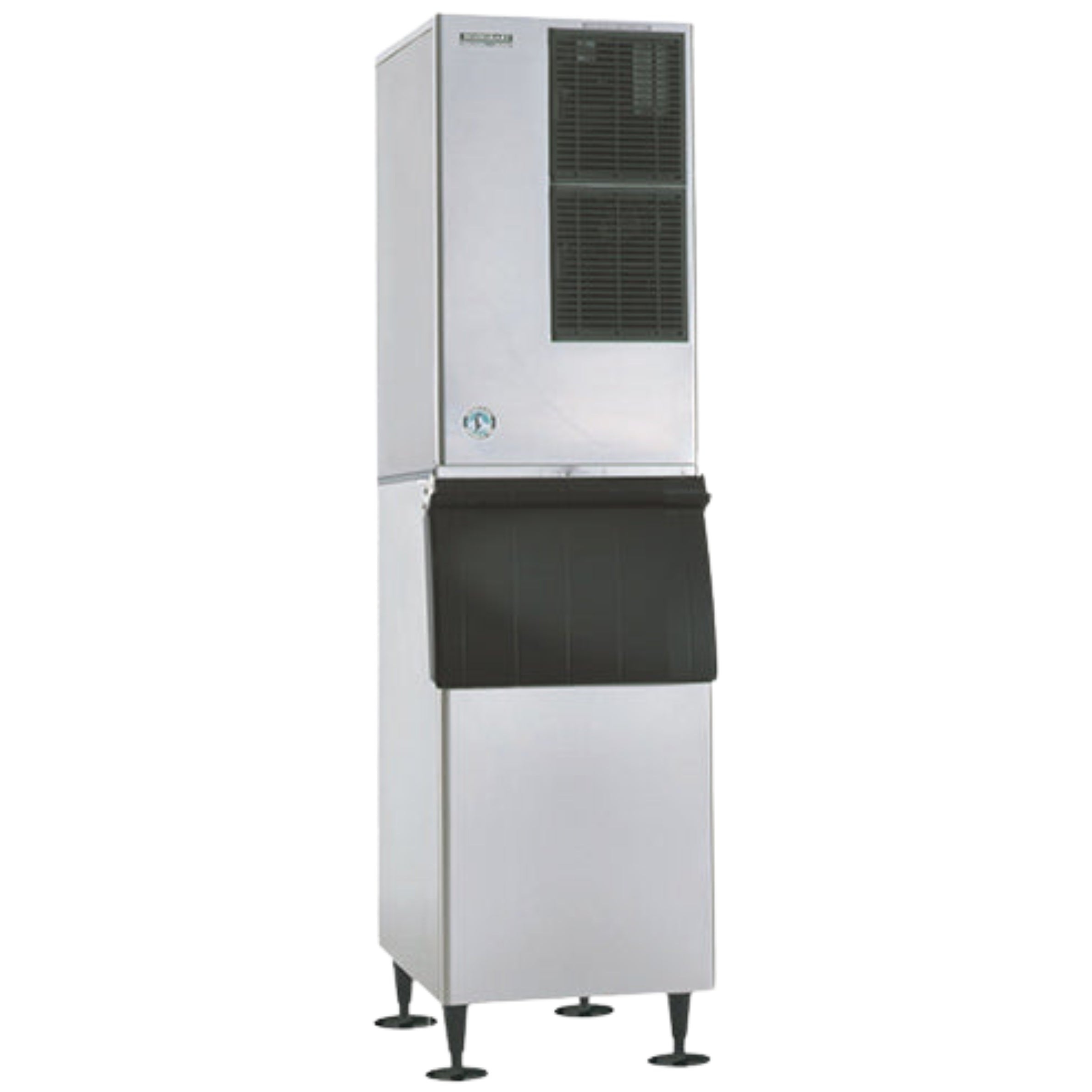

Max Storage Capacity 91000025 Ice Storage Bin
91000026 Ice Storage Bin
91000027 Ice Storage Bin
91000053 Ice Storage Bin
91000054 Ice Storage Bin
91000130 Dispenser
91000100 Hotel/Motel Ice Dispenser
91000063 Dispenser
91000131 Dispenser
Freeze Cycle Time Approx. 22-26 Min
Ice Production Per cycle Approx. 4.9kg/480pcs
Width 560mm
Depth 695mm
Height 711mm
Weight Net 59kg
Packed Weight 68kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10Amp Plug
Amperage Running: 8.4A
Refrigerant Charge R404A
Operating Conditions Ambient Temp.: 7-38°CWater Supply Temp.: 7-32°CWater Supply Pressure: 0.07-0.8MPa (0.7-8bar)Voltage Range: 198-254V
Additional Parts 91000025 Ice Storage Bin
91000026 Ice Storage Bin
91000027 Ice Storage Bin
91000053 Ice Storage Bin
91000054 Ice Storage Bin
96000006 Top Kit
96000007 Top Kit
96000008 Top Kit
64000088 Top Kit
91000130 Dispenser
91000100 Hotel/Motel Ice Dispenser
91000063 Dispenser
64000088 Top Kit
87000123 Water Filter Kit Twin 450mm cartridges
87000107 450mm Replacement Cartridge
87000149 Water Filter System & Guage
78000098 Drain pump
81000116 Stainless Steel Hose
95001013 Adjustable Leg
91000131 Dispenser
6000036 Ice Machine Installation Kit

Product Dimensions: 560(W) x 695(D) x 711(H)mm

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

Hoshizaki SKU: KM-660MAJ-E In Stock

$9,909.00+GST $14,156.00

Free pickup in our shop(s)
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code: VIPBRAND5
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $17.97/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN KM-660MAJ-E
    Product Dimensions 560(W) x 695(D) x 711(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor
    Product Specification PDF

    Description

    LEADING THE FUTURE OF ICE PRODUCTION
    This modular ice maker produces clear, crescent shaped ice that is extremely versatile. The Hoshizaki KM-660MAJ ice machine produces up to 262kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.


    Individual premium crescent cube.
    Stainless steel evaporator.
    Snap fit parts for easy cleaning.
    Air-Cooled, Crescent Cuber, Ice, Ice Maker, Modular
    CycleSaver Design.
    EverCheck alert system.
    Durable stainless steel exterior.
    Removable air filters.
    3 year parts & labour on the entire unit, 5 year parts & labour on the evaporator, 5 year (parts only) on compressor and air cooled condenser coil.


    Production Capacity per 24hours Approx. 280kg @ 21°C Air temp; 15°C Water
    Approx. 262kg @ 32°C Air temp; 21°C Water
    Max Storage Capacity 91000025 Ice Storage Bin
    91000026 Ice Storage Bin
    91000027 Ice Storage Bin
    91000053 Ice Storage Bin
    91000054 Ice Storage Bin
    91000130 Dispenser
    91000100 Hotel/Motel Ice Dispenser
    91000063 Dispenser
    91000131 Dispenser
    Freeze Cycle Time Approx. 22-26 Min
    Ice Production Per cycle Approx. 4.9kg/480pcs
    Width 560mm
    Depth 695mm
    Height 711mm
    Weight Net 59kg
    Packed Weight 68kg
    Cooling Air
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10Amp Plug
    Amperage Running: 8.4A
    Refrigerant Charge R404A
    Operating Conditions Ambient Temp.: 7-38°CWater Supply Temp.: 7-32°CWater Supply Pressure: 0.07-0.8MPa (0.7-8bar)Voltage Range: 198-254V
    Additional Parts 91000025 Ice Storage Bin
    91000026 Ice Storage Bin
    91000027 Ice Storage Bin
    91000053 Ice Storage Bin
    91000054 Ice Storage Bin
    96000006 Top Kit
    96000007 Top Kit
    96000008 Top Kit
    64000088 Top Kit
    91000130 Dispenser
    91000100 Hotel/Motel Ice Dispenser
    91000063 Dispenser
    64000088 Top Kit
    87000123 Water Filter Kit Twin 450mm cartridges
    87000107 450mm Replacement Cartridge
    87000149 Water Filter System & Guage
    78000098 Drain pump
    81000116 Stainless Steel Hose
    95001013 Adjustable Leg
    91000131 Dispenser
    6000036 Ice Machine Installation Kit

    Product Dimensions: 560(W) x 695(D) x 711(H)mm

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
