Description

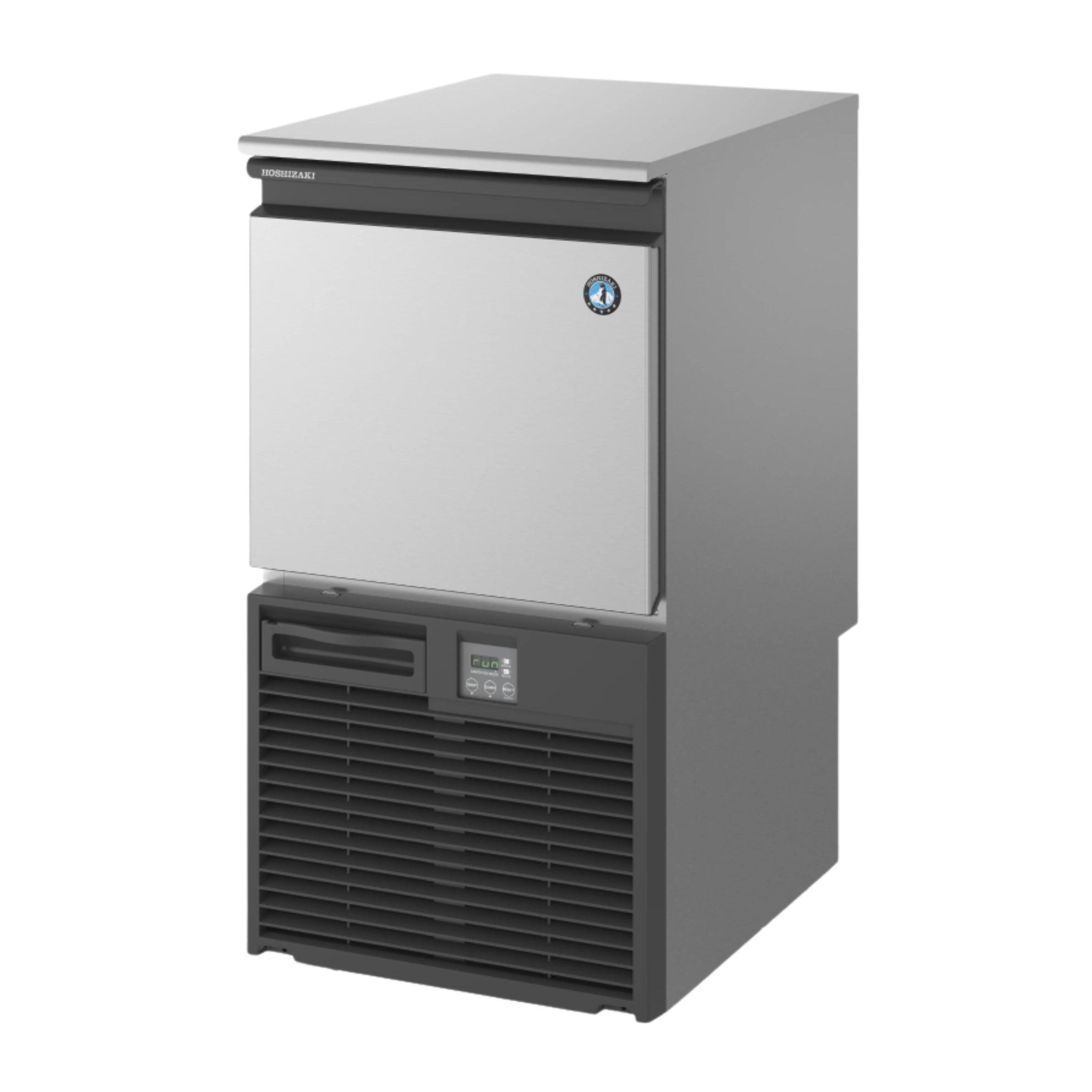

The Hoshizaki KM-40C-HC is a self-contained crescent ice maker that produces up to 41 kg of crystal-clear crescent ice over 24 hours with an integrated 16 kg storage bin, built for cafes, bars and small commercial kitchens where bench space is tight.
Why operators choose the KM-40C-HC
-
Slow-melting crescent cubes — exceptionally hard, crystal-clear individual cubes with no bridging, ideal for drinks service
-
Enlarged bonded evaporator — double-sided stainless evaporator accelerates harvest cycles for more ice in fewer cycles
-
Natural-refrigerant air cooling — R290 hydrocarbon charge and front slide-in air filter keep efficiency high and servicing simple
-
All-stainless under-bench build — durable stainless exterior on a slimline 452 mm-wide footprint that flush-mounts to a rear wall
-
Hygiene-friendly design — snap-in water tank removes easily for sanitisation, with LED indicators and audible alarms
Specifications
| Brand |
Hoshizaki |
| Model / MPN |
KM-40C-HC |
| Type |
Self-Contained Ice Maker |
| Ice Shape |
Crescent |
| Ice Production (per 24h) |
Approx. 41 kg @ 21°C air / 15°C water; approx. 33 kg @ 32°C air / 21°C water |
| Max Storage Capacity |
Approx. 16 kg |
| Freeze Cycle Time |
Approx. 23 min |
| Ice Per Cycle |
Approx. 0.71 kg / 80 pcs |
| Cooling |
Air-cooled |
| Refrigerant |
R290 / 68 g |
| Power Supply |
1 Phase 220-240V 50Hz, 10A plug |
| Power Consumption |
Approx. 209 W |
| Amperage |
Running 1.4A / Starting 7.7A |
| Operating Conditions |
Ambient 7-38°C; water supply 7-32°C |
| Product Dimensions |
452(W) x 610(D) x 988(H)mm |
| Packed Dimensions |
502(W) x 660(D) x 1038(H)mm |
| Net Weight |
39 kg |
| Packed Weight |
49 kg |
| Material |
Stainless Steel |
| Warranty |
3yr parts & labour (unit), 5yr parts & labour (evaporator), 5yr parts (compressor) |
Venue suitability: The compact 41 kg daily output and 16 kg bin suit cafes, espresso bars, small restaurants, wine bars and offices that need reliable crescent ice without a full modular machine. Browse the full range of Self Contained Ice Makers or see every model from Hoshizaki to compare output and storage.
Installation & delivery: Plugs into a standard single-phase 10A outlet and flush-mounts to a rear wall; requires a mains water supply and drainage. Dispatched Australia-wide.
Frequently asked questions
How much ice does the KM-40C-HC make per day? It produces approximately 41 kg of crescent ice per 24 hours at 21°C air / 15°C water temperatures, and around 33 kg per 24 hours in warmer 32°C conditions.
How much ice can it store? The integrated storage bin holds approximately 16 kg of ice.
Is it air-cooled or water-cooled? The KM-40C-HC is air-cooled, drawing air through a front slide-in filter, so it does not require a separate water-cooling connection.
What refrigerant does it use? It uses R290, a natural hydrocarbon refrigerant, with a 68 g charge.
What power supply does it need? It runs on a single-phase 220-240V 50Hz supply via a standard 10A plug, drawing approximately 209 W.
