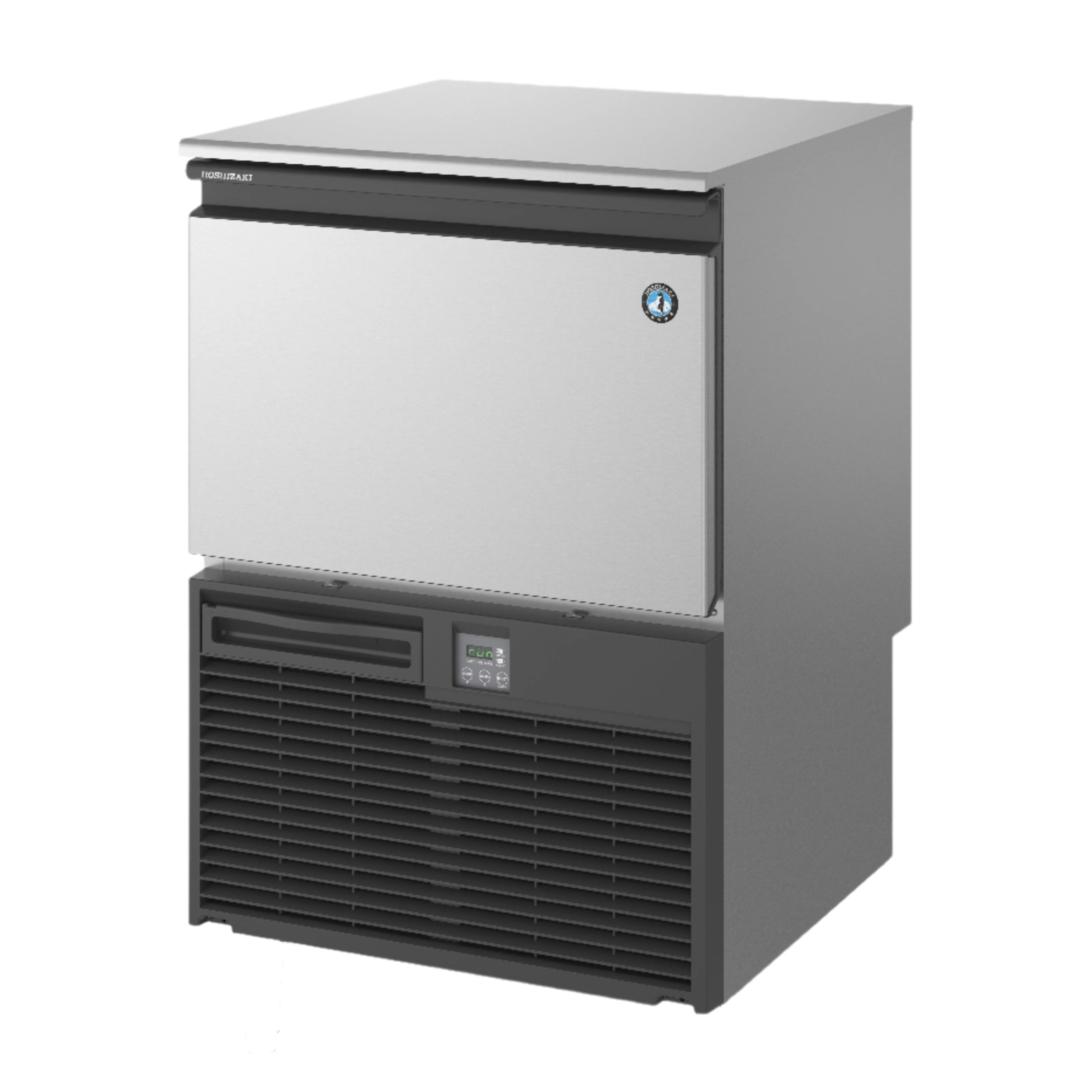

Hoshizaki 52Kg Crescent Ice Maker

Description

This Hoshizaki KM-60C-HC is a self-contained Crescent Edge ice maker producing up to 52 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.


Individual premium crescent cube with no ice bridging.
Exceptionally hard crystal clear cubes that melt slowly.
Durable stainless steel exterior.
Slide in air filter at front for easy cleaning -maintaining performance efficiency.
Double-sided stainless steel evaporator for all water conditions -produces more ice in less cycles.
Flush mount to rear wall.
Good in hard water areas.
Snap in water tank design – easy to remove for sanitization.
Low electrical consumption.
Low water consumption.
LED lights and audible alarms.
3 year parts and labour warranty on entire unit.


Production Capacity per 24hours Approx. 60kg @ 10°C Air temp; 10°C Water
Approx. 52kg @ 21°C Air temp; 15°C Water
Approx. 37kg @ 32°C Air temp; 21°C Water
Max Storage Capacity Approx. 23kg
Freeze Cycle Time Approx. 26min
Ice Production Per cycle Approx. 0.96kg / 110pcs
Width 605mm
Depth 610mm
Height 988mm
Weight Net 45kg
Packed Weight 57kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10Amp Plug
Amperage Running: 1.6A Starting: 8.5A
Refrigerant Charge R290/90g
Operating Conditions Ambient Temp.: 7-38°C
Water Supply Temp.: 7-32°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6%
Additional Parts 87000104 Low capacity Water Filter System
87000106 320mm Replacement Cartridge
87000148 Water Filter Kit & Guage
87000146 Water Filter
78000098 Drain pump
78000099 Drain pump
81000116 Stainless Steel Hose
95001013 Adjustable Leg

Product Dimensions: 605(W) x 610(D) x 988(H)mm

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

HoshizakiSKU: KM-60C-HC In Stock

$2,987.60+GST $4,268.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code:
    VIPBRAND5

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $5.42/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN KM-60C-HC
    Product Dimensions 605(W) x 610(D) x 988(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor
    Product Specification PDF

    Description

    This Hoshizaki KM-60C-HC is a self-contained Crescent Edge ice maker producing up to 52 kg of high-quality Crescent Edge Ice per 24 hours, meeting even the strictest hygiene requirements and suitable for all operational requirements and kitchen measurements.
    The KM Edge range has an enlarged, bonded evaporator surface. Accelerating harvest cycles, the technology behind the KM Edge range will help you to increase your serving capacity instantly. More ice in less amount of time.


    Individual premium crescent cube with no ice bridging.
    Exceptionally hard crystal clear cubes that melt slowly.
    Durable stainless steel exterior.
    Slide in air filter at front for easy cleaning -maintaining performance efficiency.
    Double-sided stainless steel evaporator for all water conditions -produces more ice in less cycles.
    Flush mount to rear wall.
    Good in hard water areas.
    Snap in water tank design – easy to remove for sanitization.
    Low electrical consumption.
    Low water consumption.
    LED lights and audible alarms.
    3 year parts and labour warranty on entire unit.


    Production Capacity per 24hours Approx. 60kg @ 10°C Air temp; 10°C Water
    Approx. 52kg @ 21°C Air temp; 15°C Water
    Approx. 37kg @ 32°C Air temp; 21°C Water
    Max Storage Capacity Approx. 23kg
    Freeze Cycle Time Approx. 26min
    Ice Production Per cycle Approx. 0.96kg / 110pcs
    Width 605mm
    Depth 610mm
    Height 988mm
    Weight Net 45kg
    Packed Weight 57kg
    Cooling Air
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10Amp Plug
    Amperage Running: 1.6A Starting: 8.5A
    Refrigerant Charge R290/90g
    Operating Conditions Ambient Temp.: 7-38°C
    Water Supply Temp.: 7-32°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
    Voltage Range: Rated Voltage ±6%
    Additional Parts 87000104 Low capacity Water Filter System
    87000106 320mm Replacement Cartridge
    87000148 Water Filter Kit & Guage
    87000146 Water Filter
    78000098 Drain pump
    78000099 Drain pump
    81000116 Stainless Steel Hose
    95001013 Adjustable Leg

    Product Dimensions: 605(W) x 610(D) x 988(H)mm

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
