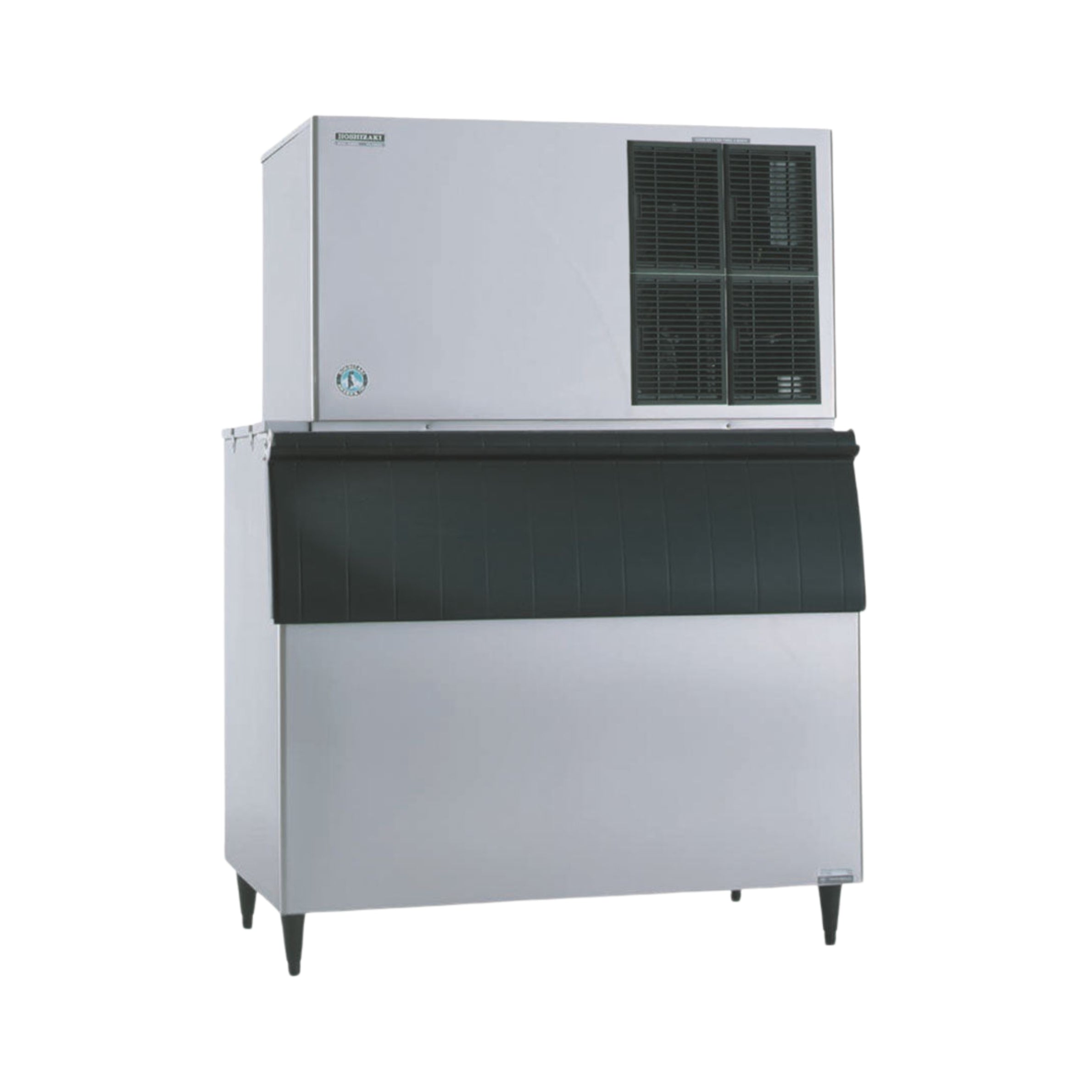

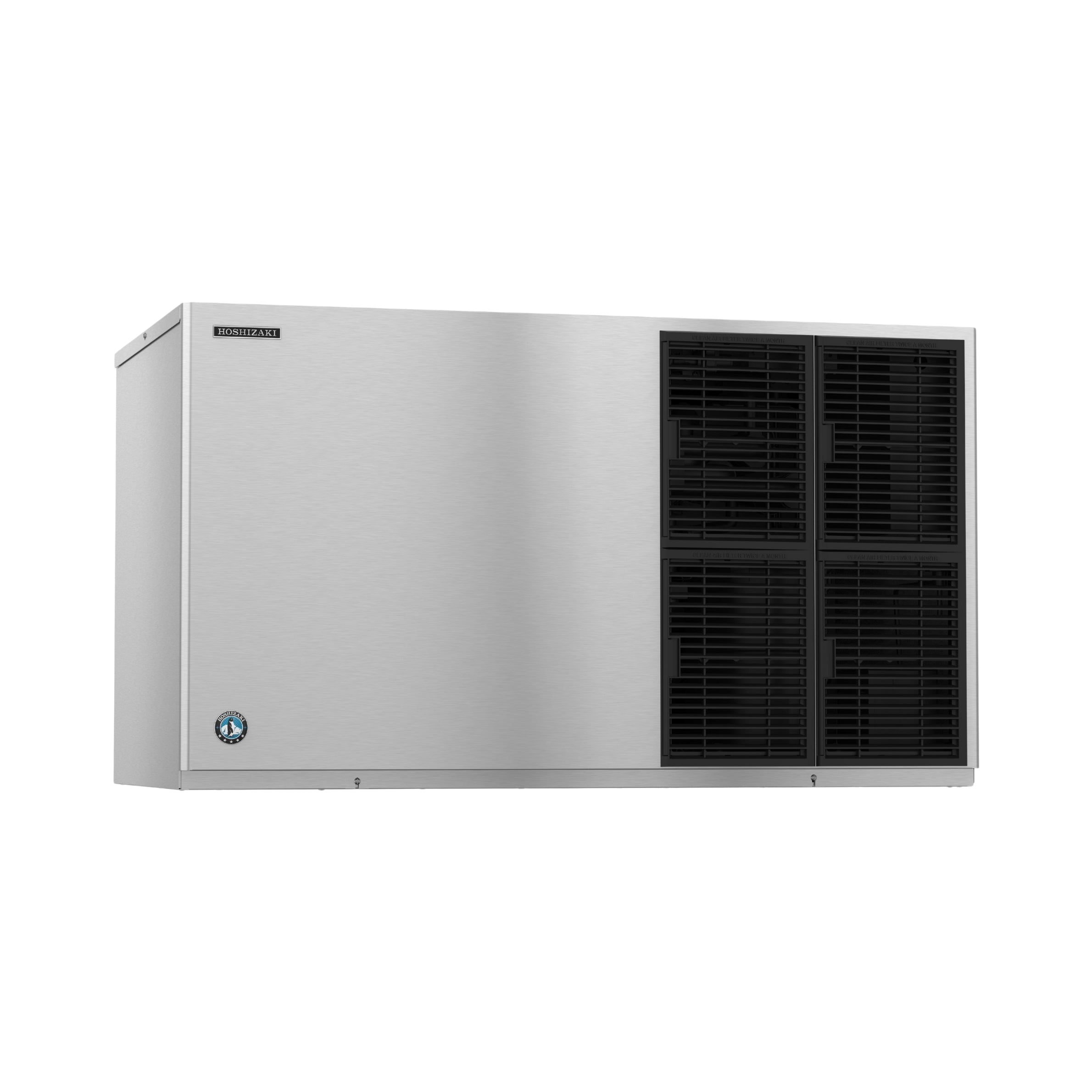

Hoshizaki 590Kg Crescent Ice Maker

Description

LEADING THE FUTURE OF ICE PRODUCTION
The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.


Individually shaped crescent ice.
Protected by HoshiGuard Antimicrobial Agent.
CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
Durable stainless steel exterior.
Easily removable & cleanable air filters on front panel.
Ice storage bin, top kit and water filter sold separately.


FFFFFF ​

Product Dimensions: 1219(W) x 695(D) x 695(H)mm

Production Capacity per 24hours Approx. 630kg @ 10°C Air temp; 10°C Water
Approx. 590kg @ 21°C Air temp; 15°C Water
Approx. 500kg @ 32°C Air temp; 21°C Water
Freeze Cycle Time Approx. 28min
Ice Production Per cycle Approx. 12.9kg / 1,440pcs
Width 1219mm
Depth 695mm
Height 695mm
Weight Net 136kg
Packed Weight 160kg
Cooling Air
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 15 Amp Plug
Amperage Running: 11.35A Starting: 58A
Refrigerant Charge R404A/1,900g
Operating Conditions Ambient Temp.: 7-38°C
Water Supply Temp.: 7-32°C
Water Supply Pressure: 0.07-0.78MPa (0.7-7.8bar)
Voltage Range: 198 – 254V
Electrical consumption 2,080W (AT. 32°C; WT 21°C)
Water Consumption Approx. 1.15m3/d (AT. 21°C; WT 15°C)

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

Hoshizaki SKU: KM-590DJ-S In Stock

$14,274.00+GST $20,392.00

Free pickup in our shop(s)
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code: VIPBRAND5
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $25.88/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN KM-590DJ-S
    Product Dimensions 1219(W) x 695(D) x 695(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor
    Product Specification PDF

    Description

    LEADING THE FUTURE OF ICE PRODUCTION
    The Hoshizaki KM-590DJ-S ice machine produces up to 590kg of clear hard crescent ice a day and has a range of ice storage bins to suit your needs.


    Individually shaped crescent ice.
    Protected by HoshiGuard Antimicrobial Agent.
    CycleSaver® technology includes a double-sided evaporator, uniquely crafted in stainless steel, which produces ice on both sides, resulting in more ice in less amount of time.
    EverCheck Control board with audible alarm and diagnostic features, designed to assist services technicians in diagnosing problems.
    Durable stainless steel exterior.
    Easily removable & cleanable air filters on front panel.
    Ice storage bin, top kit and water filter sold separately.


    FFFFFF ​

    Product Dimensions: 1219(W) x 695(D) x 695(H)mm

    Production Capacity per 24hours Approx. 630kg @ 10°C Air temp; 10°C Water
    Approx. 590kg @ 21°C Air temp; 15°C Water
    Approx. 500kg @ 32°C Air temp; 21°C Water
    Freeze Cycle Time Approx. 28min
    Ice Production Per cycle Approx. 12.9kg / 1,440pcs
    Width 1219mm
    Depth 695mm
    Height 695mm
    Weight Net 136kg
    Packed Weight 160kg
    Cooling Air
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 15 Amp Plug
    Amperage Running: 11.35A Starting: 58A
    Refrigerant Charge R404A/1,900g
    Operating Conditions Ambient Temp.: 7-38°C
    Water Supply Temp.: 7-32°C
    Water Supply Pressure: 0.07-0.78MPa (0.7-7.8bar)
    Voltage Range: 198 – 254V
    Electrical consumption 2,080W (AT. 32°C; WT 21°C)
    Water Consumption Approx. 1.15m3/d (AT. 21°C; WT 15°C)

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
