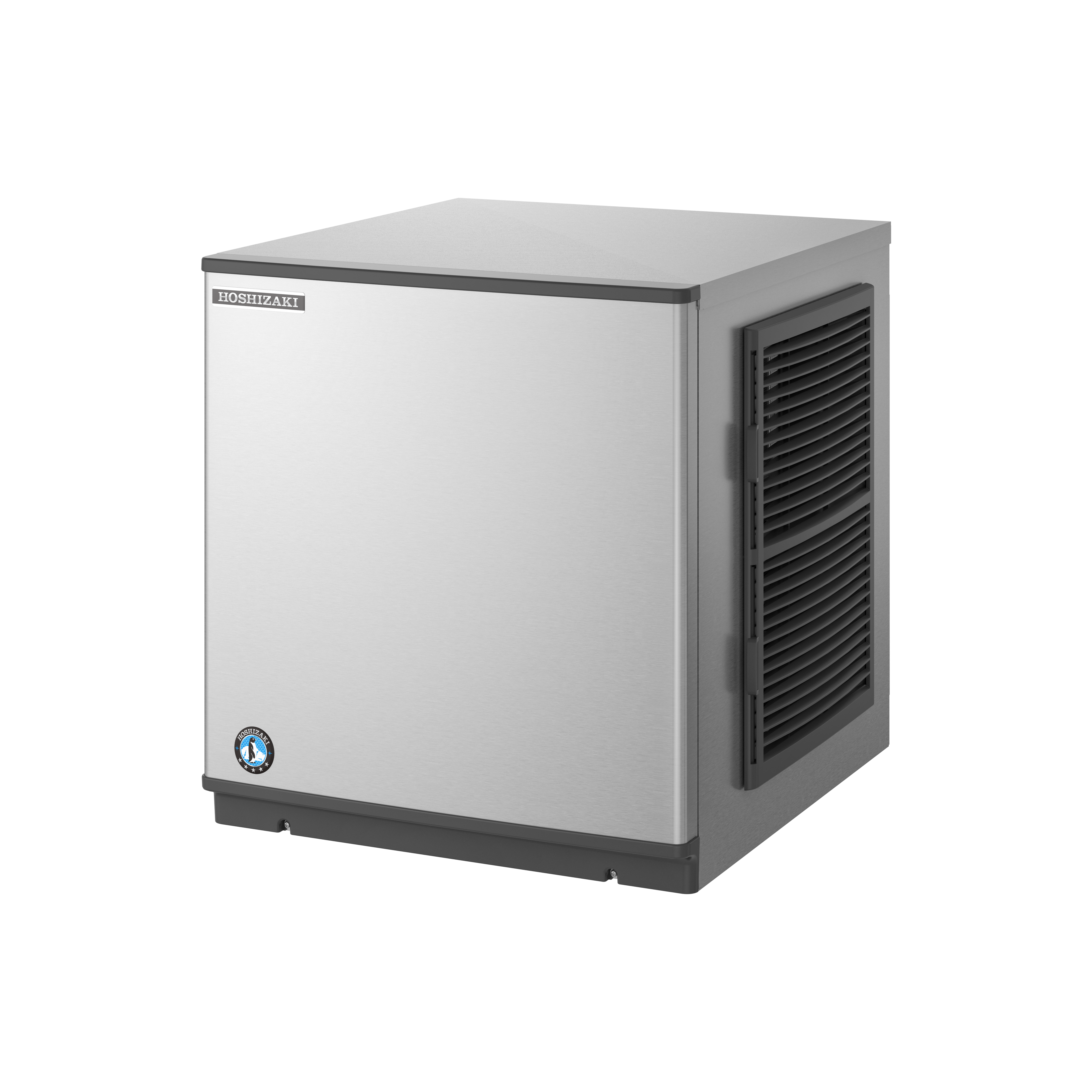

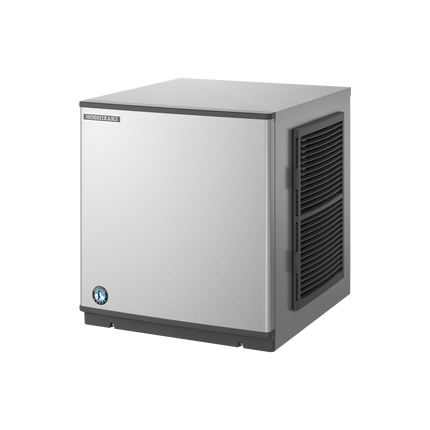

Hoshizaki Modular Crescent Ice Maker - 255kg

Description

LEADING THE FUTURE OF ICE PRODUCTION

The Hoshizaki KMD-270AB ice machine produces up to 221kg of clear hard crescent ice a day.It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption. The CycleSaver® design allows our crescent ice makers to produce more ice, using less energy, while cycling 1/2 as many times as the competition.


  • Individual premium crescent cube with no ice bridging.
  • Exceptionally hard crystal clear cubes that melt slowly.
  • Durable stainless steel exterior.
  • Slide in air filter for easy cleaning – maintaining performance efficiency.
  • Patented double sided stainless steel evaporator fro all water conditions – produces more ice in less cycles.
  • Audible alarms.
  • 3 year parts & labour on entire unit, 5 year parts & labour on the evaporator,5 year (parts only) on compressor and air cooled condenser coil.

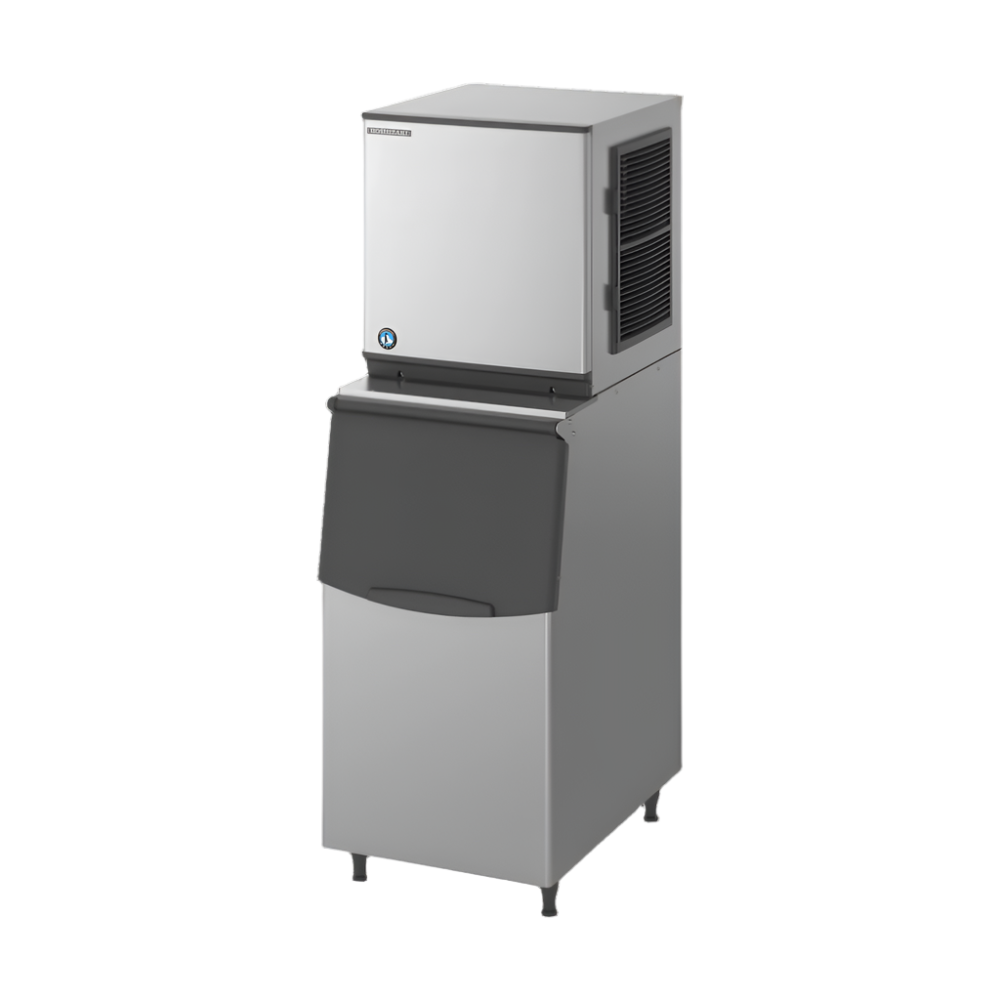

Disclaimer: Image shown displays the KMD-270AB with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)


Production Capacity per 24hours Approx. 275kg @10°C Air temp; 10°C Water
Approx. 255kg @21°C Air temp; 15°C Water
Approx. 221kg @32°C Air temp; 21°C Water
Max Storage Capacity Select Bin and Kit
Freeze Cycle Time Approx. 26.8 Min
Ice Production Per cycle Approx. 5.3kg/572pcs
Dimensions 560mm (W) x 625mm (D) x 610mm (H)
(Not incl.Bin Sw)
Cooling Air
Weight Net/Gross (kg) 57 / 73
AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 Amp Plug
Amperage Running: 4.9A Starting: 24A
Refrigerant Charge R404A / 780g
Operating Conditions Ambient Temp.: 7-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: 198-254V

Product Dimensions: 560(W) x 625(D) x 610(H)mm

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

HoshizakiSKU: KMD-270AB In Stock

$5,819.00+GST $8,313.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code:
    VIPBRAND5

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $10.55/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN KMD-270AB
    Product Dimensions 560(W) x 625(D) x 610(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor
    Product Specification PDF

    Description

    LEADING THE FUTURE OF ICE PRODUCTION

    The Hoshizaki KMD-270AB ice machine produces up to 221kg of clear hard crescent ice a day.It includes a double-sided stainless steel evaporator, which requires fewer cycles to produce a full bin of ice, thereby reducing energy consumption. The CycleSaver® design allows our crescent ice makers to produce more ice, using less energy, while cycling 1/2 as many times as the competition.


    • Individual premium crescent cube with no ice bridging.
    • Exceptionally hard crystal clear cubes that melt slowly.
    • Durable stainless steel exterior.
    • Slide in air filter for easy cleaning – maintaining performance efficiency.
    • Patented double sided stainless steel evaporator fro all water conditions – produces more ice in less cycles.
    • Audible alarms.
    • 3 year parts & labour on entire unit, 5 year parts & labour on the evaporator,5 year (parts only) on compressor and air cooled condenser coil.

    Disclaimer: Image shown displays the KMD-270AB with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)


    Production Capacity per 24hours Approx. 275kg @10°C Air temp; 10°C Water
    Approx. 255kg @21°C Air temp; 15°C Water
    Approx. 221kg @32°C Air temp; 21°C Water
    Max Storage Capacity Select Bin and Kit
    Freeze Cycle Time Approx. 26.8 Min
    Ice Production Per cycle Approx. 5.3kg/572pcs
    Dimensions 560mm (W) x 625mm (D) x 610mm (H)
    (Not incl.Bin Sw)
    Cooling Air
    Weight Net/Gross (kg) 57 / 73
    AC Supply Voltage 1 PHASE 220-240V 50Hz/ 10 Amp Plug
    Amperage Running: 4.9A Starting: 24A
    Refrigerant Charge R404A / 780g
    Operating Conditions Ambient Temp.: 7-40°C
    Water Supply Temp.: 5-35°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
    Voltage Range: 198-254V

    Product Dimensions: 560(W) x 625(D) x 610(H)mm

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
