Hoshizaki Nugget Modular Ice Machine - 360kg FM-480AKE

Description

PURE & COOL ICE MACHINE

Hoshizaki’s Flake ice makers produce flakes consisting of 70%ice and 30% water, used primarily for cooling purposes. It is even used in large facilities such as healthcare, catering, supermarket chains or even cocktail bars. Hoshizaki’s Ice Makers are the Best Cocktail & Bar Ice Machines For Sale in Australia.


  • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
  • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
  • Automatic flush function, helps keep the ice making system clean.
  • Controller board with Operational Status display assists in troubleshooting.
  • Due to the auger system, water consumption is equal to ice production.
  • Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
  • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.

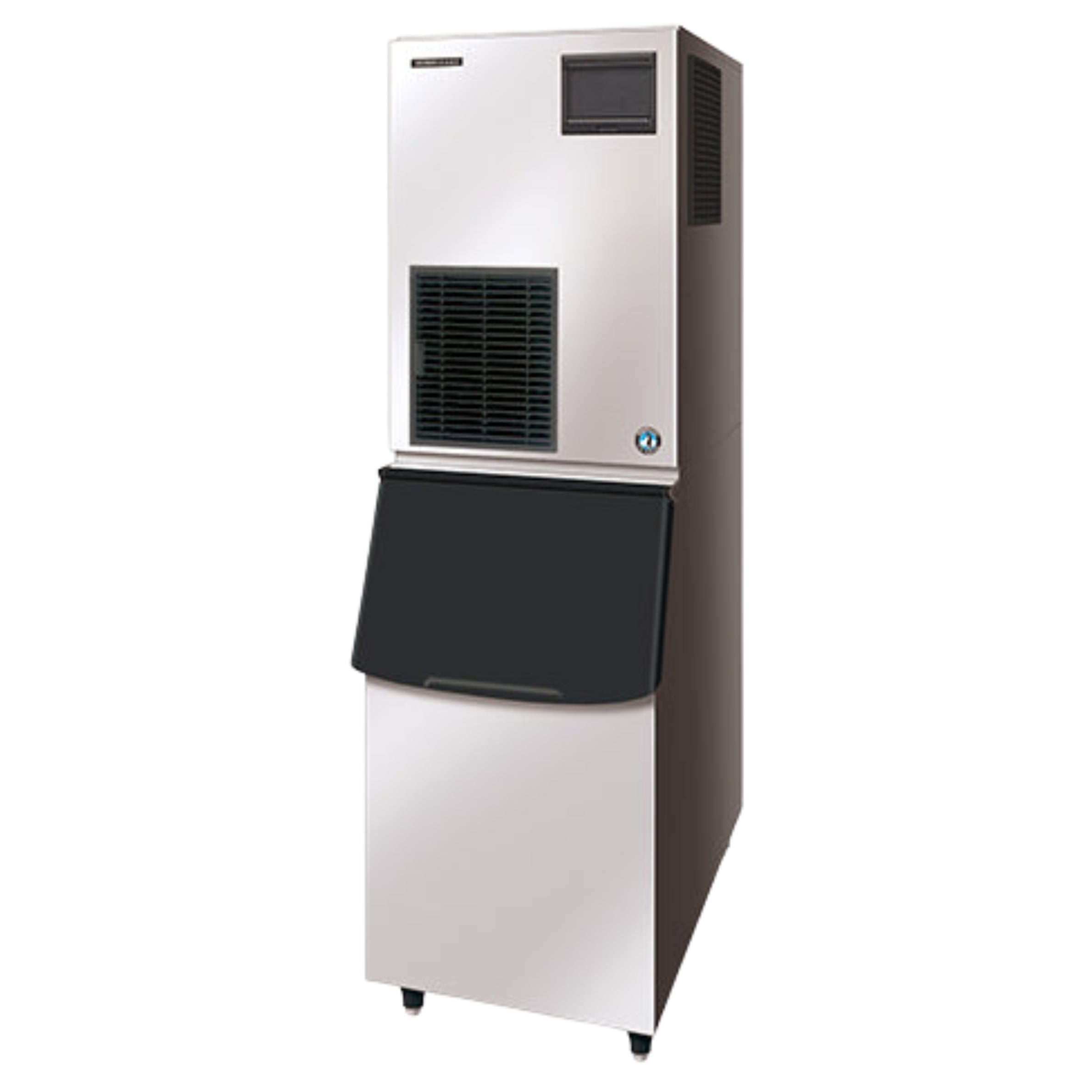

Disclaimer: Image shown displays the Hoshizaki FM-480AKE with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

Production Capacity per 24hours Approx. 500kg @10°C Air temp; 10°C Water
Approx. 425kg @ 21°C Air temp; 15°C water
Approx. 325kg @ 32°C Air temp; 21°C water
Max Storage Capacity Select bin and kit
Dimensions 560mm (W) x 700mm (D) x 780mm (H)
Cooling Air
Weight Net/Gross (kg) 95 / 102
AC Supply Voltage 1 PHASE 230V 50Hz/ 10 AMP Plug
Amperage Running: 8.4A Starting: 43A
Refrigerant Charge R404A
Operating Conditions Ambient Temp.: 5-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±10%

Product Dimensions: 560(W) x 700(D) x 780(H)mm

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

HoshizakiSKU: FM-480AKE Out of Stock

$8,334.20+GST $11,906.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 5% OFF on Hoshizaki – Use Code:
    VIPBRAND5

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $15.11/day

    Apply Now

    Specifications
    Brand Hoshizaki
    MPN FM-480AKE
    Product Dimensions 560(W) x 700(D) x 780(H)mm
    Power 240V
    Warranty 3yr Parts and Labour on Ice Maker, 5yr Parts and Labour on Evaporator and 5 yr parts only on Compressor
    Product Specification PDF

    Description

    PURE & COOL ICE MACHINE

    Hoshizaki’s Flake ice makers produce flakes consisting of 70%ice and 30% water, used primarily for cooling purposes. It is even used in large facilities such as healthcare, catering, supermarket chains or even cocktail bars. Hoshizaki’s Ice Makers are the Best Cocktail & Bar Ice Machines For Sale in Australia.


    • “Freeze Burn” is no longer an issue when displaying fresh fish or produce.
    • Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
    • Automatic flush function, helps keep the ice making system clean.
    • Controller board with Operational Status display assists in troubleshooting.
    • Due to the auger system, water consumption is equal to ice production.
    • Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
    • 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.

    Disclaimer: Image shown displays the Hoshizaki FM-480AKE with the Hoshizaki Ice Bin (Bin SOLD SEPARATELY)

    Production Capacity per 24hours Approx. 500kg @10°C Air temp; 10°C Water
    Approx. 425kg @ 21°C Air temp; 15°C water
    Approx. 325kg @ 32°C Air temp; 21°C water
    Max Storage Capacity Select bin and kit
    Dimensions 560mm (W) x 700mm (D) x 780mm (H)
    Cooling Air
    Weight Net/Gross (kg) 95 / 102
    AC Supply Voltage 1 PHASE 230V 50Hz/ 10 AMP Plug
    Amperage Running: 8.4A Starting: 43A
    Refrigerant Charge R404A
    Operating Conditions Ambient Temp.: 5-40°C
    Water Supply Temp.: 5-35°C
    Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
    Voltage Range: Rated Voltage ±10%

    Product Dimensions: 560(W) x 700(D) x 780(H)mm

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
