Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

Description

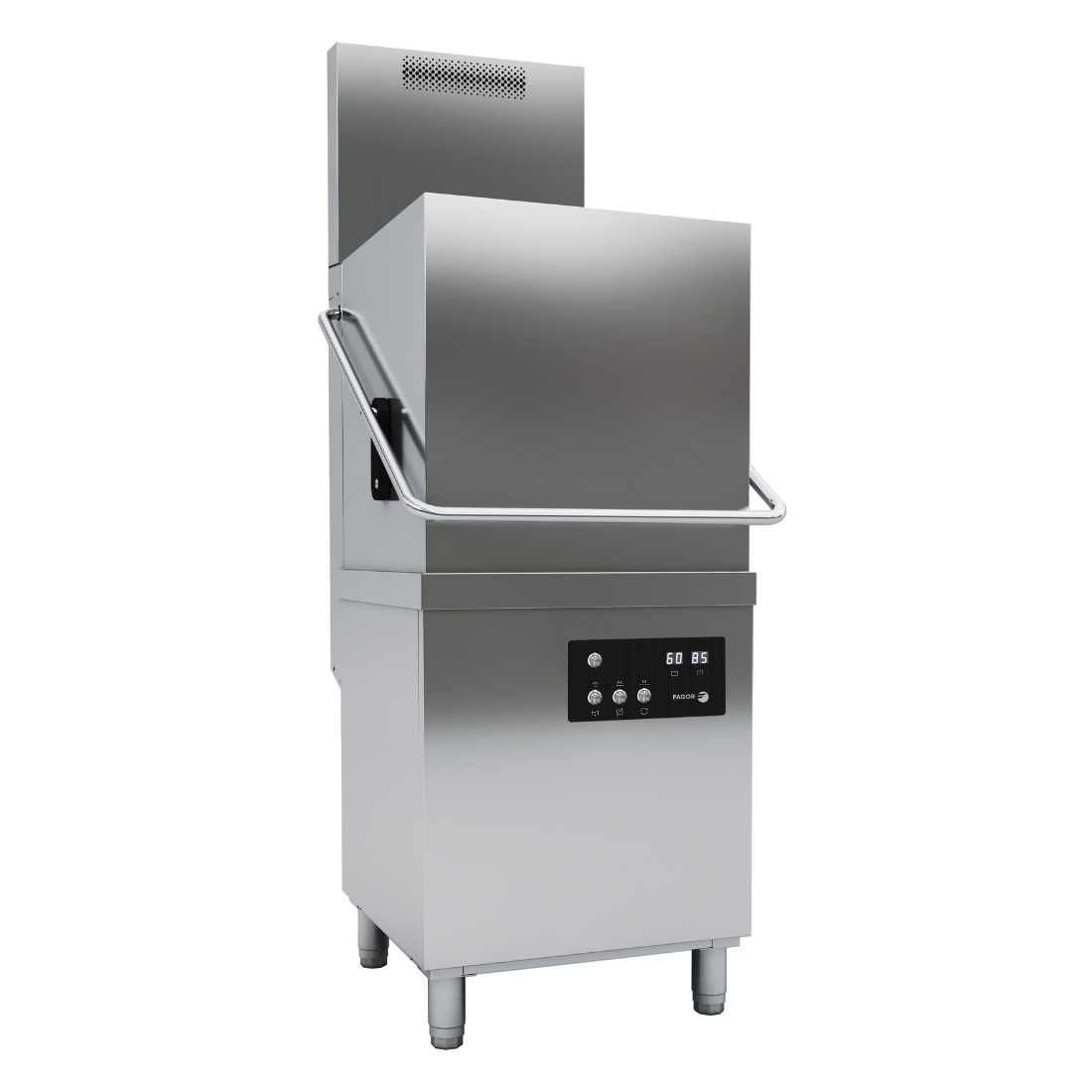

iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser



Key Features

  • Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
  • Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
  • Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
  • No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
  • Hourly production: 40 baskets/ hour
  • Clearance (max ware height): 450mm
  • Electronic control
  • Wash cycles: 90-120-180-480
  • Double rotating wash and rinse systems, made of AISI-304 stainless steel
  • Wash pump, 750W each
  • Drain pump: 100W drainage cycle
  • Tank with 3 kW heating power
  • Tank capacity: 33 litres
  • Water consumption: 2.2 litres/cycle
  • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
  • Two-digit LED displays
  • Hydraulic rinse aid dispenser
  • Dual-flow wash pump with soft-start
  • Double-stage filtration system
  • Dual-flow wash pumps
  • A magnetic micro switch to stop the cycle in case of accidental opening of hood
  • Adjustable legs
  • Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
  • Watermark approved
  • Can be converted to single phase
  • Precision of working temperatures
  • Temperature control by electronic probes
  • Configurable control
  • i-ERROR DIAGNOSIS: Error identification on screen
  • Basket: 500x500
  • Drain pump




2 Years Parts and Labour Warranty

Product form

FagorSKU: WHC-502TRCBD In Stock

$12,316.50+GST $14,490.00

Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included
    🔥 Limited Time: Extra 10% OFF on Fagor – Use Code:
    VIPBRAND10
    🚚
    Eligible for Free Kerbside Delivery Metro Sydney, Melbourne, Brisbane & Adelaide
    FREE
    ✨

    Maximise Savings: Choose either Free Delivery or a Coupon at checkout— Whichever saves you more! See details →

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $22.33/day

    Apply Now

    Specifications
    Brand Fagor
    MPN WHC-502TRCBD
    Product Dimensions 630(W) x 750(D) x 1975(H)mm
    Power 415V, 9.75kW/3~N
    Warranty 2 Years Parts and Labour Warranty
    Product Specification PDF

    Description

    iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

    Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser



    Key Features

    • Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
    • Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
    • Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
    • No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
    • Hourly production: 40 baskets/ hour
    • Clearance (max ware height): 450mm
    • Electronic control
    • Wash cycles: 90-120-180-480
    • Double rotating wash and rinse systems, made of AISI-304 stainless steel
    • Wash pump, 750W each
    • Drain pump: 100W drainage cycle
    • Tank with 3 kW heating power
    • Tank capacity: 33 litres
    • Water consumption: 2.2 litres/cycle
    • Thermostatic temperature control: washing at 60 ℃ and rinsing at 85 ℃
    • Two-digit LED displays
    • Hydraulic rinse aid dispenser
    • Dual-flow wash pump with soft-start
    • Double-stage filtration system
    • Dual-flow wash pumps
    • A magnetic micro switch to stop the cycle in case of accidental opening of hood
    • Adjustable legs
    • Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
    • Watermark approved
    • Can be converted to single phase
    • Precision of working temperatures
    • Temperature control by electronic probes
    • Configurable control
    • i-ERROR DIAGNOSIS: Error identification on screen
    • Basket: 500x500
    • Drain pump




    2 Years Parts and Labour Warranty
