Description

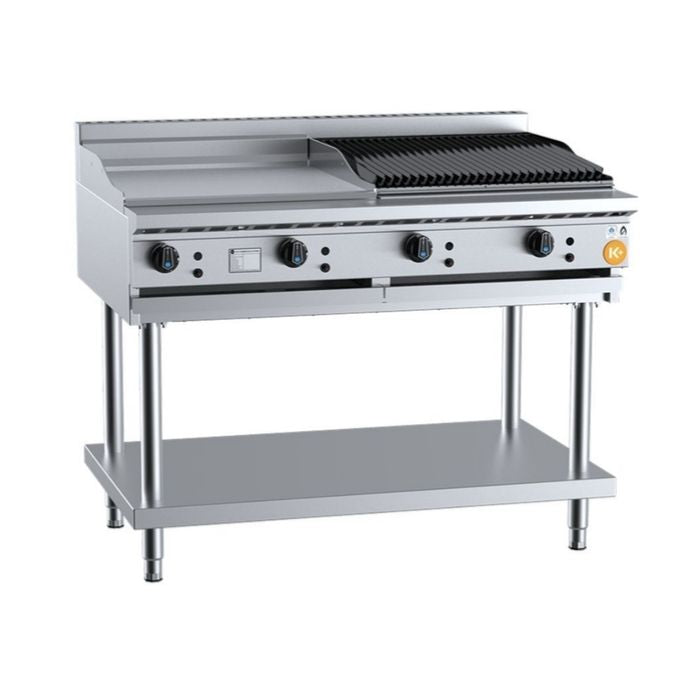

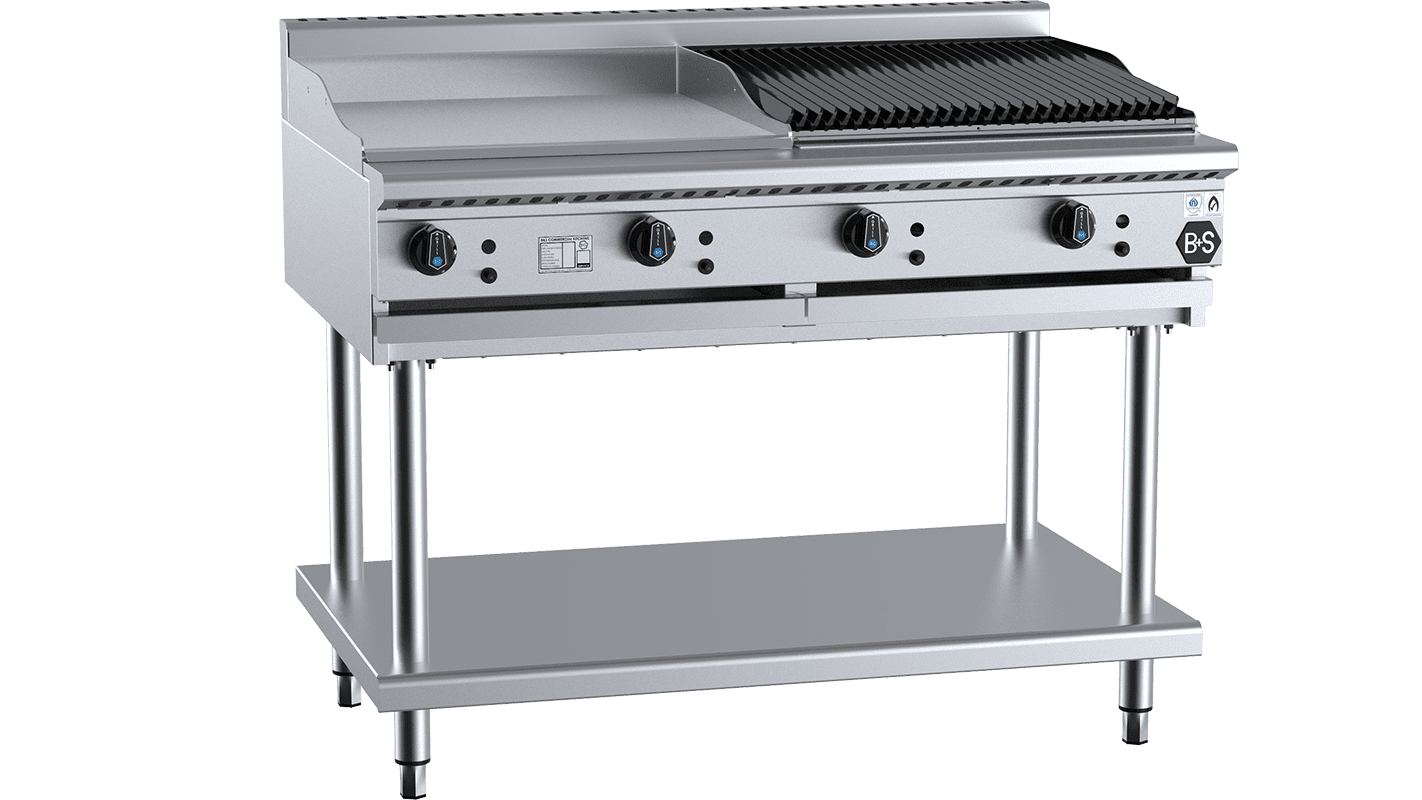

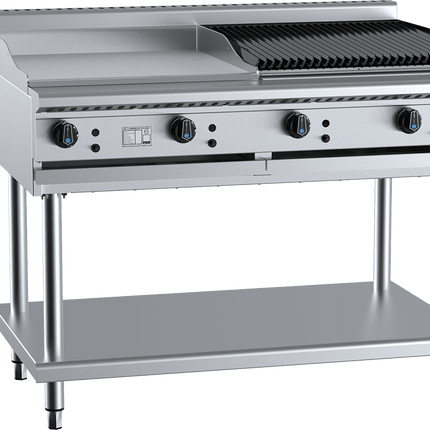

The B+S BT-GRP6-CBR6 is a gas grill plate and char broiler combination that pairs a 600mm smooth grill plate with a 600mm char broiler on a single stand, giving a busy kitchen two distinct cooking surfaces in one 1200mm footprint.
Why operators choose the BT-GRP6-CBR6
- 600mm heavy-duty 16mm mild-steel grill plate with a top-welded, smooth finish for steaks, eggs and breakfast service
- 600mm char broiler with reversible cast-iron J-Grates and radiant hoods for flat or inclined char-grilling
- 22MJ aluminised tube burner per 300mm on the grill side and a 34MJ stainless U-Burner per 300mm on the char side
- Flame failure device and piezo pilot ignition fitted as standard, with a multi-setting gas valve for fine flame control
- AISI-grade stainless steel frame with a full undershelf and easy-clean fat spillage trays
Specifications
| Brand |
B+S |
| Model / MPN |
BT-GRP6-CBR6 |
| Type |
Grill plate & char broiler combination |
| Series |
B+S Black Series |
| Grill plate |
600mm smooth, 16mm-thick mild steel, top welded |
| Char broiler |
600mm, cast-iron reversible J-Grates with radiant hoods |
| Gas type |
Natural Gas |
| Gas consumption |
112 MJ/h (NG) |
| Grill burner |
22MJ aluminised tube burner per 300mm section |
| Char broiler burner |
34MJ stainless steel U-Burner per 300mm section |
| Ignition |
Piezo pilot ignition with flame failure device |
| Gas connection |
3/4" (M) BSP, regulator included |
| Construction |
AISI-grade stainless steel frame with undershelf |
| Overall dimensions |
1200(W) x 840(D) x 1030(H)mm |
| Approval number |
GMK 10686 |
| Warranty |
24 months |
Venue suitability: A grill-and-char combination suits high-throughput kitchens — pubs, steakhouses, burger bars and hotels — that need both a flat plate and a char surface on one line. Browse more options in our griddles range or compare dedicated chargrills to plan your cookline.
Installation & delivery: Gas equipment must be installed by a licensed gasfitter in accordance with AS/NZS 5601; the gas regulator is included. Dispatched Australia-wide.
Frequently asked questions
Is the BT-GRP6-CBR6 natural gas or LPG? This configuration is supplied for natural gas, with a total gas input of 112 MJ/h. B+S also builds the same unit for LPG (104 MJ/h).
What are the two cooking surfaces? A 600mm smooth 16mm mild-steel grill plate on the left and a 600mm cast-iron char broiler on the right, each with its own burners and controls.
What are the overall dimensions? 1200mm wide x 840mm deep x 1030mm high, including the stand with undershelf.
Does it come with a gas regulator? Yes, the gas regulator is included with the unit; installation must follow AS/NZS 5601.
What warranty does it carry? The B+S Black Series carries a 24-month warranty.
