Description

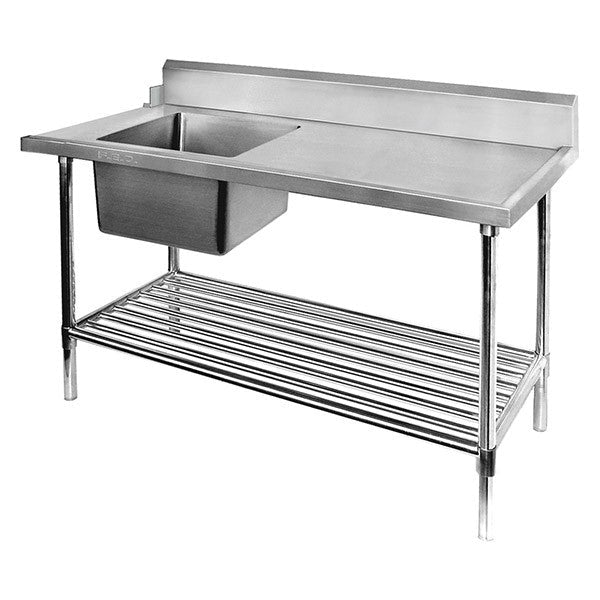

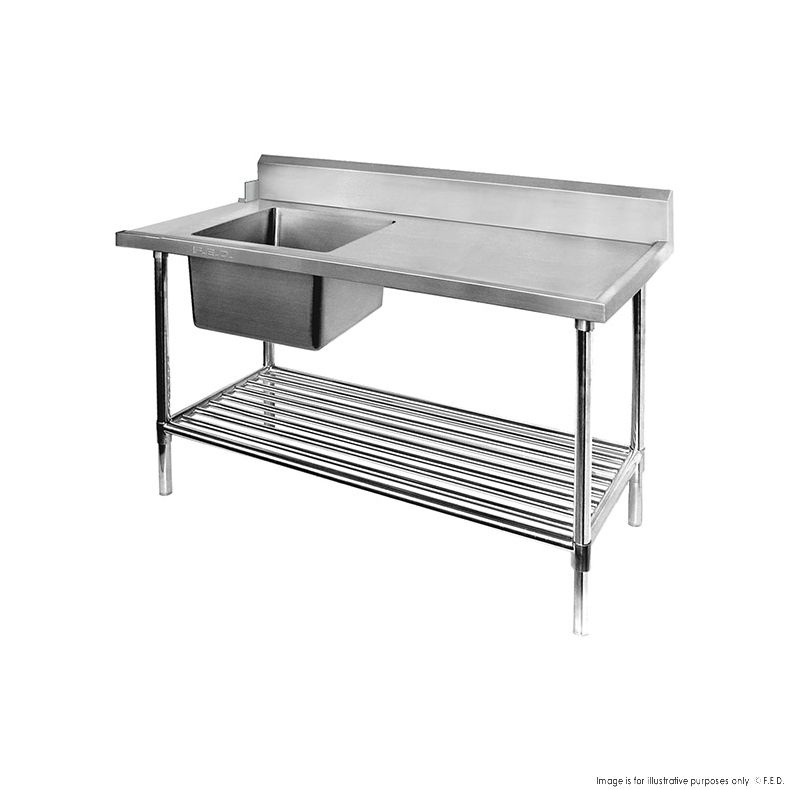

The Modular Systems SSBD7-1500L/A is a 1500mm stainless steel dishwasher inlet bench with a single sink that provides a hygienic pre-rinse and scrape station on the inlet side of a commercial dishwasher. The sink bowl sits on the left when facing the bench, placing soiled ware at the infeed while the clear right-hand outlet area receives clean loads from the machine.
Why operators choose the SSBD7-1500L/A
-
304 SUS (18/8) benchtop — food-grade stainless with XPS board liner and U-channel reinforcements for lasting rigidity under continuous service loads.
-
Left-inlet single bowl configuration — 450W × 450D × 300H mm fully-welded bowl, polished inside and out, with 90mm drain and 15mm wet edge to contain runoff.
-
Integrated splashback — 150mm-high, 40mm-thick stainless steel splashback with bevelled edges and fully enclosed construction to protect walls and simplify cleaning.
-
Flat-packed for easy delivery — arrives with instruction manual and tools for quick, simple site assembly; four adjustable legs with polished disc feet allow levelling on uneven floors.
-
Undershelf included — tubular stainless steel undershelf provides additional storage and structural bracing; castor kits available separately.
Specifications
| Brand |
Modular Systems |
| Model / MPN |
SSBD7-1500L/A |
| Type |
Dishwasher Inlet Bench with Single Sink |
| Width |
1500 mm |
| Depth |
700 mm |
| Height |
900 mm |
| Product Dimensions |
1500(W) × 700(D) × 900(H) mm |
| Packed Dimensions |
770(W) × 1570(D) × 530(H) mm |
| Net Weight |
39.25 kg |
| Sink Bowl Size |
450(W) × 450(D) × 300(H) mm |
| Drain Hole |
90 mm diameter |
| Wet Edge |
15 mm |
| Dishwasher Side |
Left inlet (sink on left when facing the bench) |
| Splashback |
150 mm high × 40 mm thick, stainless steel, bevelled, fully enclosed |
| Benchtop Material |
304 Stainless Steel (SUS 18/8), 1.2 mm gauge |
| Legs |
1.2 mm S/S, 42 mm diameter, with adjustable polished disc feet |
| Material |
Stainless Steel (304) |
| Warranty |
2 Years Parts Only |
| Power Required |
None |
Venue suitability: Suitable for any commercial kitchen requiring a structured dishwashing workflow — restaurants, cafes, catering operations, aged-care facilities, hotels, and cooking schools. The 1500mm footprint balances inlet staging capacity with floor space efficiency in mid-sized kitchens. Pairs with dishwasher outlet benches to complete the pass-through circuit.
Explore the full range of Dishwasher Inlet Sinks & Outlet Benches or browse all Modular Systems stainless steel fabrications.
Installation & delivery: Arrives flat-packed with assembly hardware and instruction manual — designed for quick on-site setup. Four fully adjustable feet allow levelling on uneven surfaces. Dispatched Australia-wide.
Frequently asked questions
What does 'left inlet' mean?
When standing in front of the bench, the sink bowl and dishwasher inlet are positioned on the left side. Soiled items are scraped and rinsed in the sink, then fed left-to-right into the dishwasher. If your dishwasher inlet is on the right, you need a right-inlet bench (SSBD7-1500R/A).
What size is the sink bowl?
The bowl measures 450mm wide × 450mm deep × 300mm high, with a 90mm diameter drain hole. It is fully welded and polished inside and out for hygienic cleaning.
Does the bench include an undershelf?
Yes. A tubular stainless steel undershelf is included with four legs. Castor kits are available separately if mobility is required.
What stainless steel grade is used?
The benchtop is SUS304 (18/8) at 1.2mm gauge, lined with XPS board for rigidity. Legs and splashback are also 1.2mm stainless steel. 304 grade provides good corrosion resistance in commercial kitchen environments.
Is assembly required?
Yes. The bench is supplied flat-packed for ease of transport and includes all required tools and an instruction manual. Assembly is straightforward and designed for quick setup on-site.
