Description

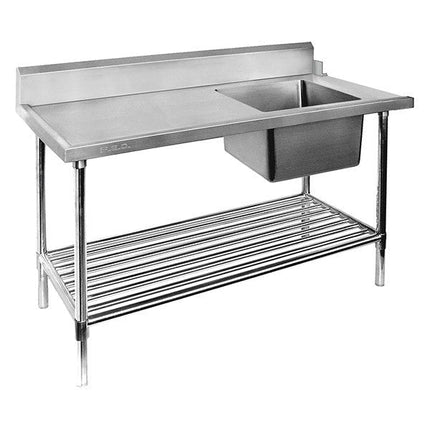

The Modular Systems SSBD7-1200R/A is a 1200mm right-inlet single-sink dishwasher bench designed to integrate with commercial dishwashers, providing a pre-rinse and soiled-dish staging station where the sink and dishwasher inlet are positioned on the right side when facing the bench.
Why operators choose the SSBD7-1200R/A
-
Right-inlet configuration — sink and dishwasher connection on the right, keeping soiled-dish flow efficient in right-to-left kitchen layouts.
-
304-grade (18/8) SUS304 benchtop — 1.2mm stainless steel lined with 15mm XPS board and an S/S panel, plus U-channel reinforcements underneath for a rigid, non-flex surface.
-
Fully welded, polished sink bowl — 450mm W × 450mm D × 300mm H bowl with a 90mm Ø drain hole, polished inside and out; 15mm wet edge prevents spill run-off.
-
150mm splashback included — stainless steel backed, 40mm thick, bevelled and fully enclosed, protecting the wall behind the bench.
-
Flat-pack assembly with instruction manual & tools included — reduces freight damage and speeds up installation; adjustable stainless polished disc feet level the bench on uneven floors.
Specifications
| Brand |
Modular Systems |
| Model / MPN |
SSBD7-1200R/A |
| Type |
Dishwasher Inlet Bench — Right Inlet, Single Sink |
| Width |
1200mm |
| Depth |
700mm |
| Height |
900mm |
| Sink Bowl Size |
450mm W × 450mm D × 300mm H |
| Drain Hole |
90mm Ø |
| Wet Edge |
15mm |
| Benchtop Material |
1.2mm SUS304 (18/8) stainless steel, XPS board lined |
| Legs |
4 × 1.2mm S/S, 42mm Ø, adjustable polished disc feet |
| Splashback |
Stainless steel, 150mm high, 40mm thick, bevelled, fully enclosed |
| Net Weight |
32.5 kg |
| Packed Dimensions |
1270(W) × 770(D) × 530(H)mm |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts Only |
Venue suitability: Suited to commercial kitchens, restaurants, cafés, catering operations, aged-care facilities, and school canteens requiring a compact 1200mm dishwasher inlet station. Browse the full range in Dishwasher Inlet Sinks & Outlet Benches or explore all Modular Systems stainless steel equipment.
Installation & delivery: Supplied flat-packed with instruction manual and assembly tools. Four fully adjustable stainless disc feet for levelling. Castor kits available separately (lockable). Dispatched Australia-wide.
Frequently asked questions
What does “right inlet” mean?
When facing the bench, the sink bowl and dishwasher connection point are on the right-hand side. This suits kitchens where dirty dishes arrive from the left and the dishwasher sits to the right of the bench.
What are the sink bowl dimensions?
The bowl measures 450mm wide × 450mm deep × 300mm high with a 90mm Ø drain hole. Bowls are fully welded and polished inside and out.
Is a splashback included?
Yes. A 150mm high, 40mm thick bevelled stainless steel splashback is included, fully enclosed and wall-ready.
How does the bench arrive?
The SSBD7-1200R/A is supplied flat-packed (packed dimensions 1270 × 770 × 530mm, approx. 46kg packed) with an instruction manual and all required assembly tools.
Can I add castors?
Castor kits (lockable) are available as an optional accessory. Contact us to order alongside the bench.
