Description

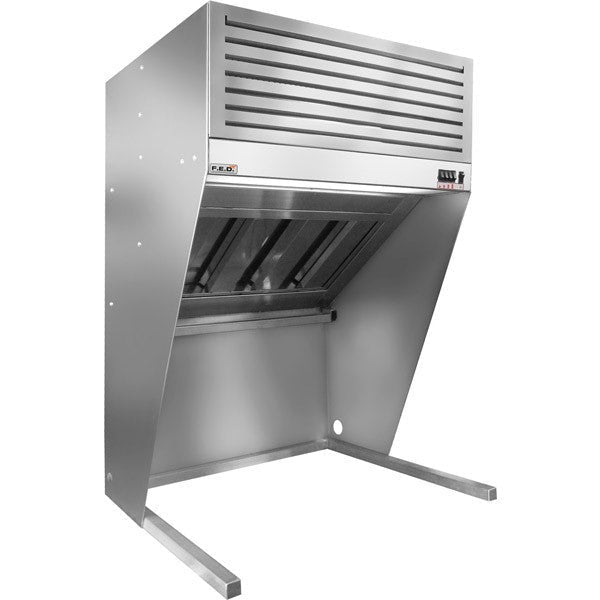

The Modular Systems HOOD750A is a 750mm benchtop filtered exhaust hood that captures grease, smoke and odour directly over the cooking line without any external ducting, making it ideal for venues where a ducted canopy cannot be installed.
Why operators choose the HOOD750A
-
No ducting required — a complete 3-stage filtration system recirculates clean air, so it installs where ducted canopies can't.
-
Triple filter system — stainless baffle filters trap grease and drain to a removable gutter, a washable polyester filter catches the rest, and an activated carbon filter removes odour.
-
All stainless steel — durable, easy to wipe down and built for daily commercial service.
-
Single high-speed motor — a 4-speed German-made motor pulls strong extraction over the work area.
-
Integrated work light — a fluorescent light over the bench keeps the cooking zone clearly lit.
Specifications
| Brand |
Modular Systems |
| Model / MPN |
HOOD750A |
| Type |
Ductless benchtop filtered hood |
| Construction |
Stainless steel |
| Filtration |
3-stage — stainless baffle, washable polyester, activated carbon |
| Motor |
Single high-speed 4-speed motor |
| Lighting |
Fluorescent work light |
| Ducting |
Ductless (recirculating) — no external ducting required |
| Power |
240V; 400W |
| Product dimensions |
750(W) x 700(D) x 1150(H)mm |
| Packed dimensions |
1020(W) x 1520(D) x 570(H)mm |
| Net weight |
55kg |
| Suitability |
Electric equipment up to 8.0kW / gas up to 29MJ |
| Warranty |
1 Year Parts and Labour |
Venue suitability: Suited to cafes, food trucks, burger and fish-and-chip shops and small commercial kitchens running countertop electric equipment up to 8.0kW where AS1668.2 does not stipulate exhaust — always check local council requirements before install.
It sits within our range of Hoods & Canopies and the wider Modular Systems kitchen line-up, so you can match it to compatible benchtop cooking gear.
Installation & delivery: Mounts easily to a benchtop and runs ductless, so no flue penetration is needed. Dispatched Australia-wide.
Frequently asked questions
Does the HOOD750A need ducting? No. It uses a 3-stage recirculating filter system, so no external ducting or flue is required.
What filters does it use? Stainless steel baffle filters that drain grease to a removable gutter, a washable polyester filter, and an activated carbon filter for odour.
What equipment can it run over? It is generally suitable for countertop electric equipment up to 8.0kW, and gas equipment up to 29MJ — subject to local council requirements.
What are its dimensions? 750(W) x 700(D) x 1150(H)mm, with a net weight of 55kg.
What power supply does it need? Standard 240V; 400W single-phase power.
