Description

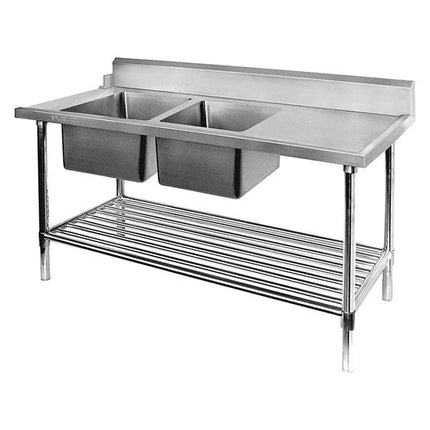

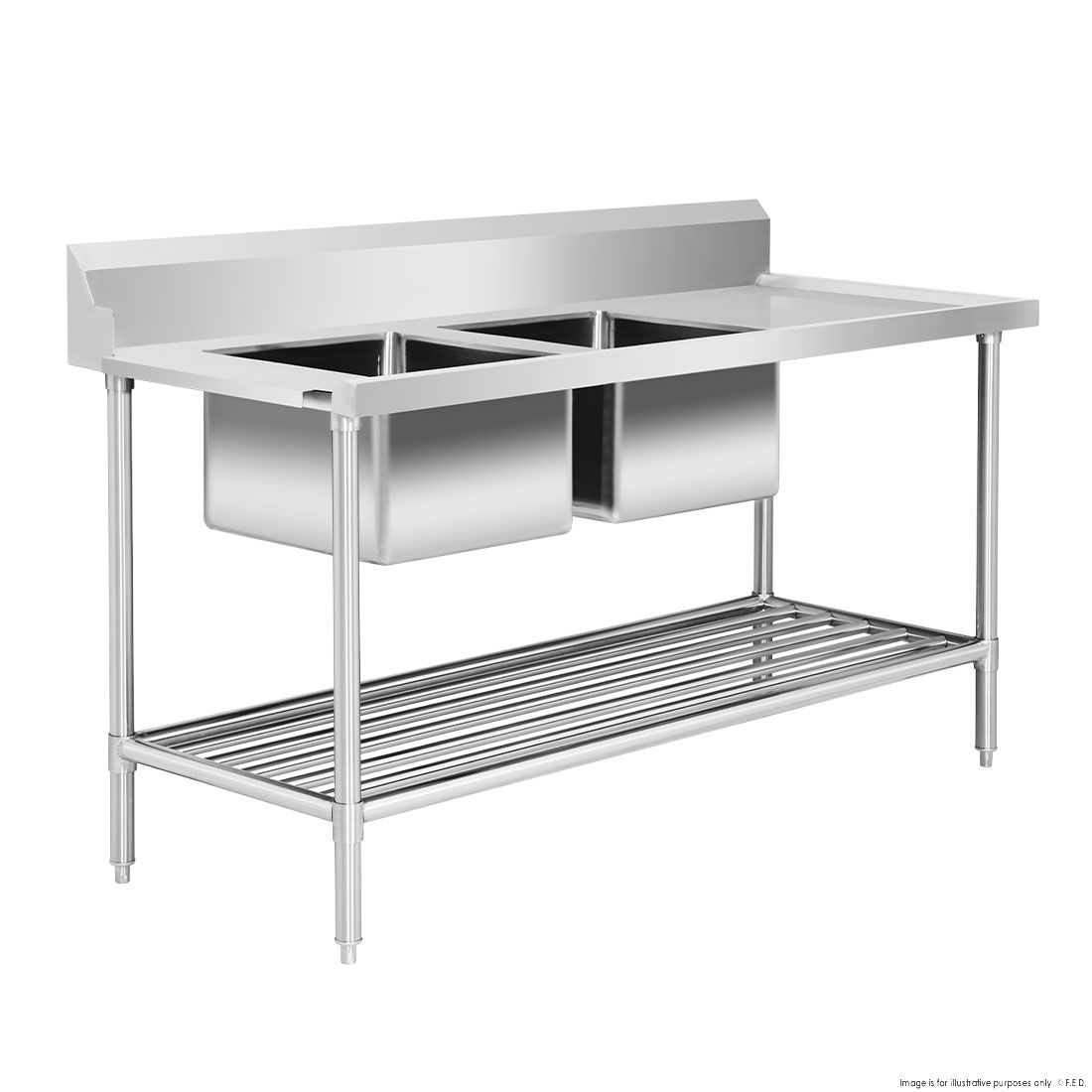

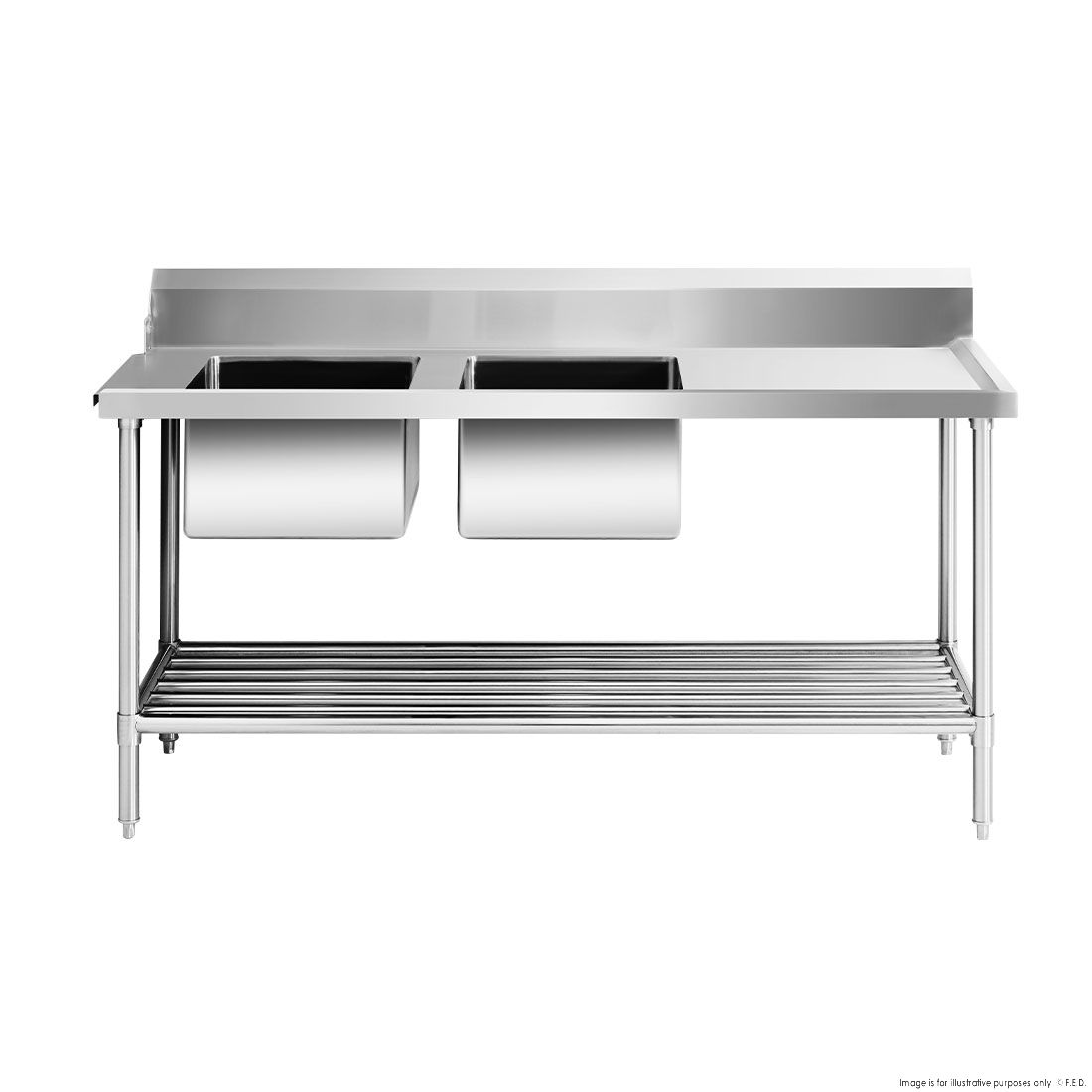

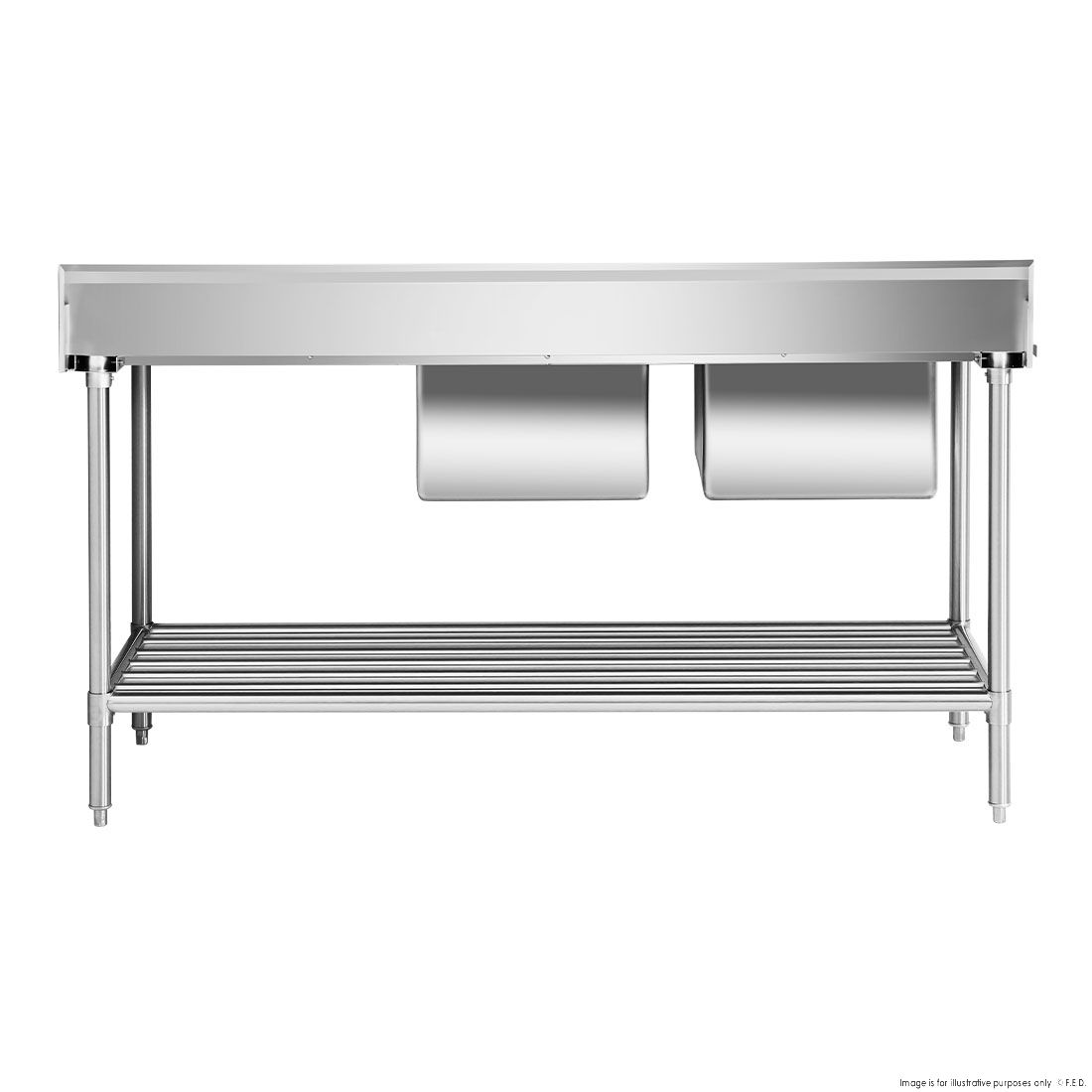

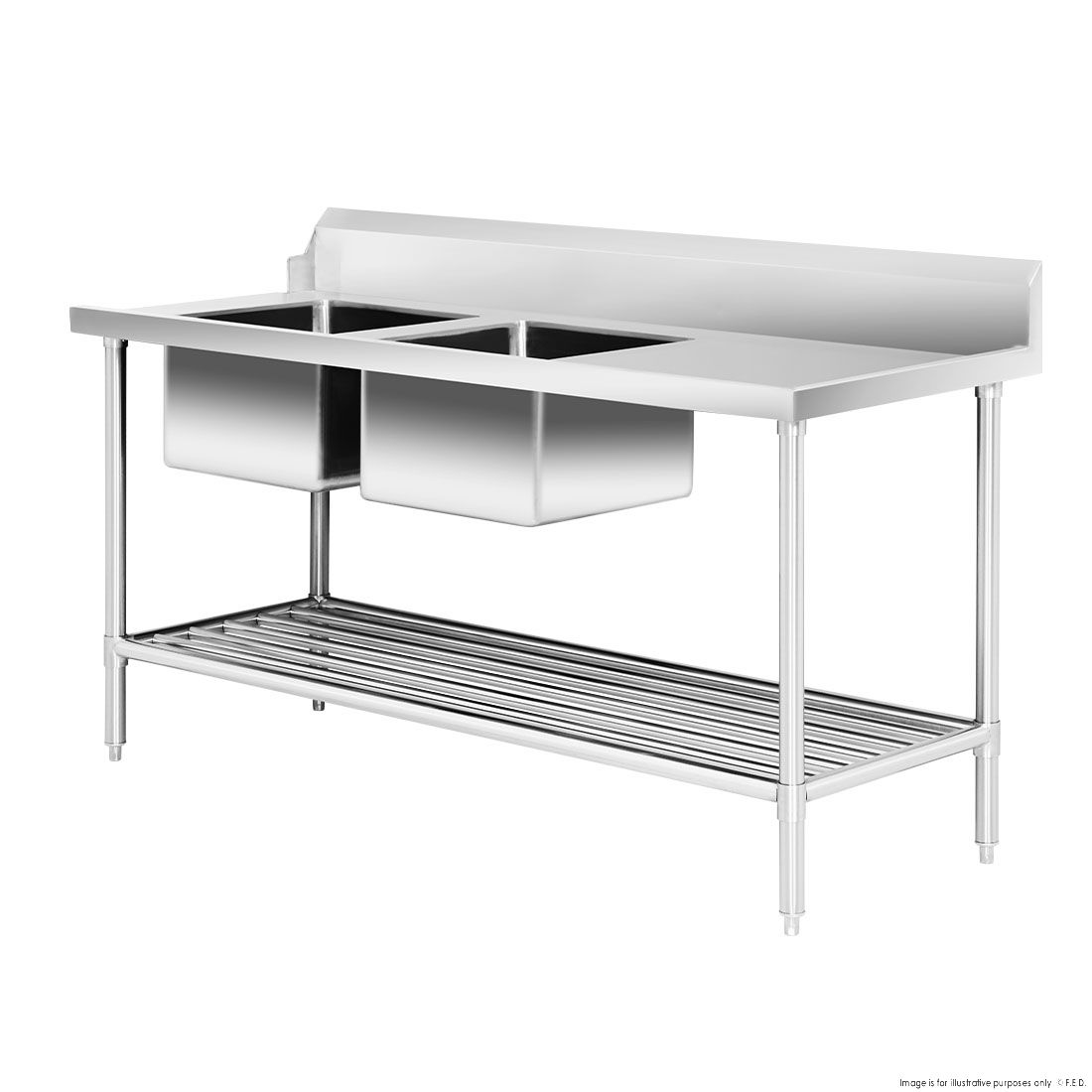

The Modular Systems DSBD7-1800L/A is a left-inlet dishwasher bench with double sink that positions the sinks and dishwasher inlet on the left side when facing the unit, keeping clean-dish flow on the right — purpose-built for commercial dishwash stations where a left-hand run is required.
Why operators choose the DSBD7-1800L/A
-
Left-inlet configuration — sinks and dishwasher connection on the left; outlet/clean side on the right for correct warewashing flow
-

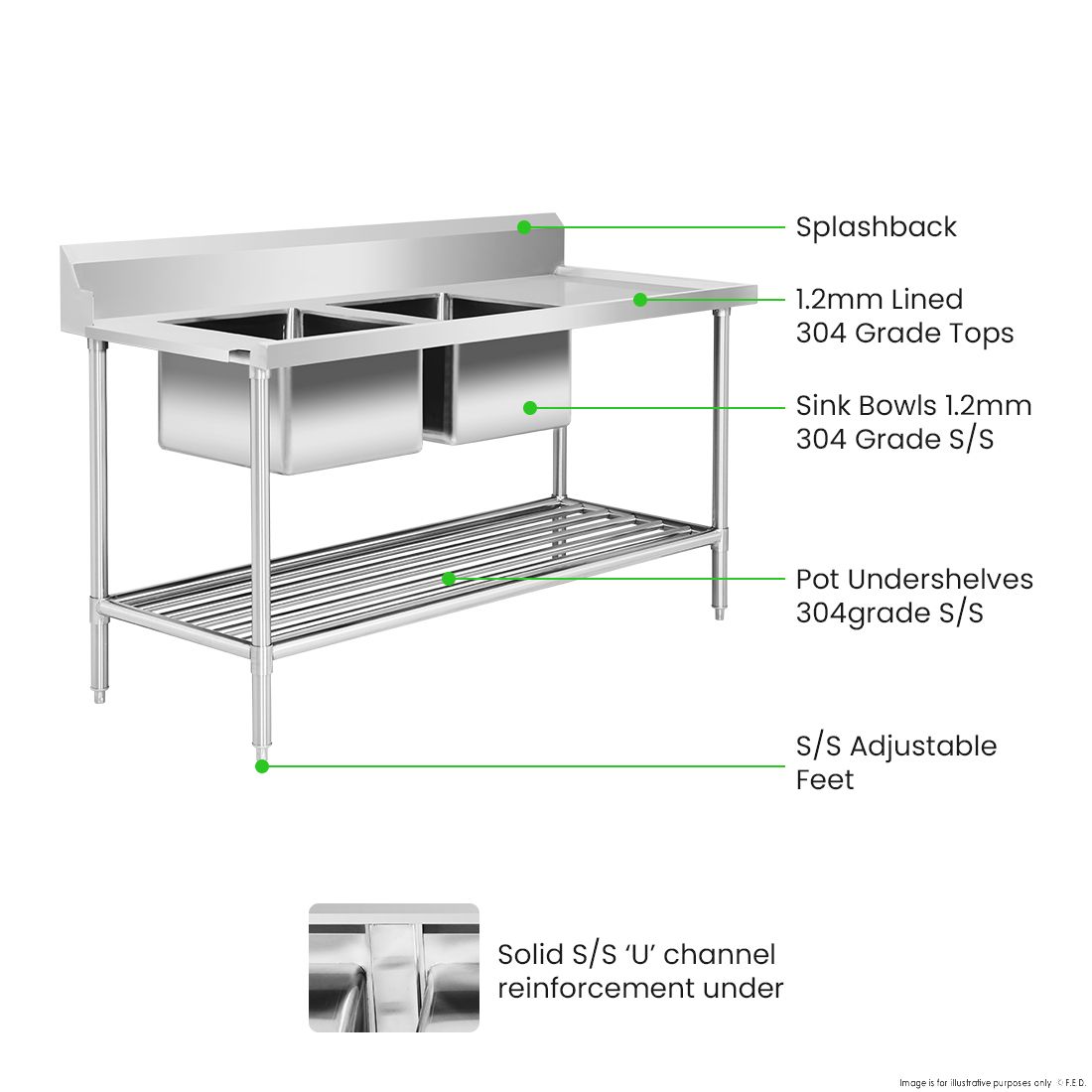

SUS304 (18/8) stainless construction — 1.2mm benchtop lined with XPS board and special U-channel reinforcements for rigidity under load
-

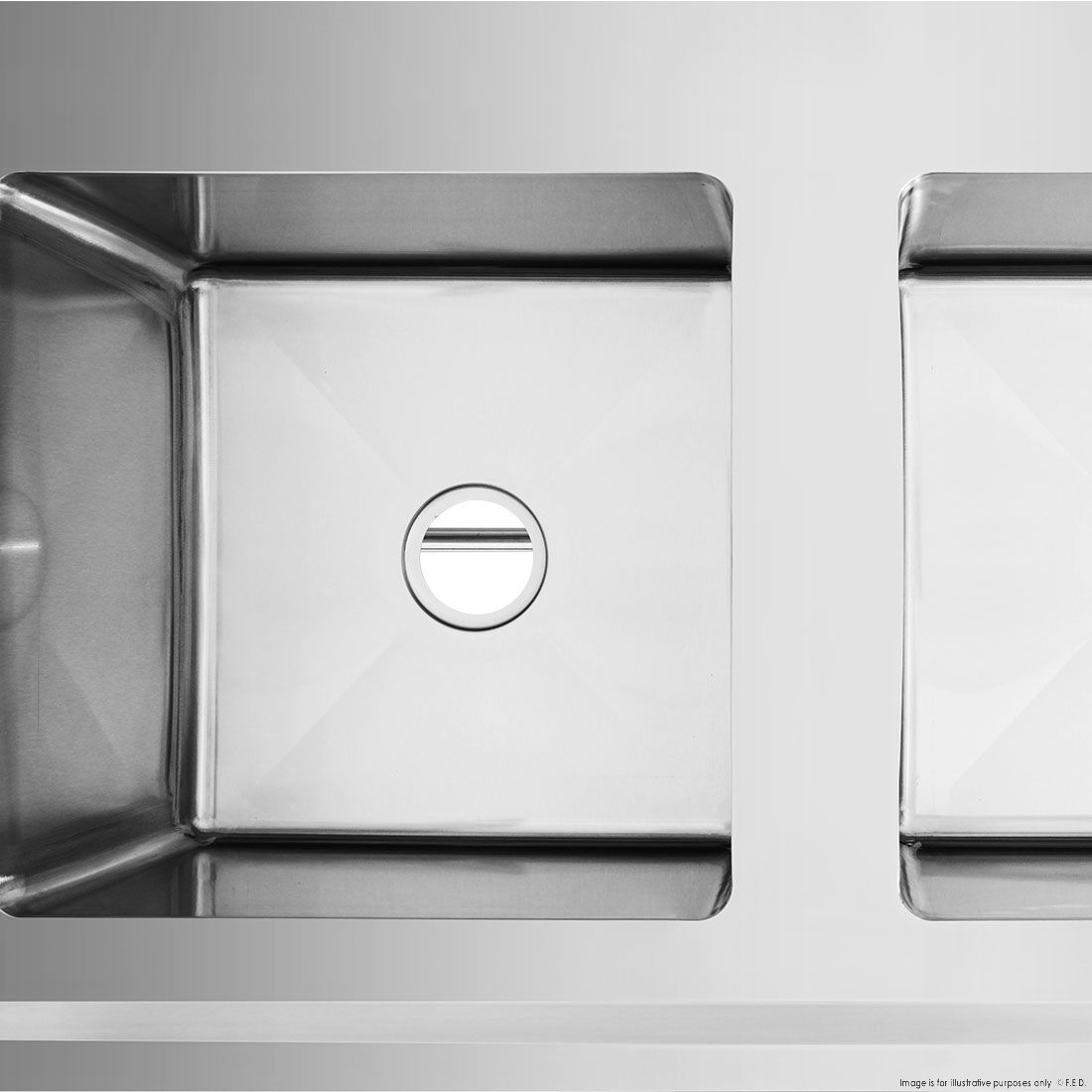

Fully welded, polished bowls — two 450 x 450 x 300mm bowls with 90mm drain holes, polished inside and out with 15mm wet edge
-
180mm splashback — 30mm thick, bevelled and fully enclosed stainless steel, keeping splatter off walls
-
Flat-packed with tools included — quick and simple assembly; 4 adjustable polished disc feet; castor kits available separately
Specifications
| Brand |
Modular Systems |
| Model / MPN |
DSBD7-1800L/A |
| Type |
Dishwasher Double Sink |
| Configuration |
Left inlet (sinks on left when facing) |
| Width |
1800 mm |
| Depth |
700 mm |
| Height |
900 mm |
| Product Dimensions |

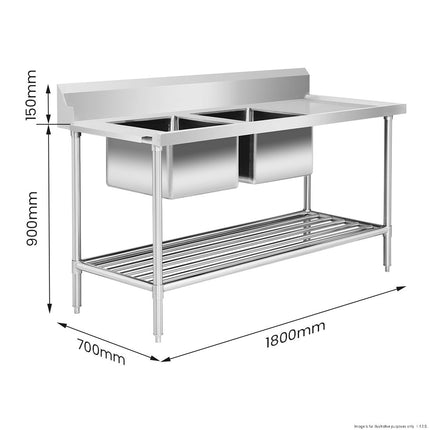

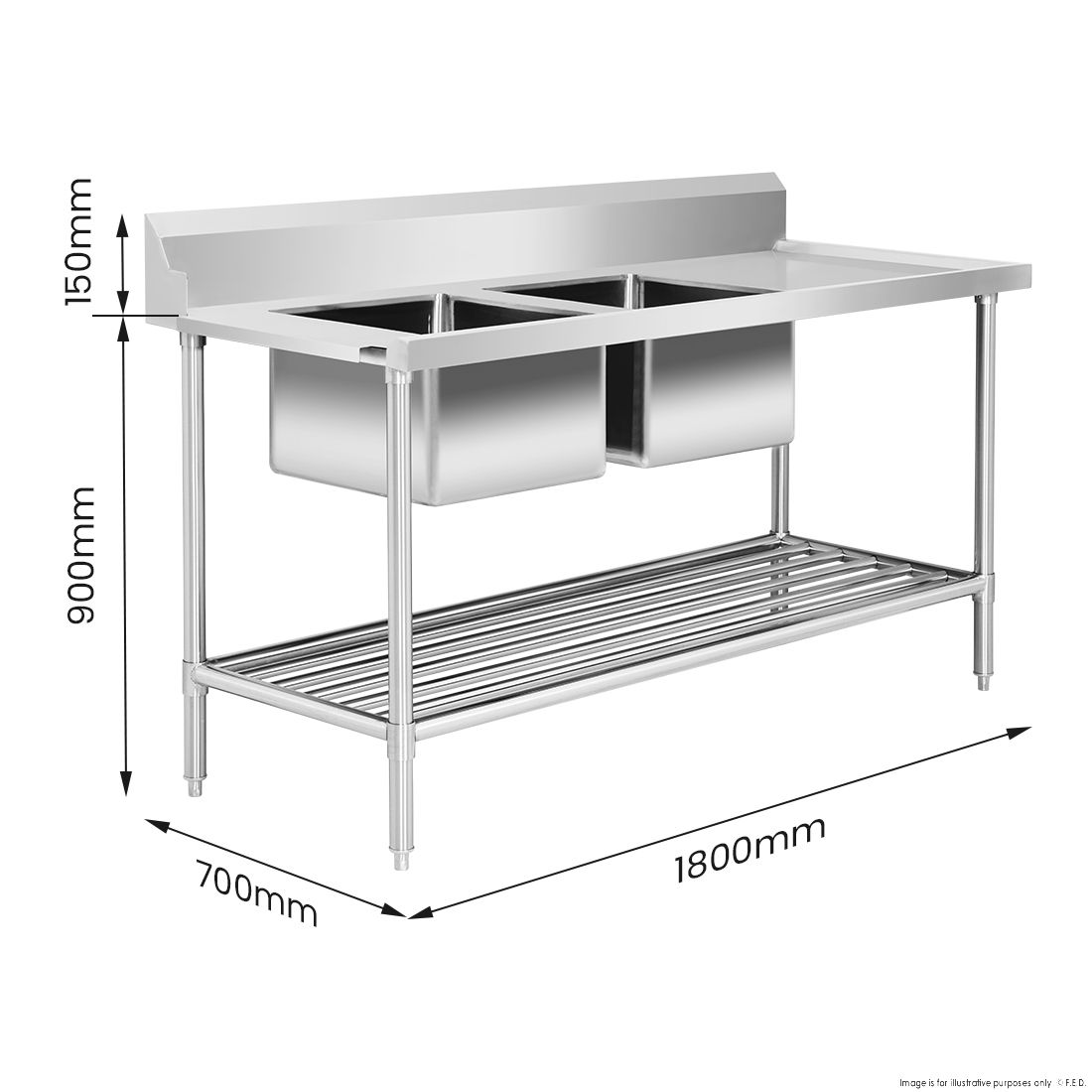

1800(W) x 700(D) x 900(H) mm |
| Packed Dimensions |
1870(W) x 770(D) x 530(H) mm |
| Number of Bowls |
2 |
| Bowl Size |
450mm W x 450mm D x 300mm H |
| Drain Hole |
90mm diameter |
| Wet Edge |
15mm |
| Material |
304 Stainless Steel (SUS304 18/8), 1.2mm gauge |
| Benchtop Lining |
XPS board 15mm thick with stainless steel panel; U-channel reinforcements |
| Splashback |
180mm high, 30mm thick, bevelled, fully enclosed stainless steel |
| Legs |

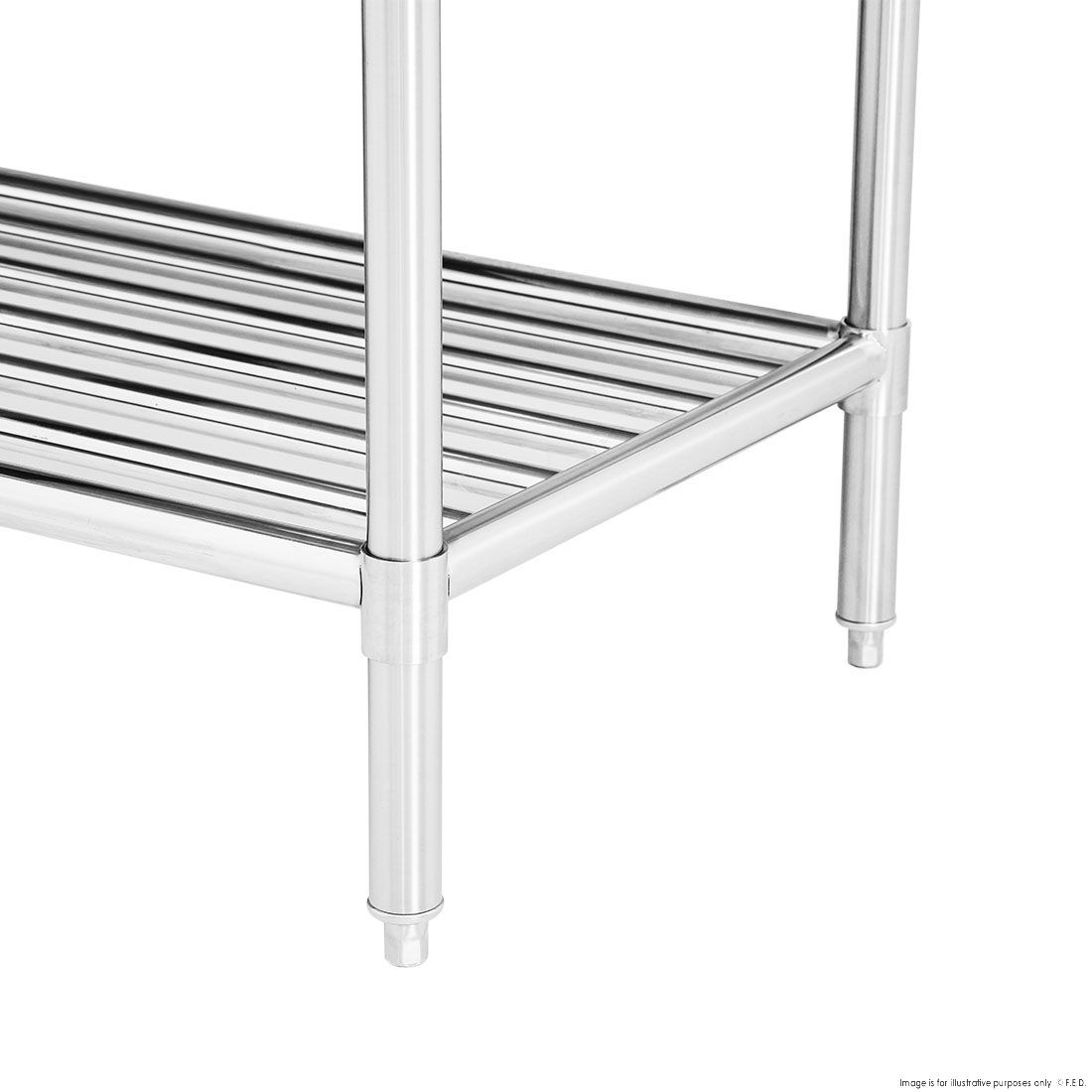

4 x adjustable 42mm diameter stainless steel with polished disc feet |
| Net Weight |
45.45 kg |
| Warranty |
2 Years Parts Only |
| Assembly |
Flat-packed with instruction manual and tools included |
Venue suitability: Suited to commercial kitchens, restaurants, cafes, catering facilities, aged care, and food service operations requiring a correctly configured dishwash station. The left-inlet layout is ideal for kitchen runs where the dishwasher sits to the left and clean dishes move right.
Browse the full range in our Dishwasher Inlet Sinks & Outlet Benches collection, or see all Modular Systems stainless steel equipment.
Installation & delivery: Supplied flat-packed with assembly instructions and tools. Four adjustable stainless steel disc feet allow levelling on uneven floors. Castor kits are available separately for mobile installations. Dispatched Australia-wide.
Frequently asked questions
What does 'left inlet' mean?
When standing facing the bench, the dishwasher connection point and the sinks are on the left side. Soiled dishes arrive from the left; clean dishes move to the right. A right-inlet bench is the mirror image — order the configuration that matches your kitchen's traffic flow.
What grade of stainless steel is used?
The DSBD7-1800L/A is constructed from SUS304 (18/8) stainless steel at 1.2mm gauge throughout. 304 grade provides good corrosion resistance in food service environments and is the standard for commercial sinks and benches in Australia.
How does it arrive and how long does assembly take?
The bench is supplied flat-packed with an instruction manual and all necessary tools included. Assembly is designed to be quick — most operators complete it in under 30 minutes. The four adjustable disc feet allow fine levelling once positioned.
Can I add castors to move it around?
Yes. Optional castor kits (lockable) are available separately and fit the 42mm diameter legs. This is useful in flexible kitchen layouts or where regular cleaning under the bench is required.
What is the warranty on this bench?
The DSBD7-1800L/A carries a 2-year parts-only warranty from Modular Systems. For full warranty terms and conditions, visit our warranty information page.
SKU: DSBD7-1800L/A
In Stock
