Description

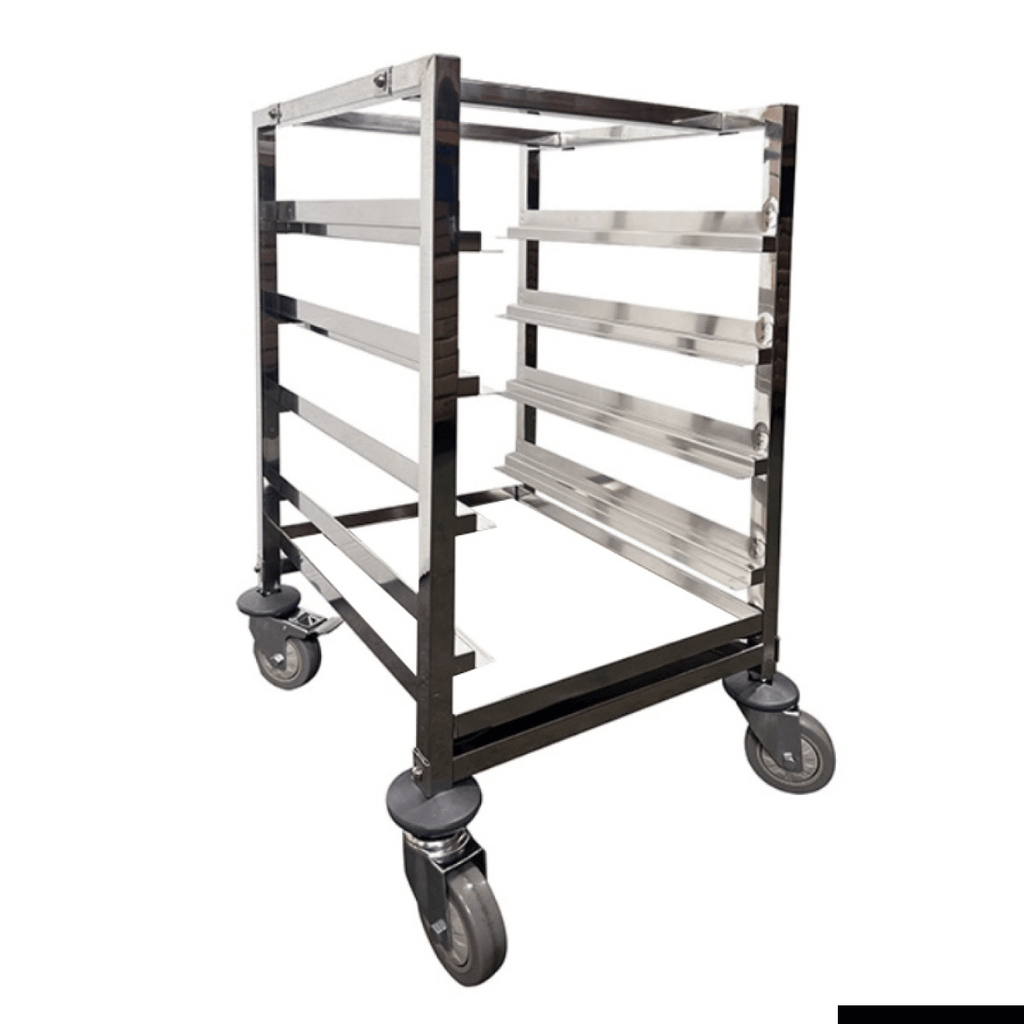

The Modular Systems 406227C is a stainless steel dishwasher basket trolley designed to organise and transport dishwashing baskets in commercial kitchens — providing 4-tray capacity in a compact, under-bench-height footprint that streamlines back-of-house operations during busy service periods.
Why operators choose the 406227C
-
4-tray capacity — holds up to four dishwasher baskets simultaneously, reducing trips between the wash station and service areas
-
Under-bench design — 850 mm height fits neatly beneath standard workbenches, keeping the trolley accessible without consuming aisle space
-
Stainless steel construction — 1.0 mm SS tubing (25×25 mm) and 1.2 mm SS rail resist corrosion and handle commercial cleaning regimes
-
100 mm castors with two brakes — smooth rolling with lockable wheels for safe stationary use; bumpers included to protect cabinetry
-
Flat-packed delivery — shipped disassembled for compact freight, with straightforward on-site assembly
Specifications
| Brand |
Modular Systems |
| Model / MPN |
406227C |
| Type |
Dishwasher Stands and Accessories |
| Width |
550 mm |
| Depth |
520 mm |
| Height |
850 mm |
| Product Dimensions |
550(W) x 520(D) x 850(H) mm |
| Package Dimensions |
535(W) x 870(D) x 80(H) mm |
| Tray Capacity |
4 trays |
| Tubing |
1.0 mm stainless steel, 25×25 mm |
| Rail |
1.2 mm stainless steel |
| Castors |
100 mm, two with brakes |
| Castor bumpers |
Included |
| Assembly |
Flat packed |
| Net Weight |
11.5 kg |
| Material |
Stainless Steel |
| Country of Manufacture |
China |
| Warranty |
24 Months Parts Only |
Venue suitability: Suited to commercial kitchens, restaurants, cafes, aged-care facilities, and institutional catering operations running an undercounter dishwasher. The under-bench profile is particularly useful in space-constrained wash-up areas.
Browse the full range of Dishwasher Stands and Accessories or explore the complete Modular Systems stainless steel equipment range.
Installation & delivery: Unit is supplied flat-packed and requires on-site assembly. No tools or trade installation needed. Dispatched Australia-wide.
Frequently asked questions
What does the 406227C hold?
The 406227C is designed specifically for standard commercial dishwasher baskets — it holds up to four baskets at once, allowing operators to stage, transport, and store baskets without stacking them on the floor.
Does the trolley fit under a standard workbench?
Yes — at 850 mm high, the 406227C is designed to slide under standard 900 mm workbenches, keeping the wash-up area organised without blocking workflow.
What are the product dimensions?
The 406227C measures 550 mm wide, 520 mm deep, and 850 mm high. Packed dimensions are 535(W) x 870(D) x 80(H) mm.
How is the 406227C constructed?
The frame uses 1.0 mm stainless steel tubing (25×25 mm) with a 1.2 mm stainless steel rail. 100 mm castors are fitted, with two brakes for stationary stability. Castor bumpers are included to protect surrounding cabinetry.
What warranty does the 406227C come with?
The Modular Systems 406227C is covered by a 24-month parts-only warranty.
