Description

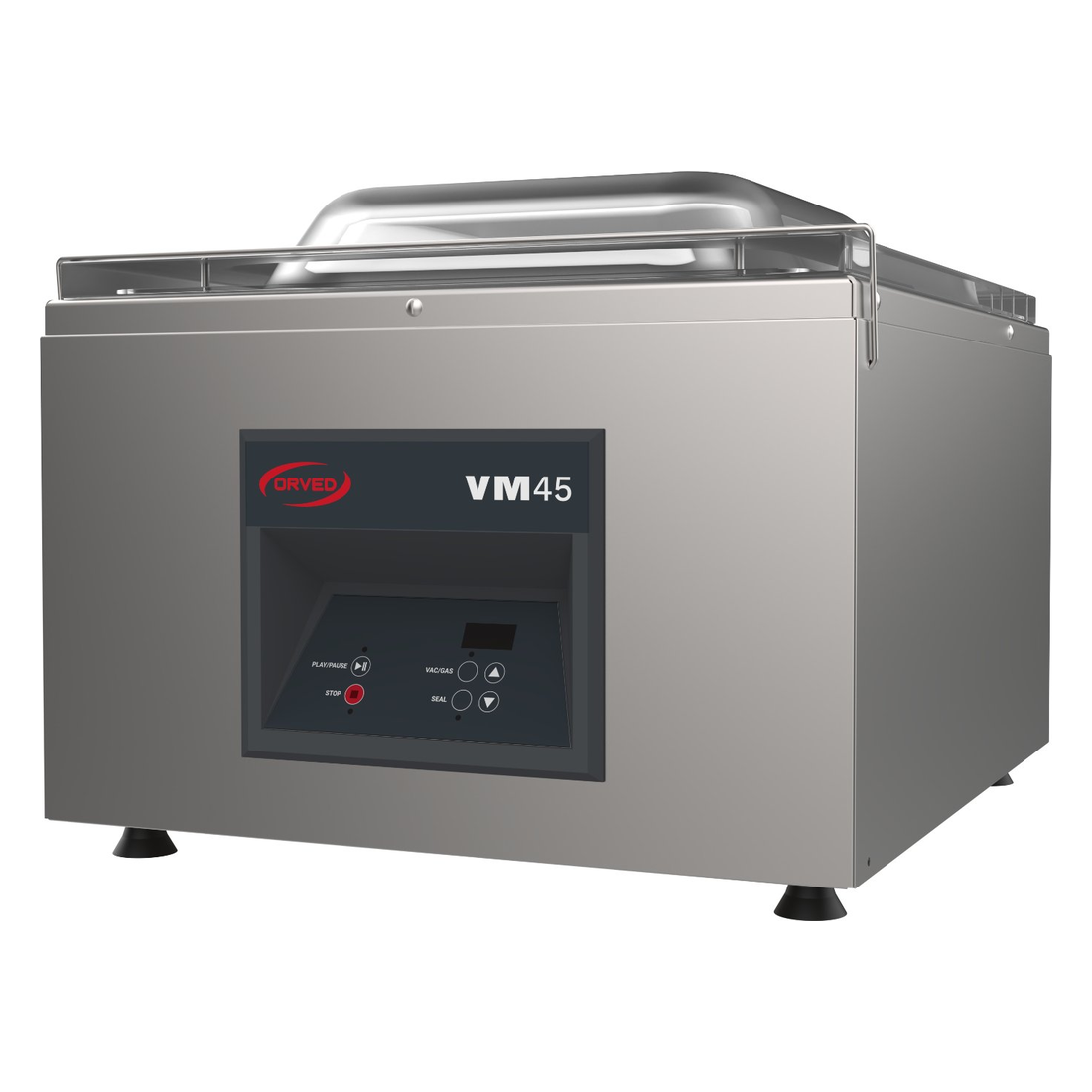

The VM series models made entirely of AISI304 stainless steel, with digital control panel and standard absolute vacuum sensor, it is characterized by ease of use and compactness. Its versatility makes it possible to pack the products in the chamber, in external containers via the suction device and in embossed envelopes outside the chamber. Easy maintenance and cleaning make it a precise, fast, versatile and reliable work tool
- 25m3/h pump
- Chamber size: 551 x 487 x 175
- Dual sealing bars
- Sealing bar lengths: 456mm
FEATURES
- Busch oil recirculation pump 25 m³/h;
- Vacuum level control using a high-precision absolute sensor that does not require calibration;
- Maximum achievable vacuum 99.8% (2 millibar);
- 456mm sealing bar (Standard) with double sealing. Easily removable for cleaning;
- Horizontal AISI304 vacuum chamber;
- 10 editable user programs;
- 1 cycle for vacuum containers;
- "H2Out" pump oil dehumidification cycle,
- Resettable oil change alarm;
- Menu accessible to technical assistance for parameter adjustment and reading of cycles carried out;
- Thickened PMMA cover with rounded edges. Automatic opening at the end of the cycle;
- Lid lowering system in resting position via lid lock;
- Easy maintenance access through chassis opening;
- PE filters for product positioning and cycle acceleration.
TECHNICAL DATA
Length of seal L1: 456(mm)
Nominal pump speed: 25m³/h
Final pressure: 2 mbar
Chamber size 551x487x175 FxGxH mm
Useful chamber space N mm 495 (438)
Chamber depth L : 110mm
Chamber volume: 47 Lt
Power :1,2kW
Electrical voltage/Frequency/Phases: 220-240V / 50-60Hz / 1Ph+N+PE
Power cord and plug 2m + IEC / Schuko
Housing materials Steel inox (AISI304)
Vacuum chamber material Steel inox (AISI304)
Lid material PMMA (plexiglas)
Overall dimensions AxBxC 612x700x500mm
Maximum height with open lid C1 916mm
Distance between supports DxE 510x540 mm
Noise level dB(A) <70
Environmental operating temperature (min-max) 12-40°C
