Description

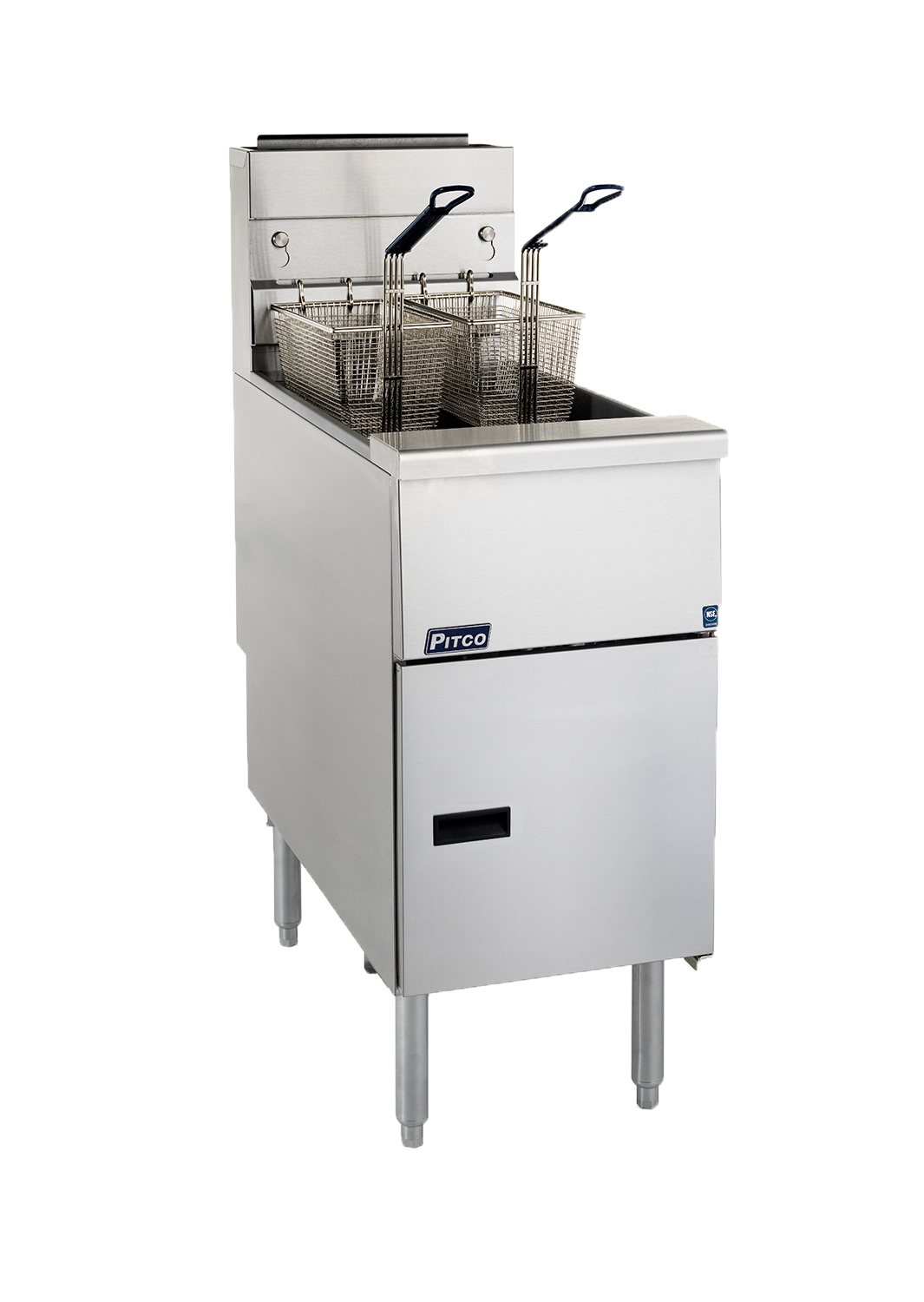

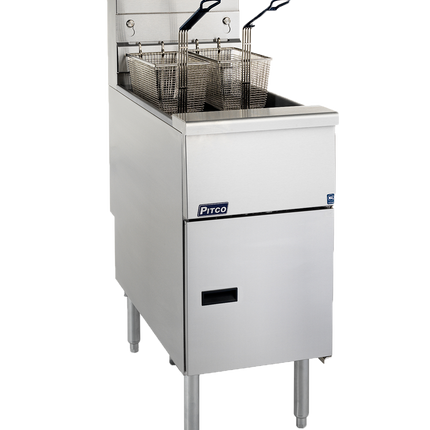

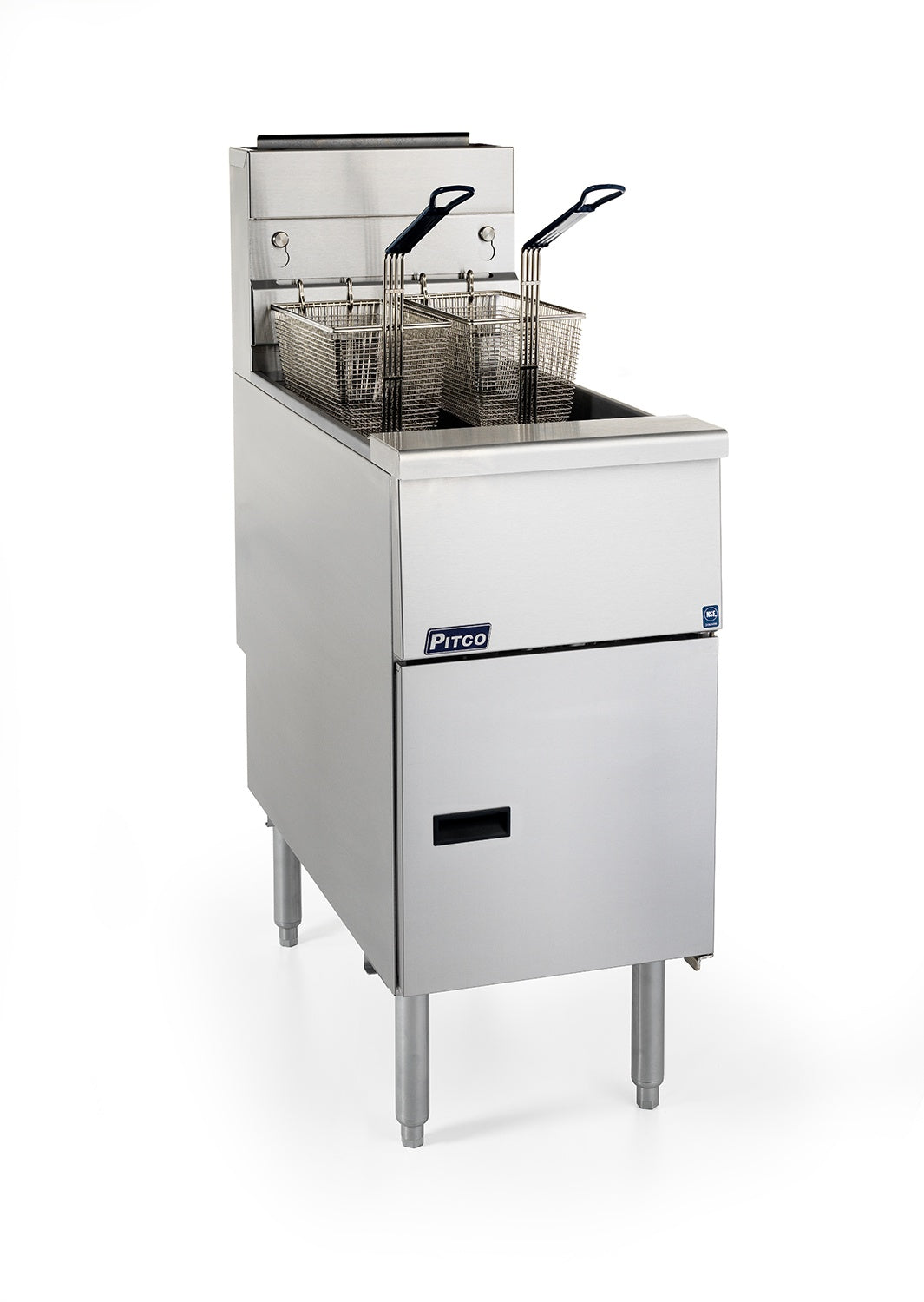

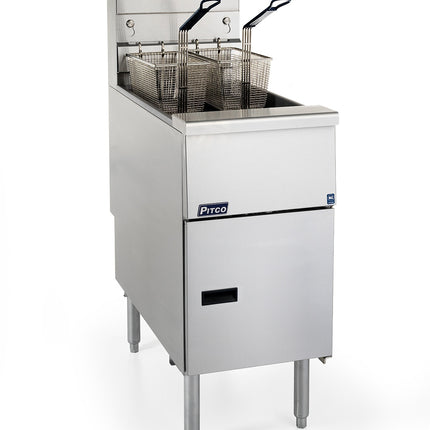

The Pitco SG14S is a tube-fired gas deep fryer built for high-volume frying in busy commercial kitchens, delivering up to 40 kg of product per hour from a single 23 L (40-50 lb) oil tank.
Why operators choose the SG14S
- Tube-fired heat exchanger with alloy stainless heat baffles for fast recovery and efficient combustion
- 119 MJ/h (110,000 BTU/hr) gas input, configurable for natural gas or LPG
- Welded, peened stainless steel tank plus stainless front, door, sides and splashback for easy cleaning
- Digital temperature controller with melt cycle, boil-out and two programmable cook timers
- Safety drain-valve interlock and 1¼" full-port drain for quick, controlled oil changes
Specifications
| Brand |
Pitco |
| Model / MPN |
SG14S |
| Type |
Gas deep fryer (tube-fired, single tank) |
| Oil capacity |
23 L (40-50 lb / 18-23 kg) |
| Frying throughput |
Up to 40 kg/h |
| Gas input |
119 MJ/h (110,000 BTU/hr) |
| Gas type |
Natural gas or LPG |
| Frying area |
355 x 355 x 102 mm (14 x 14 x 4 in) |
| Electrical |
115V / 1 phase / 60Hz, 1.0 A (ignition & controls) |
| Construction |
Stainless steel front, door, sides, splashback and tank |
| Controls |
Digital controller, melt cycle, boil-out, 2 cook timers, drain interlock |
| Drain |
1¼" (3.2 cm) full-port drain valve |
| Legs |
9" legs with night lid |
| Product dimensions (W x D x H) |
400 x 876 x 1172 mm |
| Approvals |
NSF Listed; CSA (AGA/CGA) |
| Country of manufacture |
USA |
| Warranty |
24 months |
Venue suitability: A workhorse fryer for fish & chip shops, pubs, clubs, fast-food outlets and high-turnover bistros that need consistent, fast frying throughput from a compact 400 mm-wide footprint.
Pair it with the rest of our commercial deep fryers range, or browse our wider commercial cooking equipment to complete your cookline.
Installation & delivery: Requires a natural gas or LPG connection and a 115V supply for the ignition and controls; install under suitable exhaust ventilation. Dispatched Australia-wide.
Frequently asked questions
What oil capacity does the Pitco SG14S hold? The single tank holds 23 L of oil (40-50 lb / 18-23 kg).
Does the SG14S run on natural gas or LPG? Both - it can be configured for natural gas or LPG; specify your gas type when ordering.
What is the gas input rating? 119 MJ/h, equivalent to 110,000 BTU/hr.
Is the SG14S stainless steel? Yes - the tank, front, door, sides and splashback are all stainless steel.
How much can it fry per hour? Up to 40 kg of product per hour, depending on load and oil temperature.
SKU: SG14S
In Stock
