Description

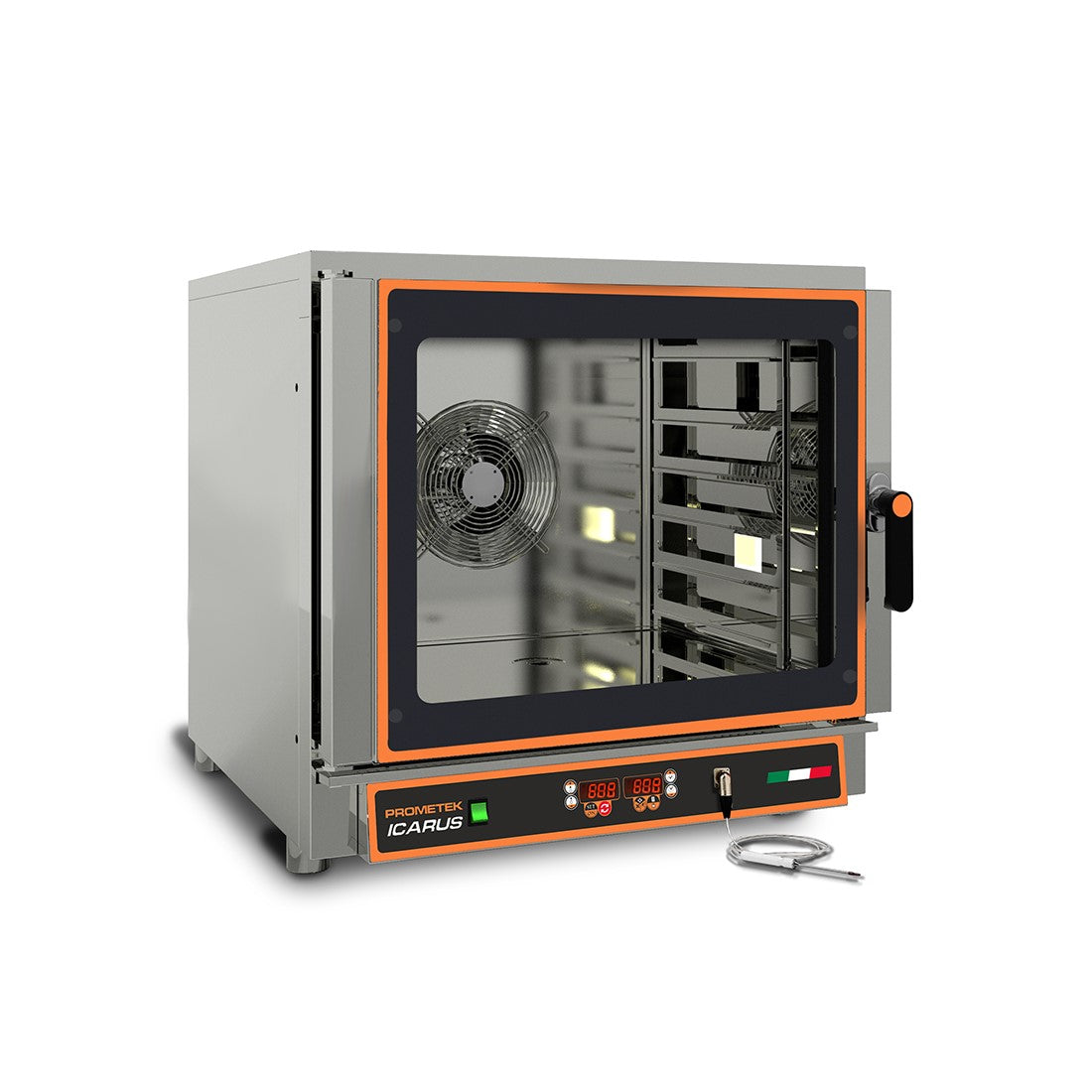

The Prometek TD-6NE is a 6-tray combi oven that pairs digital convection with a water-injection steam system to roast, bake, steam and finish across one chamber, built for cafés, bakeries, bistros and catering kitchens. It holds six 600×400mm pans or GN 1/1 trays on 80mm spacing for 170L of usable capacity, runs a 30–280°C range and draws 7.65kW on a 380–415V 3-phase supply. A compact 840mm-wide footprint and electronic controls make it a practical step up from a plain convection oven without committing to a full-size combi.
Why operators choose the TD-6NE
-
Water-injection steam plus convection — one oven roasts, bakes, steams and regenerates, replacing several single-function units on a tight line.
-
6 pans at 600×400mm or GN 1/1 — standard gastronorm and bakery-tray sizing slots straight into existing prep workflows.
-
170L chamber on 80mm tray spacing — enough clearance for trayed bakes and covered dishes while keeping output high.
-
30–280°C digital control — covers low-temperature holding through to high-heat roasting and browning with repeatable settings.
-
7.65kW on 3-phase power — quick recovery between loads for steady service through a busy period.
-
840mm-wide footprint — fits compact kitchens and bench runs where a full-size combi will not.
-
Stainless construction with electronic controls — wipe-down hygiene and consistent results shift to shift.
Specifications
| Brand |
Prometek |
| Model / MPN |
TD-6NE |
| SKU |
TD-6NE |
| Type |
Combi Oven (digital convection with water injection) |
| Vendor |
TECNODOM |
| Tray capacity |
6 × 600×400mm or GN 1/1 |
| Usable capacity |
170L |
| Tray spacing |
80mm |
| Temperature range |
30–280°C |
| Total power |
7.65kW |
| Voltage |
380–415V 3+N 50Hz (3-phase) |
| Current per phase |
11A |
| Chamber size (W×D×H) |
680 × 480 × 520mm |
| External dimensions (W×D×H) |
840 × 870 × 830mm |
| Packed dimensions (W×D×H) |
955 × 880 × 980mm |
| Weight |
114kg |
| Packed weight |
132kg |
| Material |
Stainless steel |
| Country of manufacture |
China |
| Warranty |
1 Year Parts and Labour |
Venue suitability
The TD-6NE suits cafés, bakeries, bistros, pubs and catering kitchens that need combi versatility without the footprint of a full-size unit — the 840mm-wide body and 6-tray capacity fit compact lines while the water-injection steam handles bakes, roasts and regeneration from one oven. It is a strong choice for venues stepping up from a convection oven and wanting steam, and for off-site catering where space and a single multi-mode unit matter. It is less suited to high-volume production kitchens that need 10- or 20-tray throughput.
Browse the full range of combi steam ovens or compare against benchtop convection ovens to match capacity to your menu.
Installation & delivery
The TD-6NE runs on a 380–415V 3-phase supply drawing 11A per phase, so it must be hard-wired by a licensed electrician — the power cable and 3-phase plug are not included. Allow clearance around the chamber for airflow and servicing. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. Backed by a 1 Year Parts and Labour warranty.
Frequently asked questions
What can the Prometek TD-6NE cook?
It combines digital convection with a water-injection steam system, so a single oven roasts, bakes, steams and regenerates across a 30–280°C range. For a breakdown of combi modes and when to use them, see this combi oven modes guide.
How many trays does it hold?
Six trays at 600×400mm or GN 1/1, spaced 80mm apart for 170L of usable chamber capacity — enough clearance for trayed bakes and covered dishes.
What power supply does the TD-6NE need?
It draws 7.65kW on a 380–415V 3-phase (3+N, 50Hz) supply at 11A per phase. It must be hard-wired by a licensed electrician; the cable and 3-phase plug are not supplied.
What are its dimensions?
External dimensions are 840mm wide, 870mm deep and 830mm high, with a 680×480×520mm chamber. Packed for transit it measures 955×880×980mm at 132kg.
How do I clean a combi oven like the TD-6NE?
Run regular cleaning cycles, wipe down the stainless chamber after service and descale the steam system per the manual to protect performance. Our combi oven cleaning guide walks through the routine.
Are trays and pans included?
No — grids, pans and the power cable or 3-phase plug are supplied separately, so factor GN 1/1 or 600×400mm trays into your order.
What warranty does it carry?
The TD-6NE is covered by a 1 Year Parts and Labour warranty. It is manufactured in China and supplied as a new unit.
