Description

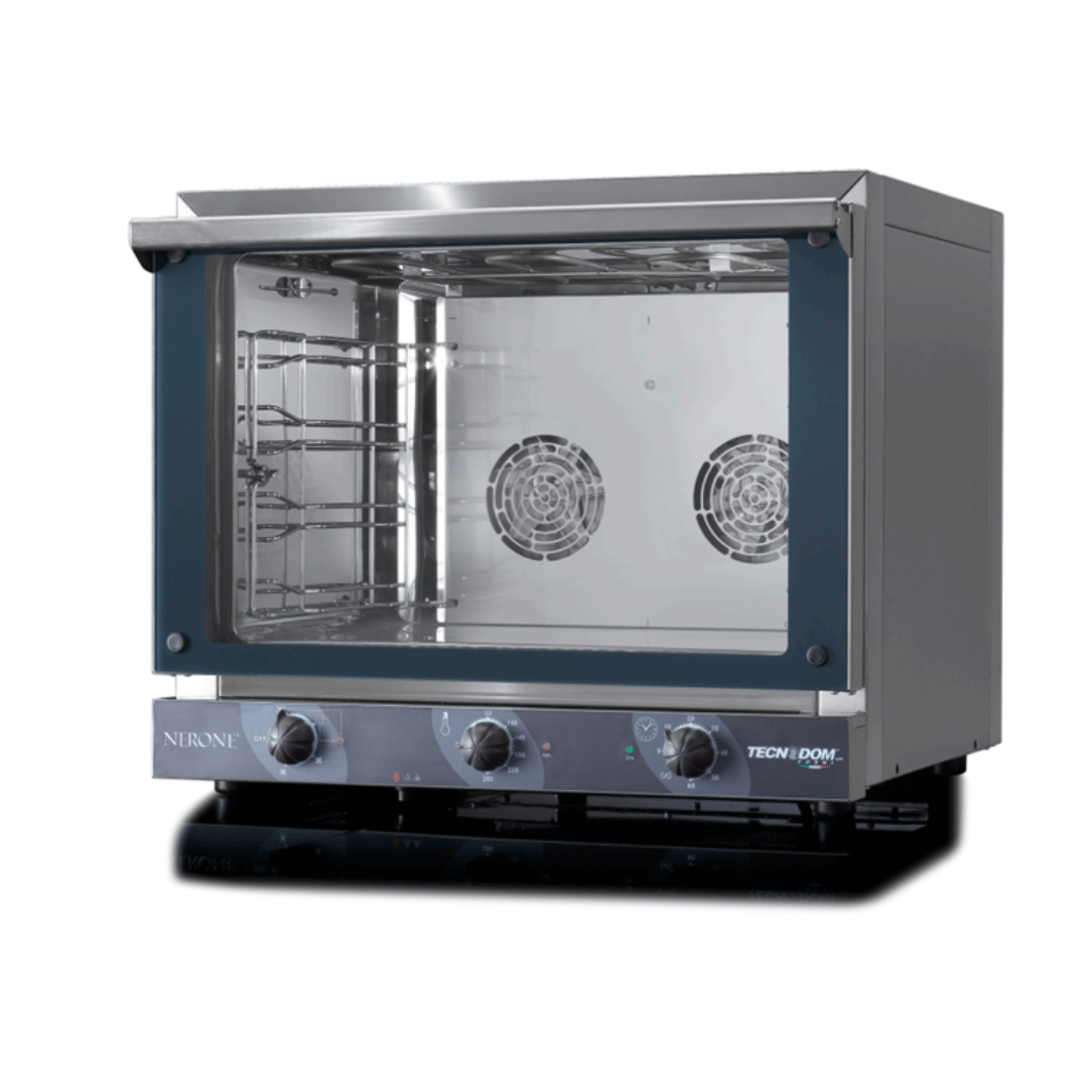

The Tecnodom TDE-4CGNG is a bench-top convection oven that grills and bakes from a single stainless steel chamber, holding 4 x GN 1/1 trays for cafes, takeaways and bakeries that need consistent results without a floor-standing footprint.
Why operators choose the TDE-4CGNG
-
Grill and convection in one — a dedicated Grill plus Grill + Convection function lets one unit brown, finish and bake.
-
Even, fast cooking — rear fans circulate heat across all 4 GN 1/1 trays for uniform results.
-
Built to clean — stainless steel chamber with rounded corners and an interlocking gasket fixing system simplify daily wipe-downs.
-
Safe and serviceable — fans stop when the door opens, a high-resistance hinge and IPX3-rated build suit busy service.
-
Clear control — simple 3-knob panel with a 50–280°C range and a 60-minute or infinite timer.
Specifications
| Brand |
Tecnodom |
| Model / MPN |
TDE-4CGNG |
| Type |
Convection Oven |
| Capacity |
4 x GN 1/1 |
| Power Type |
Electric |
| Power |
240V, 3.15kW |
| Functions |
Grill, Grill + Convection |
| Temperature Range |
50–280°C |
| Timer |
60-minute or infinite |
| Tray Spacing |
84 mm |
| External Dimensions |
686W x 660D x 580H mm |
| Internal Dimensions |
560 x 420 x 370mm |
| Net Weight |
37 kg |
| Packing Dimensions |
720 x 725 x 750 mm |
| Material |
Stainless Steel |
| Includes |
1 solid tray and 3 wire racks |
| Warranty |
1 Year Parts & Labour |
Venue suitability: The compact bench-top footprint and 4 x GN 1/1 capacity suit cafes, bakeries, takeaways, function kitchens and back-of-house finishing stations where a full combi or rack oven is more than the menu needs.
Comparing options? Browse our full range of Convection Ovens to match tray count and footprint to your space.
Installation & delivery: Runs on a standard 240V supply via a 15A socket — no three-phase required. Dispatched Australia-wide.
Frequently asked questions
How many trays does the Tecnodom TDE-4CGNG hold? It holds 4 x GN 1/1 trays, with 84 mm spacing between each tray.
Does the TDE-4CGNG have a grill function? Yes. It offers a dedicated Grill function as well as a combined Grill + Convection mode, so one unit can brown, finish and bake.
What power supply does the TDE-4CGNG need? It runs on single-phase 240V drawing 3.15kW through a 15A socket, so no three-phase connection is required.
What is the temperature range? The oven operates from 50°C to 280°C, controlled via the simple 3-knob panel with a 60-minute or infinite timer.
What is included with the oven? Each unit ships with 1 solid tray and 3 wire racks.
SKU: TDE-4CGNG
In Stock
