Description

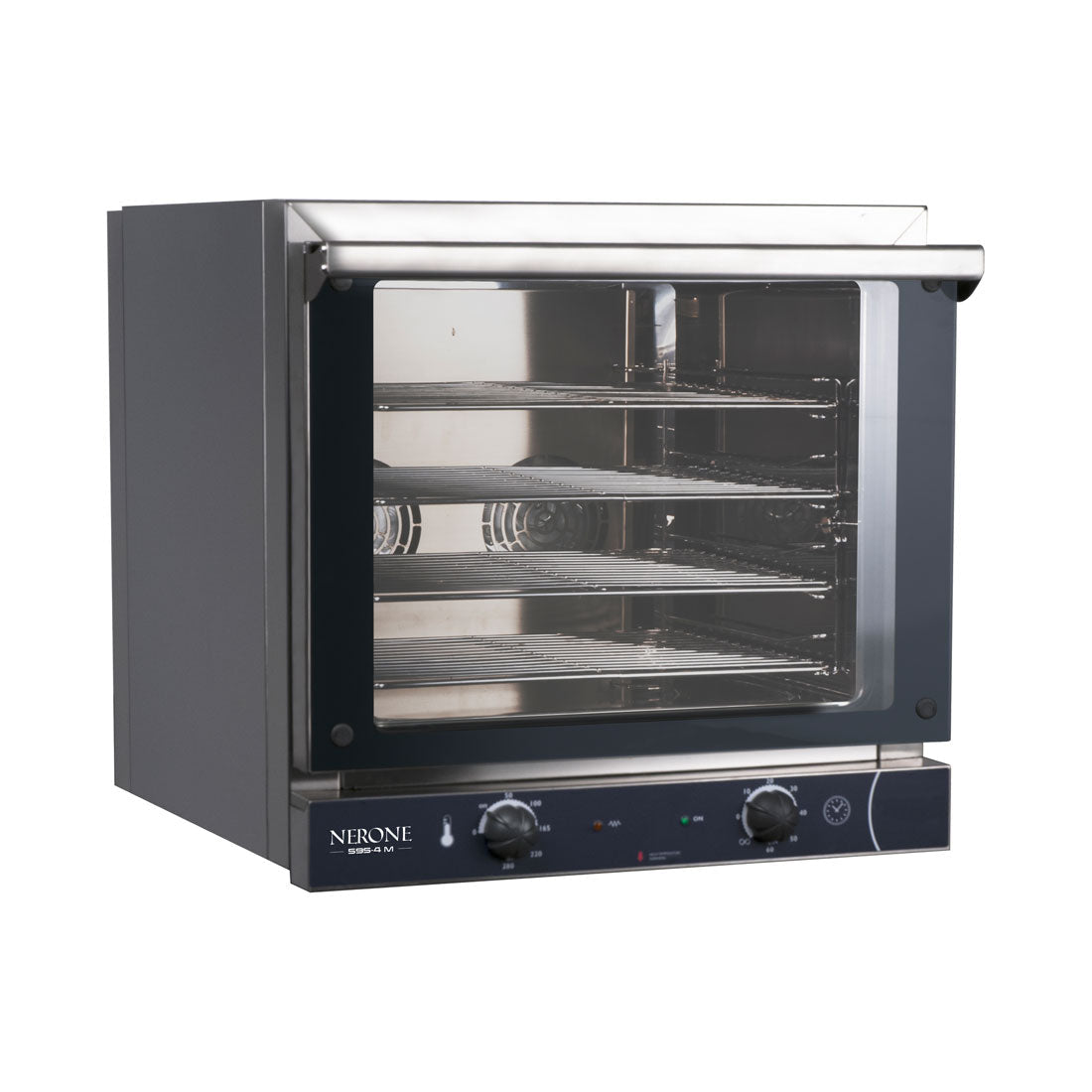

The TECNODOM by FHE TDE-4C is a 4-tray bench-top convection oven built for bakeries, cafés and small commercial kitchens that need consistent fan-forced baking from a compact footprint. It holds 4 x 435 x 350 mm trays spaced 84 mm apart, runs on a standard 240 V / 10 A plug at 2.35 kW, and cooks across a 50 °C–280 °C range. A stainless steel cooking chamber with rounded corners and an overture folding door make it easy to load and clean shift after shift.
Why operators choose the TDE-4C
-
4 x 435 x 350 mm tray capacity — bake multiple batches of pastries, par-baked bread or trays of food at once.
-
2.35 kW on a 240 V / 10 A plug — runs from a standard single-phase power point, no special wiring required.
-
50 °C–280 °C temperature range — covers gentle proving through to high-heat baking and roasting.
-
Overture folding door — high-performance door that swings clear for easy loading in tight benchtop spaces.
-
Stainless steel chamber with rounded corners — faster wipe-downs and no hard-to-reach build-up.
-
84 mm tray spacing — enough clearance for risen and topped products between shelves.
-
Tempered low-e glass & LED alarms — clear visibility of the bake plus at-a-glance status indication.
-
IPX3-rated, high-resistance hinge & interlocking gasket — durable, water-resistant build for daily commercial use.
Specifications
| Brand |
TECNODOM by FHE |
| Model / MPN |
TDE-4C |
| SKU |
TDE-4C |
| Type |
Bench-top convection oven (electric, fan-forced) |
| Tray capacity |
4 x 435 x 350 mm trays (included) |
| Tray spacing |
84 mm between trays |
| Temperature range |
50 °C – 280 °C |
| Timer |
60-minute or infinite |
| Power |
240 V, 2.35 kW, 10 A |
| Door |
Overture folding door with tempered low-e glass |
| Chamber |
Stainless steel with rounded corners |
| Protection rating |
IPX3 |
| Internal dimensions (W x D x H) |
464 x 420 x 370 mm |
| External dimensions (W x D x H) |
589 x 660 x 580 mm |
| Packed dimensions (W x D x H) |
720 x 625 x 725 mm |
| Net weight |
39 kg |
| Packed weight |
45 kg |
| Warranty |
1 year parts and labour |
Venue suitability
The TDE-4C suits cafés, bakeries, sandwich bars, delis and small kitchens that need reliable fan-forced baking without a three-phase install. Its compact 589 x 660 mm footprint and standard 10 A plug make it ideal for benchtop use where space and power are limited. Higher-volume production kitchens that bake continuously through service may be better served by a larger 6- or 10-tray oven, but for batch baking and finishing the 4-tray capacity is well matched.
Browse more options in our convection ovens range, or see the wider commercial ovens line-up for larger-capacity alternatives.
Installation & delivery
The TDE-4C plugs into a standard 240 V / 10 A single-phase power point and needs no special wiring, with clearance around the unit for ventilation. Dispatched Australia-wide from our Sydney HQ and partner warehouses in Melbourne, Brisbane, Adelaide and Perth. It is backed by a 1-year parts-and-labour warranty.
Frequently asked questions
How many trays does the TECNODOM TDE-4C hold?
The TDE-4C holds 4 trays sized 435 x 350 mm, which are included with the oven. Trays are spaced 84 mm apart, leaving room for risen and topped products between shelves.
What power supply does the TDE-4C need?
It runs on 240 V single-phase at 2.35 kW and draws 10 A, so it plugs into a standard power point with no special wiring or three-phase supply required.
What temperature range does the convection oven reach?
The TDE-4C operates from 50 °C to 280 °C, covering gentle proving and holding through to high-heat baking and roasting, with a 60-minute or infinite timer.
What are the dimensions of the TDE-4C?
It measures 589 x 660 x 580 mm (W x D x H) externally with a 464 x 420 x 370 mm internal chamber, and weighs 39 kg. Packed for transport it measures 720 x 625 x 725 mm and weighs 45 kg.
How do I keep a convection oven performing well?
Regular cleaning of the chamber, glass and fan plus periodic servicing keeps a convection oven baking evenly and extends its life. See our guide on the importance of regular commercial oven maintenance for a routine.
What warranty does the TDE-4C come with?
It carries a 1-year parts-and-labour warranty. For where a convection oven fits in a full kitchen fit-out, see our essential commercial kitchen equipment list.
