Description

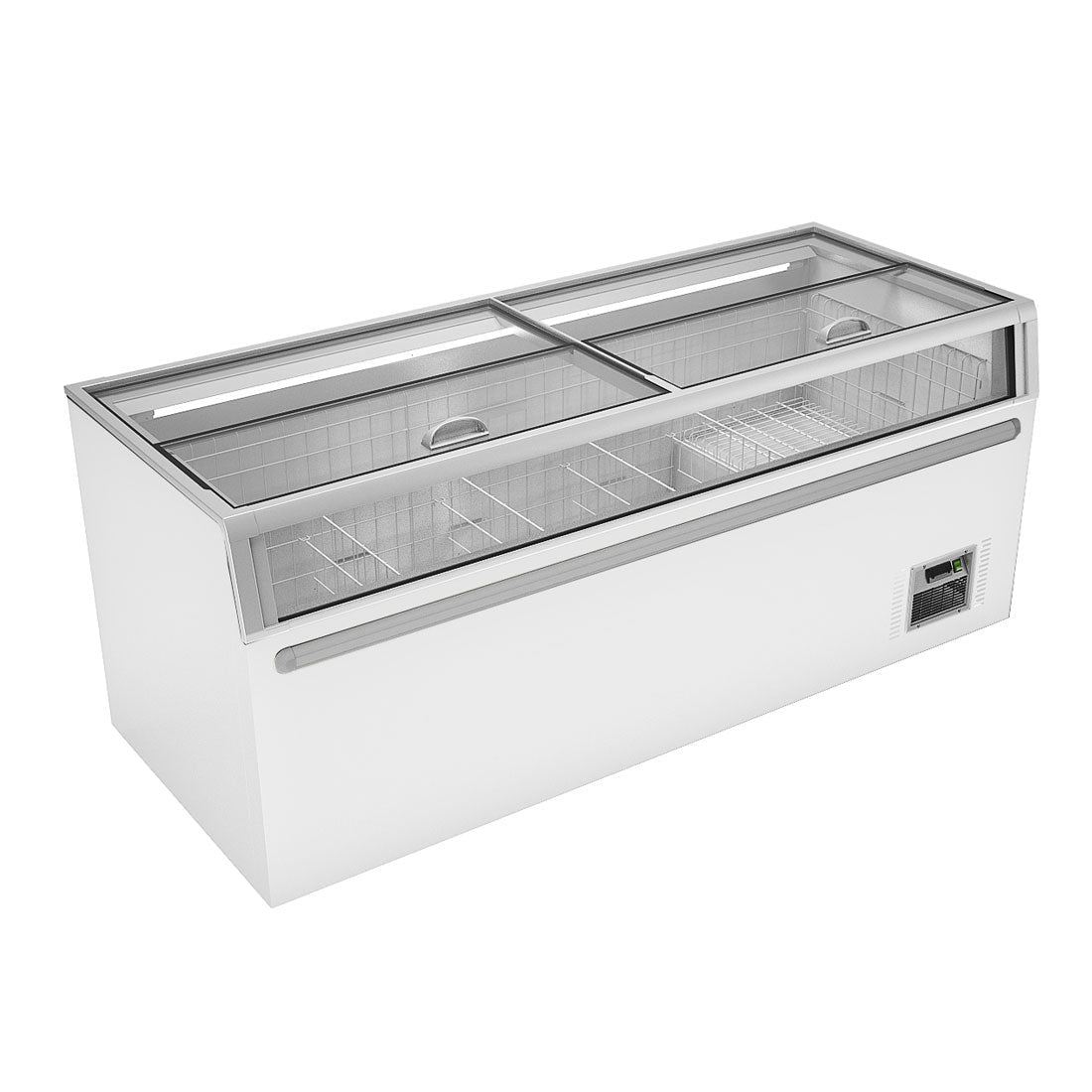

The Thermaster ZCD-L145G is a supermarket island chest freezer designed for high-visibility retail display of frozen products. With two Low-E tempered glass sliding lids and integrated LED lighting, it combines eye-catching merchandising with reliable -22 to -18°C performance — making it a practical choice for supermarkets, convenience stores, and large-format food retail environments.
Why operators choose the ZCD-L145G
-
Full-view glass lids — dual Low-E tempered glass sliding lids maximise product visibility and reduce cold air loss versus open-top designs
-
R290 natural refrigerant — low global-warming-potential refrigerant with static cooling and auto defrost for efficient, low-maintenance operation
-
575L gross capacity with storage baskets — includes wire storage mesh or full baskets, with increased display area to merchandise more product per linear metre
-
LED interior lighting — draws customer attention to product presentation without generating excess heat inside the cabinet
-
Mobile with adjustable levelling — fitted with castors and adjustable feet for easy repositioning on the retail floor or during cleaning
Specifications
| Brand |
Thermaster |
| Model / MPN |
ZCD-L145G |
| Type |
Supermarket Island Chest Freezer |
| Gross Capacity |
575 L |
| Net Capacity |
402 L |
| Temperature Range |
-22°C to -18°C |
| Ambient Temperature |
25°C / 60% RH |
| Refrigerant |
R290 (natural) |
| Cooling System |
Static with auto defrost |
| Lid Type |
2 x sliding glass (Low-E, tempered) |
| Baskets / Shelves |
Wire storage mesh / full baskets included; 2 shelves |
| LED Lighting |
Yes |
| Digital Thermostat |
Yes |
| Insulation |
70mm thickness |
| Power |
240V; 727W / 10A |
| Power Type |
Electric |
| Energy Consumption |
7.38 kWh / 24h |
| Body Material |
Colorbond |
| Castors |
Yes |
| Adjustable Feet |
Yes |
| Collision Stopper |
Yes |
| Product Dimensions (W x D x H) |
1454 x 850 x 870mm |
| Packed Dimensions (W x D x H) |
1454 x 1554 x 1010mm |
| Net Weight |
101 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: The ZCD-L145G suits supermarkets, convenience stores, petrol stations, food courts, and wholesale food distributors requiring an open-access, high-visibility frozen display. The island format allows 360° customer access, increasing impulse-purchase opportunity for frozen goods, ice cream, and packaged frozen meals. Browse our full range of Commercial Chest Freezers or shop all Thermaster refrigeration units.
Installation & delivery: The ZCD-L145G arrives fully assembled and requires only a standard 240V / 10A power connection. Castors allow repositioning without specialist installation. Units are dispatched Australia-wide via Northline or PFM freight; metro free delivery conditions apply — confirm at checkout.
Frequently asked questions
What is the capacity of the ZCD-L145G?
The ZCD-L145G has a gross volume of 575 litres and a net usable volume of 402 litres, as confirmed by the manufacturer specification sheet.
What refrigerant does the ZCD-L145G use?
The unit uses R290, a natural refrigerant with a very low global-warming potential, which is compliant with modern environmental standards for commercial refrigeration.
Does the freezer include baskets?
Yes — the ZCD-L145G is supplied with wire storage mesh or full baskets for organising frozen stock within the cabinet.
Can the freezer be moved on the shop floor?
Yes — the unit is fitted with castors for easy repositioning, as well as adjustable feet for levelling on uneven surfaces once in position.
What power supply is required?
The ZCD-L145G requires a standard Australian 240V / 10A single-phase power outlet. No specialist electrical installation is needed.
