Description

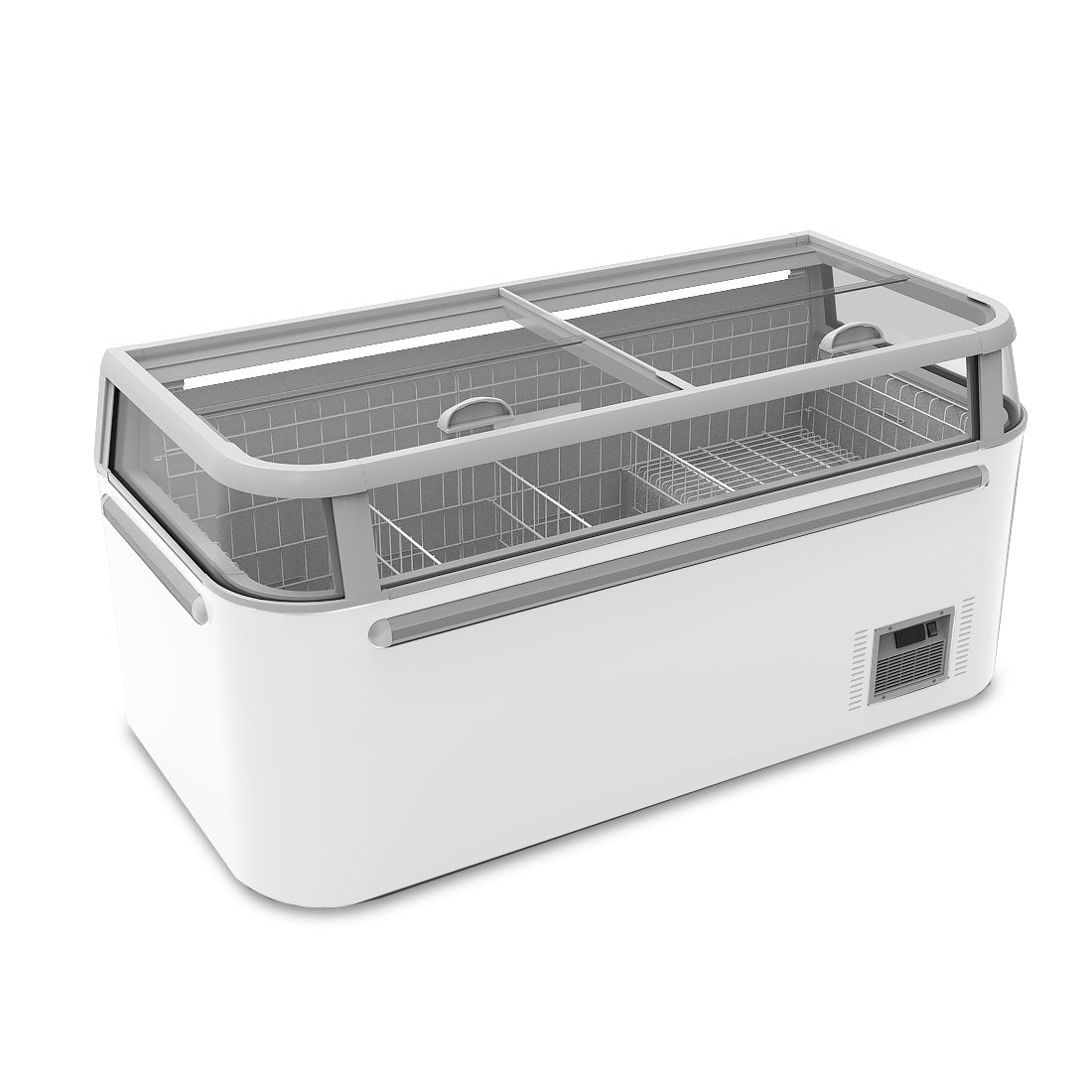

The Thermaster ZCD-E185G is a 745L supermarket island chest freezer designed for high-traffic retail environments where maximum frozen product visibility and accessibility drive sales. Featuring two low-E tempered glass sliding lids, the unit creates an open, inviting display that allows customers to see merchandise clearly while maintaining consistent freezing temperatures between -22°C and -18°C.
Why operators choose the ZCD-E185G
-
Full-width glass sliding lids — two low-E tempered glass panels slide independently for rapid access across the entire 1850mm display footprint
-
Static cooling with auto defrost — fan-free refrigeration eliminates cold air loss at product level and reduces defrost cycles for staff
-
R290 natural refrigerant — low global warming potential, compliant with AU environmental requirements, and energy efficient at 9.7 kWh/24h
-
Baskets and mesh trays included — storage mesh or full baskets ship with the unit, so merchandising starts on delivery day
-
Mobile and levelling-ready — castors for repositioning plus adjustable feet for fixed, level installation in any floor condition
Specifications
| Brand |
Thermaster |
| Model / MPN |
ZCD-E185G |
| Type |
Supermarket Island Chest Freezer |
| Gross Capacity |
745 L |
| Net Capacity |
523 L |
| Glass Sliding Lids |
2 |
| Shelves |
3 |
| Temperature Range |
-22°C to -18°C |
| Refrigerant |
R290 (natural) |
| Cooling System |
Static cooling with auto defrost |
| Power Supply |
240V; 562W / 10A |
| Energy Consumption |
9.7 kWh/24h |
| Insulation Thickness |
70mm |
| Glazing |
Low-E tempered glass |
| Lighting |
LED |
| Included Accessories |
Storage mesh or full baskets |
| Mobility |
Castors + adjustable feet |
| Ambient Temperature Rating |
25°C / 60% RH |
| Product Dimensions (W x D x H) |
1850 x 850 x 870mm |
| Packed Dimensions (W x D x H) |
994 x 1933 x 1010mm |
| Net Weight |
129 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Ideal for supermarkets, convenience stores, petrol stations, IGA and independent grocers, food halls, and retail butchers needing a high-visibility frozen display that customers can self-serve from. The 1850mm footprint suits standard aisle widths, while the mobile castors make seasonal floor resets quick and damage-free.
Browse the full range of Commercial Chest Freezers or explore more Thermaster refrigeration for the complete island and upright freezer lineup.
Installation & delivery: The ZCD-E185G arrives fully assembled. Position on a level surface, engage adjustable feet for stability, or leave on castors for mobility. Allow adequate clearance at the compressor panel (right side) for ventilation. For warranty coverage, complete product registration within 14 days of invoice — see warranty information. Dispatched Australia-wide.
Frequently asked questions
What is the usable (net) capacity of the ZCD-E185G?
The net usable capacity is 523 L. The gross volume of 745 L refers to the total interior space including walls and insulation; the 523 L net figure reflects actual product storage volume.
What refrigerant does the ZCD-E185G use?
The ZCD-E185G uses R290, a natural hydrocarbon refrigerant with very low global warming potential (GWP of 3). It is compliant with current AU environmental regulations and delivers efficient energy performance at 9.7 kWh/24h.
Can the unit be used for ice cream storage?
Yes. The ZCD-E185G maintains temperatures between -22°C and -18°C, which is within the recommended range for ice cream storage. Thermaster also notes that optional manual defrost models are available on request — ideal for ice cream where auto-defrost heat can affect product texture.
Does the freezer come with baskets?
Yes. The ZCD-E185G is supplied with storage mesh or full baskets, allowing you to organise product by category and maintain easy access for customers and staff from day one.
What is the power requirement for the ZCD-E185G?
The unit operates on a standard 240V single-phase supply at 562W / 10A. No special electrical installation is required — a standard 10A GPO is sufficient.
