Description

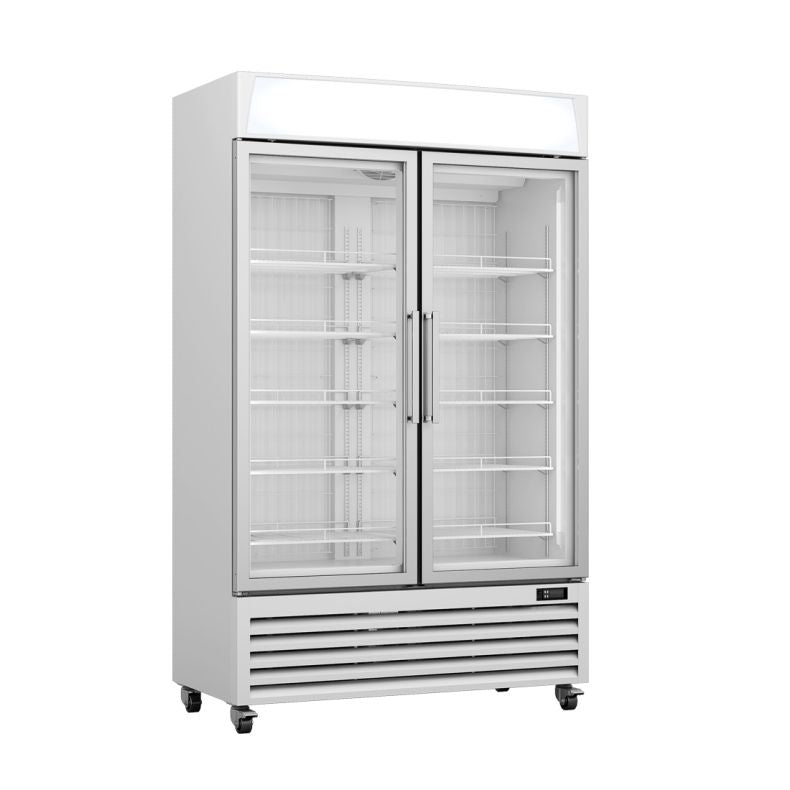

The Thermaster LG-800PF is an 800L upright double glass door display freezer designed for high-volume commercial environments that need maximum product visibility and reliable sub-zero frozen storage. Operating at -22°C to -18°C with fan-forced cooling and R290 natural refrigerant, it suits supermarkets, convenience stores, restaurants, and hospitality venues stocking large quantities of frozen product.
Why operators choose the LG-800PF
-
Full-height double glass doors — triple-glazed with heat film and self-closing hinges for maximum product visibility and cold retention
-
LED illuminated light box — integrated canopy lighting highlights frozen stock for impulse purchase without excess heat load
-
R290 natural refrigerant — low global-warming-potential refrigerant meeting current AU environmental standards
-
Fan-forced cooling — consistent temperature distribution across all shelves at -22 to -18°C
-
Digital temperature display & auto-defrost — real-time monitoring and hands-free defrost cycle reduce staff intervention
-
Lock and key on both doors — overnight product security with stainless steel door handles
-
Castors — four castors allow repositioning within the venue without equipment handling risk
Specifications
| Brand |
Thermaster |
| Model / MPN |
LG-800PF |
| Type |
Display Freezer |
| Gross Capacity |
800 L |
| Net Capacity |
648 L |
| Doors |
2 |
| Door Type |
Hinged Glass (triple-glazed with heat film) |
| Temperature Range |
-22°C to -18°C |
| Refrigerant |
R290 Natural Refrigerant |
| Cooling System |
Fan-forced |
| Ambient Temperature |
25°C / 60% RH (max) |
| Power |
240V; 1500W / 10A |
| Power Type |
Electric |
| Lighting |
LED |
| Defrost |
Auto-defrost |
| Dimensions (W × D × H) |
1220 × 693 × 2008mm |
| Net Weight |
189 kg |
| Packed Dimensions (W × D × H) |
730 × 1270 × 2048mm |
| Body Material |
Colorbond |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Ideal for supermarkets, convenience stores, bottle shops, food service venues, and hospitality operators who need a high-capacity, front-facing frozen display. The full-height glass doors and canopy LED lighting make this unit equally effective as a primary frozen-goods cabinet or a secondary impulse-purchase display at point of sale. Browse the full Display Freezers range or shop all Thermaster commercial refrigeration units.
Installation & delivery: This unit arrives fully assembled on castors for easy positioning. Allow adequate ventilation clearance at the sides and top. No refrigerant installation is required. Dispatched Australia-wide from stock held in Sydney, Melbourne, Adelaide, and Perth.
Frequently asked questions
What temperature does the LG-800PF operate at?
The Thermaster LG-800PF maintains -22°C to -18°C, suitable for storing commercially frozen foods, ice cream, and frozen meals in compliance with AU food-safety temperature requirements.
What refrigerant does the LG-800PF use?
It uses R290, a natural hydrocarbon refrigerant with a very low global-warming potential (GWP of 3). R290 is widely used in modern commercial refrigeration and meets current AU environmental standards.
Does the freezer have auto-defrost?
Yes — the LG-800PF has a built-in auto-defrost cycle that prevents ice build-up on the evaporator coils, maintaining consistent performance without manual defrosting.
Can the door hinges be reversed?
The doors are hinged as standard with self-closing mechanism. Contact your Thermaster service agent before any modification. Refer to the LG-800PF installation drawing available from F.E.D.
What is the warranty on the LG-800PF?
Thermaster provides 2 Years Parts & Labour plus 2 Years Parts Only (4 years total), subject to product registration within 14 days of invoice. Visit our warranty page for full terms and registration details.
SKU: LG-800PF
In Stock
