Description

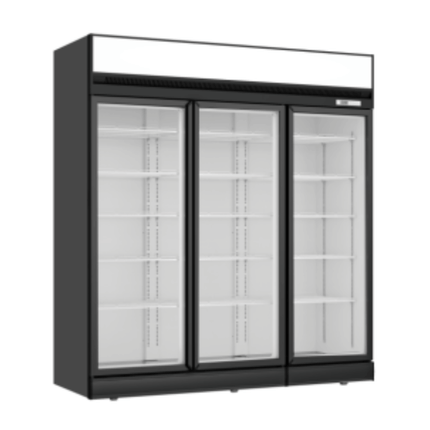

The Thermaster LG-1563DF is a 1090-litre black upright three-glass-door display freezer engineered for high-throughput commercial environments. With a wide 1880 mm footprint, fan-forced cooling, and auto-defrost, it keeps frozen product at a consistent -18 to -22°C while keeping merchandise fully visible through its three-layer heated glass doors.
Why operators choose the LG-1563DF
-
Three self-closing hinged glass doors — slimline aluminium frames maximise product visibility while minimising cold-air loss on every open.
-
Three-layer Low-E heated glass — inner tempered, middle Low-E, outer heated layer eliminates condensation and keeps the display clear at all times.
-
Illuminated 343 mm LED light box — top-mounted branding panel plus LED canopy and internal cabinet lighting draw customer attention and support promotional signage.
-
Fan-forced cooling with auto-defrost — Secop compressor and top-mount fan system maintains uniform temperature across all three bays without manual intervention.
-
Stainless steel inner base — hygienic, easy to clean, and built to withstand the demands of daily commercial use.
Specifications
| Brand |
Thermaster |
| Model / MPN |
LG-1563DF |
| Type |
Display Freezer |
| Capacity |
1090 L |
| Number of Doors |
3 |
| Door Type |
Hinged, self-closing glass |
| Glass |
3-layer: tempered inner, Low-E middle, heated outer |
| Temperature Range |
-22°C to -18°C |
| Max Ambient Temperature |
25°C / 60% RH |
| Cooling System |
Fan force |
| Defrost |
Auto-defrost |
| Compressor |
Secop |
| Power |
240V / 1.85 kW / 15A |
| Power Type |
Electric |
| Lighting |
LED light box (343 mm) + LED canopy + LED internal |
| External Colour |
Black |
| Internal Colour |
White |
| Mobility |
Castors |
| Product Dimensions |
1880(W) x 750(D) x 2092(H) mm |
| Internal Dimensions |
1760 x 580 x 1538 mm |
| Package Dimension |
770(W) x 1905(D) x 2220(H) mm |
| Net Weight |
323 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: Ideal for supermarkets, convenience stores, bottle shops, service stations, cafeterias, and any high-volume retail environment requiring a large-capacity, highly visible frozen-product display. The 1880 mm width fits standard gondola bays while the three-bay door layout allows simultaneous customer access. Explore the full commercial display freezer range or browse all Thermaster refrigeration equipment.
Installation & delivery: The LG-1563DF ships flat-packed on a pallet (770 x 1905 x 2220 mm packed) and arrives ready to install — castors included for easy positioning. Standard electrical connection 240V/15A. Review our warranty information and ensure the unit is registered within 14 days of invoice to activate the full 4-year cover. Dispatched Australia-wide.
Frequently asked questions
What temperature does the LG-1563DF operate at?
The LG-1563DF maintains a temperature range of -22°C to -18°C, making it suitable for storing all standard frozen foods, ice cream, and frozen beverages.
Does the glass door fog up in a warm shop environment?
No. The outer pane of the three-layer glass is heated, which prevents condensation and keeps the display clear even in warm or humid ambient conditions up to 25°C / 60% RH.
What is included with the unit?
The freezer ships with castors pre-fitted. Shelving is included inside the cabinet. Confirm exact shelf count and any accessories with our sales team at the time of order.
What power connection does this freezer require?
The LG-1563DF requires a standard 240V single-phase connection rated at 15A. Ensure your site has a dedicated 15A outlet before installation.
What warranty does the LG-1563DF carry?
Thermaster provides 2 years parts & labour plus a further 2 years parts-only cover — 4 years total — when the unit is registered with Thermaster within 14 days of invoice date.
SKU: LG-1563DF
In Stock
