Description

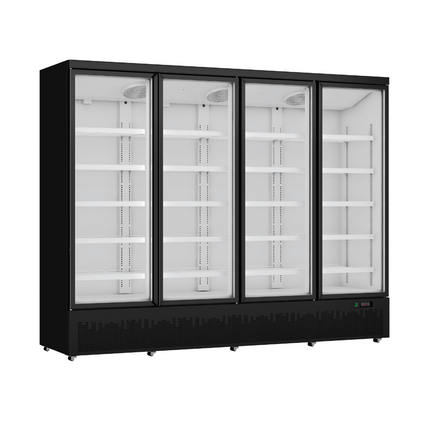

The Thermaster LG-2200BGBM is a four-door glass-door supermarket fridge that delivers high-capacity, open-access chilled display for supermarkets, convenience stores, bottle shops, and large food service venues. Running at +2 to +8°C with forced air circulation, it keeps stock uniformly cold across 1683 litres of net usable space while its full-height tempered-glass doors give customers clear visibility from every aisle.
Why operators choose the LG-2200BGBM
-
1683 L net usable capacity — four full-height bays serve high-volume supermarket and bottle-shop ranges without multiple smaller cabinets.
-
Double-glazed tempered glass doors — minimise condensation and heat transfer while keeping products clearly visible.
-

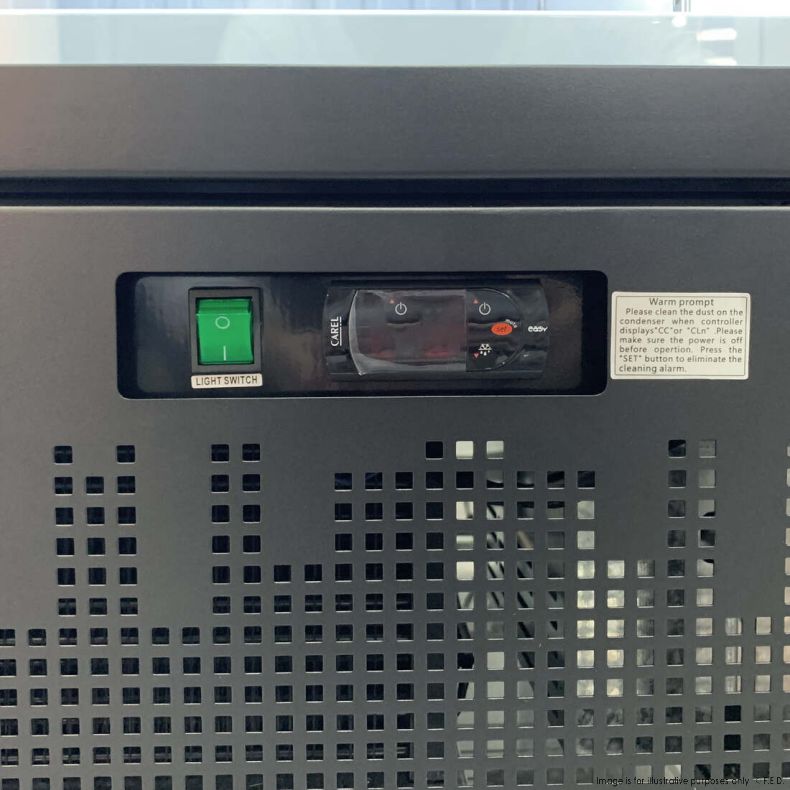

Forced air circulation with digital controller — precise +2 to +8°C throughout the cabinet, reducing hot spots and product waste.
-
Interior LED lighting — energy-efficient, shadow-free illumination that enhances product presentation.
-
Self-closing doors with aluminium frame & handle — reduce accidental temperature loss in busy service environments.
-
Universal wheels with front brakes — reposition the unit easily during a floor refit; lock in place for daily service.
-
Self-evaporating drip tray — eliminates manual draining and reduces maintenance calls.
Specifications
| Brand |
Thermaster |
| Model / MPN |
LG-2200BGBM |
| Type |
Supermarket Glass Door Fridge |
| Capacity (Net) |
1683 L |
| Capacity (Gross) |
2248 L |
| Door Count |
4 |
| Door Type |
Hinged Glass Doors |
| Temperature Range |
+2 to +8°C |
| Ambient Temperature |
38°C / 65% RH |
| Power |
240V, 920W, 10A |
| Energy Consumption |
10.38 kWh/24h |
| Product Dimensions (W × D × H) |
2508 × 740 × 2039 mm |
| Packed Dimensions (W × D × H) |
760 × 2650 × 2060 mm |
| Net Weight |
360 kg |
| Exterior Finish |
Black Powder Coat (Colorbond) |
| Interior Finish |
Powder Coated |
| Circulation |
Forced Air |
| Lighting |
Interior LED |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Designed for high-throughput chilled display in supermarkets, convenience stores, bottle shops, food halls, and large hospitality venues that need wide, unobstructed product access across multiple bays. The 2508 mm footprint suits purpose-built refrigeration runs rather than compact back-of-house spaces.
Operators looking for a complete glass-door refrigeration range should explore the full Commercial Drink Fridges collection, or browse all Thermaster refrigeration equipment.
Installation & delivery: Requires a 240V/10A dedicated circuit. Allow 100 mm clearance at the rear and sides for airflow. Units ship on a pallet via kerbside freight — confirm access for a tail-lift truck before delivery. Dispatched Australia-wide.
Frequently asked questions
What is the net usable capacity of the LG-2200BGBM?
The confirmed net volume is 1683 litres across four bays. The gross internal volume is 2248 litres; net reflects usable shelf space after accounting for interior fittings.
What temperature range does this unit maintain?
The LG-2200BGBM operates at +2 to +8°C — the standard chilled range for dairy, beverages, and fresh produce. The digital controller maintains this range precisely via forced air circulation.
What power supply is required?
The unit runs on a standard 240V / 10A Australian single-phase supply, drawing 920W. A dedicated circuit is recommended to avoid overloading a shared outlet.
Are the shelves adjustable?
Yes — the shelves are fully adjustable, allowing you to configure each bay for tall bottles, cans, packaged goods, or a mix of product heights.
What warranty does the LG-2200BGBM carry?
It includes 2 years parts & labour followed by 2 additional years of parts-only cover, provided the unit is registered with Thermaster within 14 days of the invoice date.
SKU: LG-2200BGBM
In Stock
