Description

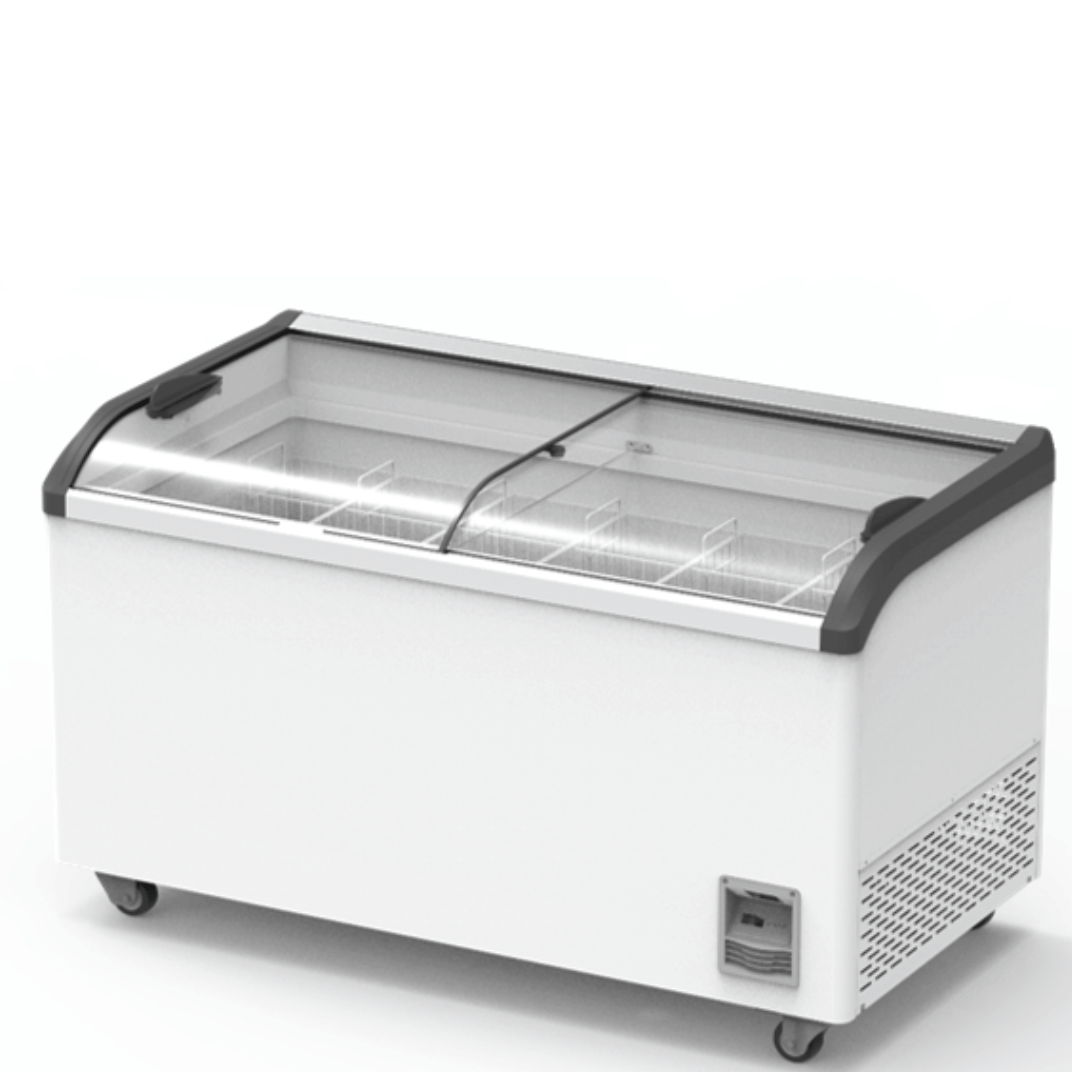

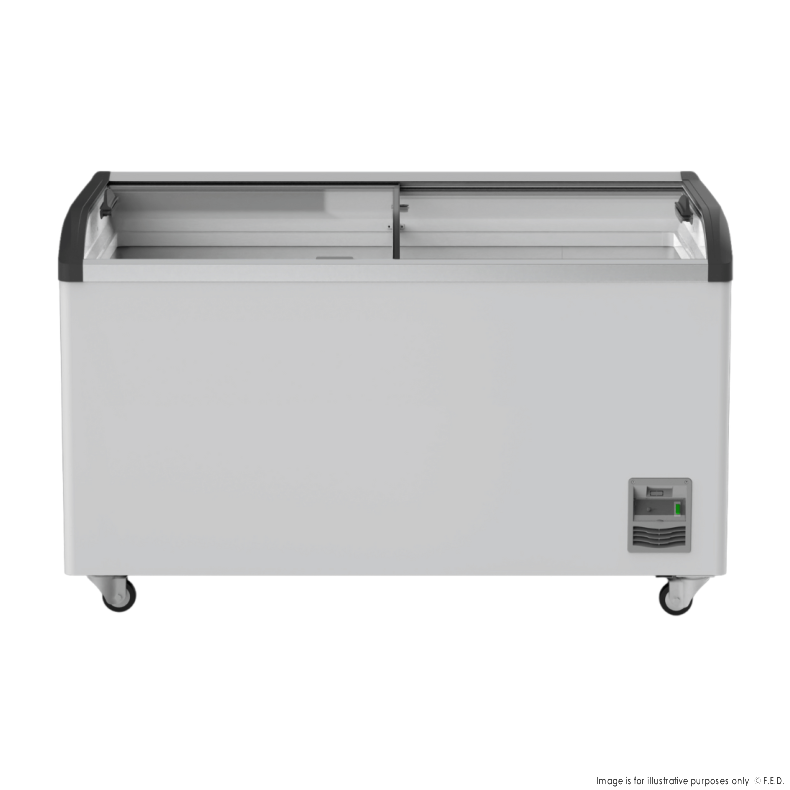

The Thermaster SD-506K is a 506-litre supermarket-style chest freezer designed for high-visibility display of frozen goods — ice cream, frozen meals, and packaged foods — in retail, hospitality, and food-service environments. Its curved glass sliding-lid design lets customers see and access product quickly while maintaining consistent freezing temperatures down to -22°C.
Why operators choose the SD-506K
-
506L capacity — large chest footprint holds substantial frozen stock in a single display unit
-
Curved glass sliding lids — two curved glass panels with dark-grey trim give clear product visibility and self-closing convenience
-
Eco-friendly R290 refrigerant — natural hydrocarbon refrigerant with ultra-low GWP meets current and emerging AU environmental standards
-
Climate Class 7 rated — engineered to hold temperature reliably in ambient conditions up to 35°C/75% RH, suitable for busy retail floors
-
Heavy-duty castors & lock included — mobility for floor placement plus a keyed lock to secure valuable frozen stock overnight
Specifications
| Brand |
Thermaster |
| Model / MPN |
SD-506K |
| Type |
Supermarket Glass Sliding Lid Chest Freezer |
| Capacity |
506 L |
| Form Factor |
Chest |
| Lids / Doors |
2 curved glass sliding lids |
| Lid Material |
Glass |
| Body Material |
Colorbond |
| Refrigerant |
R290 |
| Temperature Range |
-18 to -22°C |
| Climate Class |
7 (up to 35°C / 75% RH) |
| Cooling Type |
Static |
| Defrost |
Manual |
| Control |
Analogue temperature controller |
| Power |
240V / 230W / 10A |
| Net Weight |
81 kg |
| Product Dimensions |
1446(W) x 745(D) x 845(H)mm |
| Packed Dimensions |
1494(W) x 775(D) x 1040(H)mm |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
| Included |
Heavy-duty basket, lock, heavy-duty castors |
Venue suitability: Ideal for supermarkets, convenience stores, bottle shops, service stations, and hospitality venues needing a high-capacity, visible display for ice cream, frozen meals, and packaged frozen goods. The chest format maximises storage volume per square metre of floor space.
Browse our full range of Commercial Chest Freezers or explore the complete Thermaster refrigeration range.
Installation & delivery: No fixed plumbing required — plug into a standard 240V 10A outlet and position on the castors. Ensure adequate clearance around the compressor for airflow. Dispatched Australia-wide.
Frequently asked questions
What temperature does the SD-506K operate at?
The SD-506K maintains a temperature range of -18 to -22°C, suitable for storing ice cream, frozen meals, and other commercially frozen products.
What refrigerant does this unit use?
The SD-506K uses R290, a natural hydrocarbon refrigerant with an ultra-low global warming potential (GWP of 3), meeting current Australian and international environmental standards.
Does it come with a basket and lock?
Yes — the SD-506K includes one heavy-duty storage basket and a keyed lock for after-hours security.
What is the warranty on the SD-506K?
Thermaster provides 2 Years Parts & Labour plus a further 2 Years Parts Only warranty, provided the unit is registered within 14 days of the invoice date.
What power supply does this unit require?
The SD-506K operates on a standard 240V / 10A single-phase supply, drawing 230W. No special electrical work is required — a standard commercial or domestic outlet is sufficient.
