Description

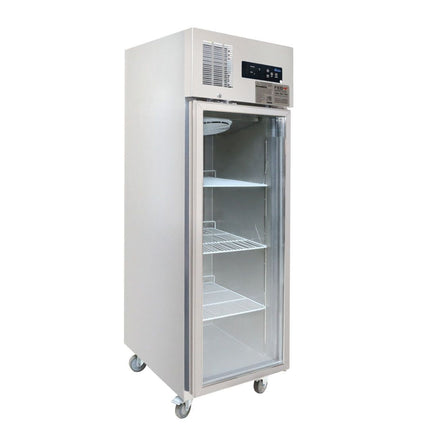

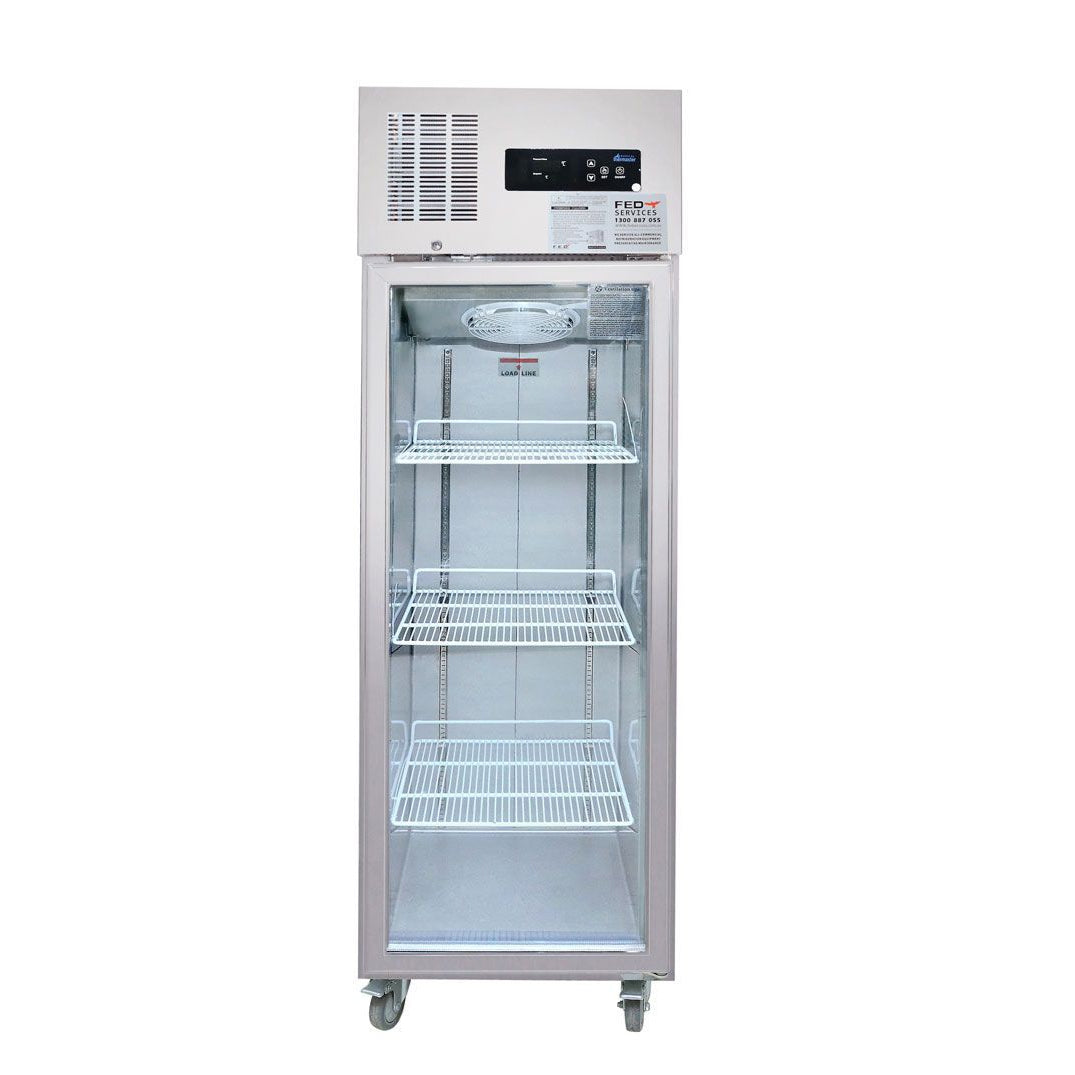

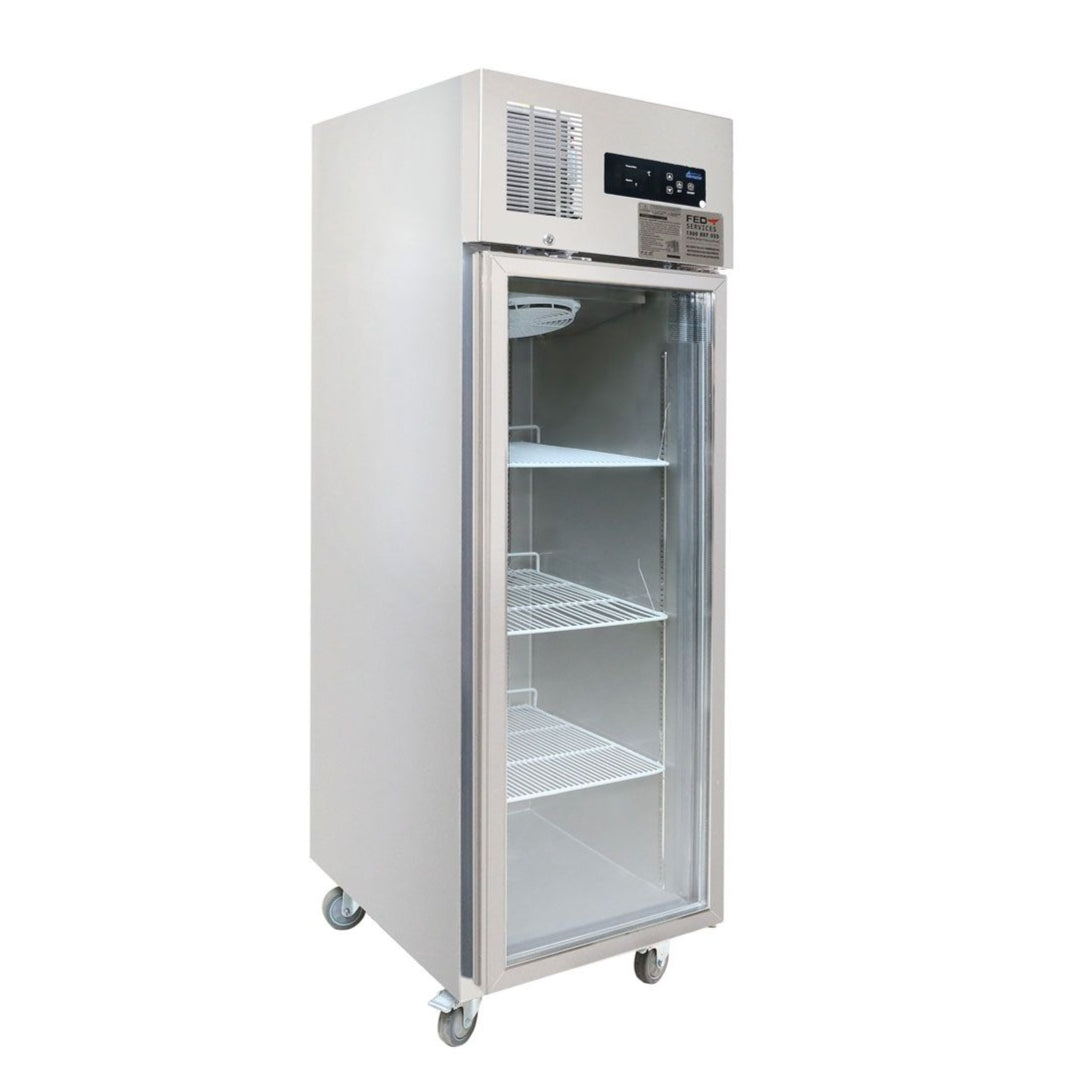

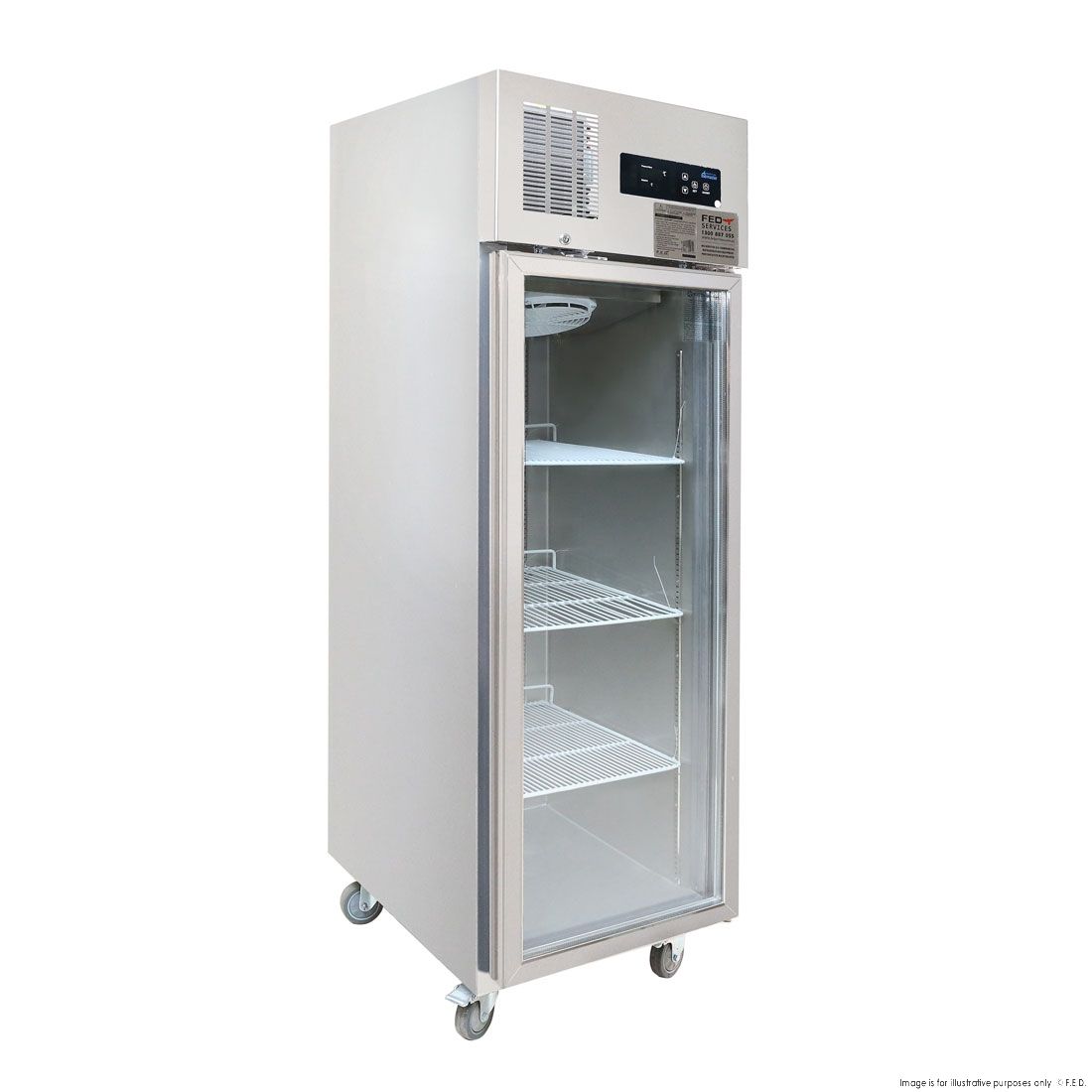

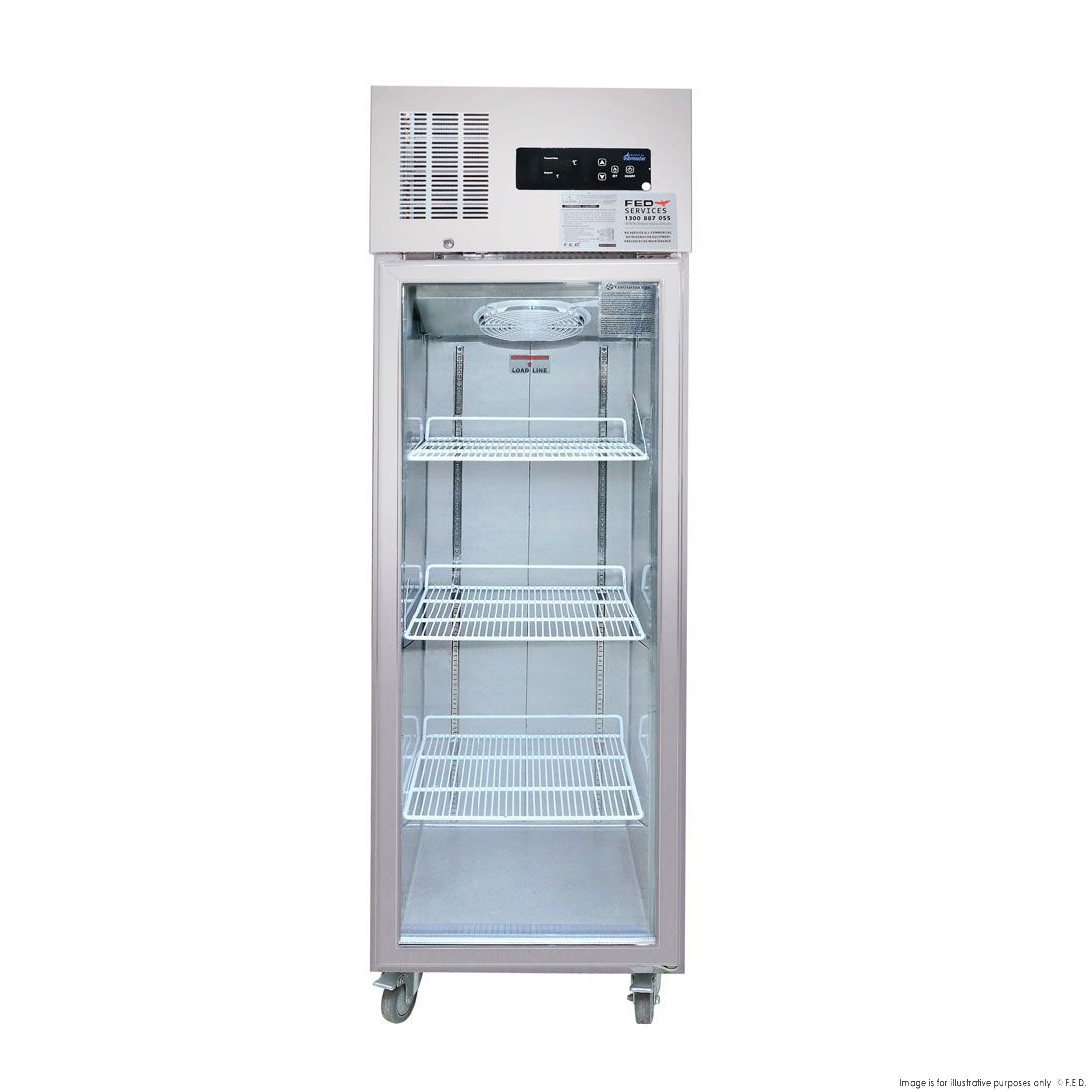

The Thermaster SUCG500 is a single glass-door upright display fridge that keeps beverages and chilled foods at a consistent 2–5°C for high-traffic commercial service. Its 500L gross capacity, top-mounted fan-forced refrigeration system, and double-glazed lockable door make it a reliable front-of-house chiller for bars, canteens, food trucks, and convenience stores.
Why operators choose the SUCG500
-
500L gross capacity — four shelving levels plus floor space for maximum product loading without an outsized footprint (620W x 760D x 1980Hmm).
-

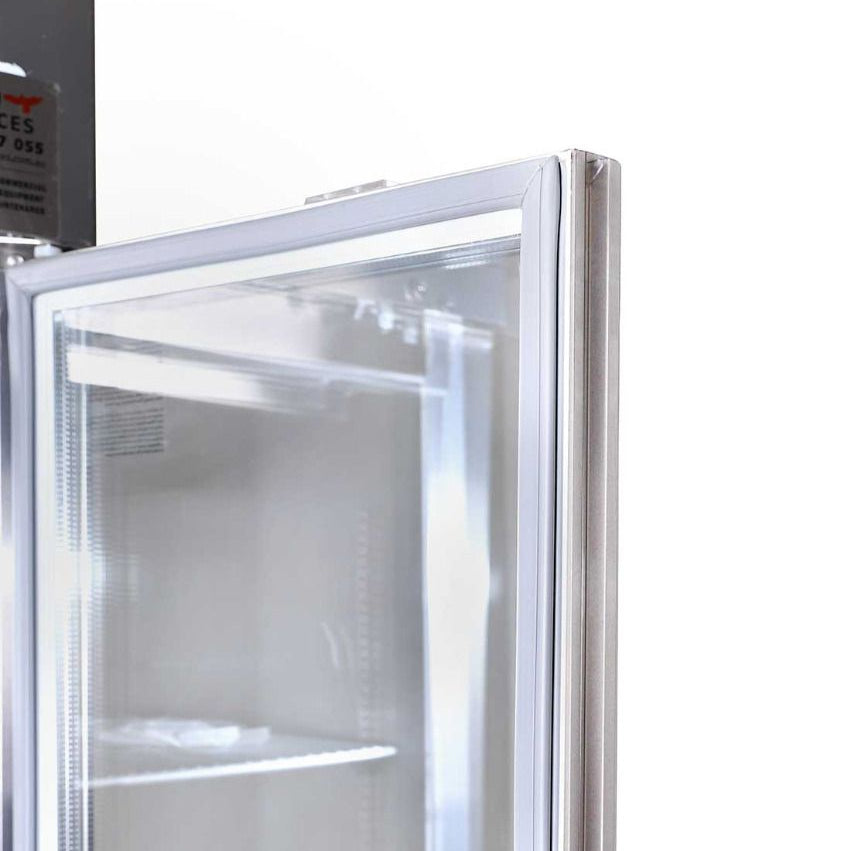

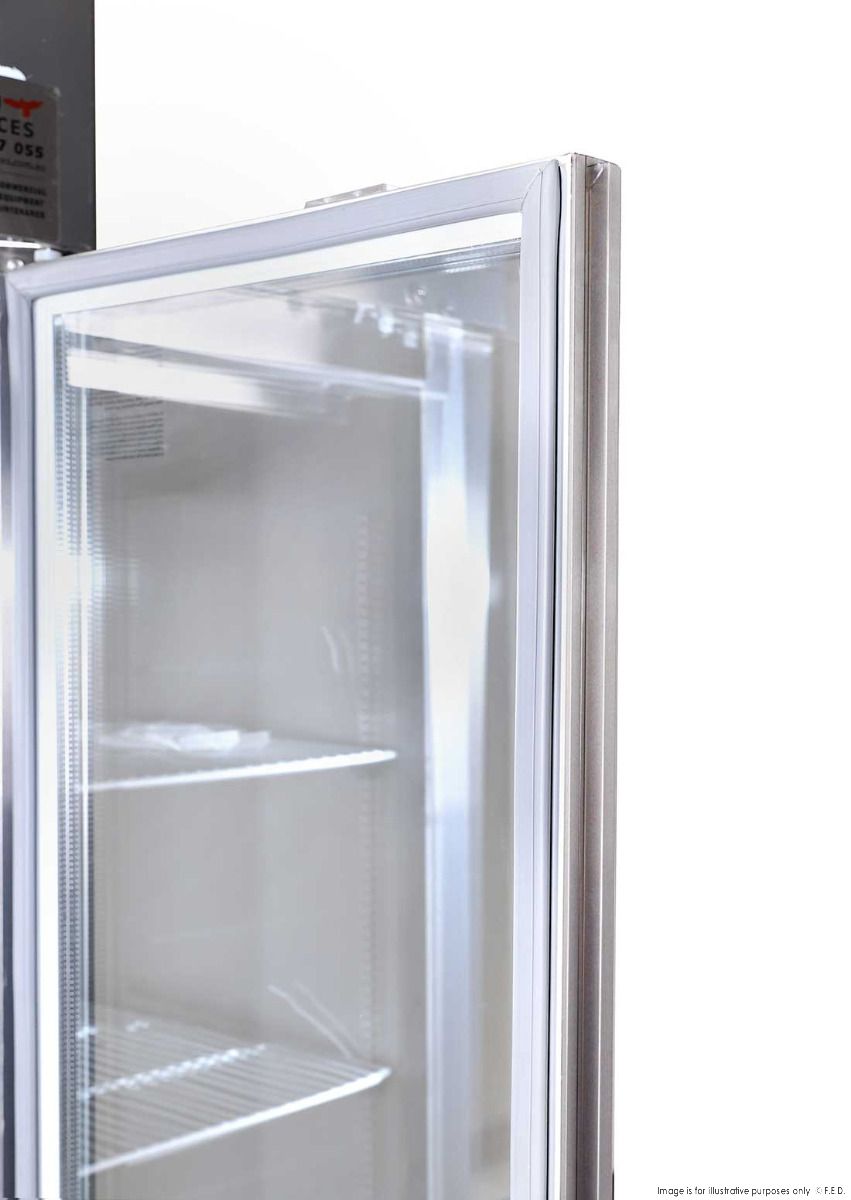

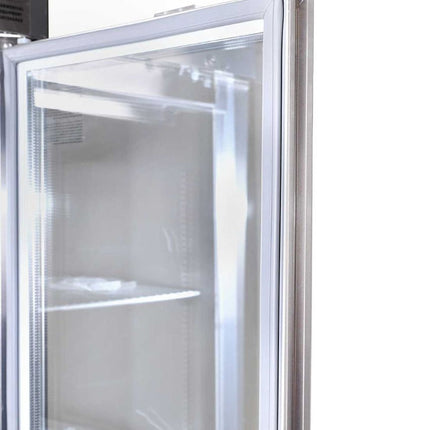

Double-glazed lockable glass door — customers see your full range at a glance; door seal and lock reduce cold loss and pilferage.
-
LED interior lighting — bright, energy-efficient illumination showcases product 24/7 with minimal heat load on the cabinet.
-
Aspera compressor & German eBM-Papst fans — commercial-grade components paired with a Dixell digital controller deliver precise, consistent temperature with low noise.
-
Auto defrost and self-evaporating drainage — minimal maintenance; no manual defrost drain required during normal service.
Specifications
| Brand |
Thermaster |
| Model / MPN |
SUCG500 |
| Type |
Single Glass-Door Upright Display Fridge |
| Capacity |
500 L (gross) |
| Temperature Range |
2 to 5°C |
| Ambient Temperature |
38°C |
| Doors |
1 |
| Door Type |
Hinged, Double-Glazed Glass |
| Power |
240V, 508W (0.508 kW), Single Phase |
| Energy Consumption |
4.34 kWh/24h |
| Cooling System |
Fan-Forced Evaporator, Auto Defrost |
| Compressor |
Aspera |
| Fans |
German eBM-Papst |
| Temperature Controller |
Dixell Digital |
| Shelving |
4 levels plus floor |
| Lighting |
LED |
| Construction |

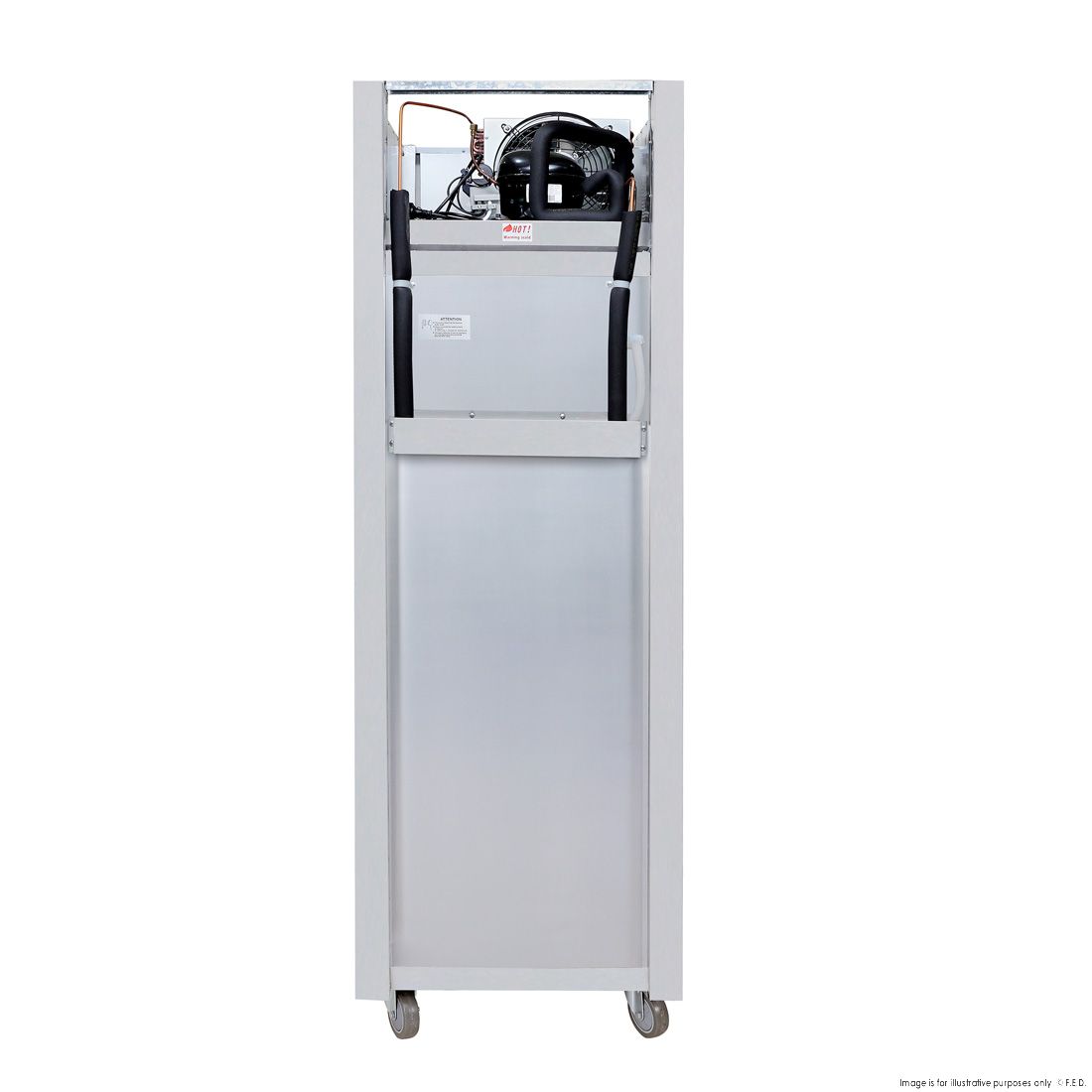

Stainless Steel exterior; galvanised metal back panel |
| Insulation |
CFC & HCFC-free |
| Mobility |
Castors |
| Product Dimensions (W x D x H) |
620 x 760 x 1980mm |
| Packed Dimensions (W x D x H) |
840 x 690 x 2030mm |
| Net Weight |
106 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for bars, clubs, canteens, food trucks, convenience stores, and any venue that needs an accessible, high-visibility cold drink or chilled food display. The lockable glass door and compact 620mm width suit sites where floor space is at a premium.
Browse the full range of Upright Display Fridges or explore all Thermaster refrigeration equipment available at Commercial Kitchen Store.

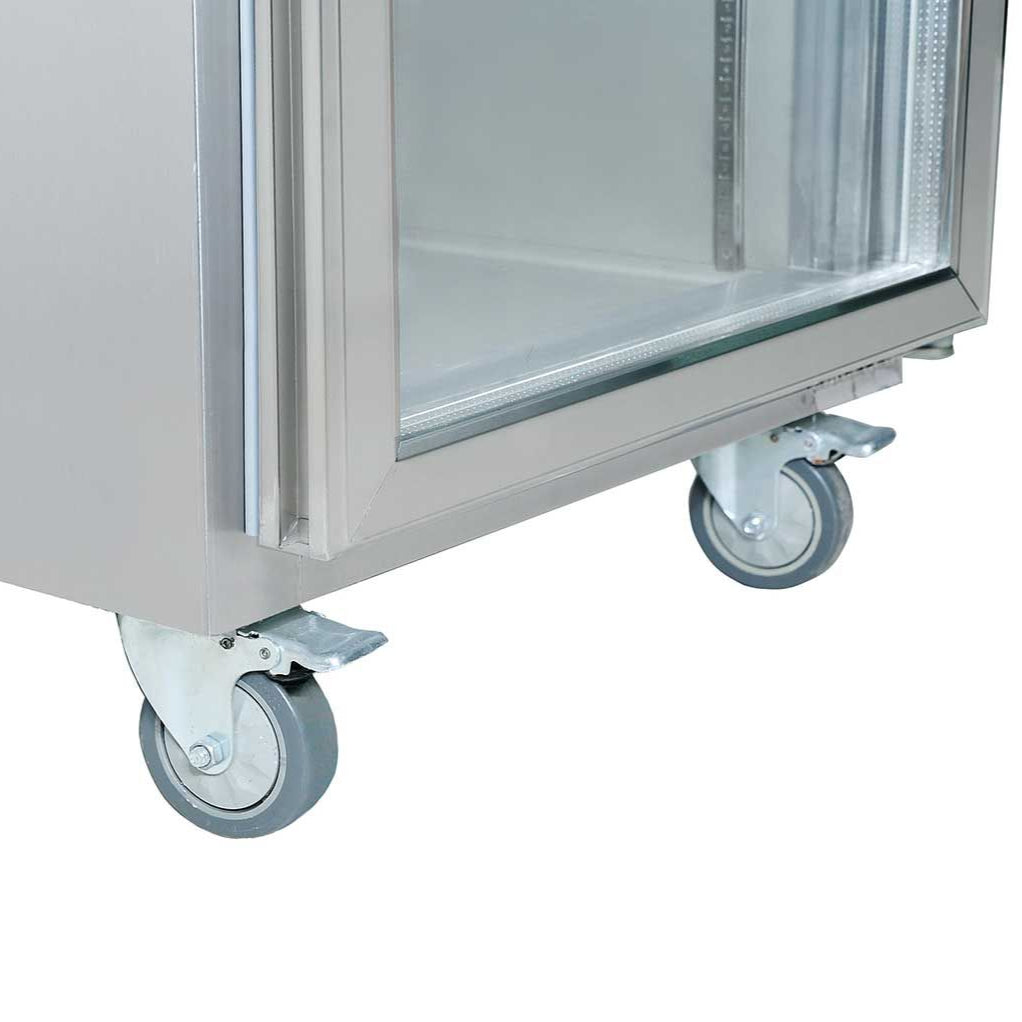

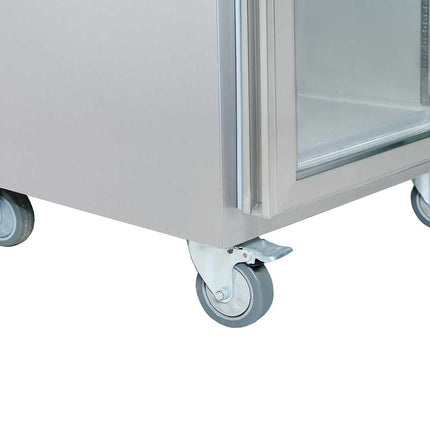

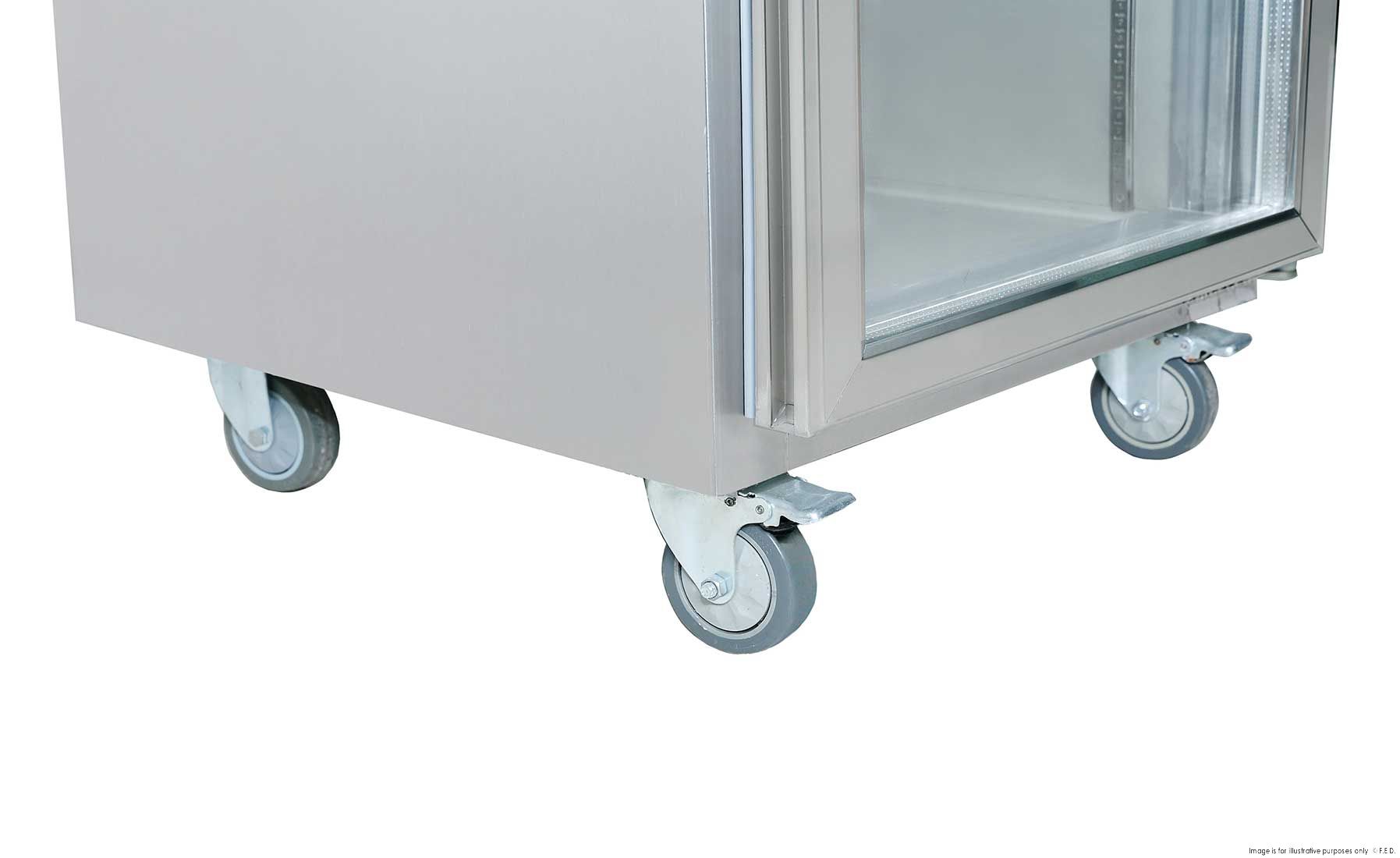

Installation & delivery: The SUCG500 arrives fully assembled and ready to plug in — 240V single-phase, no trade installation required. Includes lockable castor wheels for flexible placement. Dispatched Australia-wide.
Frequently asked questions
What temperature does the SUCG500 operate at?
The SUCG500 maintains a temperature range of 2 to 5°C, making it suitable for beverages, dairy, and chilled prepared foods. The Dixell digital controller allows you to monitor and adjust the set point from the front panel.
Does it require a plumber or electrician to install?
No trade installation is required. The unit plugs into a standard 240V single-phase outlet. Self-evaporating drainage eliminates the need for a floor drain connection.
How many shelves does the SUCG500 include?
The cabinet ships with 4 wire shelving levels plus a usable floor area, giving you five product tiers across the full 500L interior.
Is the door lockable?
Yes. The SUCG500 features a self-closing, double-glazed glass door with a key lock — useful for canteen and club environments where stock security is a requirement.
What warranty does the SUCG500 carry?
The SUCG500 is covered by 2 years parts and labour, plus a further 2 years parts-only coverage — provided the unit is registered with Thermaster within 14 days of the invoice date. Total potential coverage: 4 years.
SKU: SUCG500
In Stock
