Description

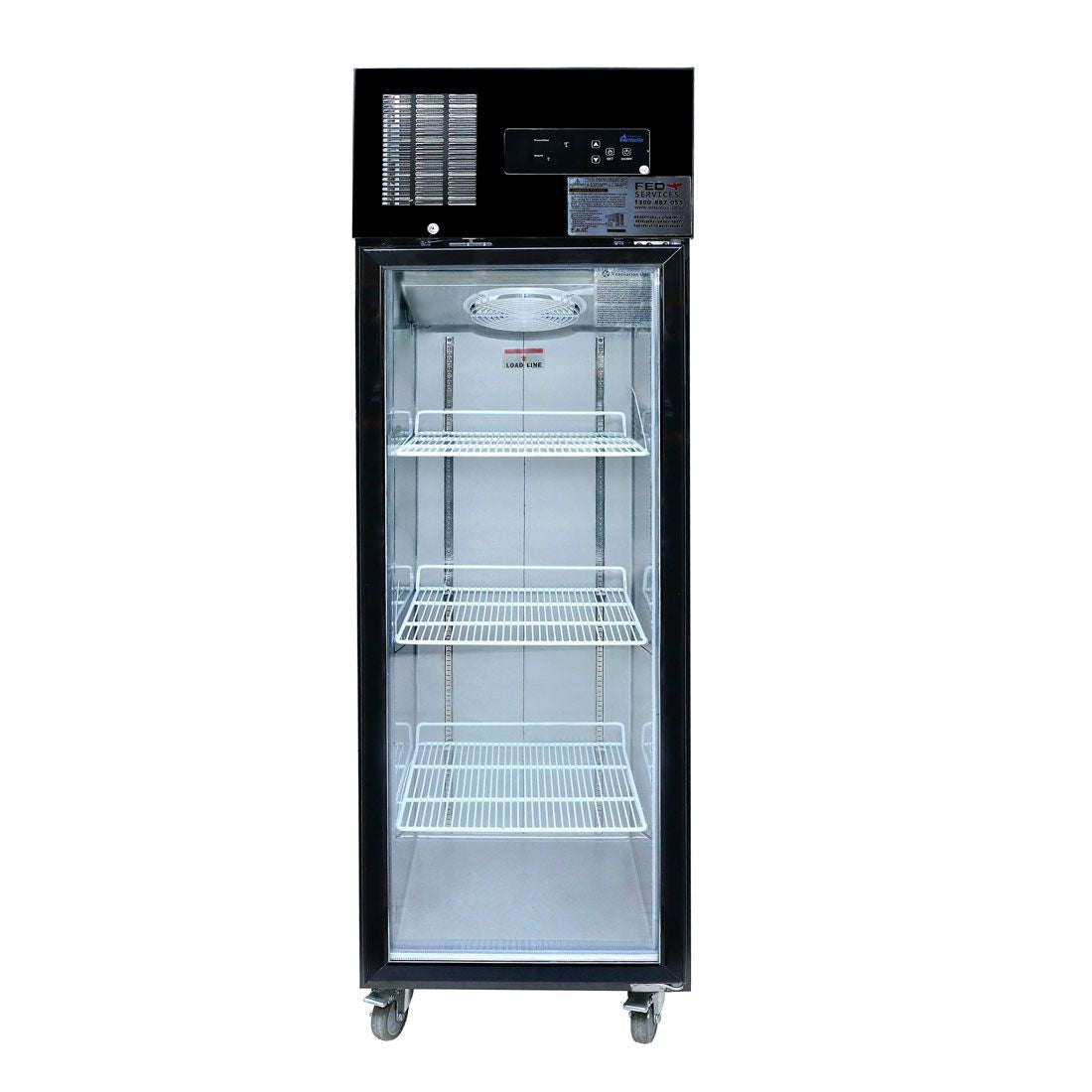

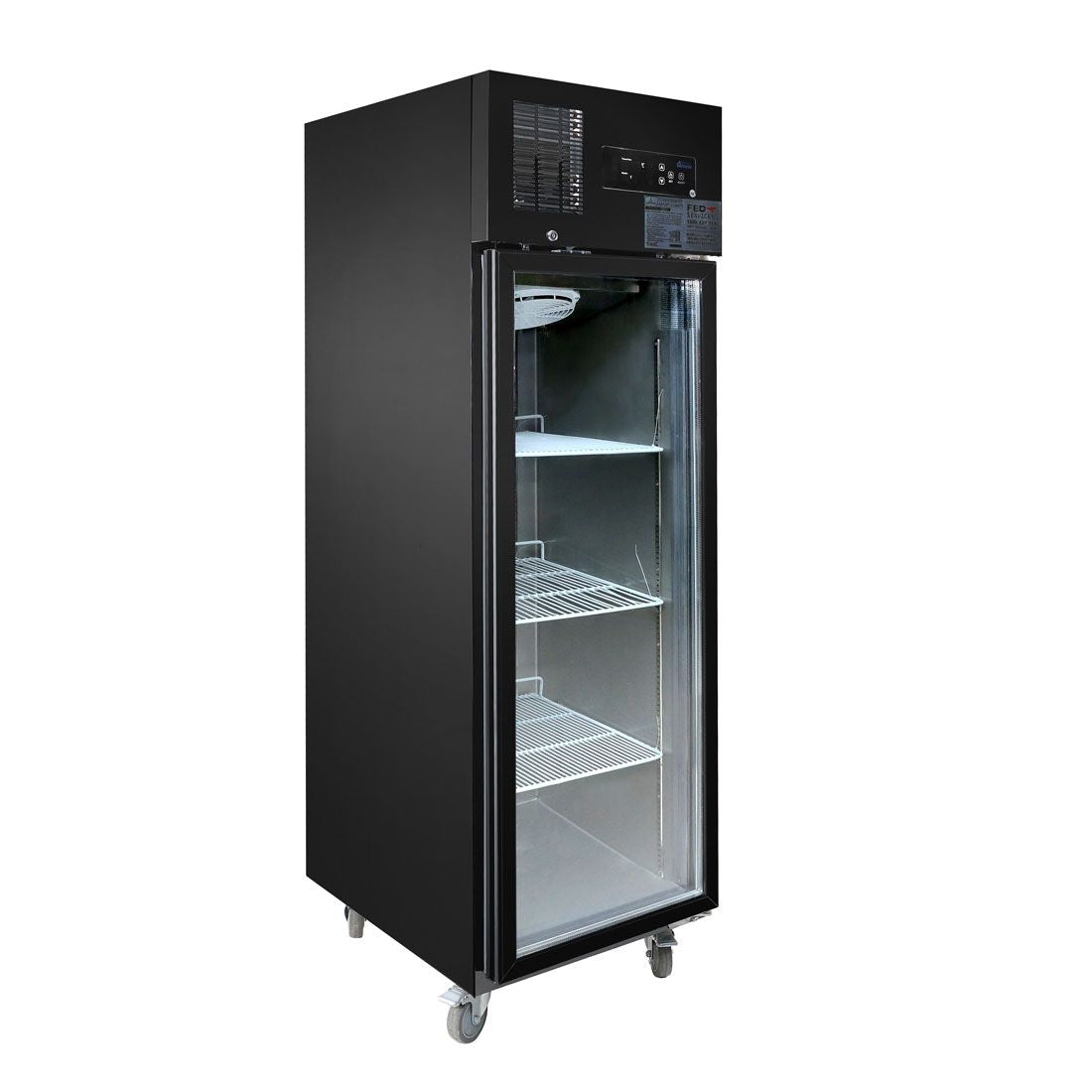

The Thermaster SUFG500B is a 500-litre single glass door upright display freezer purpose-built for commercial venues that need high-capacity frozen storage with front-of-house visibility. Running at -22 to -18°C with a fan-forced evaporator and Aspera compressor, it keeps product consistently frozen across a full 500 L cabinet — from busy cafes and convenience stores to butchers, supermarkets and food-service operations.
Why operators choose the SUFG500B
-
500 L gross capacity — large-format single-door footprint maximises storage without the complexity of multi-door units.
-
Fan-forced evaporator with auto defrost — rapid temperature recovery after door openings keeps product quality consistent during peak service.
-
Black stainless steel finish with double-glazed glass door — premium aesthetics for front-of-house or retail display; fully lockable for loss prevention.
-
Aspera compressor & EBM-Pabst fans — industry-trusted components for reliable long-term operation and lower running costs (13.66 kWh/24h energy rating).
-

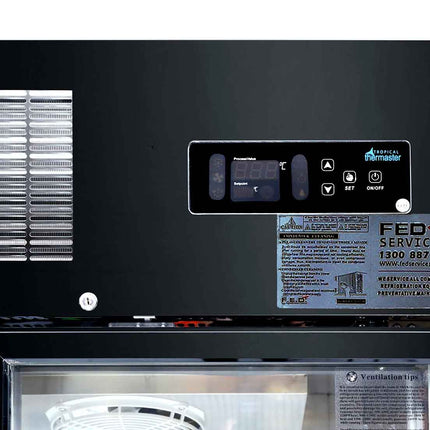

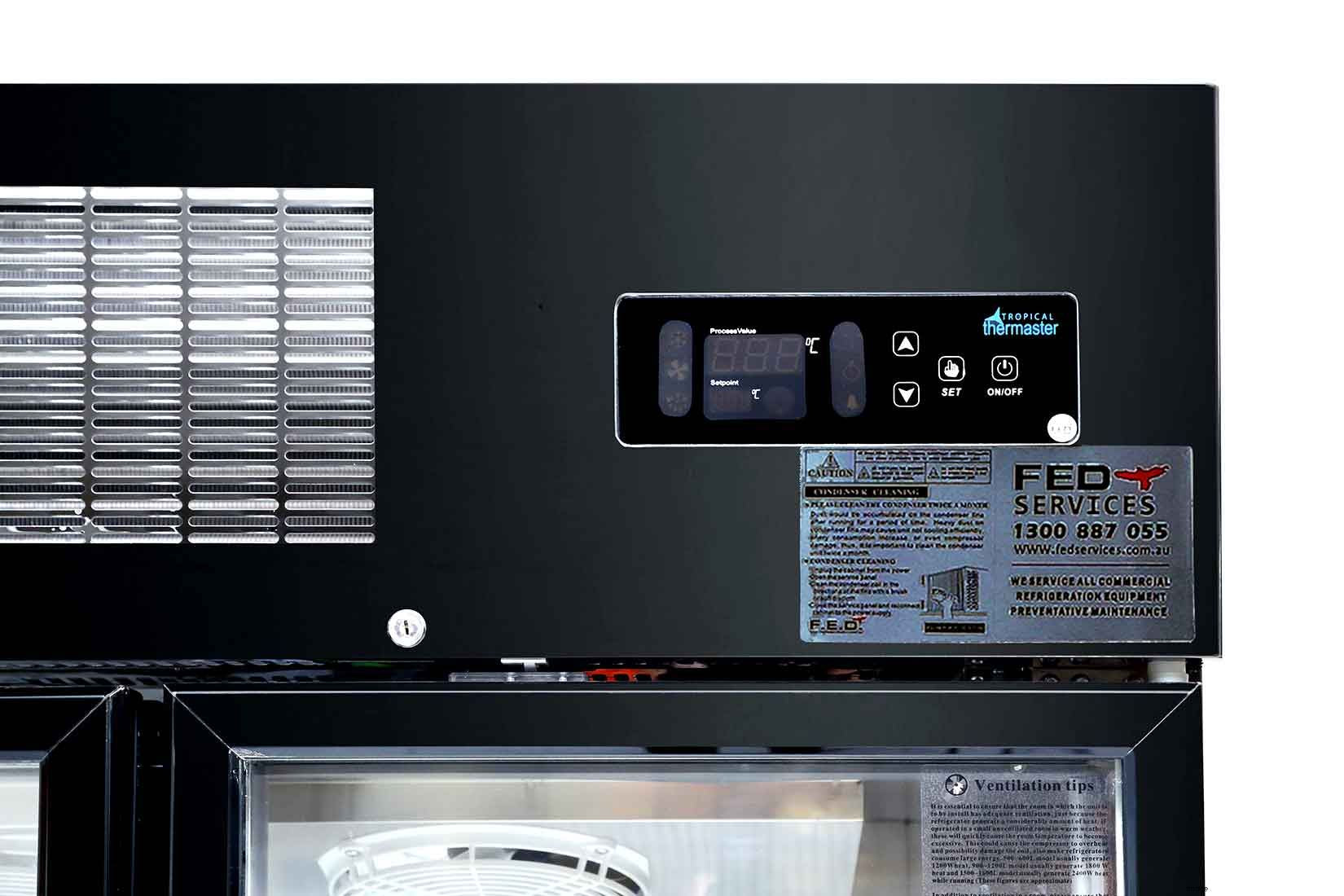

Dixell digital temperature controller — precise readout and set-point control; self-evaporating drainage and CFC & HCFC-free insulation for a lower environmental footprint.
Specifications
| Brand |
Thermaster |
| Model / MPN |
SUFG500B |
| Type |
Upright Display Freezer |
| Capacity |
500 L |
| Temperature Range |
-22 to -18°C |
| Door Count |
1 |
| Door Type |
Single Hinged Glass Door with Lock |
| Cooling Type |
Fan-Forced Evaporator with Auto Defrost |
| Compressor |
Aspera |
| Controller |
Dixell Digital Temperature Controller |
| Energy Consumption |
13.66 kWh/24h |
| Power |
240V; 835W; 10A |
| Power Type |
Electric |
| Exterior Construction |
Black Stainless Steel |
| Insulation |
CFC & HCFC-Free |
| Shelving |
3 Adjustable Shelves + Floor Level |
| Drainage |
Self-Evaporating |
| Mobility |
Castors Included |
| Product Dimensions (W × D × H) |
620 × 760 × 1980mm |
| Packed Dimensions (W × D × H) |
840 × 690 × 2030mm |
| Net Weight |
126 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for convenience stores, petrol stations, butchers, delis, cafes, supermarkets, and any commercial venue requiring front-of-house frozen display. The glass door and LED-lit interior make it a strong retail display option as well as a back-of-house freezer. Browse our full range of Upright Display Freezers or explore the complete Thermaster refrigeration lineup.
Installation & delivery: This unit arrives factory-balanced and ready to plug in — standard 240V single-phase supply, no trade installation required. Castors allow easy repositioning once on-site. Dispatched Australia-wide.
Frequently asked questions
What temperature does the SUFG500B operate at?
The SUFG500B operates at -22 to -18°C, making it suitable for storing ice cream, frozen proteins, and other products requiring hard-frozen conditions.
Is the door lockable?
Yes. The single hinged glass door has an integrated lock, allowing you to secure the cabinet during non-trading hours or for loss prevention in high-traffic retail environments.
What power supply does this freezer require?
The SUFG500B runs on a standard 240V single-phase supply drawing 835W/10A — no special wiring or trade installation required beyond a standard commercial power outlet.
What warranty is included?
Thermaster provides 2 Years Parts & Labour plus 2 Years Parts Only (total 4 years), subject to product registration within 14 days of invoice date. See our warranty information page for full terms.
Can the shelves be adjusted or removed?
Yes. The SUFG500B has 3 adjustable wire shelves plus usable floor-level space, allowing flexible configuration for bulkier frozen items such as whole proteins or large packaged goods.
