Description

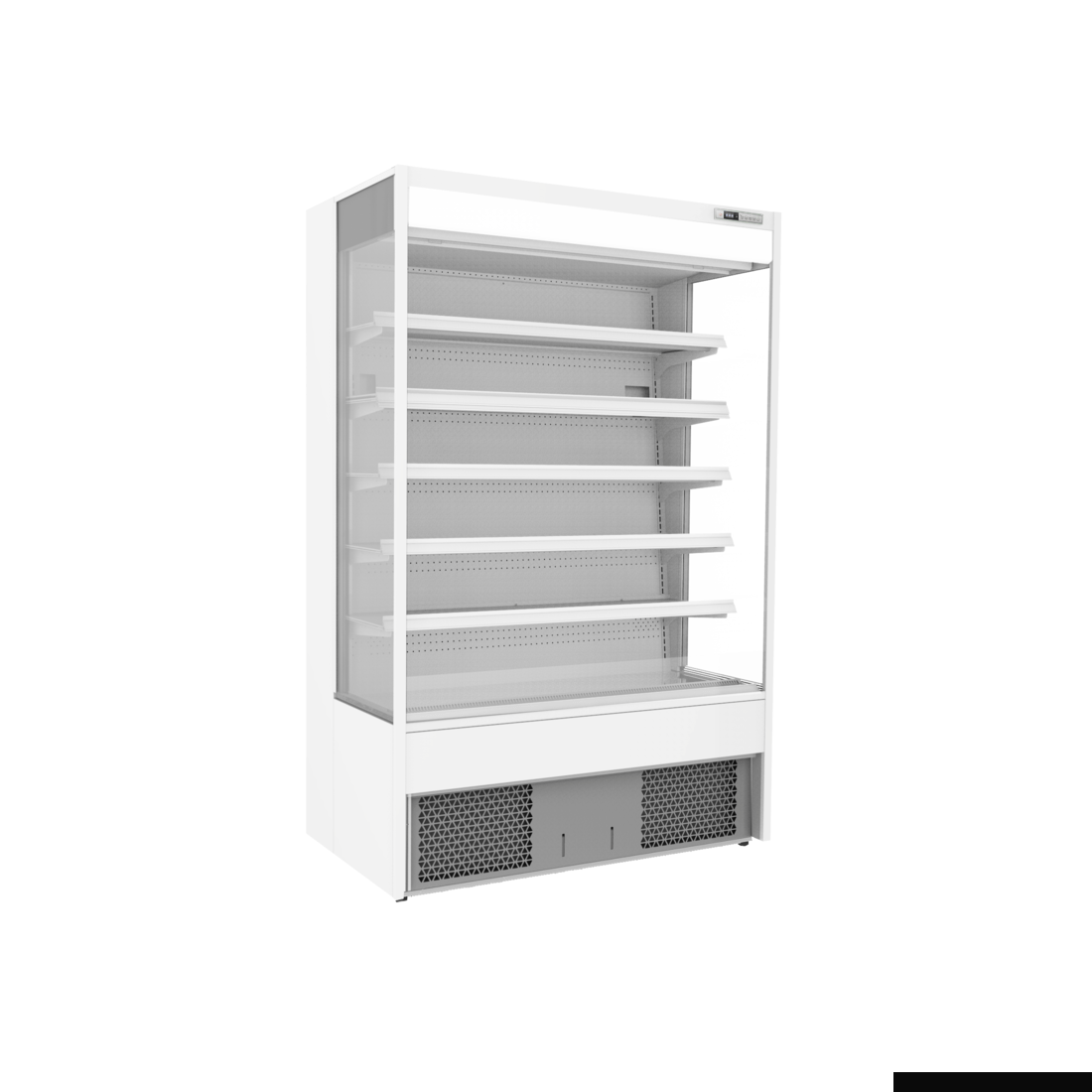

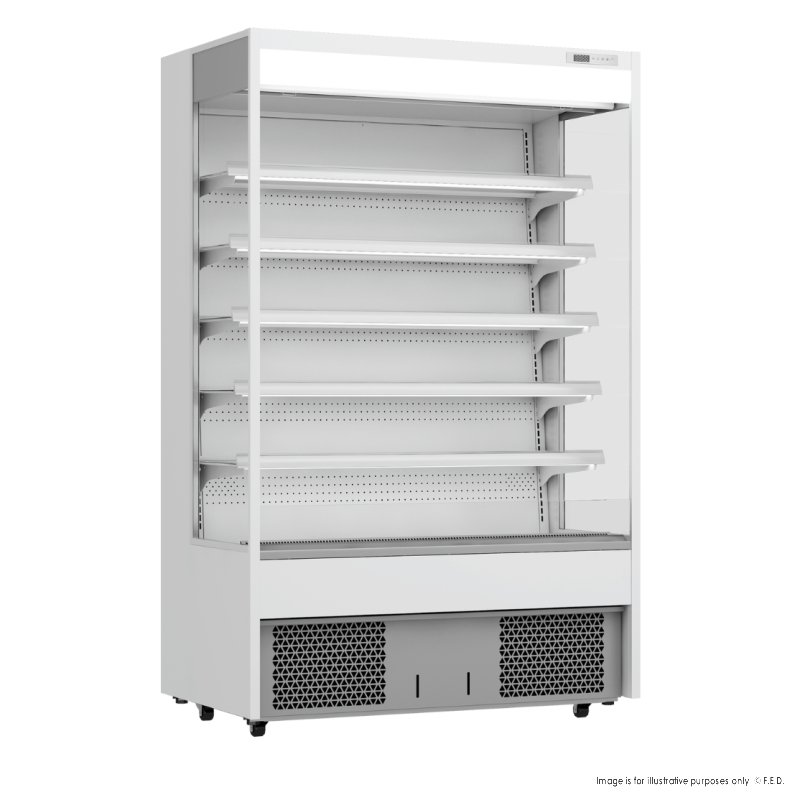

The Thermaster OC-1220 is a 1220mm-wide open multideck display fridge designed for high-visibility chilled beverage and produce merchandising in supermarkets, cafés, restaurants, and convenience stores. With a 540 L net volume, fan-forced cooling, and an illuminated LED top canopy, it keeps product perfectly chilled while driving impulse purchases.
Why operators choose the OC-1220
-
540 L display capacity — deep, wide open-front shelving maximises product facings and restocking speed.
-
R290 natural refrigerant — environmentally responsible, lower carbon footprint without sacrificing performance.
-
Double-layer night blinds — two drop-down blinds cut overnight energy consumption without powering down the unit.
-
Multiplexable design — units lock together in a continuous line-up without a mullion, ideal for supermarket runs.
-
LED top canopy with advertising space — illuminated header panel increases product visibility and supports in-store promotions.
Specifications
| Brand |
Thermaster |
| Model / MPN |
OC-1220 |
| Type |
Open Multideck Display Fridge |
| Capacity |
540 L |
| Temperature Range |
+1 to +7°C |
| Temperature Class |
M2 |
| Max Ambient Temperature |
25°C, 60% RH |
| Refrigerant |
R290 (natural) |
| Compressor |
Skope |
| Night Blinds |
2 double-layer |
| Display Area |
2.32 m² |
| Shelf Angle |
0° or 7° (adjustable) |
| Lighting |
LED top canopy |
| Power |
240V; 1390W; 15A |
| Energy Consumption |
20.11 kWh/24h |
| Dimensions (W × D × H) |
1280 × 770 × 2067 mm |
| Packed Dimensions |
1220(W) × 1353(D) × 2110(H) mm |
| Net Weight |
275 kg |
| Body Material |
Colorbond |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (registration within 14 days of invoice) |
Venue suitability: Ideal for supermarkets, convenience stores, service stations, cafés, bars, and any retail environment requiring high-volume open beverage or produce display. The compact base footprint and multiplexable design suit both standalone installations and extended refrigerated runs.
Browse our full range of Commercial Open Display Fridges or explore all Thermaster refrigeration equipment available at Commercial Kitchen Store.
Installation & delivery: The OC-1220 requires a dedicated 15A power socket. Allow adequate clearance at the rear for ventilation. Dispatched Australia-wide.
Frequently asked questions
What refrigerant does the OC-1220 use?
The OC-1220 uses R290, a natural hydrocarbon refrigerant with a very low global warming potential, making it one of the most environmentally responsible options available in commercial refrigeration.
Can multiple OC-1220 units be connected together?
Yes — the OC-1220 is multiplexable and designed to be assembled in a continuous line-up without a dividing mullion between units, enabling a seamless refrigerated run of any length.
What power supply does the OC-1220 require?
The unit operates on 240V single-phase and draws 1390W at 15A. A dedicated 15A power socket is required — a standard 10A outlet is not sufficient.
How do the night blinds work?
The OC-1220 features two double-layer drop-down night blinds that cover the open display front after trading hours. Closing them significantly reduces energy consumption overnight without switching the refrigeration off.
What is the warranty on the OC-1220?
The OC-1220 is covered by a 2-Year Parts & Labour warranty plus a further 2-Year Parts Only warranty — 4 years total — provided the unit is registered within 14 days of invoice.
