Description

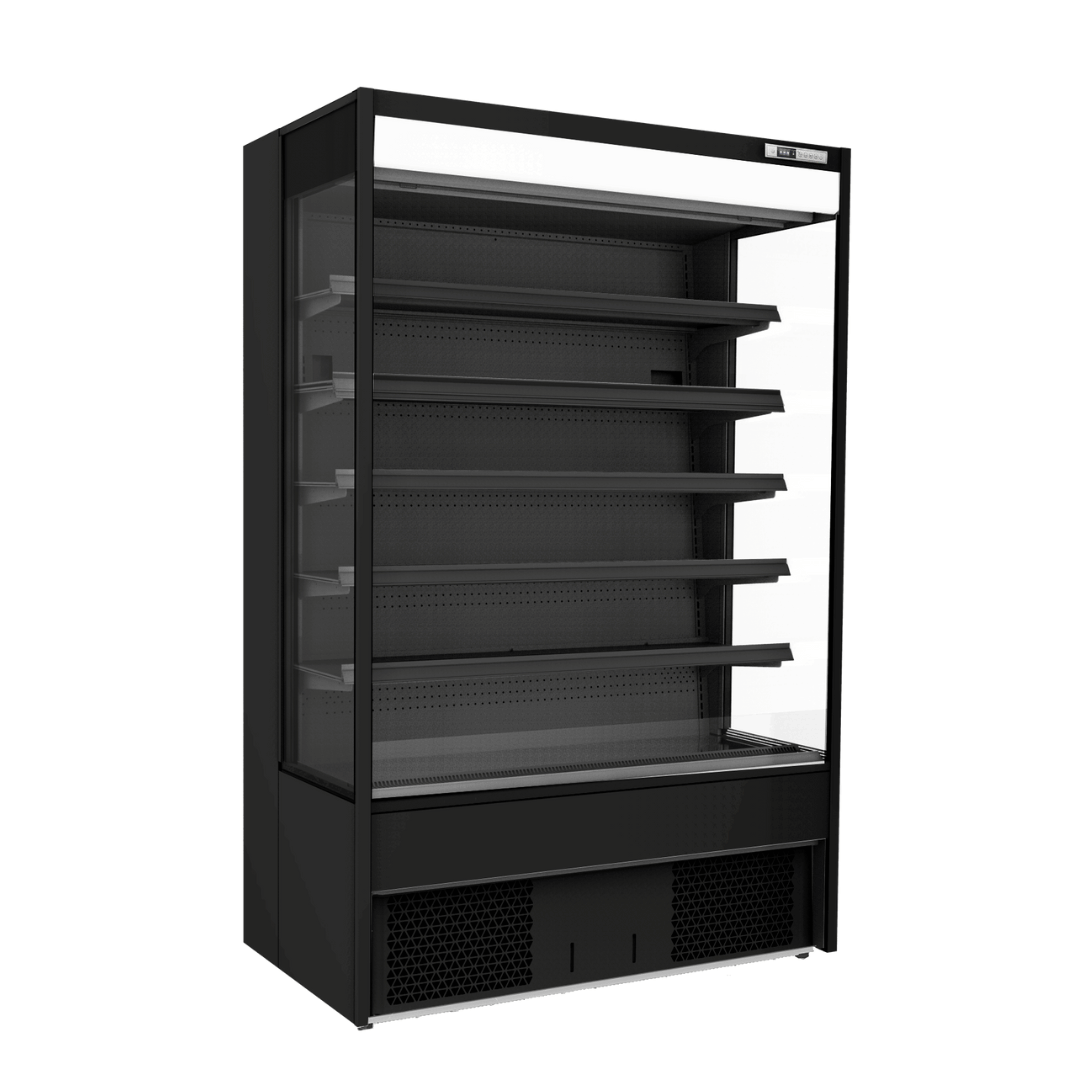

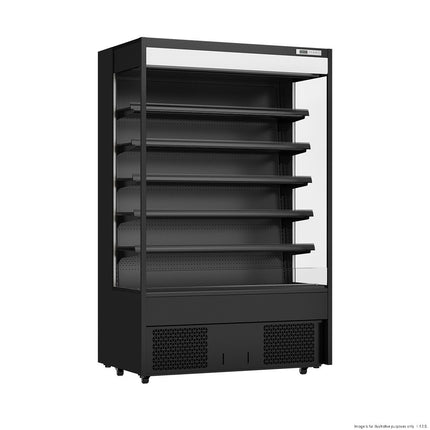

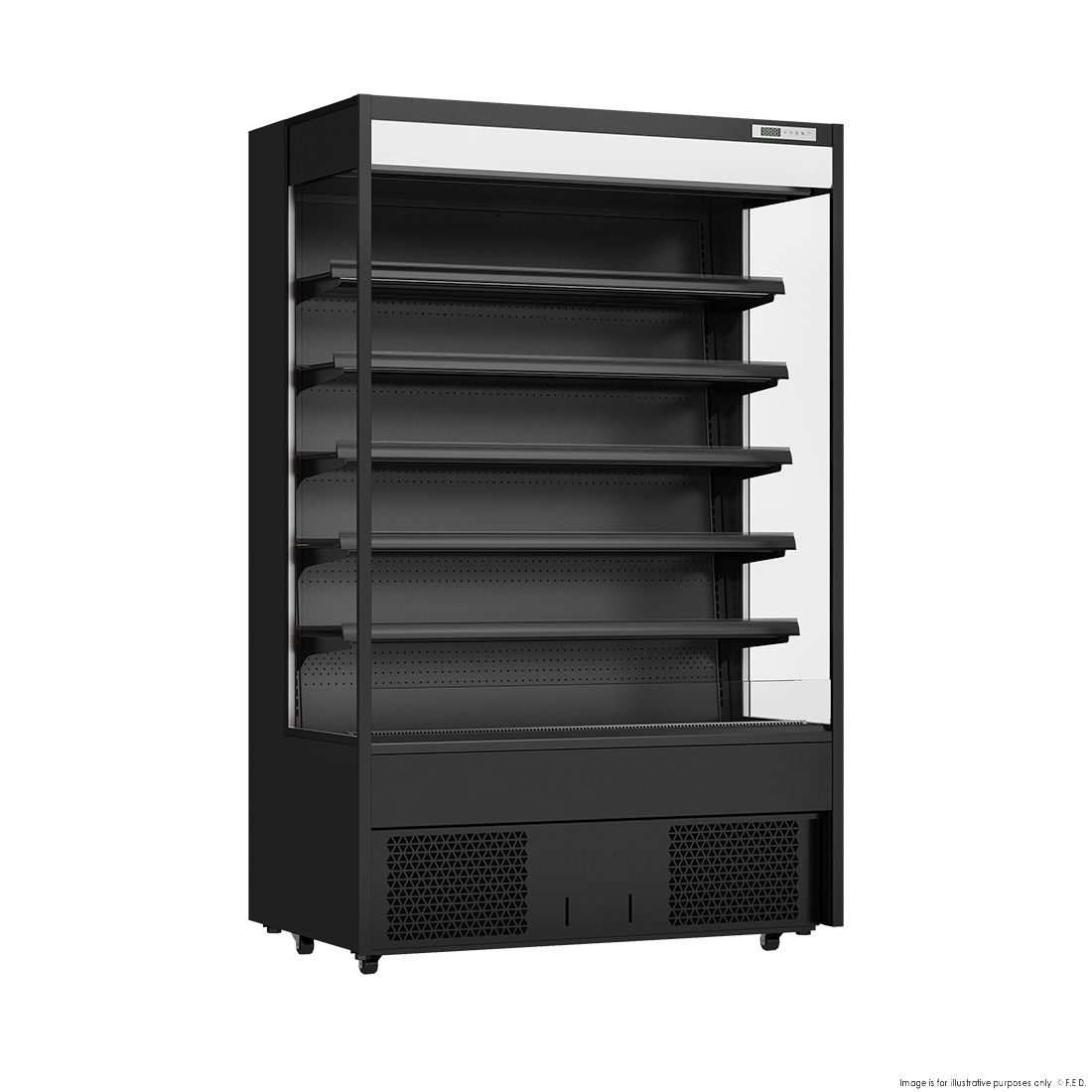

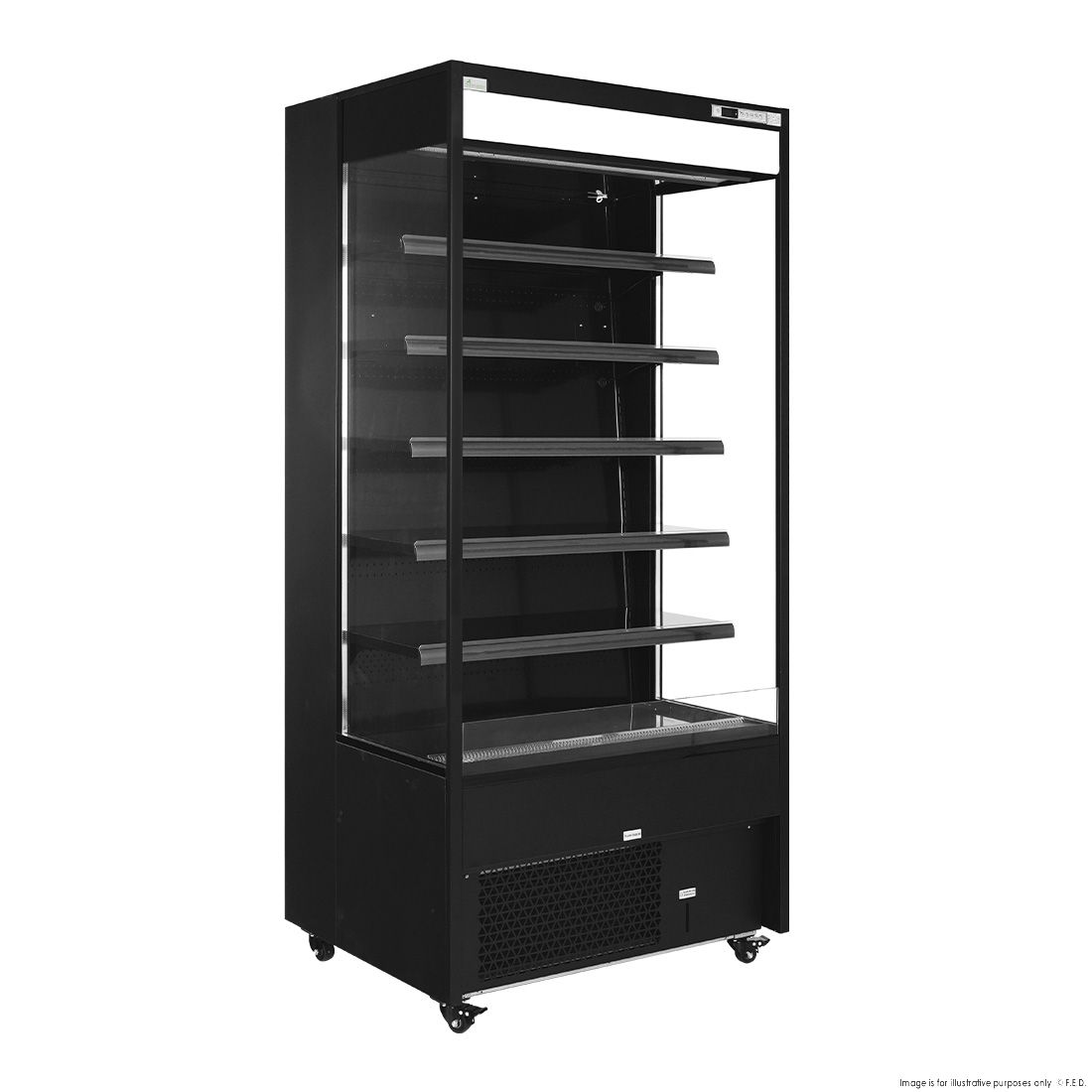

The Thermaster OC-1220B is a 1220mm-wide black open multideck display fridge designed for high-visibility chilled beverage and produce merchandising in supermarkets, convenience stores, cafés, and retail environments. With a 540 L net volume, fan-forced Secop compressor cooling, and an illuminated LED top canopy, it keeps product perfectly chilled while driving impulse purchases. The black Colorbond body offers a sleek, contemporary finish for modern retail fitouts.
Why operators choose the OC-1220B
-
540 L open-front display capacity — deep, wide shelving maximises product facings and restocking speed in high-traffic retail environments.
-
R290 natural refrigerant — an environmentally responsible choice with a very low global warming potential, without compromising refrigeration performance.
-
Double-layer night blinds — two drop-down blinds significantly cut overnight energy consumption without switching off refrigeration.
-
Multiplexable design — units connect in a continuous line-up without a mullion, ideal for supermarket refrigerated runs of any length.
-
Illuminated LED top canopy — the backlit header panel boosts product visibility and provides advertising space for in-store promotions.
Specifications
| Brand |
Thermaster |
| Model / MPN |
OC-1220B |
| Type |
Open Multideck Display Fridge |
| Capacity |
540 L |
| Temperature Range |
+1 to +7°C |
| Temperature Class |
M2 |
| Max Ambient Temperature |
25°C, 60% RH |
| Refrigerant |
R290 (natural) |
| Compressor |
Secop |
| Night Blinds |
2 double-layer |
| Display Area |
2.32 m² |

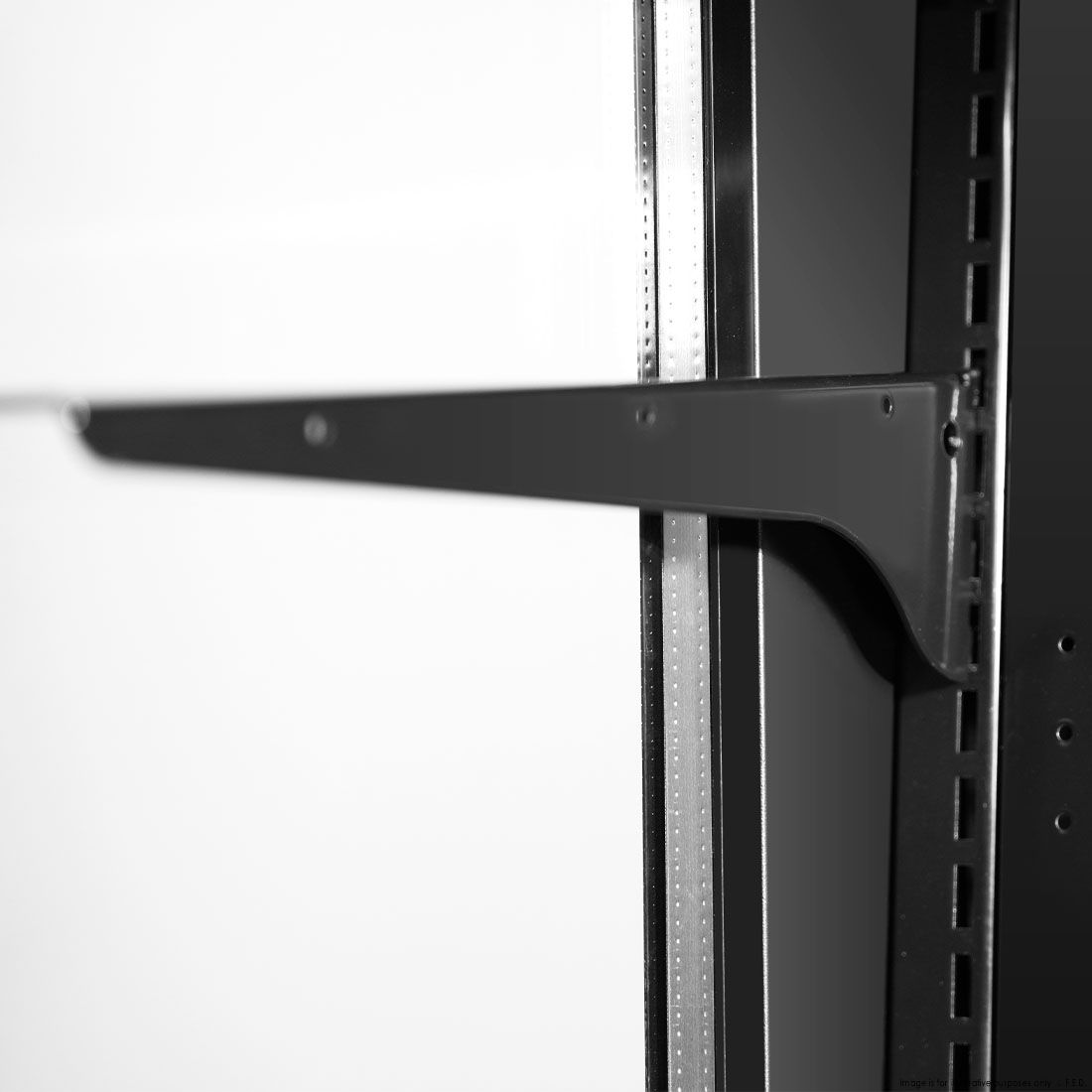

| Shelf Angle |
0° or 7° (adjustable) |
| Lighting |
LED top canopy |
| Power |
240V; 1390W; 15A |
| Energy Consumption |
20.11 kWh/24h |
| Body Material |
Colorbond (black) |
| Dimensions (W × D × H) |
1280 × 770 × 2067 mm |
| Packed Dimensions (W × D × H) |
780 × 1353 × 2110 mm |
| Net Weight |
275 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: Ideal for supermarkets, convenience stores, service stations, bottle shops, cafés, and bars requiring high-volume open beverage or produce display. The compact base footprint and multiplexable design suit both standalone installations and extended refrigerated runs. The black Colorbond finish integrates seamlessly into dark or premium-themed retail fitouts.
Browse our full range of Commercial Open Display Fridges or explore all Thermaster refrigeration equipment available at Commercial Kitchen Store.
Installation & delivery: The OC-1220B requires a dedicated 15A power socket — a standard 10A outlet is not sufficient. Allow adequate clearance at the rear and sides for ventilation. Dispatched Australia-wide.
Frequently asked questions
What is the difference between the OC-1220 and the OC-1220B?
The OC-1220B is the black Colorbond body variant of the OC-1220 series. Both are 1220mm-wide open multideck display fridges with 540 L capacity and identical refrigeration specs. The B suffix denotes the black finish, making it suited to dark-themed or premium retail environments.
What refrigerant does the OC-1220B use?
The OC-1220B uses R290, a natural hydrocarbon refrigerant with a very low global warming potential, making it one of the most environmentally responsible options in commercial refrigeration.
Can multiple OC-1220B units be joined together?
Yes — the OC-1220B is multiplexable and designed to be assembled in a continuous line-up without a dividing mullion between units, enabling a seamless refrigerated run of any length.
What power supply does the OC-1220B require?
The unit operates on 240V single-phase and draws 1390W at 15A. A dedicated 15A GPO is required — a standard 10A outlet is not compatible.
What is the warranty on the OC-1220B?
The OC-1220B is covered by a 2-Year Parts & Labour warranty plus a further 2-Year Parts Only warranty — 4 years total — provided the unit is registered within 14 days of invoice date.
SKU: OC-1220B
In Stock
