Description

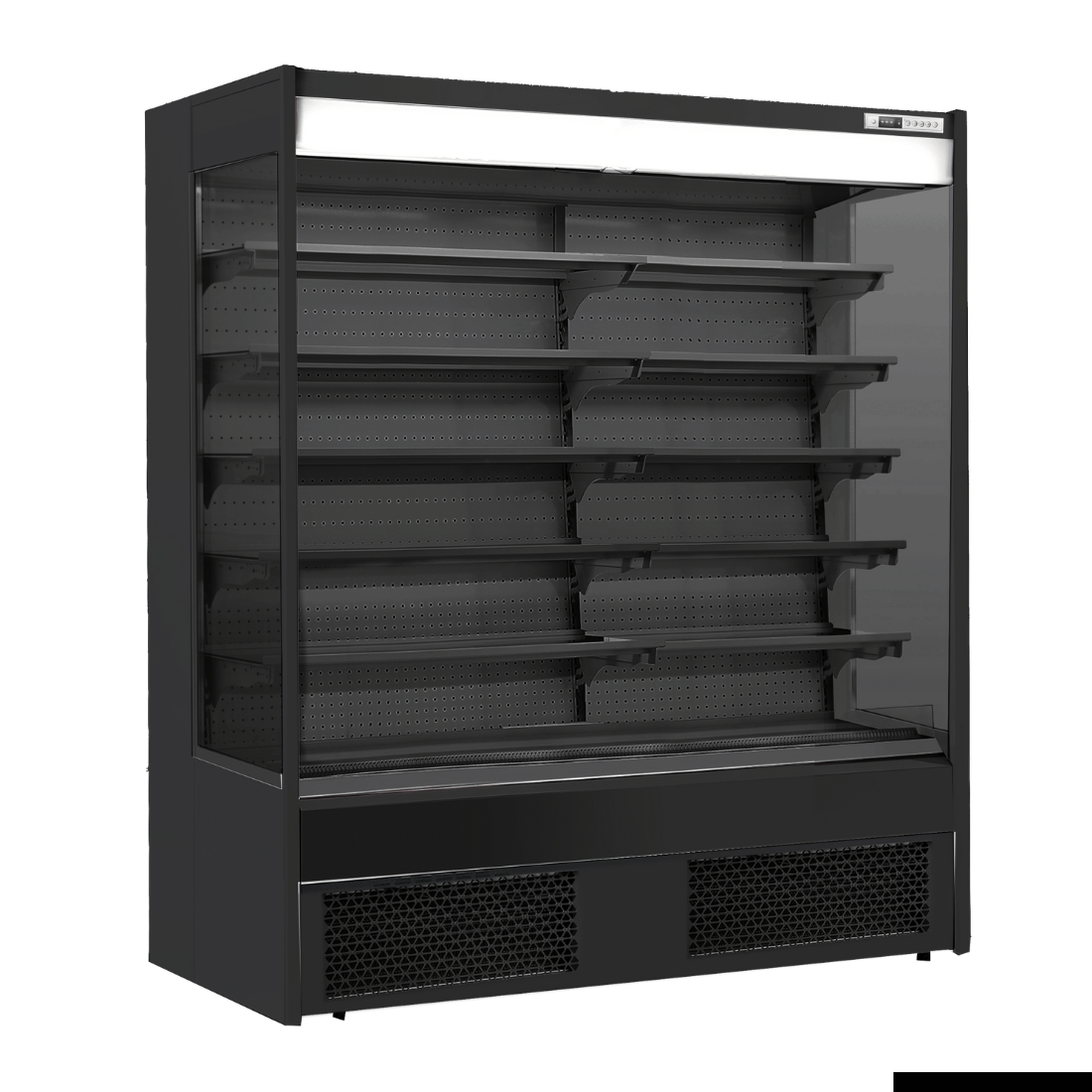

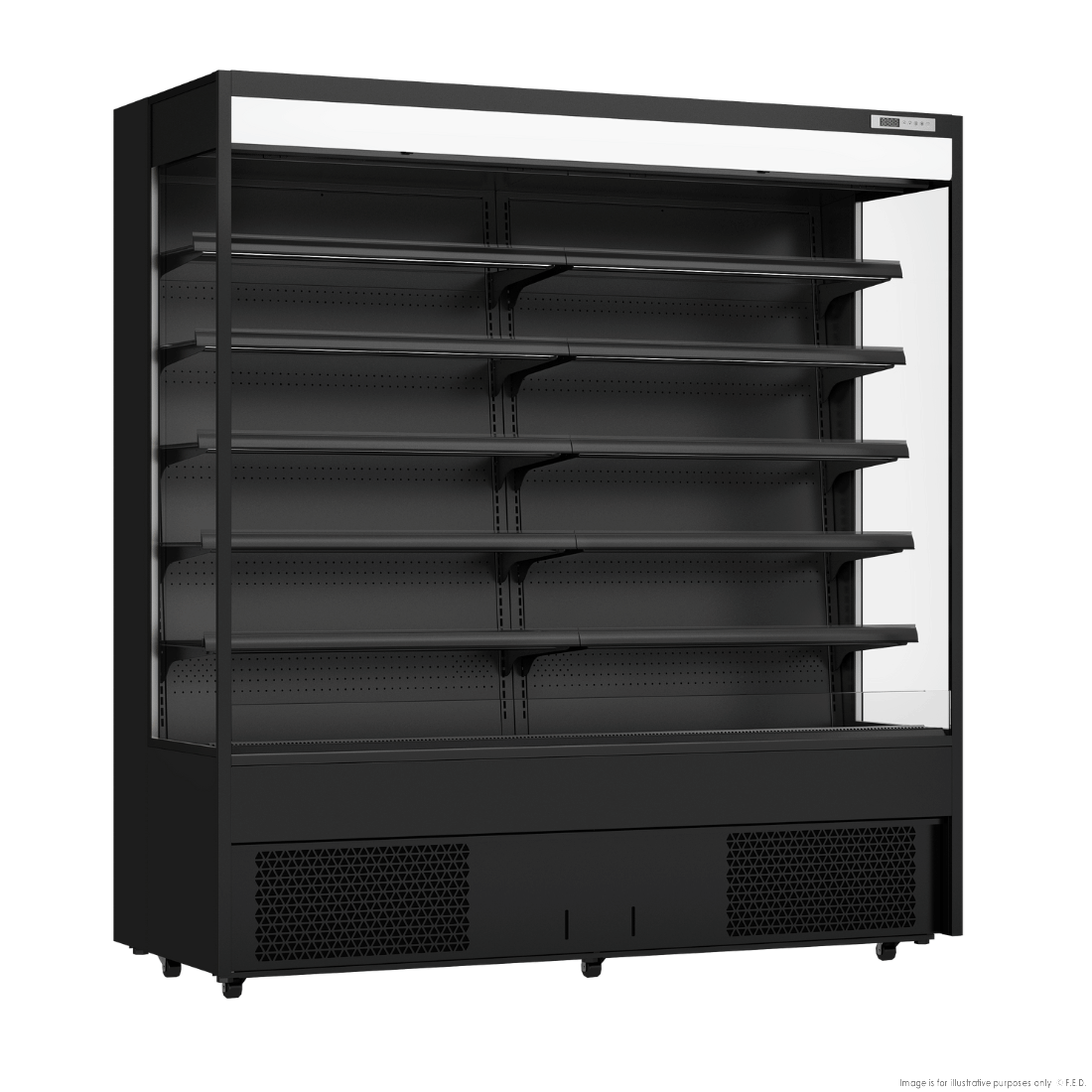

The Thermaster OC-1830B is an 1890mm wide open multideck beverage display fridge that keeps chilled drinks, dairy, and fresh produce at optimal serving temperature while maximising impulse-purchase visibility on the retail floor. Running on environmentally friendly R290 refrigerant with a Secop compressor, it is engineered for high-traffic supermarket, convenience store, and food-service environments where energy efficiency and reliable cooling are non-negotiable.
Why operators choose the OC-1830B
-

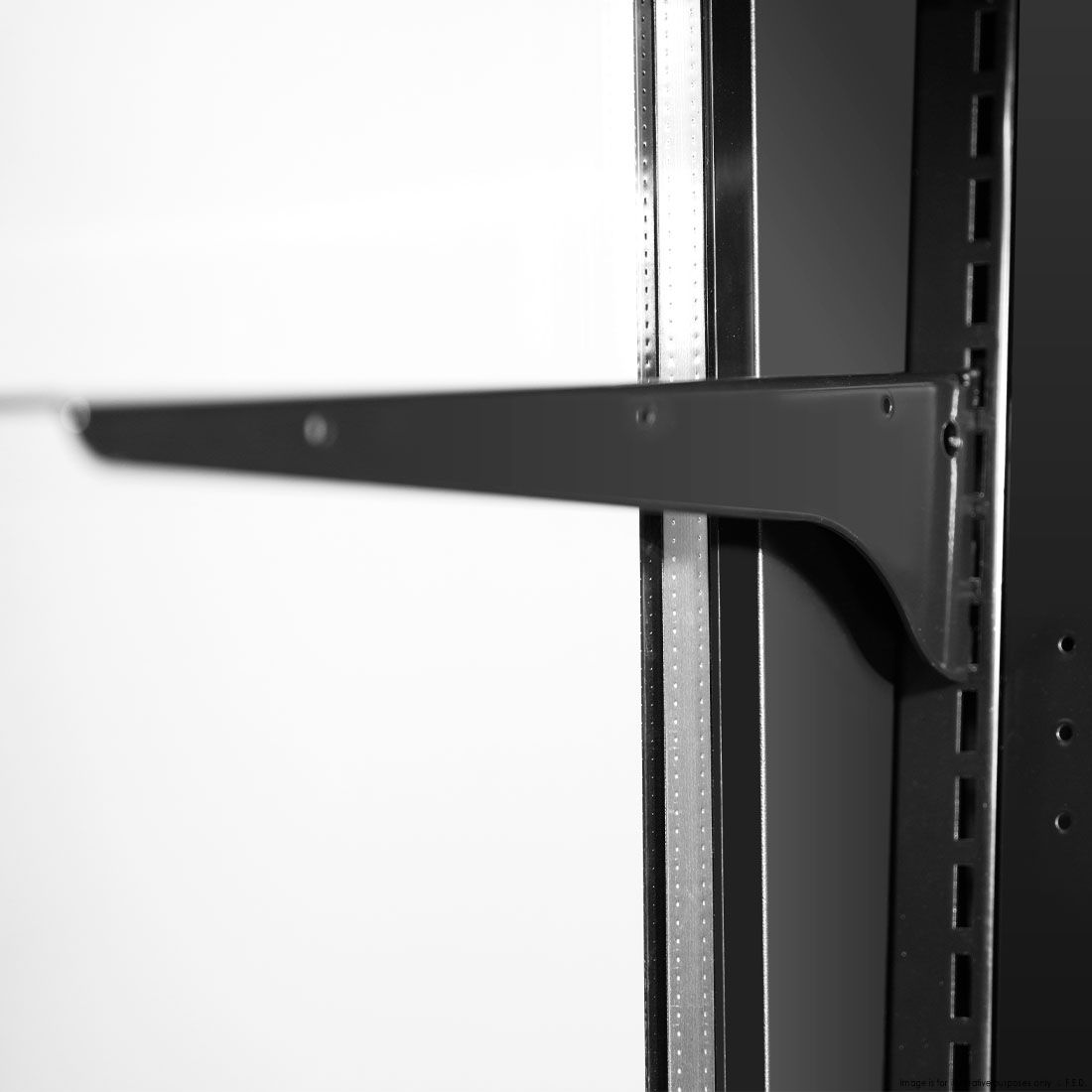

810 L net capacity — generous holding volume for beverages, dairy, and deli lines across six adjustable shelves
-
R290 natural refrigerant — low global-warming potential, meets current AU environmental standards
-
Double-layer night blinds — two roll-down blinds reduce energy draw by up to ~30% during closed hours
-
Illuminated LED top canopy — lights up promotional signage and draws customer attention to the display
-
Fan-forced cooling — maintains consistent +1 to +7°C throughout the cabinet even during heavy door-open cycles
-
Multiplexable design — units can be assembled in a continuous line-up without a mullion for a seamless retail wall
Specifications
| Brand |
Thermaster |
| Model / MPN |
OC-1830B |
| Type |
Open Multideck Beverage Display Fridge |
| Colour |
Black |
| Body Material |
Colorbond |
| Net Volume |
810 L |
| Temperature Range |
+1 to +7°C |
| Temperature Class |
M2 |
| Max Ambient Temperature |
25°C, 60% RH |
| Refrigerant |
R290 (natural) |
| Compressor |
Secop |
| Cooling |
Fan-forced |
| Night Blinds |
2 (double-layer) |
| Shelf Angle |
0° or 7° (adjustable) |
| Display Area |
3.11 m² |
| LED Lighting |
Top canopy |
| Power |
240V; 1800W; 15A |
| Power Type |
Electric |
| Energy Consumption |
31.2 kWh/24h |
| Product Dimensions (W×D×H) |
1890 × 770 × 2067 mm |
| Packed Dimensions (W×D×H) |
1963 × 770 × 2110 mm |
| Net Weight |
330 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
Venue suitability: The OC-1830B is ideal for supermarkets, convenience stores, service stations, cafes, delis, and food courts requiring a high-capacity open-front beverage wall. Its multiplexable design suits purpose-built chilled drink aisles, and the M2 temperature class confirms suitability for ambient environments up to 25°C. Browse the full range of Commercial Open Display Fridges or explore more Thermaster refrigeration equipment.
Installation & delivery: The OC-1830B ships as a single unit on a pallet (packed 1963×770×2110mm, 348 kg gross). A level, solid floor is required; allow 50mm clearance at the rear for airflow. Standard 240V/15A single-phase power supply. Dispatched Australia-wide.
Frequently asked questions
What refrigerant does the OC-1830B use?
The OC-1830B uses R290, a natural hydrocarbon refrigerant with a very low global-warming potential (GWP=3). It complies with current Australian environmental standards and is compatible with the unit's Secop compressor.
What temperature range does it maintain?
The OC-1830B maintains a cabinet temperature of +1 to +7°C — within the safe zone for chilled beverages, dairy, and fresh produce. It is rated Temperature Class M2, suitable for ambient store environments up to 25°C at 60% RH.
How do the night blinds work, and how many are included?
Two double-layer roll-down night blinds are supplied. When the store is closed, the blinds cover the open face of the cabinet, significantly reducing energy consumption and helping maintain temperature without running the compressor as hard overnight.
Can multiple OC-1830B units be connected side-by-side?
Yes — the OC-1830B is multiplexable and can be assembled in a continuous line-up without a mullion (dividing post) between units. This creates a seamless chilled wall display commonly seen in supermarkets and large convenience stores.
What power supply does the OC-1830B require?
The unit runs on a standard Australian 240V single-phase supply at 1800W / 15A. No special three-phase wiring is needed, making installation straightforward in most retail and food-service fit-outs.
