Description

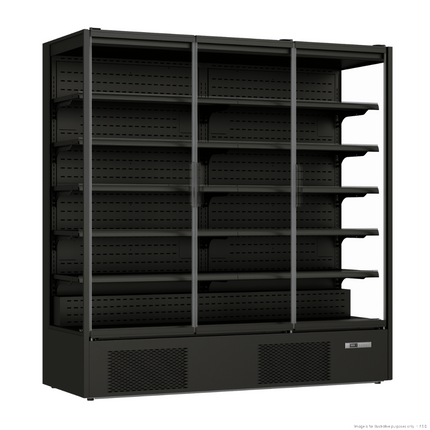

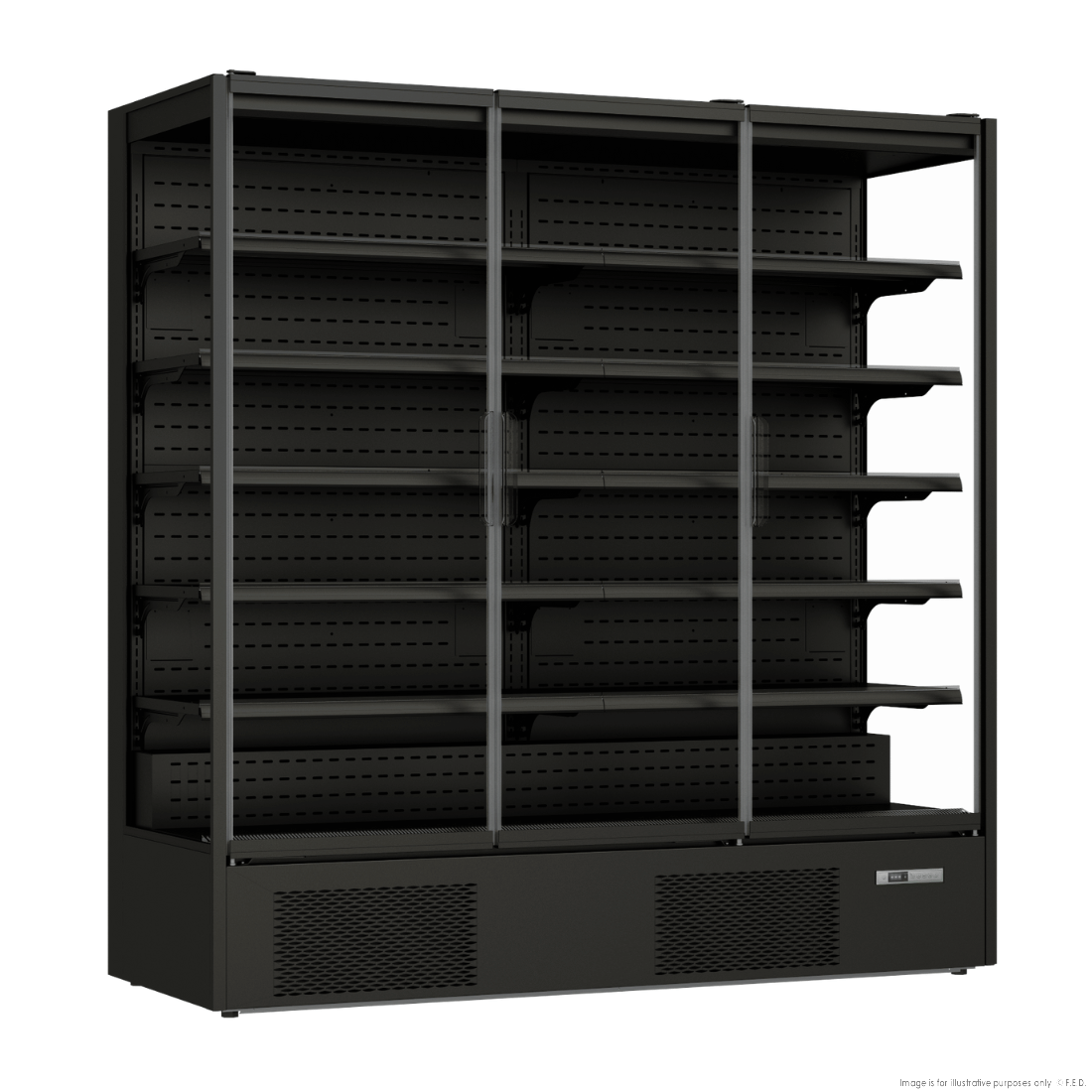

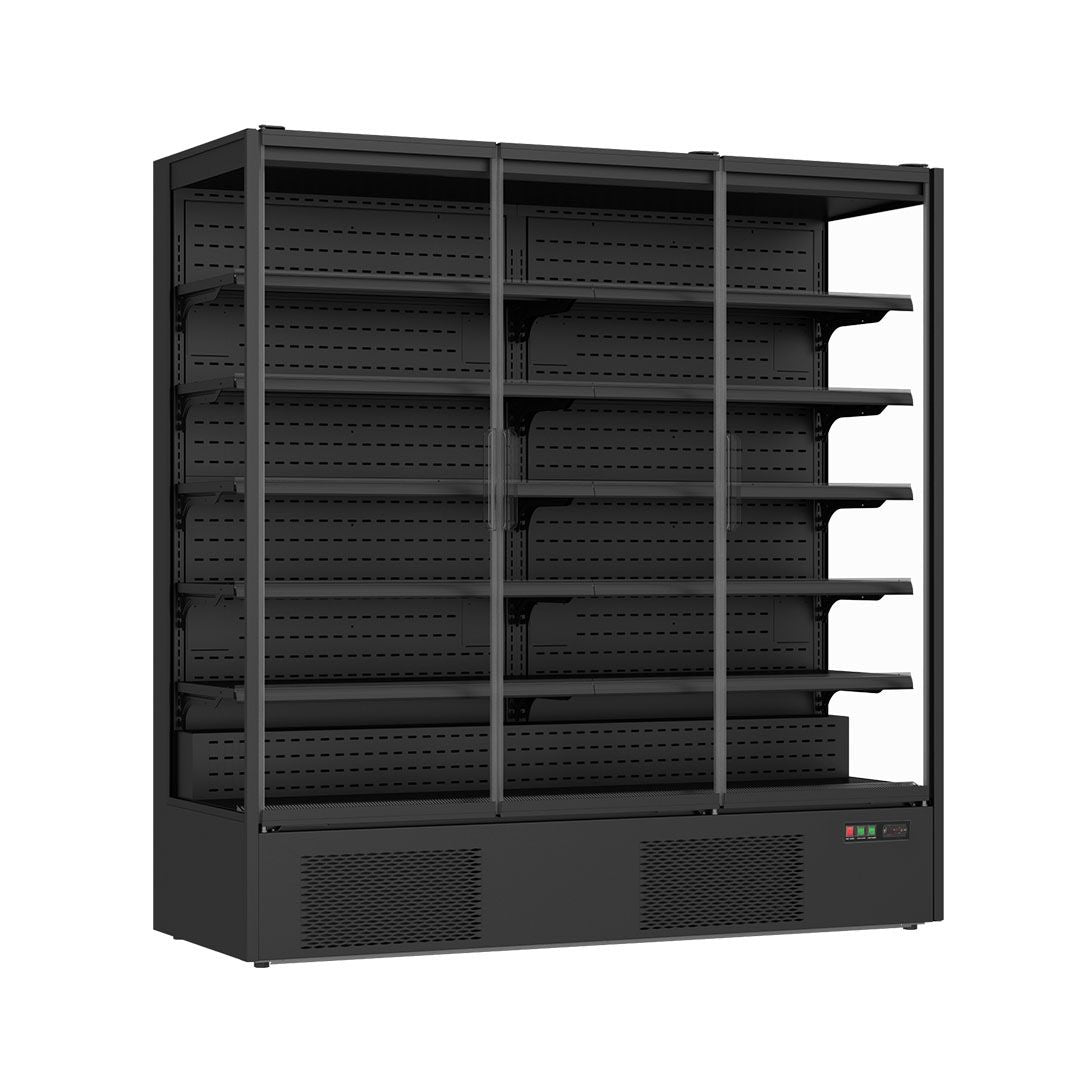

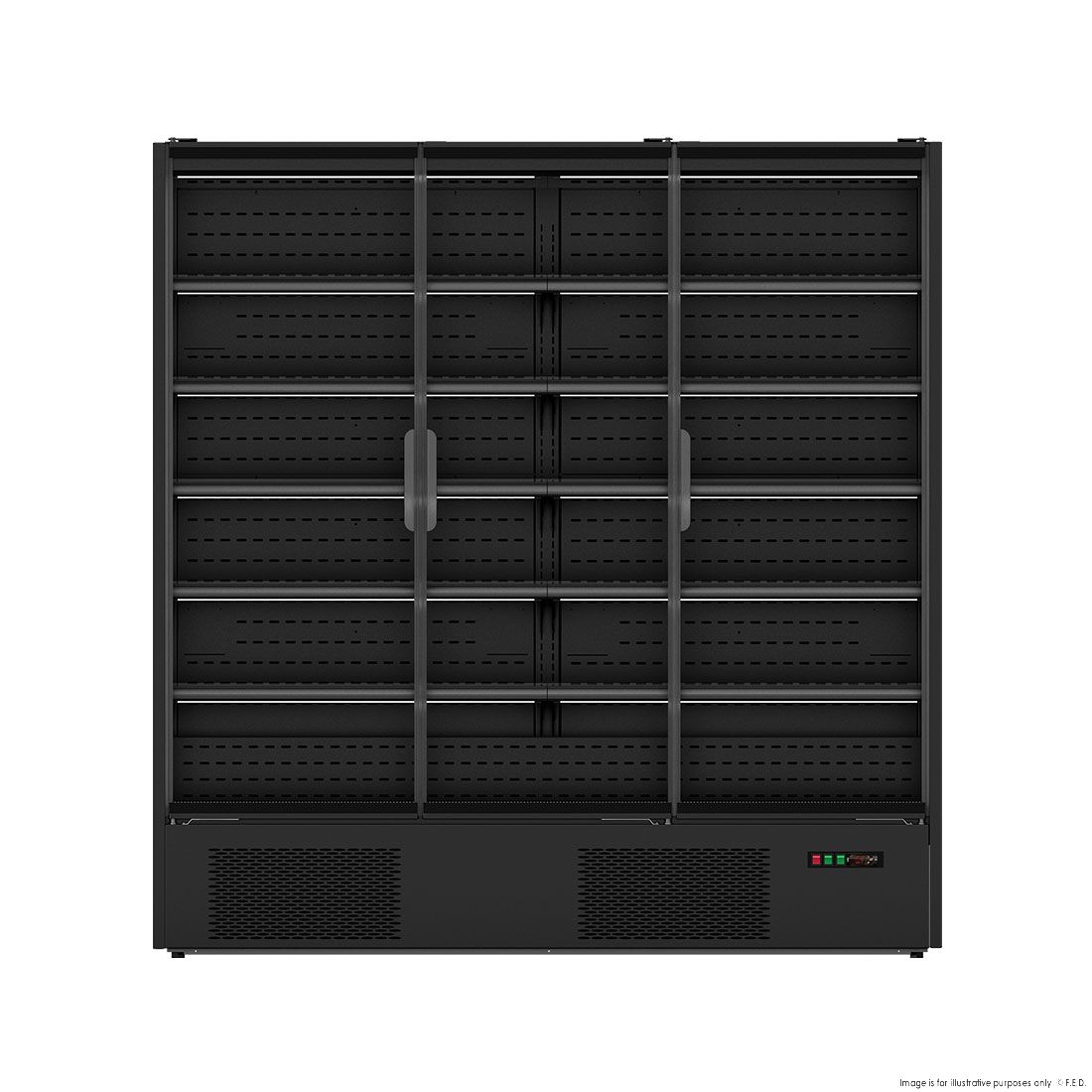

The Thermaster DC-187B is a 3-door supermarket panorama open-front chiller display that keeps perishables at -1 to +5°C across a 1147L net capacity — designed for high-volume retail and food-service environments where maximum product visibility and energy efficiency are non-negotiable.
Why operators choose the DC-187B
-

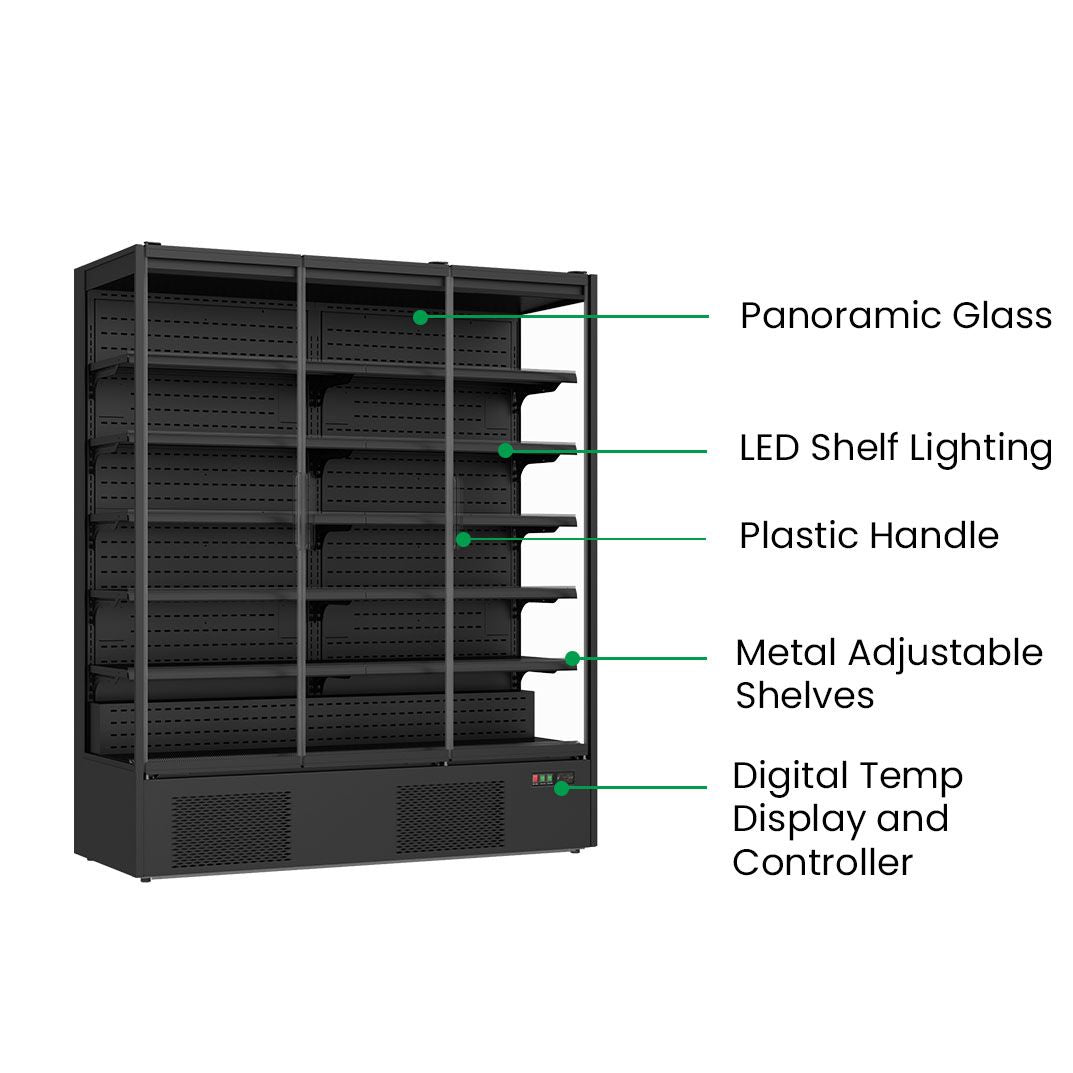

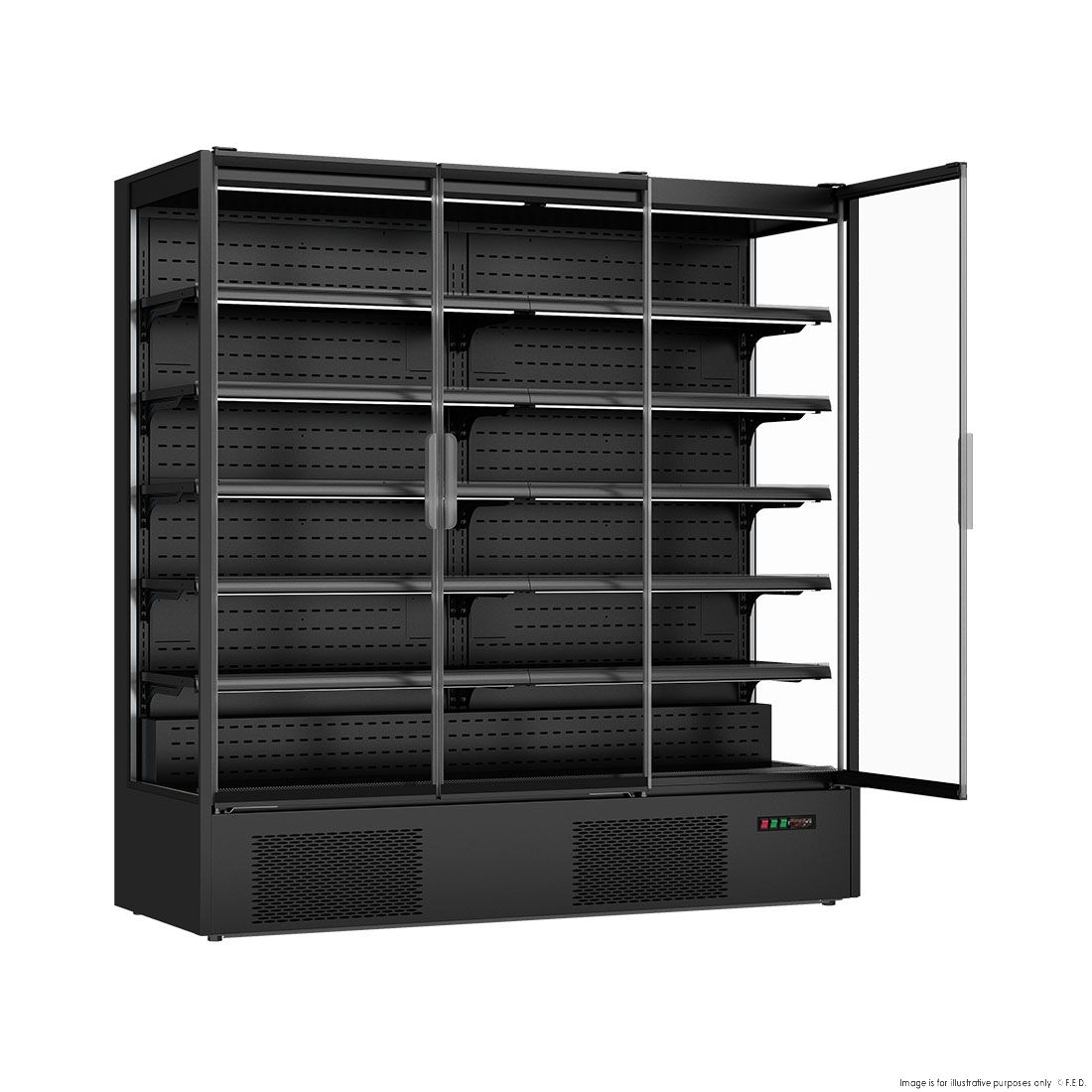

1147L net chilled capacity — genuine supermarket scale across three independently hinged glass-door bays, with frameless glass and transparent end walls for 360° product visibility.
-
R290 natural refrigerant & 8-star GEMS rating — EC fan motors and anti-reflex Low-E glass doors reduce energy draw to 8.48 kWh/24h, lowering running costs and your environmental footprint.
-
5-level adjustable shelving (450mm deep) — shelf angle sets at 0°, 7°, or 14° to suit produce presentation; LED lighting on every shelf highlights stock without hot spots.
-
Multiplexable design — units connect line-to-line without a mullion, letting you extend display runs in consistent 1935mm bays as your floor plan grows.
-
Pull-out condensing unit — the self-contained refrigeration block slides out for unobstructed servicing without moving the cabinet, minimising downtime.
Specifications
| Brand |
Thermaster |
| Model / MPN |
DC-187B |
| Type |
3-Door Open-Front Chiller Display |
| Net Volume (Capacity) |
1147 L |
| Gross Volume |
1939 L |
| Doors |
3 |
| Door Type |
Hinged Doors — self-closing, frameless Low-E glass, anti-reflex |
| Temperature Range |
-1 to +5°C |
| Max Ambient Temperature |
25°C / 60% RH |
| Refrigerant |
R290 (natural) |
| Power |
240V / 980W / 10A |
| Total Energy Consumption |
8.48 kWh/24h (8-star GEMS) |
| Shelving |
5-level, 450mm deep, adjustable 0° / 7° / 14° |
| Display Area |
4.13 m² |
| Product Dimensions |

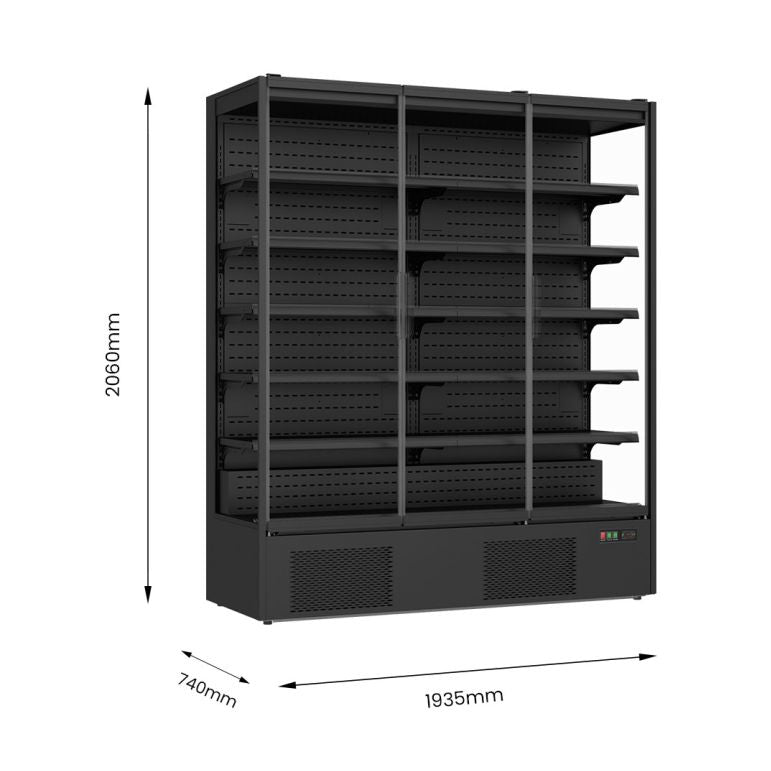

1935(W) x 740(D) x 2060(H)mm |
| Packed Dimensions |
1975(W) x 767(D) x 2240(H)mm |
| Net Weight |
370 kg |
| Body / Exterior |
Colorbond |
| Cooling System |
Fan-forced |
| Mobility |
Castors |
| Lighting |
LED on each shelf |
| Pricing Strips |
Included |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |

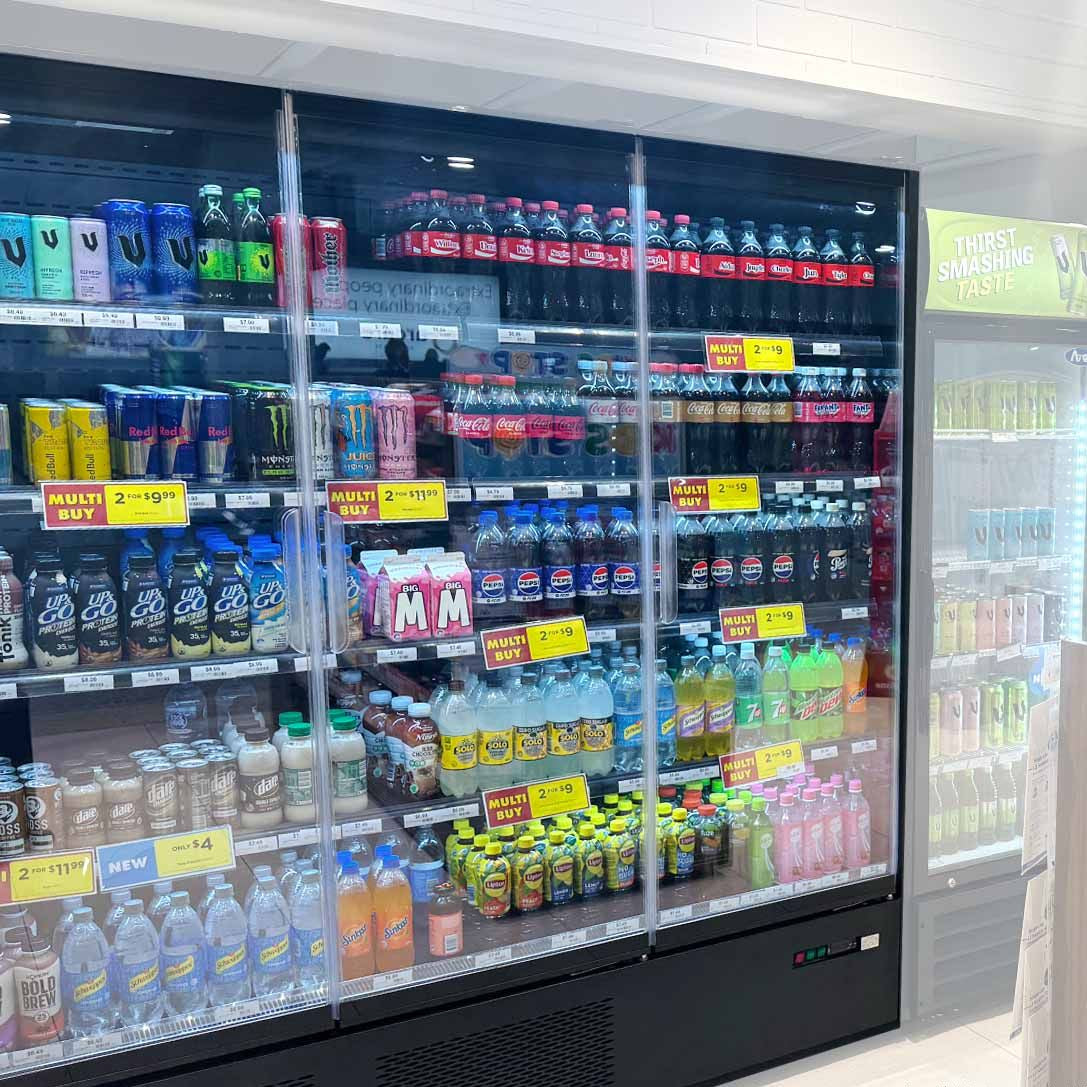

Venue suitability: Suited to supermarkets, convenience stores, delis, butchers, produce retailers, and large-format food-service operations requiring AUS-wide open-front chilled display. Explore the full range of Commercial Open Display Fridges or shop by brand at Thermaster.
Installation & delivery: The DC-187B ships as a self-contained unit on castors — no on-site refrigerant connection required. Allow a 100mm clearance at the rear for the pull-out condensing unit. Units are multiplexable for side-by-side line runs. Dispatched Australia-wide.
Frequently asked questions
What is the net usable capacity of the DC-187B?
The net usable volume is 1147L across three bays. Gross internal volume is 1939L — the difference accounts for shelving and air-circulation space required for uniform chilling.
What refrigerant does the DC-187B use?
The DC-187B uses R290 natural refrigerant, which has a global warming potential (GWP) of 3 — far lower than HFC alternatives. It contributes to the unit's 8-star GEMS energy efficiency rating.
Can multiple units be linked together?
Yes. The DC-187B is designed to be multiplexable — units join side-by-side without a mullion, creating a seamless extended display run. This makes it well suited to supermarket gondola-style layouts.
What ambient temperature is the DC-187B rated for?
The unit is rated to operate in ambient conditions up to 25°C at 60% relative humidity. In hotter or more humid environments, performance may be affected — consult your installer for site assessment.
What warranty applies to the DC-187B?
Thermaster provides 2 Years Parts & Labour plus a further 2 Years Parts Only warranty, provided the unit is registered within 14 days of invoice date.
