Description

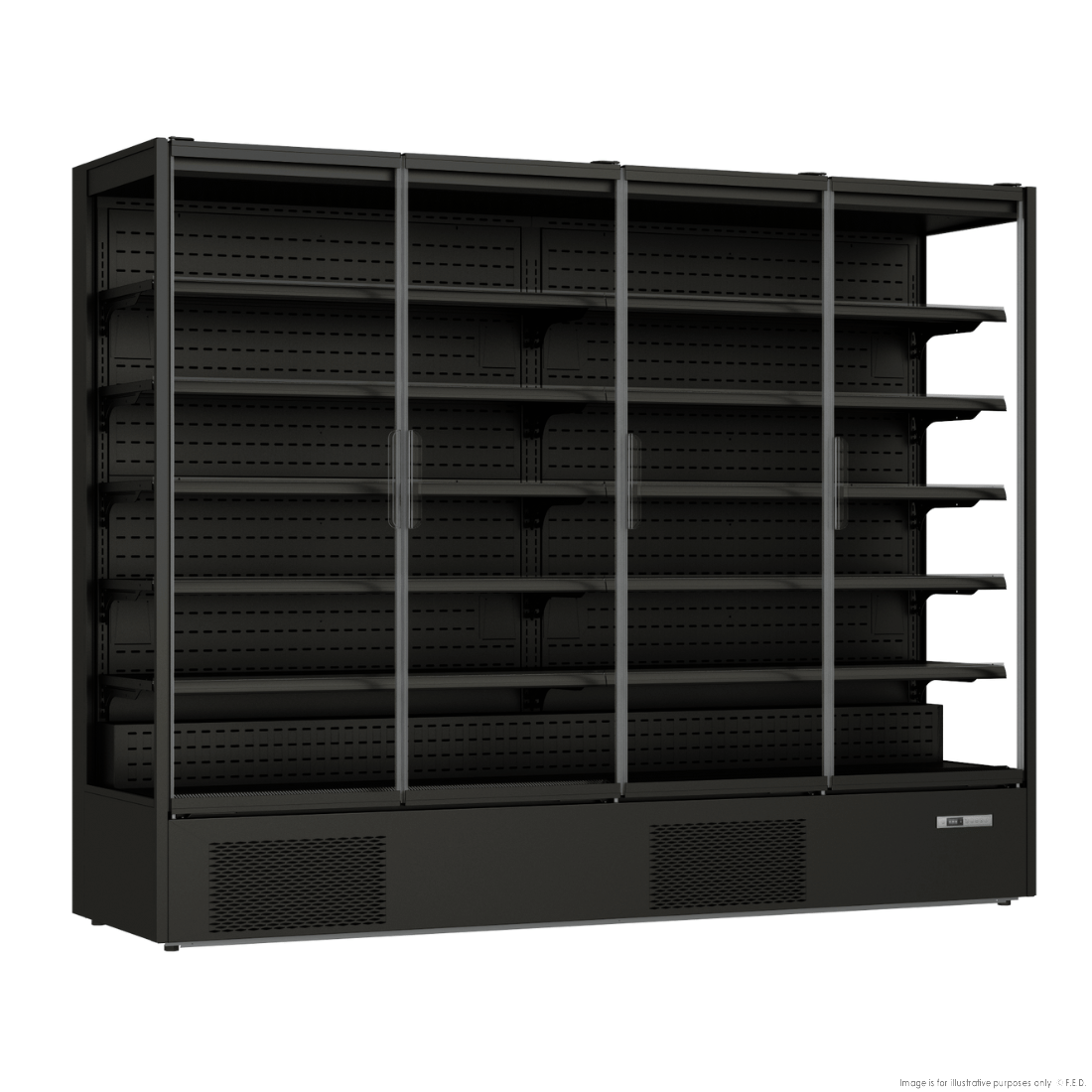

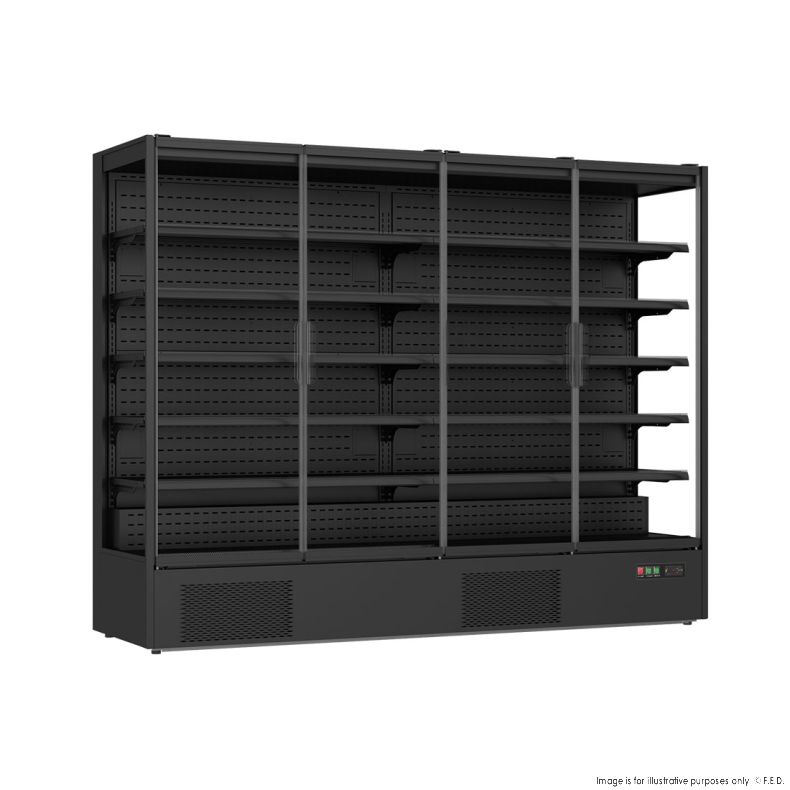

The Thermaster DC-250B is a 1529L supermarket-style open-front chiller display designed for high-visibility refrigerated merchandising in supermarkets, delis, convenience stores, and food service venues. The panorama design exposes product from the front and both glass side panels, maximising visual impact across a 2560mm run without the footprint of a full-island cabinet.
Why operators choose the DC-250B
-
1529L net display capacity across 4 doors — five levels of 450mm-deep adjustable shelving give genuine merchandising depth for dairy, deli, produce, and chilled ready meals at scale.
-
R290 natural refrigerant — low global-warming-potential refrigerant with EC fan-forced cooling maintains a precise -1 to +5°C working range and contributes to an 8-Star GEMS energy rating.
-
Low-E frameless glass doors — anti-reflex, energy-saving glass across the full 2560mm front face keeps product visible while reducing condensation and heat transfer.
-
LED shelf lighting on every level — individual LED strips on each of the five shelf levels highlight product presentation without adding heat to the cabinet.
-
Multiplexable design — units can be lined up side-by-side without a mullion, creating a seamless run for produce or dairy aisles.
-
Pull-out condensing unit — front-serviceable condenser for straightforward after-sales maintenance without moving the cabinet.
-
Mobile castors — repositioning is easy; small-base design reduces floor footprint for tight aisle configurations.
Specifications
| Brand |
Thermaster |
| Model / MPN |
DC-250B |
| Type |
Open Display Chiller |
| Net Volume (Capacity) |
1529 L |
| Gross Volume |
2585 L |
| Doors |
4 |
| Door Type |
Hinged Doors |
| Door Size |
611 × 1653mm, 20mm thick, self-closing |
| Temperature Range |
-1 to +5°C |
| Max Ambient Temperature |
25°C, 60% RH |
| Refrigerant |
R290 (natural refrigerant) |
| Shelving |
5-level, 450mm deep, adjustable 0° / 7° / 14° |
| Display Area |
5.13 m² |
| Lighting |
LED per shelf level |
| Power |
1060W / 10A |
| Energy Consumption |
10.65 kWh/24h |
| Body Construction |
Colorbond exterior, stainless steel inner base |
| Product Dimensions (W × D × H) |
2560 × 740 × 2060mm |
| Packed Dimensions (W × D × H) |
2600 × 767 × 2240mm |
| Net Weight |
440 kg |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (register within 14 days of invoice) |
| Country of Manufacture |
China |
Venue suitability: The DC-250B suits supermarkets, convenience stores, delis, and food service operations that need open-front display refrigeration at scale. The 2560mm four-door run and multiplexable design make it ideal for full produce, dairy, or chilled-ready-meals category aisles. Browse our full range of Commercial Open Display Fridges or explore more Thermaster refrigeration equipment.
Installation & delivery: Standard single-phase 10A power connection. Units arrive on castors for easy positioning. Dispatched Australia-wide.
Frequently asked questions
What is the net storage capacity of the DC-250B?
The DC-250B has a net volume of 1529L across four doors and five shelf levels, with a gross volume of 2585L.
What refrigerant does the DC-250B use?
The DC-250B uses R290, a natural hydrocarbon refrigerant with a low global-warming potential, in an EC fan-forced cooling system contributing to an 8-Star GEMS energy rating.
Can multiple DC-250B units be linked side-by-side?
Yes. The DC-250B is multiplexable — units can be assembled in a line without a centre post, creating a continuous open-display run for produce or dairy aisles.
What temperature range does the DC-250B operate at?
The DC-250B maintains a working temperature of -1 to +5°C, suitable for dairy, deli, produce, and chilled ready meals. Maximum ambient operating temperature is 25°C at 60% RH.
What power supply does the DC-250B require?
The DC-250B runs on a standard single-phase 1060W / 10A supply. No special electrical installation is required beyond a standard GPO.
