Description
The Thermaster BC3100G is a three-door back bar fridge designed to keep bottled drinks and canned beverages at perfect serving temperature in high-volume bar and hospitality environments. Part of Thermaster's Deluxe Series Black Magic range, it combines a 536 L gross capacity with a slim 513 mm depth, making it a practical fit behind the bar without sacrificing storage volume.
Why operators choose the BC3100G
-
536 L gross capacity across 3 doors — two adjustable stainless steel shelves plus floor per compartment, accommodating bottles, cans, and kegs side by side.
-
+2 to +8°C operating range — digital temperature control with digital read-out keeps beverages at consistent serving temperature throughout service.
-
R290 natural refrigerant — low global warming potential refrigerant with fan-forced evaporator cooling and Secop compressors for reliable, efficient performance.
-

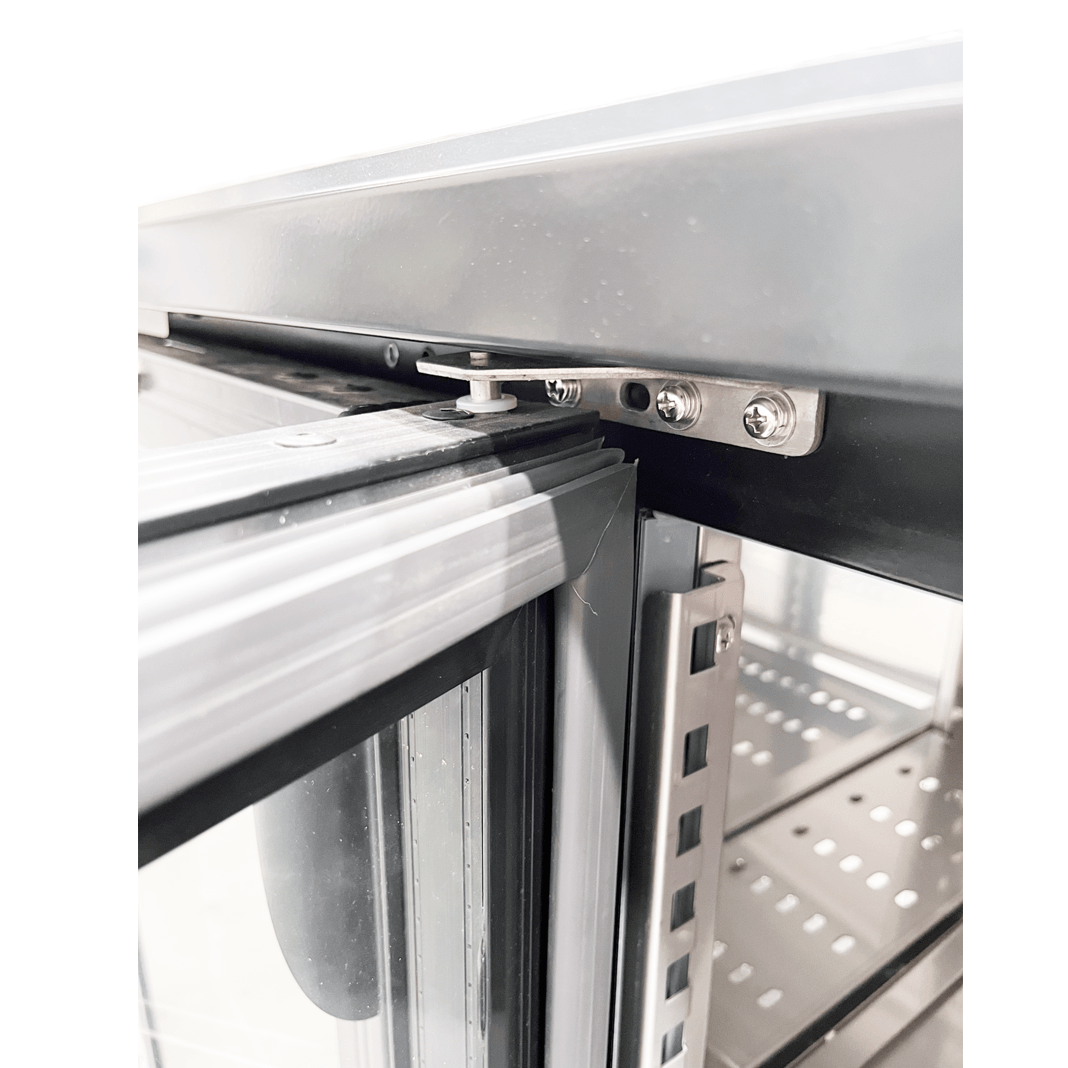

Double-glazed self-closing doors with locks — hinged glass doors stay closed between pours, reduce condensation, and allow staff to confirm stock levels at a glance.
-
On castors with slide-out access — rolls out easily for cleaning and maintenance; 100 mm rear wall clearance required for ventilation.
Specifications
| Brand |
Thermaster |
| Model / MPN |
BC3100G |
| Type |
Back Bar Fridge |
| Capacity (Gross) |
536 L |
| Capacity (Net) |
355 L |
| Number of Doors |
3 |
| Door Type |
Double-Glazed Glass, Hinged, Self-Closing with Locks |
| Temperature Range |
+2 to +8°C |
| Max Ambient Temperature |
30°C, 55% RH |
| Refrigerant |
R290 (Natural Refrigerant) |
| Cooling System |
Fan-Forced Evaporator, Secop Compressor, Auto Defrost |
| Power Supply |
240 V; 320 W; 10 A |
| Energy Consumption |
3.796 kWh/24h |
| Shelving |
Stainless Steel, Fully Adjustable (2 levels + floor) |
| External Construction |
Colourbond Steel, Black |
| Mobility |
Castors |
| Width |
2002 mm |
| Depth |
513 mm |
| Height |
885 mm |
| Product Dimensions |
2002 (W) x 513 (D) x 885 (H) mm |
| Packed Dimensions |
2060 (W) x 570 (D) x 1060 (H) mm |
| Net Weight |
125 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (with product registration within 14 days of invoice) |
Venue suitability: Ideal for pubs, clubs, hotels, restaurants, event venues, and stadium bars where a large back-of-bar chilled display is required. The slim 513 mm depth suits tight bar footprints, and the all-black Colourbond finish presents cleanly in front-of-house installations.
Explore the full range of Commercial Bar Fridges or browse all Thermaster refrigeration equipment.
Installation & delivery: The BC3100G requires 100 mm rear wall clearance for ventilation and arrives on castors for easy positioning. Single-phase 240 V power supply required. Dispatched Australia-wide.
Frequently asked questions
What is the difference between the gross and net capacity?
The gross volume of the BC3100G is 536 L — this is the total interior space. The net usable volume is 355 L, which accounts for the space occupied by shelving, evaporator components, and door seals. For planning purposes, use the net 355 L figure.
What refrigerant does the BC3100G use?
The BC3100G uses R290, a natural hydrocarbon refrigerant with a very low global warming potential. It is compliant with current Australian refrigerant regulations and is serviced by licensed refrigeration technicians.
How much wall clearance is required?
Thermaster specifies a minimum of 100 mm clearance behind the unit for ventilation. Insufficient clearance will cause the compressor to run hot and may void the warranty. Allow additional side clearance where possible in enclosed bar installations.
What is the warranty on the BC3100G?
The BC3100G carries a 2-year Parts & Labour warranty plus an additional 2-year Parts Only warranty when the product is registered with Thermaster within 14 days of the invoice date — 4 years of coverage in total.
Can the shelves be adjusted?
Yes. The BC3100G features fully adjustable stainless steel industrial shelving with two levels plus the floor in each compartment, allowing you to configure shelf heights to suit bottles of varying sizes.
