Description

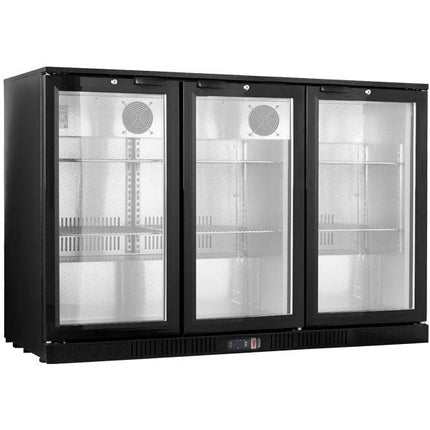

The Thermaster LG-330HC is a three glass-door under-bench bar fridge designed for high-volume beverage service in commercial hospitality environments. With a 220L net capacity and operating at +2 to +8°C, it delivers reliable chilled-drink storage across bars, clubs, pubs, restaurants and cafés where under-counter refrigeration is essential.
Why operators choose the LG-330HC
-
Three hinged glass doors with locks — individual keyed locks on each door keep stock secure while double-glazed panels let staff and patrons view inventory without opening the unit, cutting temperature loss during busy service.
-
Digital temperature control & read-out — precise digital display allows set-and-forget management at the serving temperature, reducing over-cooling and energy waste.
-
Auto defrost — eliminates manual defrost downtime, keeping the unit running uninterrupted through extended service periods.
-
Self-closing doors — spring-action self-close prevents accidental door-ajar situations that drive up energy consumption and temperature drift.
-
Under-bench footprint — 1350(W) × 530(D) × 835(H)mm profile slides neatly beneath standard bar counters; 100mm rear clearance required for ventilation.
Specifications
| Brand |
Thermaster |
| Model / MPN |
LG-330HC |
| Type |
Under-Bench Three Glass-Door Bar Fridge |
| Capacity (Net) |
220 L |
| Gross Volume |
293 L |
| Temperature Range |
+2 to +8°C |
| Ambient Temperature |
Max 38°C at 65% RH |
| Doors |
3 |
| Door Type |
Hinged Glass Doors |
| Cooling Type |
Static Cooling |
| External Body |
Colourbond Steel |
| Power |
240V; 315W |
| Power Type |
Electric — Single Phase |
| Energy Consumption |
2.183 kWh/24h |
| Product Dimensions (W × D × H) |
1350 × 530 × 835mm |
| Packed Dimensions (W × D × H) |
1400 × 570 × 920mm |
| Net Weight |
92 kg |
| Country of Manufacture |
China |
| Warranty |
2 Years Parts & Labour + 2 Years Parts Only (registration required within 14 days) |
Venue suitability: The LG-330HC suits bars, clubs, pubs, restaurants, cafés, sports clubs and event venues where high-volume chilled beverage storage is required under the bar counter. The three-door configuration gives flexible access for staff working along the length of the unit without disrupting the adjacent door's temperature zone.
Browse the full range of Commercial Bar Fridges on our store, or explore more Thermaster refrigeration solutions for your venue.
Installation & delivery: The LG-330HC requires 100mm clearance from the rear wall for ventilation. Supplied with a 10A plug fitted — no trade installation required. Dispatched Australia-wide.
Frequently asked questions
What is the net capacity of the LG-330HC?
The LG-330HC has a confirmed net capacity of 220 litres (gross volume 293L). This accommodates standard 375ml cans, 330ml bottles and 750ml wine bottles across two adjustable shelves plus the floor across all three door sections.
What temperature does it operate at?
The unit operates at +2°C to +8°C — the standard commercial beverage-service range. It is rated for ambient environments up to 38°C at 65% relative humidity, making it suitable for warm kitchen-adjacent bar areas.
Do all three doors lock independently?
Yes. Each of the three hinged glass doors has its own individual keyed lock, allowing operators to secure individual sections separately if required.
What is the warranty on the LG-330HC?
The LG-330HC carries a 2-year parts and labour warranty plus an additional 2-year parts-only warranty, provided the unit is registered within 14 days of the invoice date — giving up to 4 years of total warranty coverage.
What power supply is required?
The LG-330HC runs on 240V single-phase power (315W) and is supplied with a standard 10A plug fitted. No licensed electrician is required for installation — just plug in and allow 2–4 hours to reach operating temperature before loading.
SKU: LG-330HC
In Stock
