Description

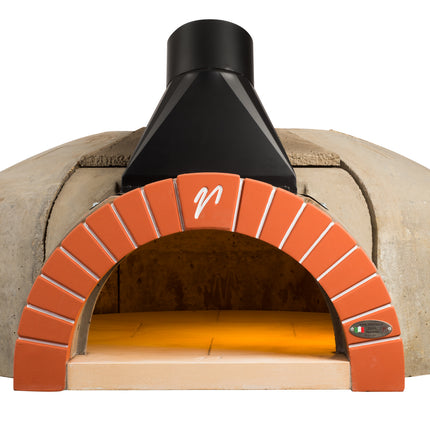

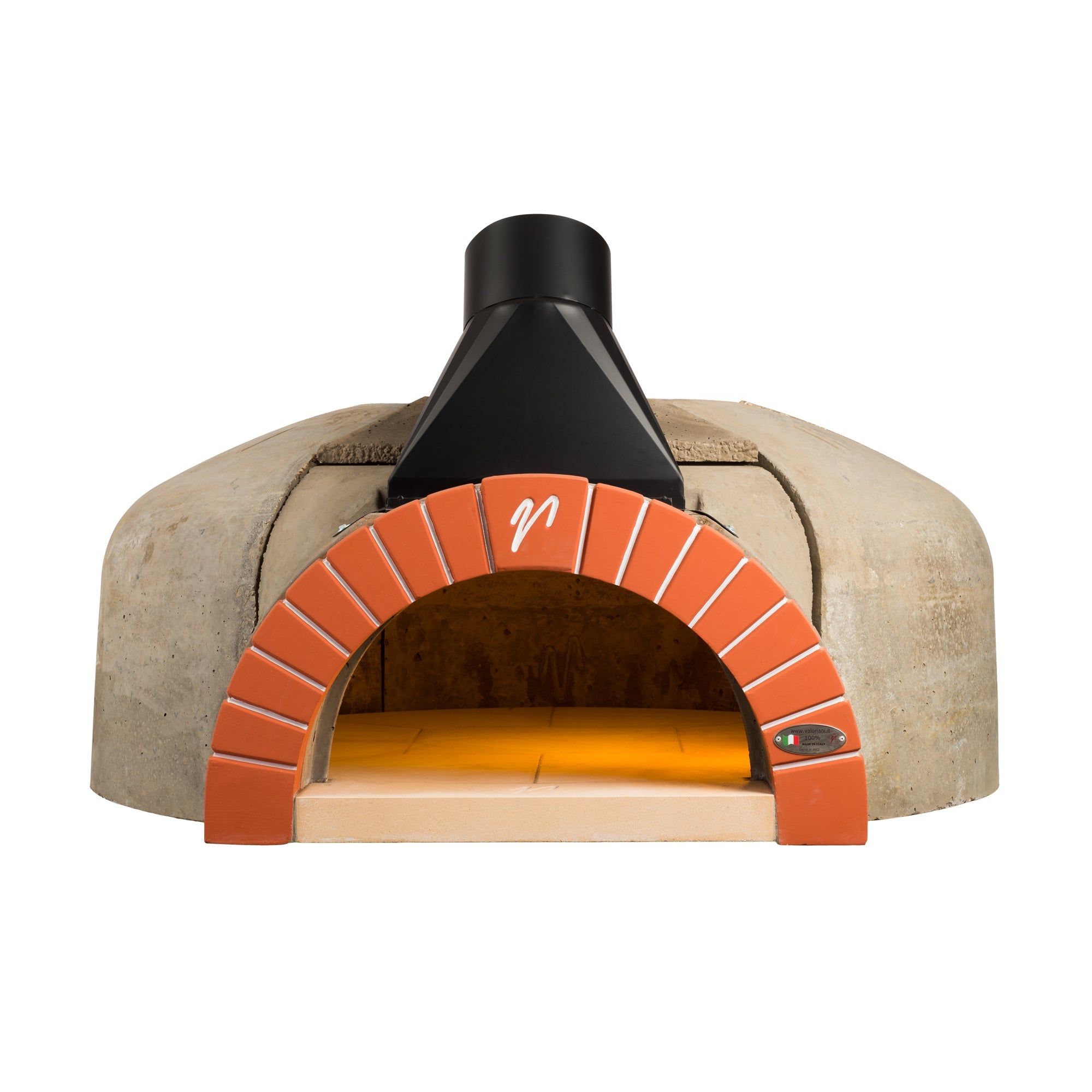

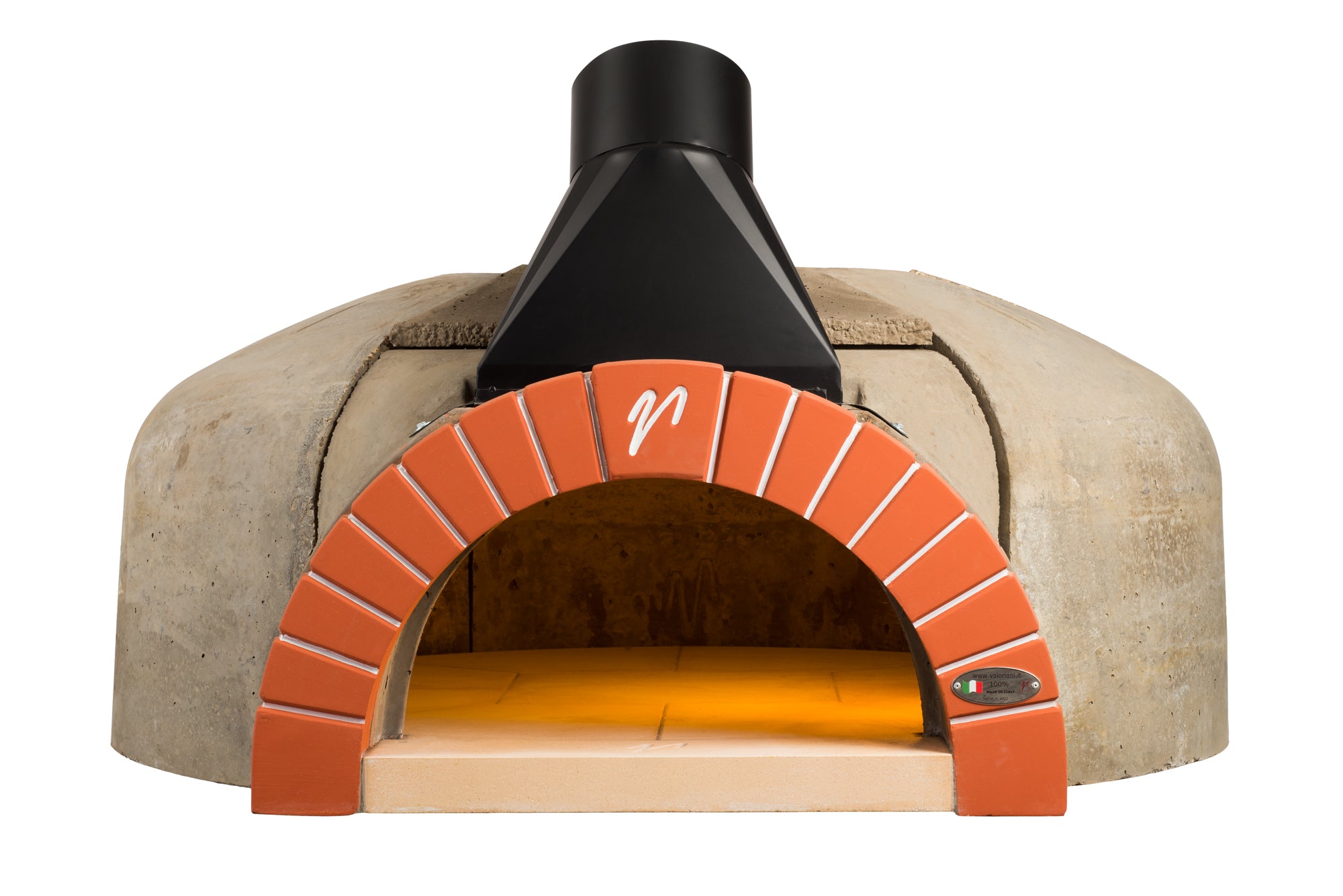

The Valoriani GR160 is a modular refractory pizza oven kit from Valoriani's wood- and gas-fired Italian pizza oven range, built for pizzerias and restaurants that cook pizza in volume. The kit builds a 1600 mm cooking floor that holds 12 pizzas of 30 cm at once, with external dimensions of 2050 x 2050 mm (W x D), a total kit weight of 1000 kg and a manufacturer-rated nominal heating capacity of 26,000 kcal/h (30.2 kW).
Why operators choose the GR160
-
Modular refractory kit — supplied as refractory pieces for assembly on site, so the oven can be built into the venue
-
Capacity of 12 x 30 cm pizzas — a large single load for busy pizzeria service
-
1600 mm cooking floor — a large cooking surface for high-volume service
-
30.2 kW nominal heating capacity — the manufacturer's rated heat output (26,000 kcal/h)
-
Sectional baking floor and dome — the floor is made of 8 perimeter and 4 central baking-floor pieces, with the dome built from matching sections
Specifications
| Brand |
Valoriani |
| Model / MPN |
GR160 |
| Type |
Modular refractory pizza oven kit |
| Capacity (30 cm pizzas) |
12 |
| Cooking floor diameter |
1600 - 478 mm |
| External dimensions |
2050 x 2050 mm (W x D) |
| Refractory core (manufacturer drawing) |
1780 x 1845 x 783 mm (W x D x H) |
| Kit components |
Baking floor (8 perimeter + 4 central pieces), dome sections, arch, mouth section, flue manifold |
| Net weight |
1000 kg |
| Nominal heating capacity |
26,000 kcal/h (30.2 kW) |
| Warranty |
12 Months |
Venue suitability: the GR160 suits pizzerias and restaurants building a permanent oven into the fit-out, where a modular refractory kit lets the oven be assembled in place and finished to match the room, and 12 pizzas per load cover a busy service. It is not a fit for venues that need a ready-to-run oven delivered in one piece.
Compare other pizza and deck ovens or browse our wider pizzeria equipment.
Installation & delivery: the GR160 is a refractory core supplied in pieces for assembly on site, so plan the base, flue, finishing and access with your installer before delivery. The kit weighs 1000 kg in total. Dispatched Australia-wide with a 12-month warranty — see our warranty information.
Frequently asked questions
How many pizzas does the Valoriani GR160 cook at once?
The Valoriani GR160 cooks 12 pizzas of 30 cm at once on its 1600 mm cooking floor.
How big and heavy is the Valoriani GR160?
The Valoriani GR160 measures 2050 x 2050 mm (W x D) and weighs 1000 kg, so site access and floor loading need planning before delivery.
Is the Valoriani GR160 supplied assembled?
No. The Valoriani GR160 is a modular refractory kit: the baking floor, dome sections, arch, mouth section and flue manifold are supplied as separate pieces for assembly on site.
What is the heating capacity of the Valoriani GR160?
The manufacturer rates the Valoriani GR160 at a nominal heating capacity of 26,000 kcal/h (30.2 kW).
What warranty comes with the Valoriani GR160?
The Valoriani GR160 carries a 12-month warranty.
