The Mecnosud SMM0018 is a spiral dough mixer that develops up to 15 kg of finished dough (10 kg of dry flour) per batch in a 20 L removable stainless steel bowl, built for bakeries, pizzerias and venues mixing dough through the day.Why operators choose the SMM0018
Removable tilting-head design — lift the head and lift out the bowl for fast loading, unloading and cleaning.
Stainless steel bowl, hook and shaft — the dough-contact parts are stainless for hygiene and durability.
Spiral mixing action — the fixed spiral and rotating bowl knead dough evenly with less friction heat than a planetary mixer.
Single-phase 240V power — plugs into a standard outlet, no three-phase supply required.
Supplied on castors — roll the mixer aside for cleaning or to free up bench space.
Specifications
Brand
Mecnosud
Model / MPN
SMM0018
Type
Spiral Dough Mixer (tilting head, removable bowl)
Bowl Capacity
20 L
Dough Capacity
15 kg finished dough
Flour Capacity
10 kg dry flour
Bowl Size
360 x 210mm
Speeds
Single speed (single phase)
Bowl Speed
10 rpm
Spiral Speed
100 rpm
Min. Water-to-Flour Ratio
50%
Power
240V; 0.9 kW; single phase
Construction
Stainless steel bowl, hook & shaft
Mobility
Supplied with castors
Product Dimensions
700(W) x 390(D) x 702(H)mm
Packed Dimensions
480(W) x 750(D) x 770(H)mm
Net Weight
65 kg
Country of Manufacture
Italy
Warranty
2 years parts & labour
Venue suitability: Well suited to bakeries, pizzerias, cafes and commercial kitchens producing pizza bases, bread and bun doughs in moderate batches, where a compact single-phase mixer on castors is preferred over a fixed three-phase machine.Browse the full range of Commercial Spiral Mixers or see more dough and bakery equipment from Mecnosud to match the mixer to your output.Installation & delivery: Plugs into a standard single-phase 240V outlet and rolls into place on its castors — no fixed install required. Dispatched Australia-wide.Frequently asked questionsHow much dough can the SMM0018 mix? It handles up to 15 kg of finished dough or 10 kg of dry flour per batch in its 20 L bowl.What power supply does it need? A standard single-phase 240V outlet; it draws 0.9 kW, so no three-phase connection is required.Is the bowl removable? Yes — it has a tilting head and a removable bowl, so you can lift out the bowl for loading, unloading and cleaning.What are the mixing speeds? It runs at a single speed, with the bowl turning at 10 rpm and the spiral at 100 rpm.What warranty does it carry? It is covered by a 2-year parts and labour warranty.
•80kg finished product •50kg flour •130lt bowl •Dual motors, 1 for the bowl and one for the hook •Dual automatic timers •Pulse rotation of bowl for easy unloading •Reversible bowl •2 speeds •Stainless steel safety guard •Stainless steel head plate cover above spiral •Suitable for dough with hydration of 48% or more •Min. water to flour ratio is 50% •Plug not supplied. Must be installed by qualified electrician •Manufacturer's code SP80Product Dimensions: 730(W) x 1460(H) x 1305(D)mm
•130kg finished product •80kg flour •200lt bowl •2 speeds •Steel bowl, spiral and shaft made in high grade stainless steel •Stainless steel safety guard •Stainless steel head plate cover above spiral •Separate motors for bowl and spiral •Dual timers for automatic management of operating speeds •Pulse rotation of bowl for easy unloading and cleaning •Compatible with hydraulic tilting mechanism onto worktable or into divider (optional) •Reversible bowl •Drive system using trapezoidal belts for quiet operation •Stainless steel front adjustable feet •Rear wheels for easy movement •Manufacturer's code: SP130Product Dimensions: 830(W) x 1460(H) x 1355(D)mm
•60kg finished product •40kg dry flour •Bowl 75lt •Manual timer •Three phase 2 speed •Fixed head fixed bowl •Bowl, hook and shaft all st/steel •Supplied on castors with 2 front lockable leveling feet •2 year parts and labour warranty •Bowl speed: 12rpm/24rpm •Tool speed: 68rpm/140rpm •Min. water to flour ratio is 50% •Plug not supplied. Must be installed by qualified electrician •Manufacturer's code: IM60DProduct Dimensions: 575(W) x 1010(H) x 1020(D)mm
•60kg Finished product •40kg flour •100lt bowl •Dual motors, 1 for the bowl and one for the hook •Dual automatic timers •Pulse rotation of bowl for easy unloading •Reversible bowl •2 speeds •Stainless steel safety guard •Stainless steel head plate cover above spiral •Min. water to flour ratio is 50% •Plug not supplied. Must be installed by qualified electrician •Manufacturer's code SP60Product Dimensions: 630(W) x 1312(H) x 1180(D)mm
Fixed head/bowl
38kg finished product
25kg dry flour
Bowl, hook, shaft all stainless steel
Supplied with castors
Bowl speed 10rpm
Spiral speed 100rpm
water to flour ratio is 50%
Bowl size 500 x 270
Manufacturer Code: IM44
Product Dimensions: 860(W) x 790(H) x 530(D)mm

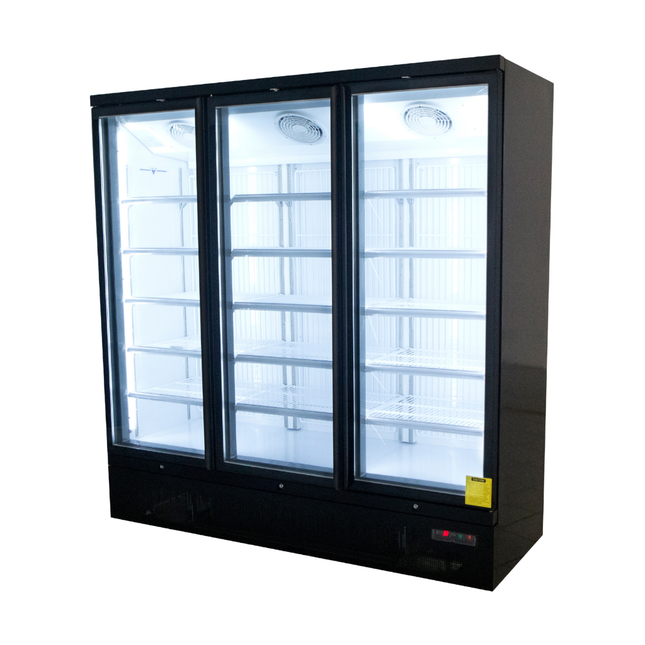

1260L triple door freezer
Internal dimensions: 1755 x 580 x 1545
Gross volume: 1570L
Net volume: 1260L
Temperature range -16°C to -22°C
Self-contained ventilated cooling system
Inner vertical led lights
Triple glazed anti-fog glass door
Dixell digital controller
Automatic defrost
5 shelves per door
R290 gas
39.41kW/24hrs energy consumption
Supplied on castors
Ambient rating at 32°C

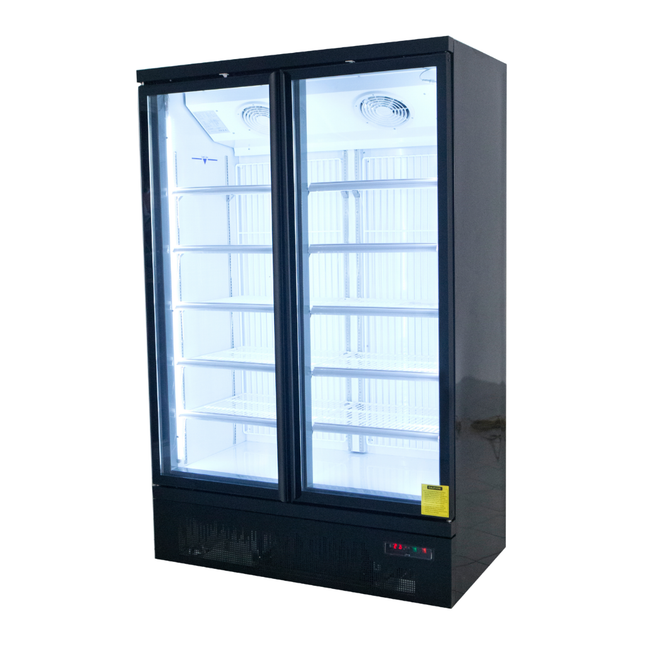

810L double door freezer
Internal dimensions: 1130 x 580 x 1545
Gross volume: 1010L
Net volume: 810L
Temperature range -16°C to -22°C
Self-contained ventilated cooling system
Inner vertical led lights
Triple glazed anti-fog glass door
Dixell digital controller
Automatic defrost
5 shelves per door
R290 gas
29.42kW/24hrs energy consumption
Supplied on castors
Ambient rating at 32°C

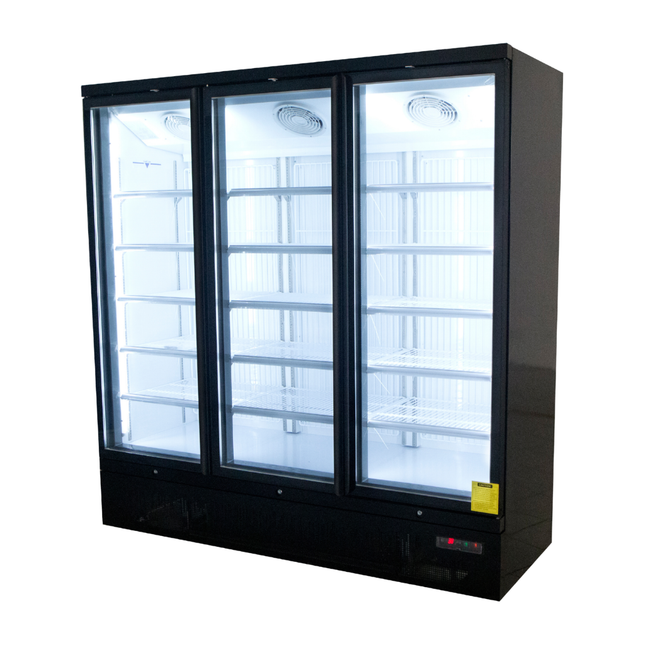

1260L triple door fridge
Internal dimensions: 1757 x 580 x 1545
Gross volume: 1570L
Net volume: 1260L
Temperature range 0°C to 6°C
Self-contained ventilated cooling system
Inner vertical led lights
Double glazed glass door
Dixell digital controller
Automatic defrost
5 shelves per door
R290 gas
11.46kW/24hrs energy consumption
Supplied on castors
Ambient rating at 32°C

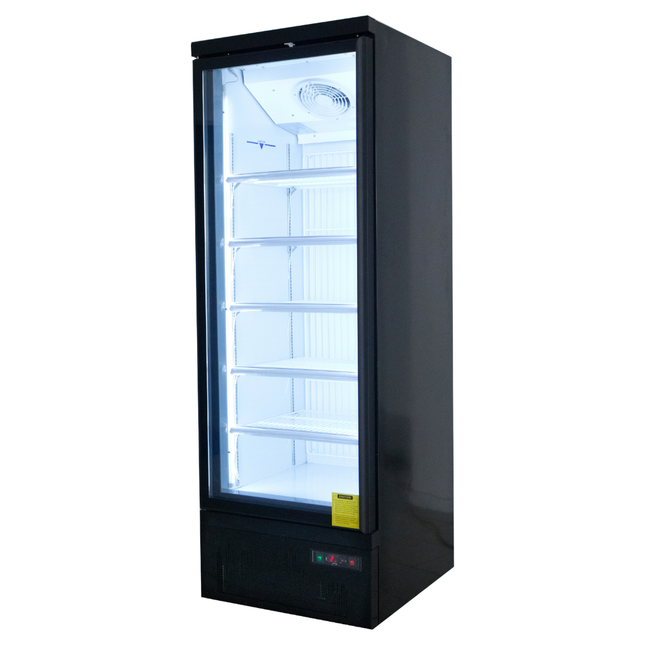

420L single door fridge
Internal dimensions: 560 x 580 x 1545
Gross volume: 500L
Net volume: 420L
Temperature range 0°C to 6°C
Self-contained ventilated cooling system
Inner vertical led lights
Double glazed glass door
Dixell digital controller
Automatic defrost
5 shelves per door
R290 gas
7.5kW/24hrs energy consumption
Supplied on castors
Ambient rating at 32°C

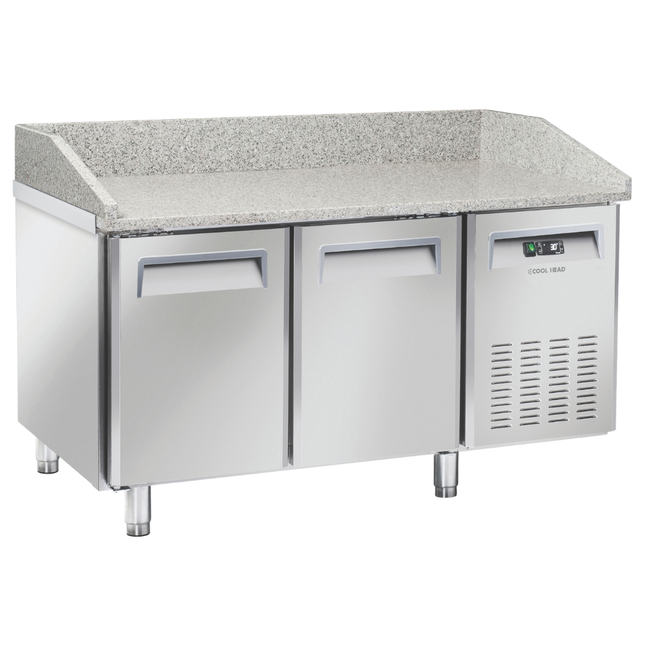

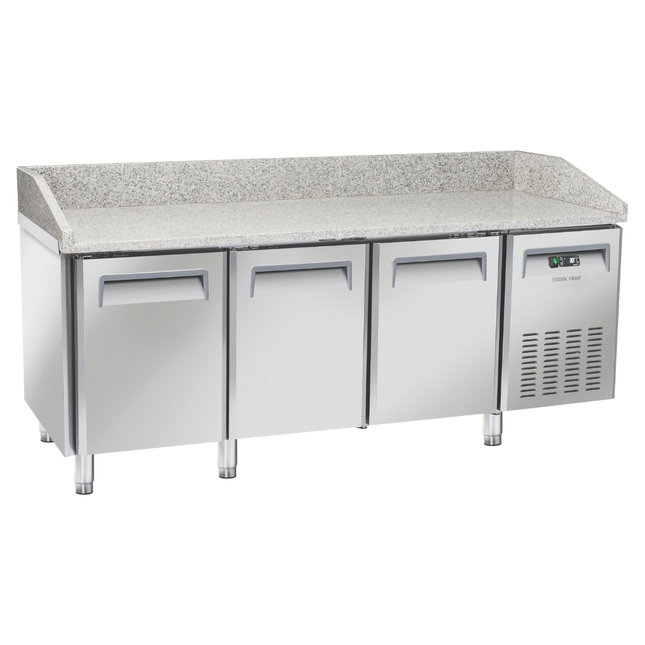

Stainless Steel exterior and interior
Ventilated Cooling with cassette system
Automatic compressor cycle defrost
Foaming Agent Cyclopentane (60mm per side)
Evaporator with anti-corrosion treatment
Digital Thermostat
Removable Gasket
Door with self closing mechanism (not reversible)
Adjustable shelves 600x400mm
Granite top with 200mm high splash back
Suitable for VRX refrigerated ingredient unit
Stainless Steel exterior and interior
Ventilated Cooling with cassette system
Automatic compressor cycle defrost
Foaming Agent Cyclopentane (60mm per side)
Evaporator with anti-corrosion treatment
Digital Thermostat
Removable Gasket
Door with self closing mechanism (not reversible)
Adjustable shelves 600x400mm
Granite top with 200mm high splash back
Suitable for VRX refrigerated ingredient unit

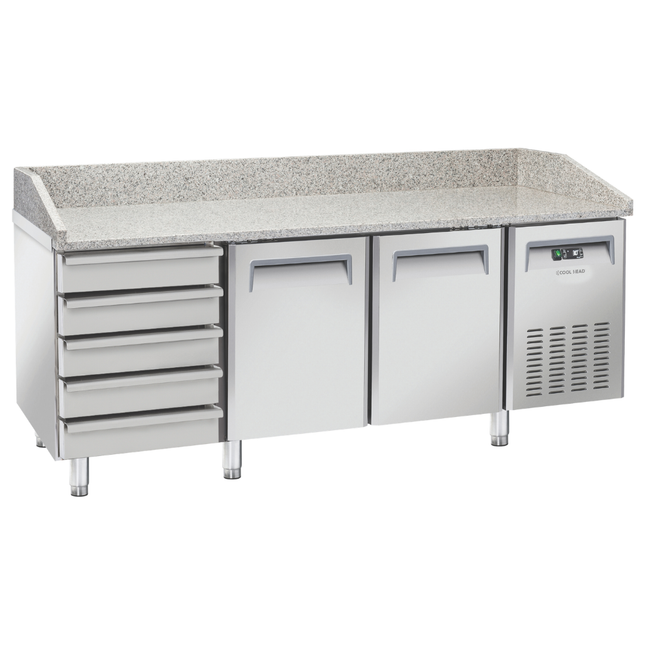

Set of ambient, non-refrigerated drawers with telescopic guides suitable for 100mm deep 600 x 400 trays
** Shown on legs, supplied on castors**

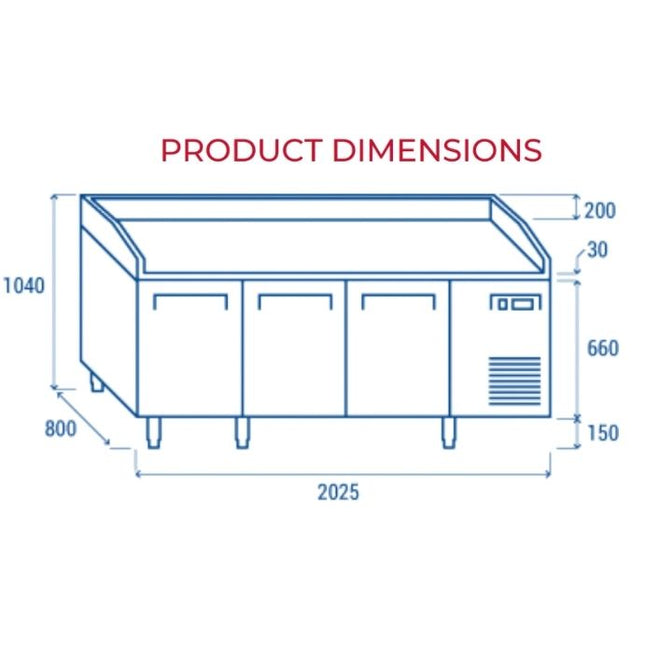

Stainless Steel exterior and interior
Ventilated Cooling with cassette system
Automatic compressor cycle defrost
Foaming Agent Cyclopentane (60mm per side)
Evaporator with anti-corrosion treatment
Digital Thermostat
Removable Gasket
Door with self closing mechanism (not reversible)
Adjustable shelves 600x400mm
Granite top with 200mm high splash back
Items suitable for VRX refrigerated topping unit
** Shown on legs, supplied on castors**

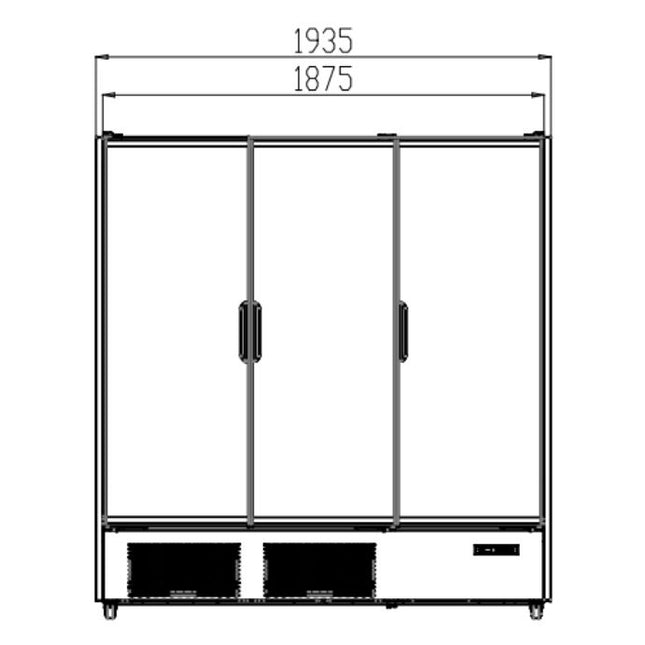

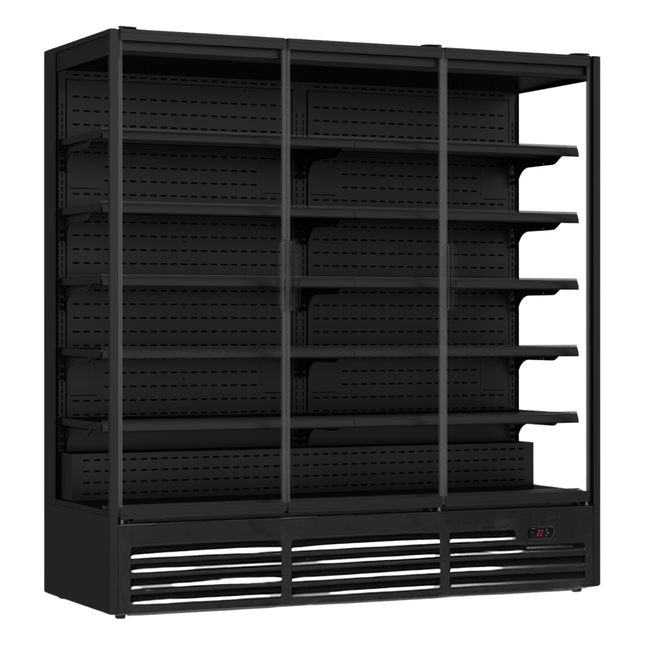

Double glazed glass opening doors
Digital thermostat
Painted steel, stainless steel floor
R290 gas
Temperature range -1° to 5°C
Self closing doors
Maximum ambient shop temperature 25°C & 60% R/H
Air conditioned shop recommended
5 adjustable shelves with price tag ends
2RH + 1LH opening doors
LED illumination
Lighting under each shelf
Supplied on small castors
8.13kW/24hrs energy consumption
Climate class B
Gross literage 1939L
Net literage 1147L

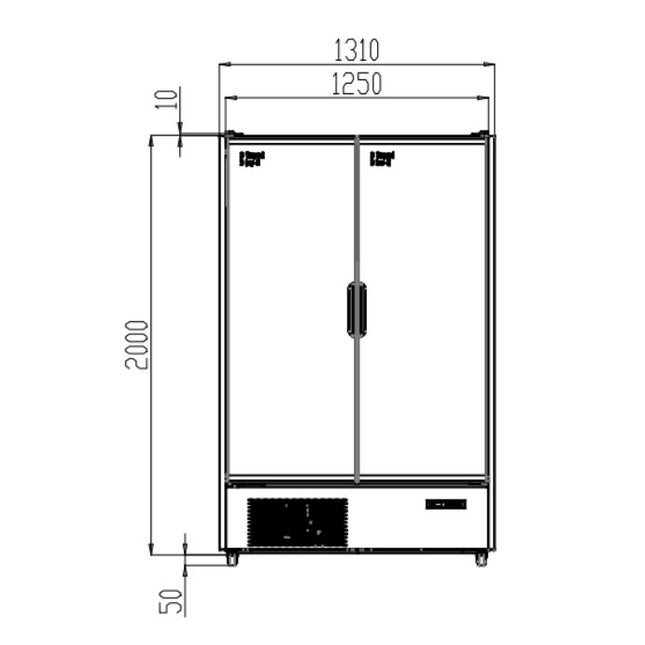

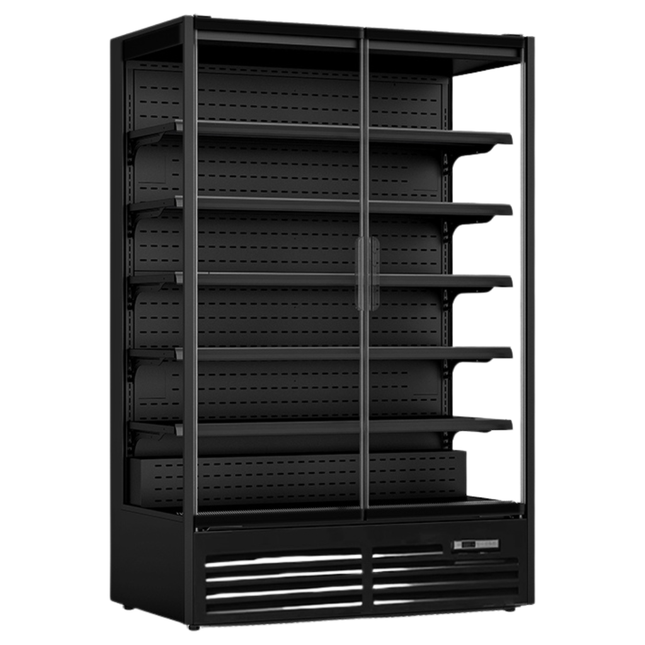

Double glazed glass opening doors
Digital thermostat
Painted steel, stainless steel floor
R290 gas
Temperature range -1° to 5°C
Self closing doors
Maximum ambient shop temperature 25°C & 60% R/H
Air conditioned shop recommended
5 adjustable shelves with price tag ends
1RH + 1LH opening doors
LED illumination
Lighting under each shelf
Supplied on small castors
5.87kW/24hrs energy consumption
Climate class B
Gross literage 1292L
Net literage 764L

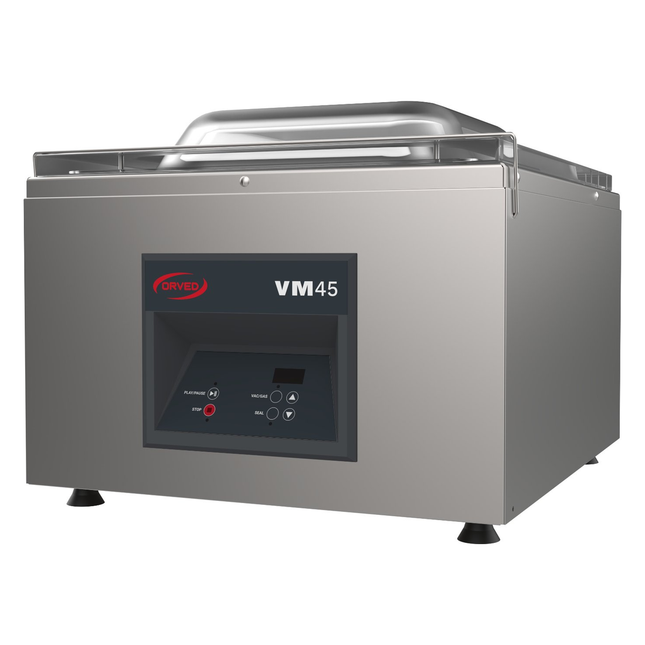

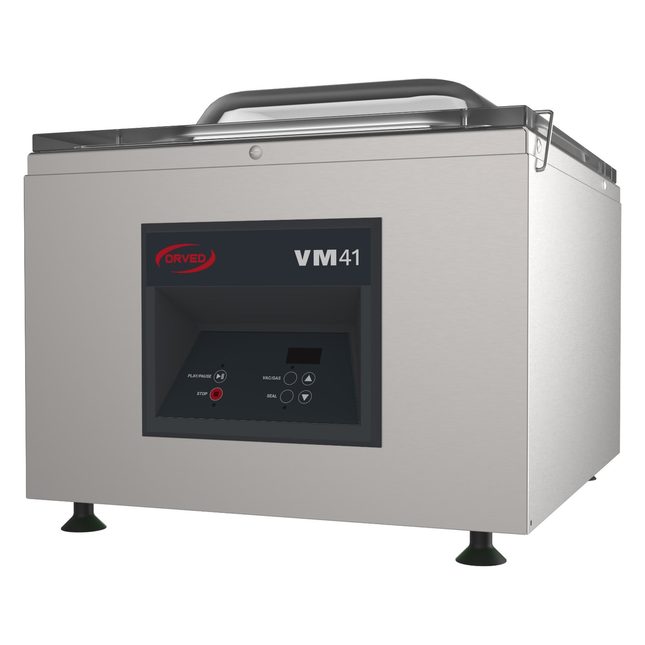

The VM series models made entirely of AISI304 stainless steel, with digital control panel and standard absolute vacuum sensor, it is characterized by ease of use and compactness. Its versatility makes it possible to pack the products in the chamber, in external containers via the suction device and in embossed envelopes outside the chamber. Easy maintenance and cleaning make it a precise, fast, versatile and reliable work tool
25m3/h pump
Chamber size: 551 x 487 x 175
Dual sealing bars
Sealing bar lengths: 456mm
FEATURES- Busch oil recirculation pump 25 m³/h;- Vacuum level control using a high-precision absolute sensor that does not require calibration;- Maximum achievable vacuum 99.8% (2 millibar);- 456mm sealing bar (Standard) with double sealing. Easily removable for cleaning;- Horizontal AISI304 vacuum chamber;- 10 editable user programs;- 1 cycle for vacuum containers;- "H2Out" pump oil dehumidification cycle,- Resettable oil change alarm;- Menu accessible to technical assistance for parameter adjustment and reading of cycles carried out;- Thickened PMMA cover with rounded edges. Automatic opening at the end of the cycle;- Lid lowering system in resting position via lid lock;- Easy maintenance access through chassis opening;- PE filters for product positioning and cycle acceleration.
TECHNICAL DATALength of seal L1: 456(mm)
Nominal pump speed: 25m³/h
Final pressure: 2 mbar
Chamber size 551x487x175 FxGxH mm
Useful chamber space N mm 495 (438)Chamber depth L : 110mm
Chamber volume: 47 LtPower :1,2kW Electrical voltage/Frequency/Phases: 220-240V / 50-60Hz / 1Ph+N+PEPower cord and plug 2m + IEC / SchukoHousing materials Steel inox (AISI304)Vacuum chamber material Steel inox (AISI304)Lid material PMMA (plexiglas)Overall dimensions AxBxC 612x700x500mm
Maximum height with open lid C1 916mm
Distance between supports DxE 510x540 mm
Noise level dB(A) <70Environmental operating temperature (min-max) 12-40°C
The VM series models made entirely of AISI304 stainless steel, with digital control panel and standard absolute vacuum sensor, it is characterized by ease of use and compactness. Itsversatility makes it possible to pack the products in the chamber, in external containers via the suction device and in embossed envelopes outside the chamber. Easy maintenance and cleaning make it a precise, fast, versatile and reliable work tool.
25m3/h pump
Chamber size: 520 x 450 x 180
Sealing bar length: 410mm
Replaces previous model VM18
FEATURES- Busch oil recirculation pump 25 m³/h;- Vacuum level control using a high-precision absolute sensor that does notrequire calibration;- Maximum achievable vacuum 99.8% (2 millibar);- 410mm sealing bar with double sealing. Easily removable for cleaning;- Horizontal AISI304 vacuum chamber;- 10 editable user programs;- 1 cycle for vacuum containers;- "H2Out" pump oil dehumidification cycle,- Resettable oil change alarm;- Menu accessible to technical assistance for parameter adjustment and reading of cycles carried out;- Thickened PMMA cover with rounded edges. Automatic opening at the end of the cycle;- Lid lowering system in resting position via lid lock;- Easy maintenance access through chassis opening;- PE filters for product positioning and cycle acceleration.

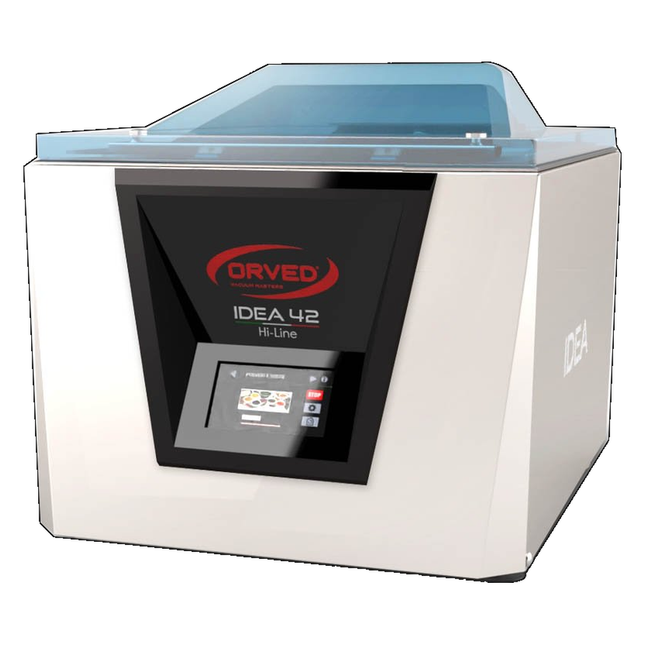

20m³/h pump
Chamber size: 440 x 448 x 190h
Sealing bar size: 410mm
5” touch smart interface with 12 preprogramed chef program settings
Customize and save up to 10 vacuum programs
Max bag width: 400mm
Packing Method: Sealing only | Vacuum | External vacuum | MAP | Vacuum in containers
Digital panel, waterproof and scratch resistant
10 editable programs
Ready to connect to gas (MAP) if required
Smart vacuum sensor

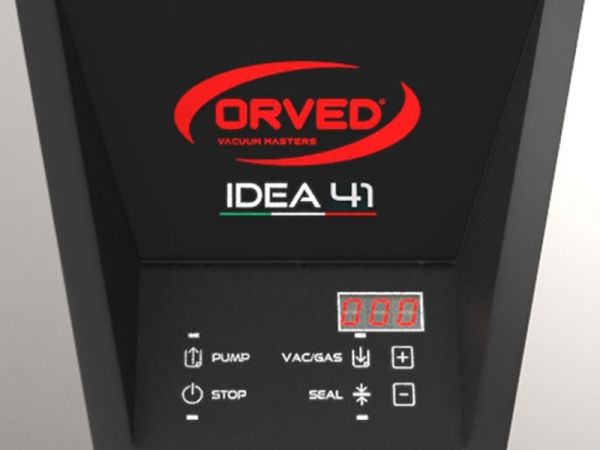

20m³/h pump
Chamber size 440 x 448 x 190h mm
Sealing bar 410mm length
Digital panel, waterproof and scratch resistant
10 editable programs
Ready to connect to gas (MAP) if required
Smart vacuum sensor

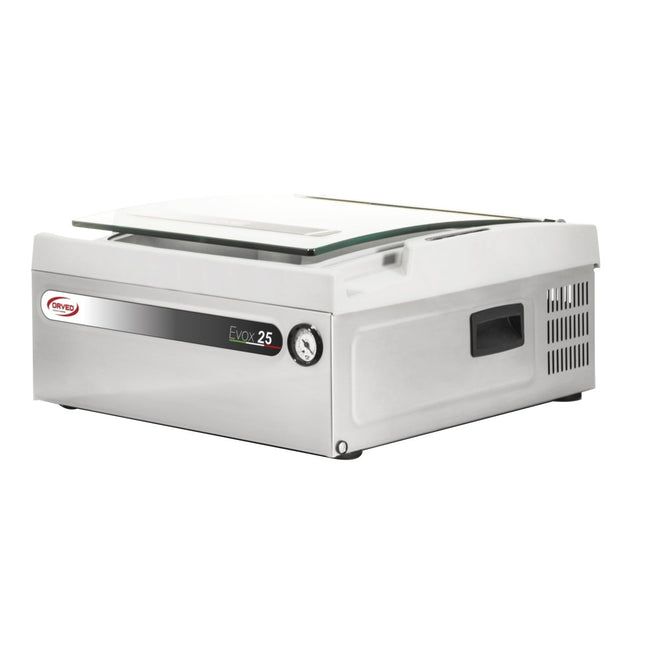

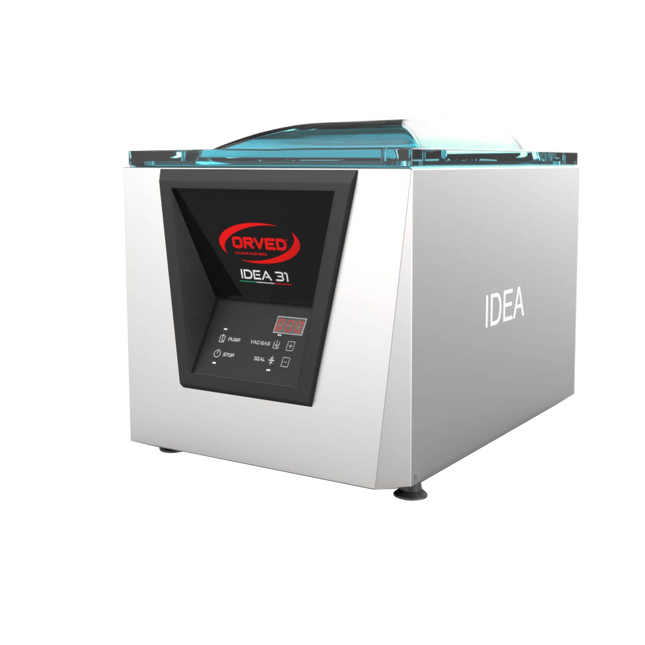

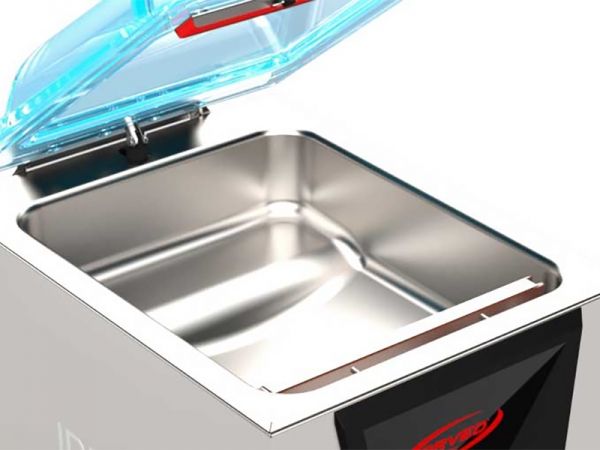

12m³/h pump
Chamber size 434 x 343 x 195h mm
Sealing bar 310mm length
Features:
Oil lubricated rotary vane vacuum pump, nominal speed 12 m³/h; Busch pump 10 m³/h on request;- Vacuum level control through high precision absolute-type vacuum sensor, which does not require calibration;- Maximum vacuum 99,8% (2 millibar);- 310 mm sealing bar, easily removable for cleaning;- Brilliant stainless steel vacuum chamber with constant thickness, easy to clean being free of edges and receptacles;- Standard inert gas injection with 2 injection nozzles with "Gasplus" system, which allows to reach values up to 90% of inert gas for products extremely sensitive to crushing- Waterproof control panel, resistant to liquids, humidity, dirt and dust;- 10 editable user programs;- 1 cycle for vacuum containers;- 1 deaeration "chef" cycle (Degas);- "H2Out" pump oil dehumidification cycle,- Resettable oil change alarm;- Menu accessible to technical assistance for parameter adjustment and reading of cycles carried out;- High-thickness blued PMMA (Plexiglass) lid with polished and rounded edges; opens automatically at the end of the cycle;- Lowering system of the lid at the end of the work in the rest position by releasing the rear gas spring, which allows to release the tension on the gas spring and on the lid;- Access for easy maintenance through front opening of the casing;- Standard "Easy" accessory for external vacuum in embossed bags;- 2 PE-filling plates for product adjustment and cycle speed up.- Bags for storage, cooking and "cook & chill"; embossed bags;- Stainless steel cart with castors and shelf;- Inclined stainless steel plate for liquid packing;- Stainless steel vacuum containers; suction device.

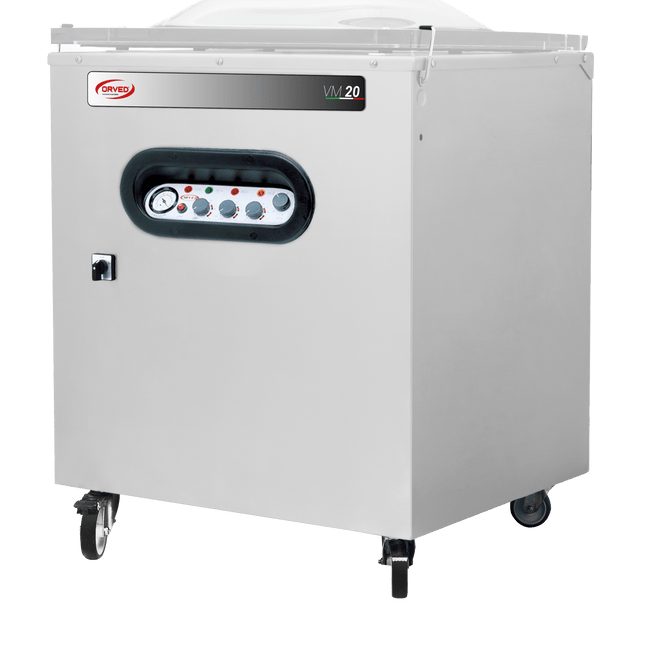

Vacuum Sealer VM20 60m3 pump. Chamber size: 650 x 535 x 200 Dual bars, size: 2 x 505mm or 2 x 620mm Standard with gas flush. Standard with soft air. Supplied without plug. Needs to be installed by an electrician Product Dimensions: 765(W) x 1050(H) x 710(D)mm

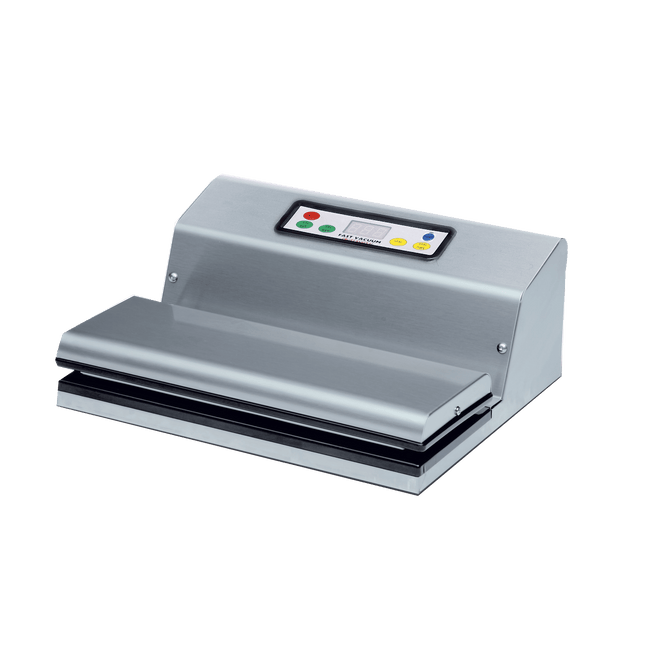

Vacuum Sealer VMF0001
For use only with Channel bags
Automatic sealing
Internal filter system
Full stainless steel body
Not suitable for liquids
Product Dimensions: 360(W) x 150(H) x 300(D)mm
