Description
Perfect Balance of Performance and Economy

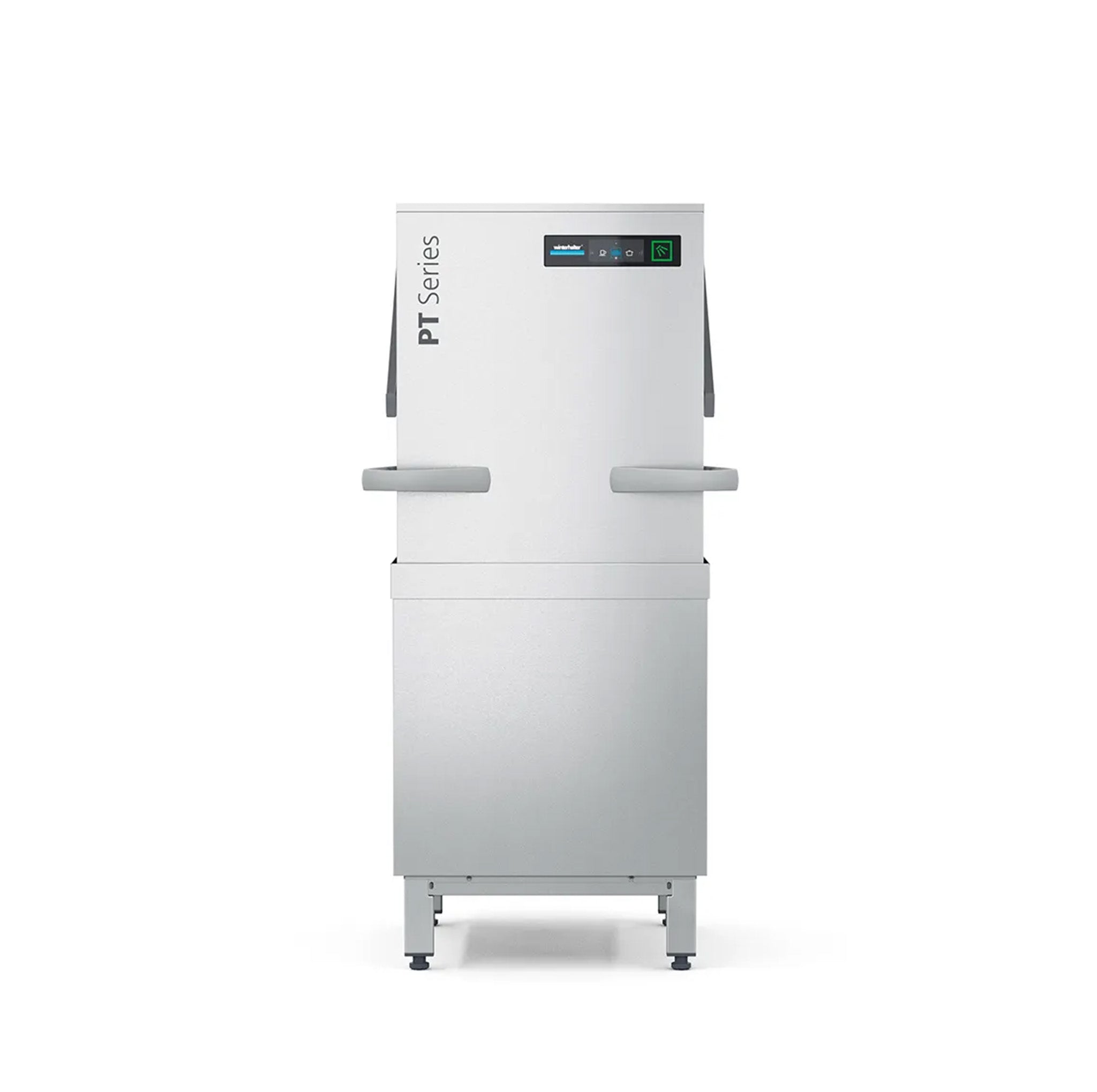

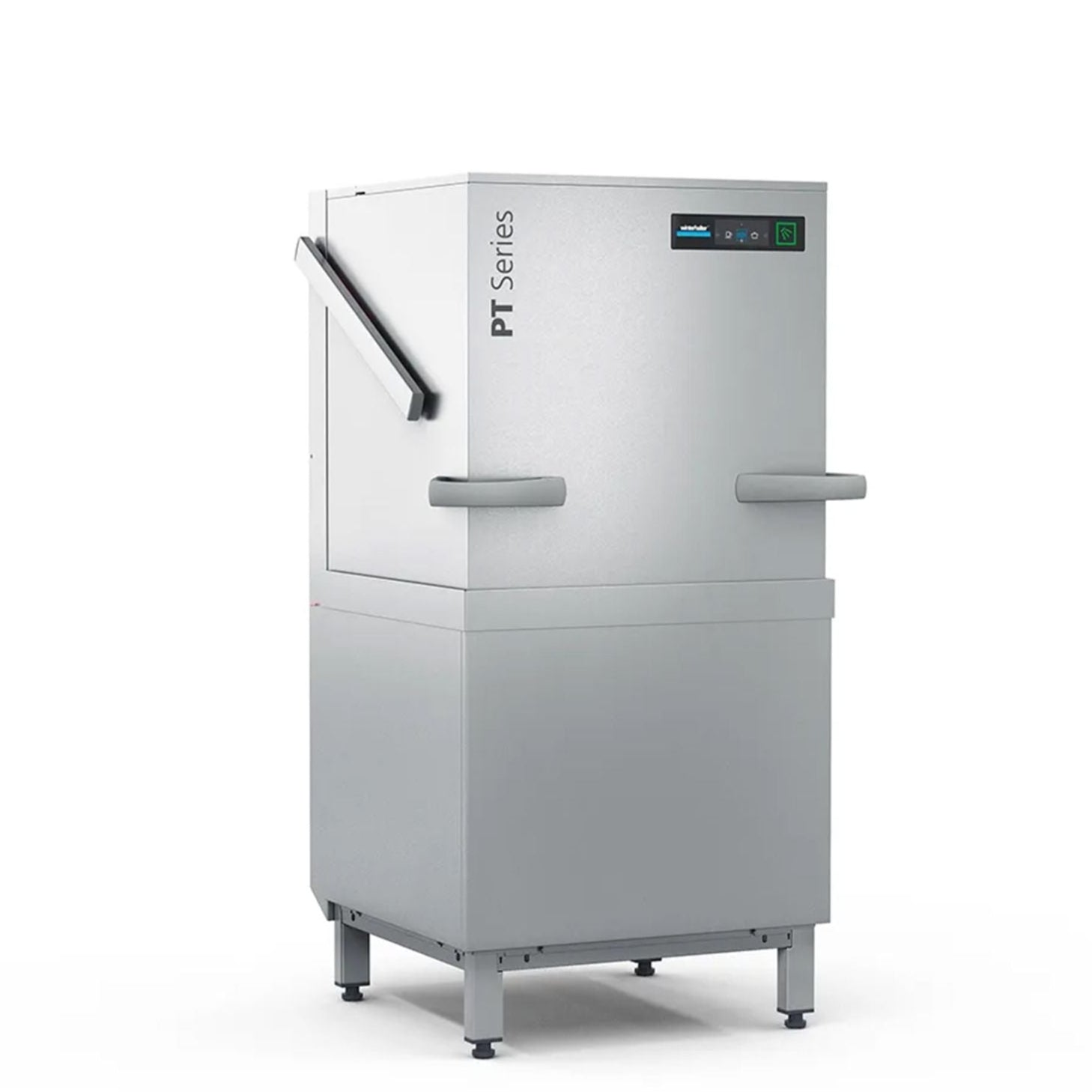

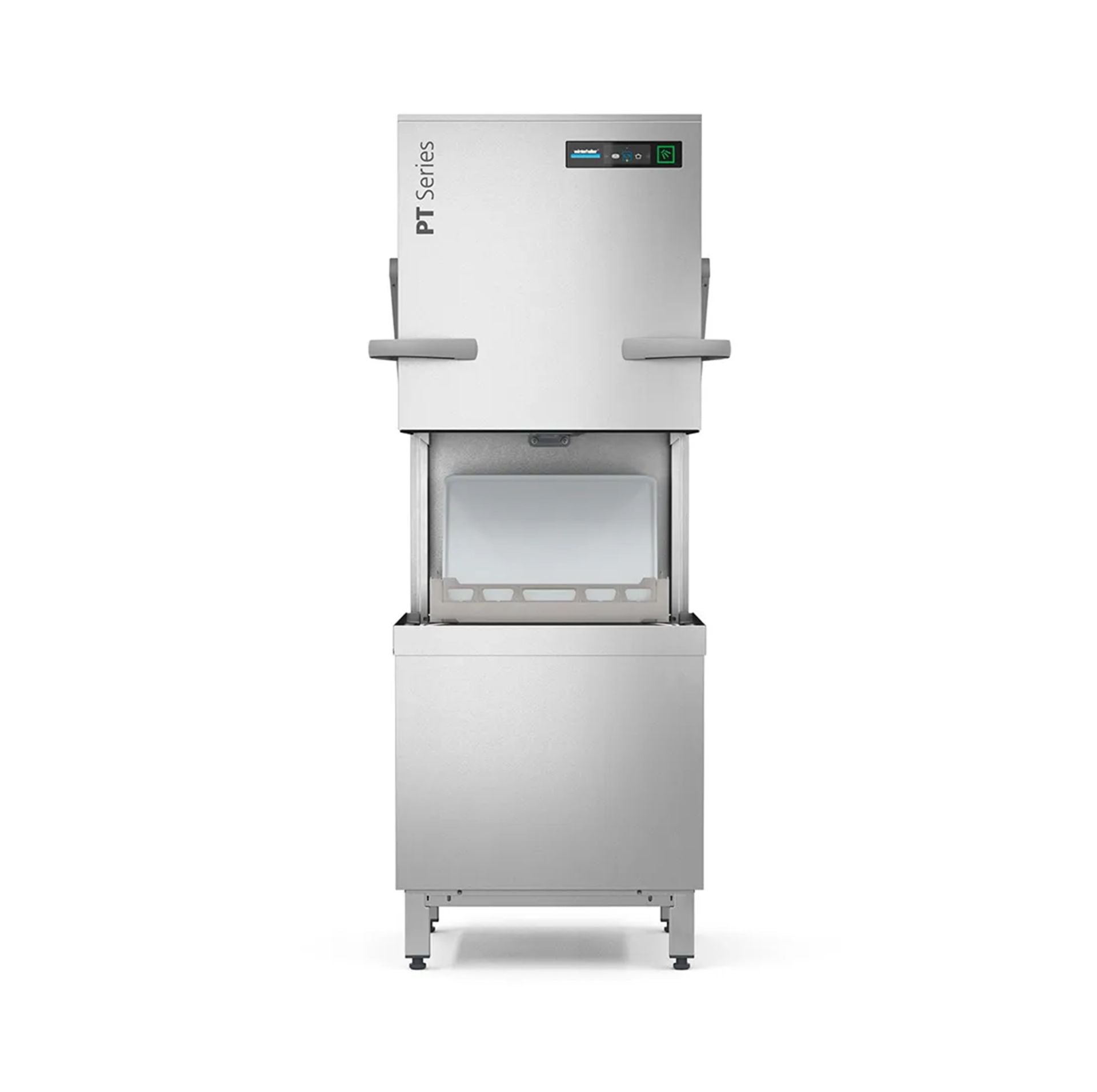

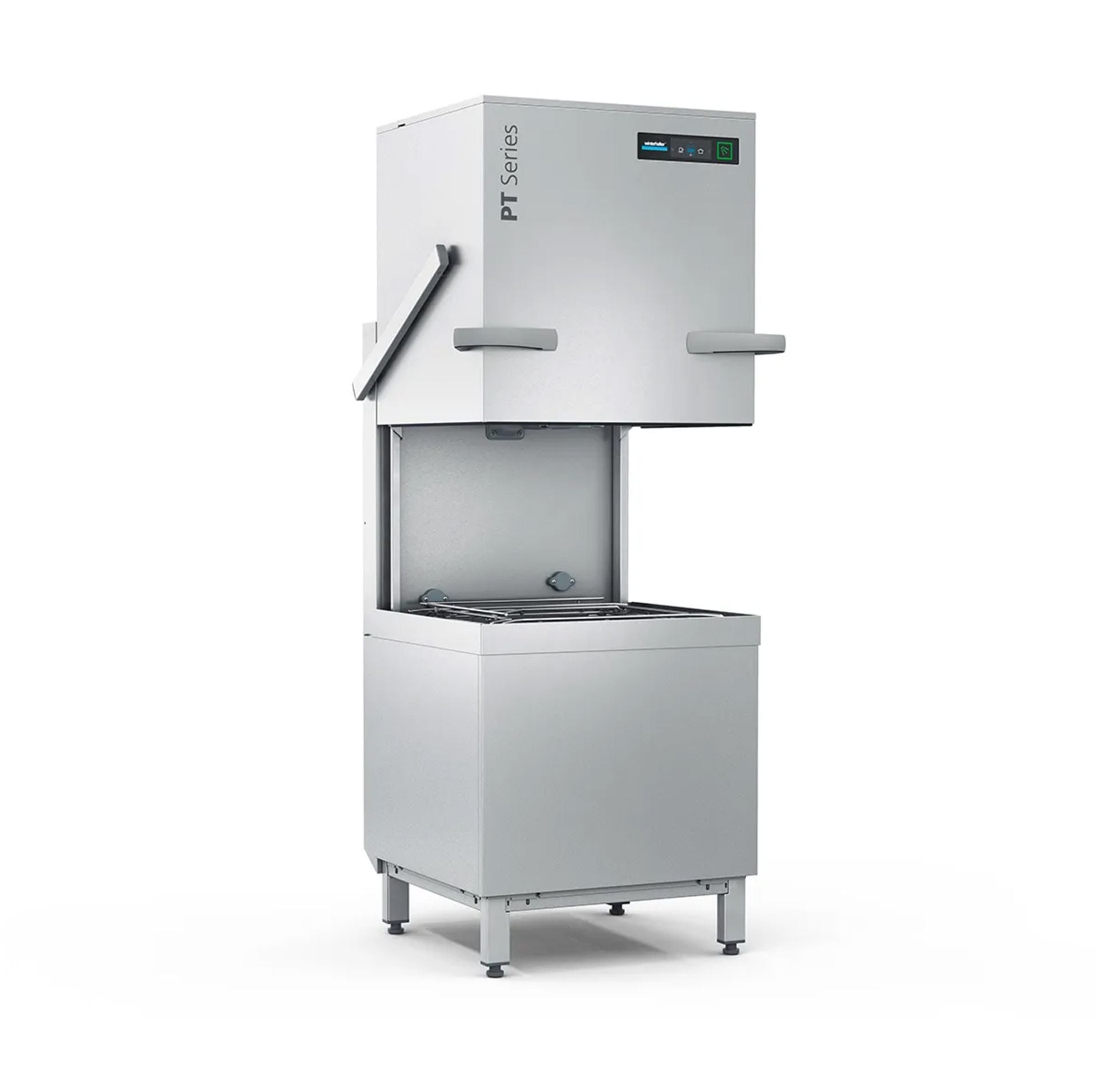

The Winterhalter PT Pass-Through Dishwasher is designed for efficiency and cost savings. It streamlines the washing process, saving time and resources while delivering consistent and reliable cleaning performance. Built to handle high demands, it reduces water, energy, and detergent usage, making it a cost-effective solution without compromising on quality.
Standard Features
- Smart touch display with simple single-button operation
- Top & bottom S-shaped wash fields
- Variopower washing pressure adjustment
- Chemical pumps
- Rinse booster pump
- Drain pump
- Active energy management with EnergyLight waste water heat recovery
- Quadruple filtration system
- Clouding sensor
- Connected Wash technology
- Automatic start-up and shut-down timer
Optional Features
- Automatic Hood System
- Driven rinse system
- EnergyPlus: Exhaust air heat recovery to reduce steam and energy costs
- TwinSet: Connect two PT Series dishwashers into a twinset
PT Series Product Benefits
First-Class Wash Results
No matter how tough the dirt, the PT Series guarantees certified cleanliness and hygiene. Its powerful warewashing system and quadruple filtration ensure superior cleaning performance.
Reliable Performance
Built with innovative technology and high-quality materials, the PT Series is designed for durability and low maintenance, making it a dependable workhorse in your dishwashing area.
Highly Efficient
The PT Series is designed for optimal efficiency, reducing water, energy, and chemical consumption while ensuring top-quality wash results. Lower operating costs mean higher savings.
Easy to Use
With intuitive controls, ergonomic handling, and user-friendly features, the PT Series makes dishwashing simple and efficient, improving staff productivity and ease of use.
Technical Information
-
Clear entry height: 440 mm
-
Dimensions (WxDxH): 735 x 750 x 1585-2060 mm
-
Rack Size: 500 x 500 mm
-
Rinse Water Consumption: 2.2L per cycle
Water Connection
-
Connection Point: 3/4 inch (19mm)
-
Flow Pressure: Min. 1.0 bar
-
Flow Rate: 4 L/Min
-
Max. Inlet Temperature: 60°C
-
Wastewater Connection: 23.6 mm
Electrical
-
3 Phase (Standard): 415v 3P 50Hz - 20amp (TCL 9.7Kw)
-
3 Phase (Optional): 415v 3P 50Hz - 25amp (TCL 11.5Kw), 415v 3P 50Hz - 32amp (TCL 15.7Kw)
General Data
-
Cycle Times: 50/80/110 Seconds (Adjustable)
-
Noise Emission: 62dB(A)
-
Tank Capacity: 35L
-
Weight (Net/Gross): 142/158 kg
Standard Inclusions
- 1x 1m Flexible Waste Hose
- 1x 1m Flexible Water Connection Hose
- 1x 3-phase Lead
- 2x 500 x 500 Racks (1x Flat, 1x Plate)
SKU: 518V0034
In Stock
