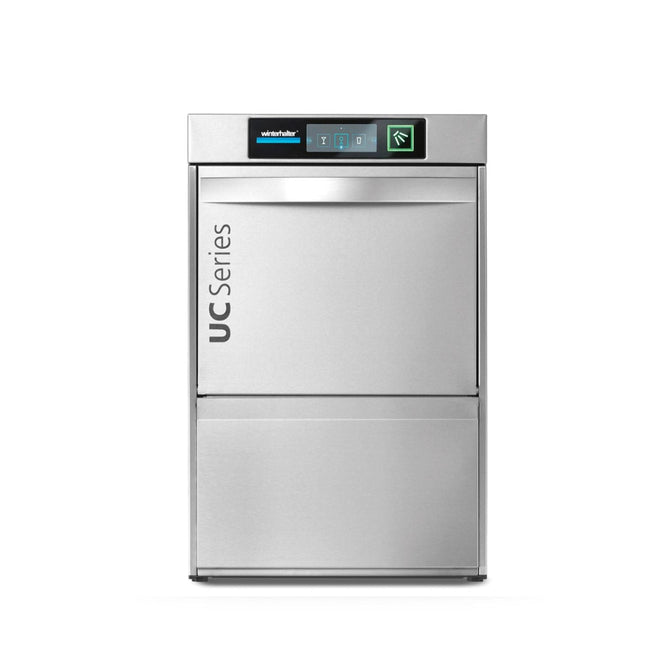

UC Series – Smart, Efficient & Customizable Dishwashing
The UC Series is designed for perfect cleanliness and hygiene, offering customized solutions for various washing needs.
Key Features & Standard Equipment
Made in Germany – Built for durability and reliability.
Innovative Touchscreen – Easy-to-use smart display with clear icons.
Connected Wash – Monitor and optimize performance via WLAN.
Double-Skinned Housing & Door – Reduces noise and heat loss.
Elliptical Wash Fields – Special jet design for thorough cleaning.
VarioPower Wash Pressure Adjustment – Adapts to different wash loads.
Quadruple Filtration System – Keeps wash water clean for better results.
Eco Program – Saves water, detergent, and energy.
Compact & Efficient Design
Dimensions: 460mm (W) x 603mm (D) x 725-760mm (H)
Tank Capacity: 9.5L
Rack Size: 400 x 400mm
Customized Solutions
The UC Series can be configured for various applications:
Glasswasher
Dishwasher
Cutlery Washer
Bistro Washer
Bottle Washer
Plastic Cup Washer
Perfect Wash Results
✨ Sparkling clean and hygienic – Certified by DIN SPEC 10534.
💧 S-shaped wash field – Ensures even water distribution for lower water usage.
User-Friendly Operation

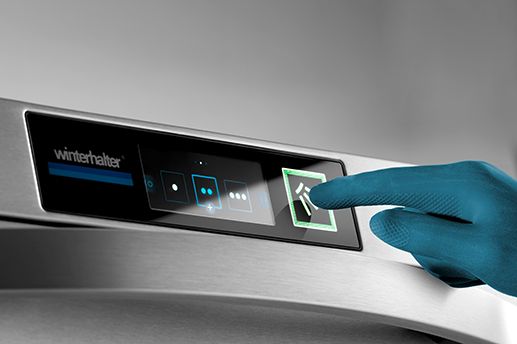

Smart Touch Display – Simple, icon-based interface with 22 language options.
Ergonomic Door Handle – Easy to open and close.
Quick Maintenance – Removable wash fields detach at the push of a button.
Advanced Hygiene & Filtration
Clouding Sensor – Detects dirty wash water for quick regeneration.
ThermoStop – Ensures rinse water reaches the right temperature.
Quadruple Filtration System – Strainer, filter cylinder, Mediamat, and pump protection filter.
Connected Wash – Smart Monitoring & Updates
📡 WLAN-Enabled – Allows remote monitoring and performance analysis.
🔄 Automatic Software Updates – Keeps your machine running optimally.
Efficient, Reliable & Built for the Future
The UC Series is a customized washing solution that offers top-tier performance, energy savings, and ease of use. Whether for restaurants, bars, bakeries, or catering kitchens, the UC adapts to your needs and delivers consistently spotless results.

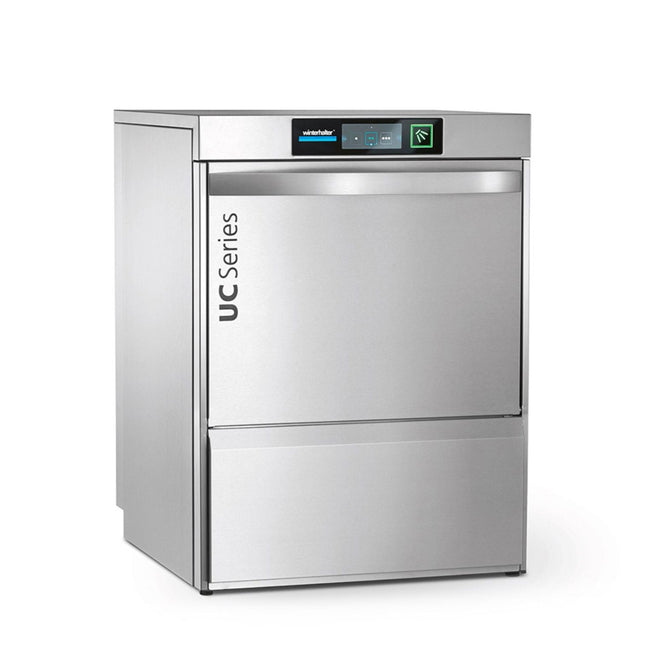

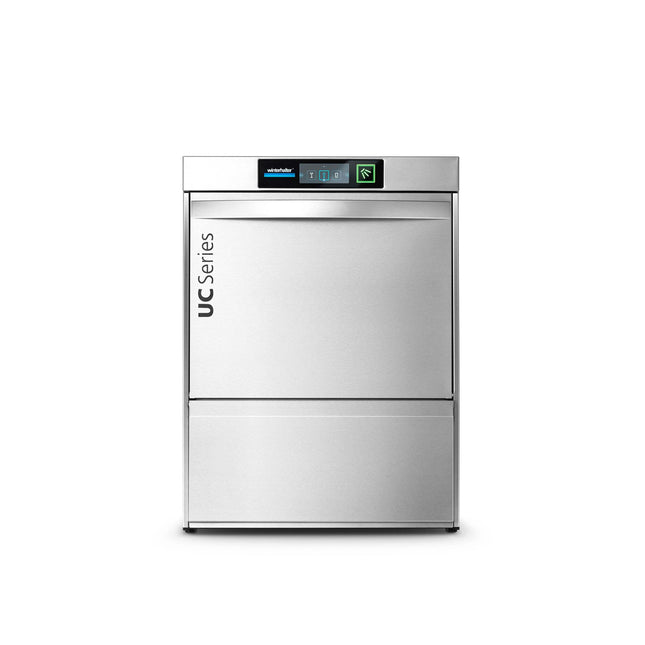

UC Series – Smart, Efficient & Customizable Dishwashing
The UC Series is designed for perfect cleanliness and hygiene, offering customized solutions for various washing needs.
Key Features & Standard Equipment
Made in Germany – Built for durability and reliability.
Innovative Touchscreen – Easy-to-use smart display with clear icons.
Connected Wash – Monitor and optimize performance via WLAN.
Double-Skinned Housing & Door – Reduces noise and heat loss.
Elliptical Wash Fields – Special jet design for thorough cleaning.
VarioPower Wash Pressure Adjustment – Adapts to different wash loads.
Quadruple Filtration System – Keeps wash water clean for better results.
Eco Program – Saves water, detergent, and energy.
Compact & Efficient Design
Dimensions: 600mm (W) x 657mm (D) x 725-760mm (H)
Tank Capacity: 15.3L
Rack Size: 500 x 500mm
Customized Solutions
The UC Series can be configured for various applications:
Glasswasher
Dishwasher
Cutlery Washer
Bistro Washer
Bottle Washer
Plastic Cup Washer
Perfect Wash Results
✨ Sparkling clean and hygienic – Certified by DIN SPEC 10534.
💧 S-shaped wash field – Ensures even water distribution for lower water usage.
User-Friendly Operation
Smart Touch Display – Simple, icon-based interface with 22 language options.
Ergonomic Door Handle – Easy to open and close.
Quick Maintenance – Removable wash fields detach at the push of a button.
Advanced Hygiene & Filtration
Clouding Sensor – Detects dirty wash water for quick regeneration.
ThermoStop – Ensures rinse water reaches the right temperature.
Quadruple Filtration System – Strainer, filter cylinder, Mediamat, and pump protection filter.
Connected Wash – Smart Monitoring & Updates
📡 WLAN-Enabled – Allows remote monitoring and performance analysis.
🔄 Automatic Software Updates – Keeps your machine running optimally.
Efficient, Reliable & Built for the Future
The UC Series is a customized washing solution that offers top-tier performance, energy savings, and ease of use. Whether for restaurants, bars, bakeries, or catering kitchens, the UC adapts to your needs and delivers consistently spotless results.
Maximum Efficiency and Optimal Results
The Winterhalter PT is the heart of every busy kitchen. Designed for peak efficiency, it streamlines the washing process, ensuring fast and reliable cleaning for a wide range of wash items. Simple, economical, and highly effective. Available in two machine sizes, this workhorse is built for demanding kitchens.
Standard Features
Smart touch display with single-button operation
Top & bottom S-shaped wash fields
Variopower washing pressure adjustment
Integrated chemical pumps
Rinse booster pump
Drain pump
EnergyLight waste water heat recovery system
Quadruple filtration system
Clouding sensor
Connected wash technology
Automatic start-up and shut-down timer
Product Benefits
First-Class Wash Results
Removes even the toughest dirt with certified cleanliness and hygiene. The powerful wash system and advanced filtration ensure excellent results.
Absolute Reliability
Built with innovative technology and high-quality materials, the PT Series is designed for long-lasting durability and minimal errors.
Highly Economical
Uses less water, energy, and chemicals, making it a cost-effective choice for commercial kitchens.
Simple to Use
Intuitive operation, ergonomic design, and practical functionality make the PT Series user-friendly for kitchen staff.
Technical Information
Clear entry height: 440 mm
Dimensions (WxDxH): 735 x 750 x 1705-2300 mm
Rack Dimensions: 500 x 500 mm, 500 x 600 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/min
Max. Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical Specifications
3 Phase (Standard): 415V 3P 50Hz - 20amp (TCL 9.7Kw)
3 Phase (Optional): 415V 3P 50Hz - 25amp (TCL 11.5Kw), 415V 3P 50Hz - 32amp (TCL 15.7Kw)
General Data
Cycle Times: 50/80/110 Seconds (Adjustable)
Noise Emission: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 172/202 kg
Standard Inclusions
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)
Product Description:Undercounter Glasswasher. Features Integrated chemical dosing with storage tanks for rinse aid and detergent, Rinse booster pump, 1 x Glassrack, On feet, Vario power warewashing system for adjustable pressure, Pump drain, Touch display with glass surface, S/S Finish, 15 Amp 1 Phase.Condition of Equipment:SilverChef Certified Used. Scratches & Dents.Dimensions:W: 460mm D: 650mm H: 710mmAsset Number: 805723
Perfect Balance of Performance and Economy
The Winterhalter PT Pass-Through Dishwasher is designed for efficiency and cost savings. It streamlines the washing process, saving time and resources while delivering consistent and reliable cleaning performance. Built to handle high demands, it reduces water, energy, and detergent usage, making it a cost-effective solution without compromising on quality.
Standard Features
Smart touch display with simple single-button operation
Top & bottom S-shaped wash fields
Variopower washing pressure adjustment
Chemical pumps
Rinse booster pump
Drain pump
Active energy management with EnergyLight waste water heat recovery
Quadruple filtration system
Clouding sensor
Connected Wash technology
Automatic start-up and shut-down timer
Optional Features
Automatic Hood System
Driven rinse system
EnergyPlus: Exhaust air heat recovery to reduce steam and energy costs
TwinSet: Connect two PT Series dishwashers into a twinset
PT Series Product Benefits
First-Class Wash Results
No matter how tough the dirt, the PT Series guarantees certified cleanliness and hygiene. Its powerful warewashing system and quadruple filtration ensure superior cleaning performance.
Reliable Performance
Built with innovative technology and high-quality materials, the PT Series is designed for durability and low maintenance, making it a dependable workhorse in your dishwashing area.
Highly Efficient
The PT Series is designed for optimal efficiency, reducing water, energy, and chemical consumption while ensuring top-quality wash results. Lower operating costs mean higher savings.
Easy to Use
With intuitive controls, ergonomic handling, and user-friendly features, the PT Series makes dishwashing simple and efficient, improving staff productivity and ease of use.
Technical Information
Clear entry height: 440 mm
Dimensions (WxDxH): 735 x 750 x 1585-2060 mm
Rack Size: 500 x 500 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/Min
Max. Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical
3 Phase (Standard): 415v 3P 50Hz - 20amp (TCL 9.7Kw)
3 Phase (Optional): 415v 3P 50Hz - 25amp (TCL 11.5Kw), 415v 3P 50Hz - 32amp (TCL 15.7Kw)
General Data
Cycle Times: 50/80/110 Seconds (Adjustable)
Noise Emission: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 142/158 kg
Standard Inclusions
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)
Winterhalter PT-M Pass-Through Dishwasher
The Winterhalter PT-M Pass-Through Dishwasher is built for efficiency, reliability, and cost-effectiveness. Designed for busy commercial kitchens, it provides fast and thorough cleaning while reducing water and energy usage. Available in three sizes, this powerful dishwasher is a must-have for high-demand environments.
Key Features
Smart Touch Display: Simple one-button operation for easy use.
Top & Bottom S-Shaped Wash Fields: Ensures thorough cleaning.
Variopower Washing Pressure Adjustment: Adapts to different washing needs.
Built-in Chemical Pumps: Automatically dispenses detergent and rinse aid.
Rinse Booster Pump: Provides consistent rinse pressure.
Drain Pump: Efficient water drainage.
EnergyLight System: Uses waste water heat recovery for energy efficiency.
Quadruple Filtration System: Ensures clean water for every wash.
Clouding Sensor: Detects and manages water quality.
Connected Wash: Smart connectivity for monitoring and optimization.
Automatic Timer: Schedule start-up and shutdown times.
Optional Features
Automatic Hood System: Reduces manual effort.
Driven Rinse System: Enhances rinsing performance.
EnergyPlus: Uses exhaust air heat recovery to reduce steam and energy costs.
TwinSet: Connects two PT Series machines for higher capacity.
Why Choose the PT Series?
Outstanding Cleaning Performance
Even tough stains and grease are no match for the PT Series, ensuring hygienic and spotless results every time.
Reliable and Durable
Designed for heavy-duty use, the PT Series features high-quality components and advanced technology to ensure long-lasting performance.
Cost-Efficient Operation
With optimized water, energy, and detergent usage, the PT Series keeps running costs low while maintaining high performance.
User-Friendly Design
Simple controls, ergonomic design, and automated features make the PT Series easy to use, reducing staff workload.
Technical Specifications
Clear Entry Height: 440 mm
Dimensions (WxDxH): 635 x 750 x 1585-2060 mm
Rack Dimensions: 500 x 500 mm
Rinse Water Consumption: 2.2L per cycle
Water Connection
Connection Point: 3/4 inch (19mm)
Flow Pressure: Min. 1.0 bar
Flow Rate: 4 L/min
Max Inlet Temperature: 60°C
Wastewater Connection: 23.6 mm
Electrical Specifications
Standard (3 Phase): 415V 3P 50Hz - 20A (9.7kW)
Optional (Higher Power): 415V 3P 50Hz - 25A (11.5kW), 32A (15.7kW)
General Data
Cycle Times: 50/80/110 seconds (adjustable)
Noise Level: 62dB(A)
Tank Capacity: 35L
Weight (Net/Gross): 137/151 kg
Included Accessories
1x 1m Flexible Waste Hose
1x 1m Flexible Water Connection Hose
1x 3-phase Lead
2x 500 x 500 Racks (1x Flat, 1x Plate)

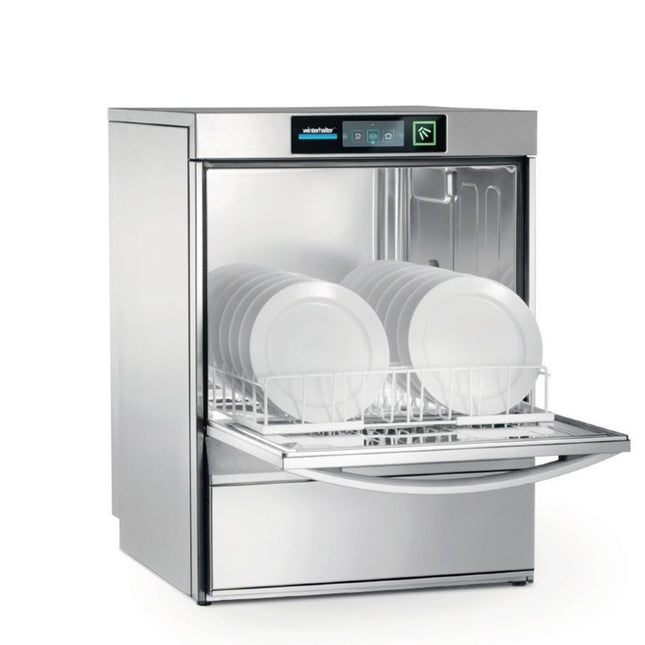

The UC Series is designed for perfect cleanliness and hygiene, offering customized solutions for various washing needs.
Key Features & Standard Equipment
Made in Germany – Built for durability and reliability.
Innovative Touchscreen – Easy-to-use smart display with clear icons.
Connected Wash – Monitor and optimize performance via WLAN.
Double-Skinned Housing & Door – Reduces noise and heat loss.
Elliptical Wash Fields – Special jet design for thorough cleaning.
VarioPower Wash Pressure Adjustment – Adapts to different wash loads.
Quadruple Filtration System – Keeps wash water clean for better results.
Eco Program – Saves water, detergent, and energy.
Compact & Efficient Design
Dimensions: 600mm (W) x 691mm (D) x 820-855mm (H)
Tank Capacity: 15.3L
Rack Size: 500 x 500mm
Customized Solutions
The UC Series can be configured for various applications:
Glasswasher
Dishwasher
Cutlery Washer
Bistro Washer
Bottle Washer
Plastic Cup Washer
Perfect Wash Results
✨ Sparkling clean and hygienic – Certified by DIN SPEC 10534.
💧 S-shaped wash field – Ensures even water distribution for lower water usage.
User-Friendly Operation
Smart Touch Display – Simple, icon-based interface with 22 language options.
Ergonomic Door Handle – Easy to open and close.
Quick Maintenance – Removable wash fields detach at the push of a button.
Advanced Hygiene & Filtration
Clouding Sensor – Detects dirty wash water for quick regeneration.
ThermoStop – Ensures rinse water reaches the right temperature.
Quadruple Filtration System – Strainer, filter cylinder, Mediamat, and pump protection filter.
Connected Wash – Smart Monitoring & Updates
📡 WLAN-Enabled – Allows remote monitoring and performance analysis.
🔄 Automatic Software Updates – Keeps your machine running optimally.
Efficient, Reliable & Built for the Future
The UC Series is a customized washing solution that offers top-tier performance, energy savings, and ease of use. Whether for restaurants, bars, bakeries, or catering kitchens, the UC adapts to your needs and delivers consistently spotless results.
The UC Series is designed for perfect cleanliness and hygiene, offering customized solutions for various washing needs.
Key Features & Standard Equipment
Made in Germany – Built for durability and reliability.
Innovative Touchscreen – Easy-to-use smart display with clear icons.
Connected Wash – Monitor and optimize performance via WLAN.
Double-Skinned Housing & Door – Reduces noise and heat loss.
Elliptical Wash Fields – Special jet design for thorough cleaning.
VarioPower Wash Pressure Adjustment – Adapts to different wash loads.
Quadruple Filtration System – Keeps wash water clean for better results.
Eco Program – Saves water, detergent, and energy.
Compact & Efficient Design
Dimensions: 600mm (W) x 657mm (D) x 820-855mm (H)
Tank Capacity: 15.3L
Rack Size: 500 x 500mm
Customized Solutions
The UC Series can be configured for various applications:
Glasswasher
Dishwasher
Cutlery Washer
Bistro Washer
Bottle Washer
Plastic Cup Washer
Perfect Wash Results
✨ Sparkling clean and hygienic – Certified by DIN SPEC 10534.
💧 S-shaped wash field – Ensures even water distribution for lower water usage.
User-Friendly Operation
Smart Touch Display – Simple, icon-based interface with 22 language options.
Ergonomic Door Handle – Easy to open and close.
Quick Maintenance – Removable wash fields detach at the push of a button.
Advanced Hygiene & Filtration
Clouding Sensor – Detects dirty wash water for quick regeneration.
ThermoStop – Ensures rinse water reaches the right temperature.
Quadruple Filtration System – Strainer, filter cylinder, Mediamat, and pump protection filter.
Connected Wash – Smart Monitoring & Updates
📡 WLAN-Enabled – Allows remote monitoring and performance analysis.
🔄 Automatic Software Updates – Keeps your machine running optimally.
Efficient, Reliable & Built for the Future
The UC Series is a customized washing solution that offers top-tier performance, energy savings, and ease of use. Whether for restaurants, bars, bakeries, or catering kitchens, the UC adapts to your needs and delivers consistently spotless results.
Sale Winterhalter UC-S Small undercounter Glasswasher Standard $7,618.29
Sale Winterhalter UC-M Medium undercounter Dishwasher Standard $8,364.87
Sale Winterhalter PT-XL Extra Large pass through Dishwasher $20,976.00
Used Winterhalter UC-S Undercounter Glasswasher - 789989 $5,939.00
Used Winterhalter UC-S Undercounter Glasswasher - 887359 $8,751.00
Sale Used Winterhalter PTM Passthrough Dishwasher - 843246 $12,487.00
Used Winterhalter UC-S Undercounter Glasswasher - 832039 $5,939.00
Used Winterhalter UC-S Undercounter Glasswasher - 805723 $5,834.00
Sale Winterhalter PT-L Large pass through Dishwasher $19,916.16
Sale Winterhalter PT-M Medium pass through Dishwasher Standard $16,941.57
Sale Winterhalter UC-XL Extra Large undercounter Dishwasher Standard $10,721.22
Sale Winterhalter UC-L Large Undercounter Dishwasher Standard $9,134.91
