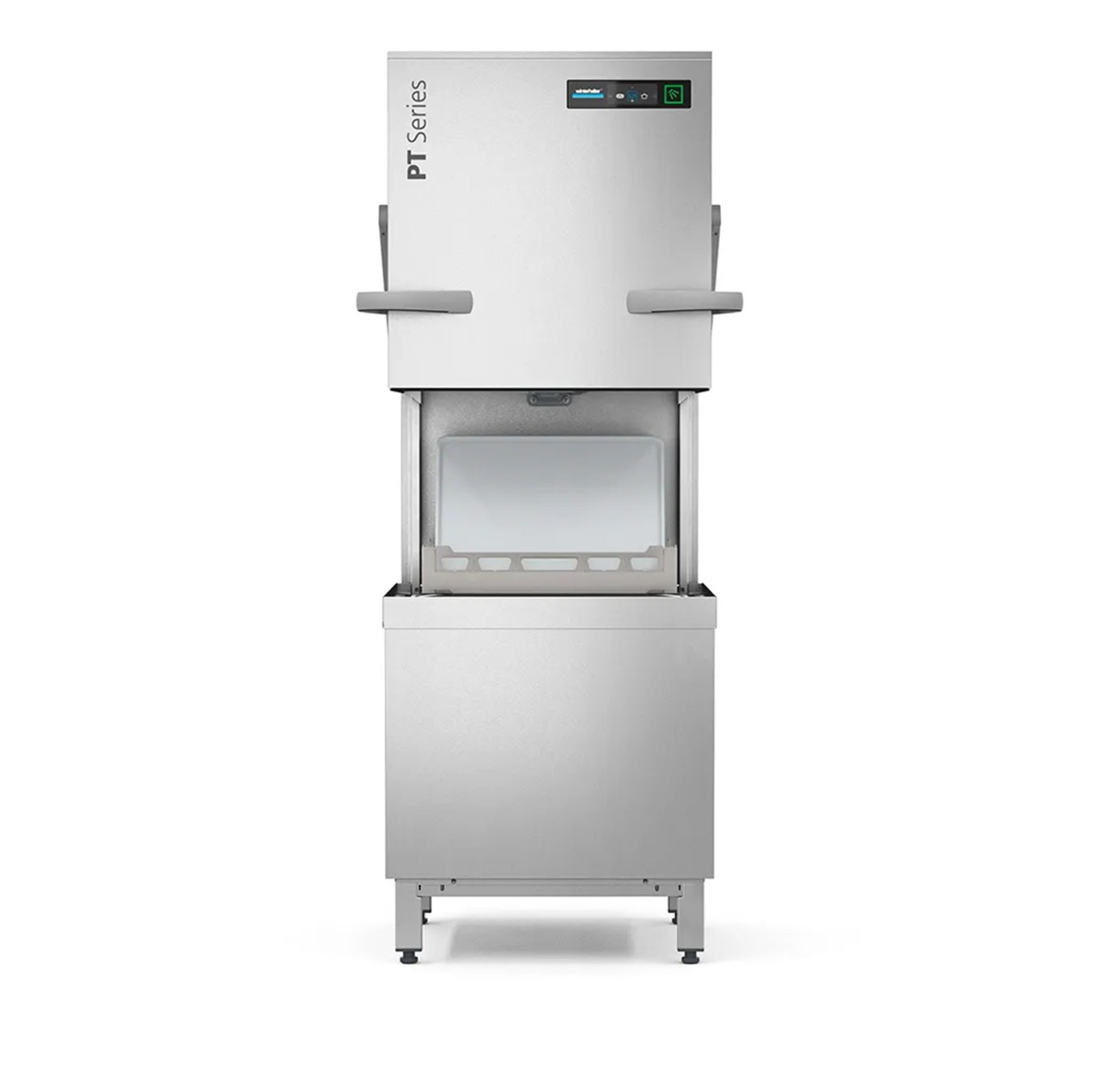

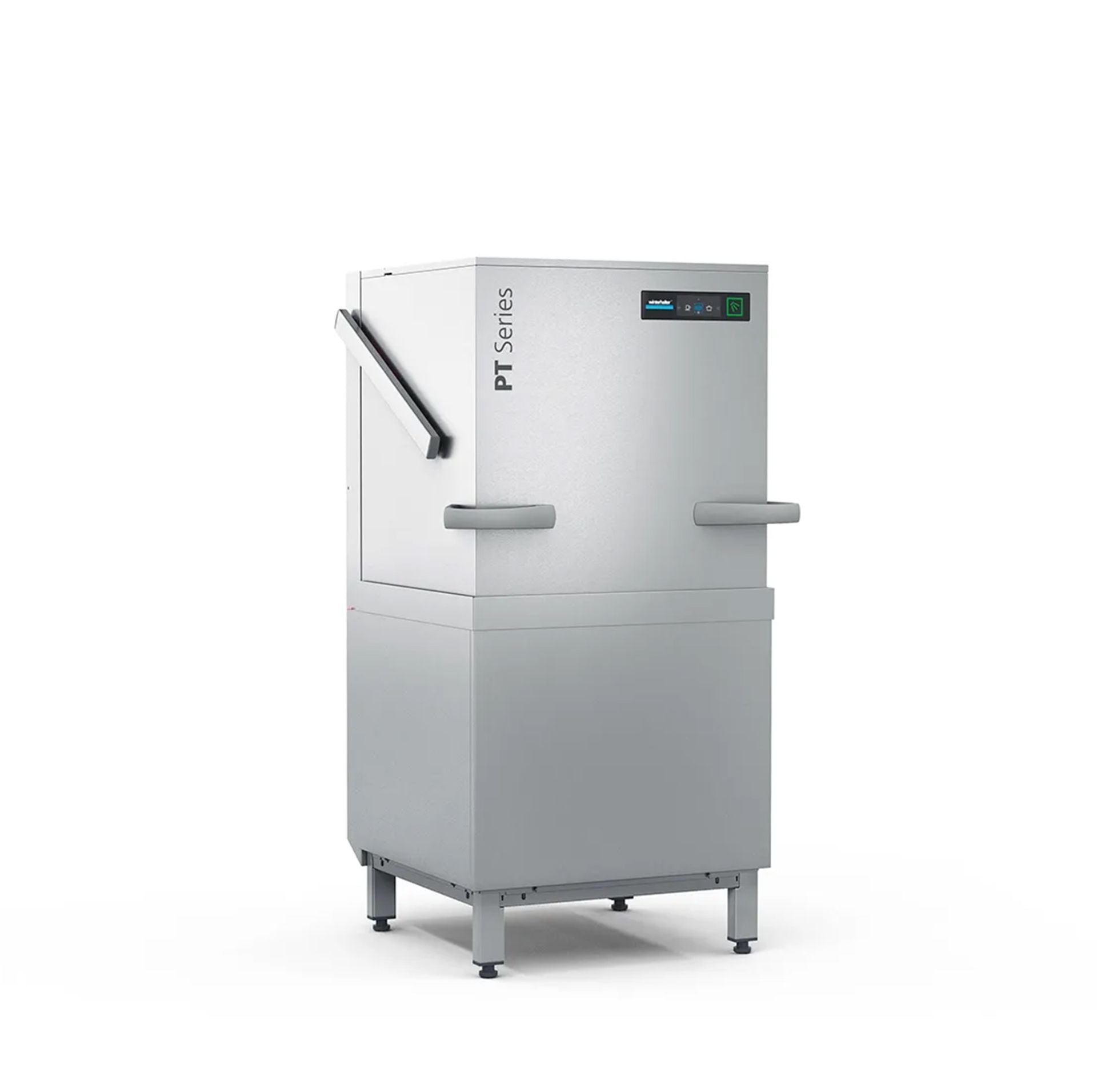

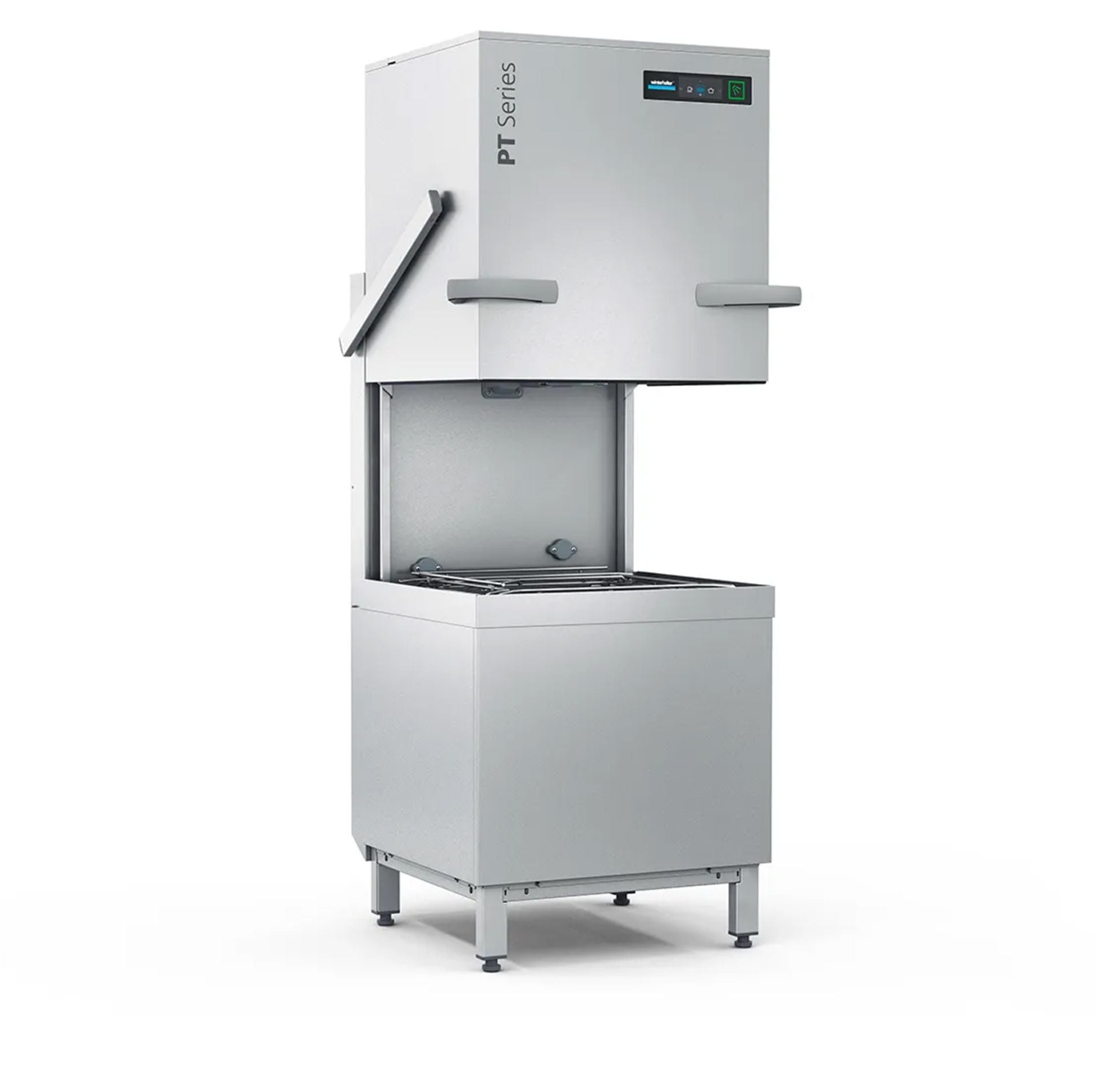

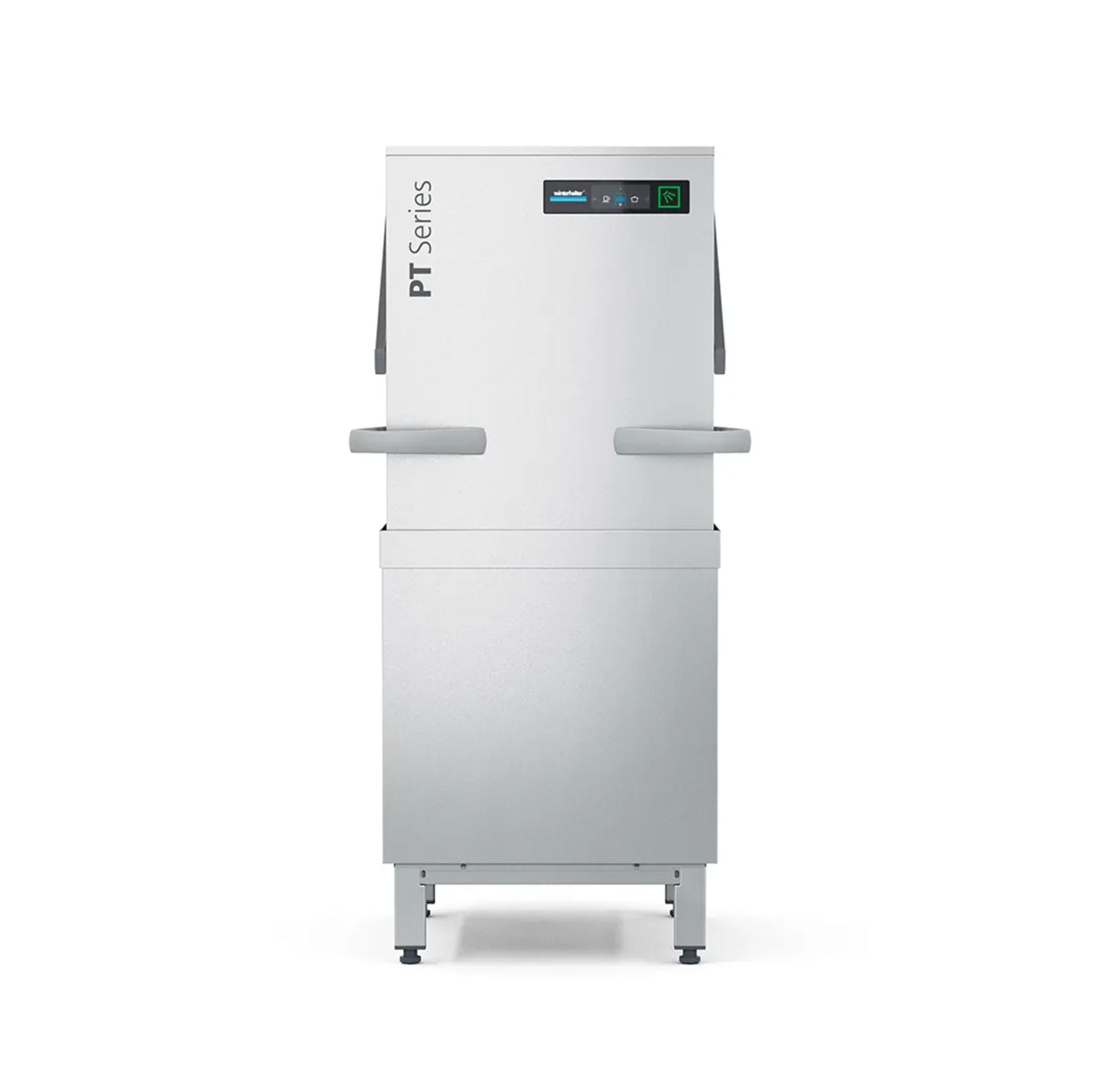

Winterhalter PT-XL Extra Large pass through Dishwasher

    Description



    Maximum Efficiency and Optimal Results

    The Winterhalter PT is the heart of every busy kitchen. Designed for peak efficiency, it streamlines the washing process, ensuring fast and reliable cleaning for a wide range of wash items. Simple, economical, and highly effective. Available in two machine sizes, this workhorse is built for demanding kitchens.

    Standard Features

    • Smart touch display with single-button operation
    • Top & bottom S-shaped wash fields
    • Variopower washing pressure adjustment
    • Integrated chemical pumps
    • Rinse booster pump
    • Drain pump
    • EnergyLight waste water heat recovery system
    • Quadruple filtration system
    • Clouding sensor
    • Connected wash technology
    • Automatic start-up and shut-down timer

    Product Benefits

    First-Class Wash Results

    Removes even the toughest dirt with certified cleanliness and hygiene. The powerful wash system and advanced filtration ensure excellent results.

    Absolute Reliability

    Built with innovative technology and high-quality materials, the PT Series is designed for long-lasting durability and minimal errors.

    Highly Economical

    Uses less water, energy, and chemicals, making it a cost-effective choice for commercial kitchens.

    Simple to Use

    Intuitive operation, ergonomic design, and practical functionality make the PT Series user-friendly for kitchen staff.

    Technical Information

    • Clear entry height: 440 mm
    • Dimensions (WxDxH): 735 x 750 x 1705-2300 mm
    • Rack Dimensions: 500 x 500 mm, 500 x 600 mm
    • Rinse Water Consumption: 2.2L per cycle

    Water Connection

    • Connection Point: 3/4 inch (19mm)
    • Flow Pressure: Min. 1.0 bar
    • Flow Rate: 4 L/min
    • Max. Inlet Temperature: 60°C
    • Wastewater Connection: 23.6 mm

    Electrical Specifications

    • 3 Phase (Standard): 415V 3P 50Hz - 20amp (TCL 9.7Kw)
    • 3 Phase (Optional): 415V 3P 50Hz - 25amp (TCL 11.5Kw), 415V 3P 50Hz - 32amp (TCL 15.7Kw)

    General Data

    • Cycle Times: 50/80/110 Seconds (Adjustable)
    • Noise Emission: 62dB(A)
    • Tank Capacity: 35L
    • Weight (Net/Gross): 172/202 kg

    Standard Inclusions

    • 1x 1m Flexible Waste Hose
    • 1x 1m Flexible Water Connection Hose
    • 1x 3-phase Lead
    • 2x 500 x 500 Racks (1x Flat, 1x Plate)



    Winterhalter PT-XL Extra Large pass through Dishwasher

      Product form

      Winterhalter SKU: 519V0008 In Stock

      $21,748.84 Incl. GST

      Free pickup in our shop(s)

      From $276.04/week for 12 months

      Get approval in under 5 minutes Apply Now

      • Visa
      • Mastercard
      • American Express
      • PayPal
      • Apple Pay
      • Shop Pay
      • Google Pay

      Check Delivery:

        Download PDF
        Icon for delivery_box_1Specifications
        Brand Winterhalter
        MPN 519V0008
        Product-Dimensions 750 (W) x 2300 open / 1705 closed (H) x 735 (D)
        Power 25A; 380-415V 3N~ / 50Hz ; 11.5kW
        Warranty 3 Years Parts, 1 Year Labour

        Description



        Maximum Efficiency and Optimal Results

        The Winterhalter PT is the heart of every busy kitchen. Designed for peak efficiency, it streamlines the washing process, ensuring fast and reliable cleaning for a wide range of wash items. Simple, economical, and highly effective. Available in two machine sizes, this workhorse is built for demanding kitchens.

        Standard Features

        • Smart touch display with single-button operation
        • Top & bottom S-shaped wash fields
        • Variopower washing pressure adjustment
        • Integrated chemical pumps
        • Rinse booster pump
        • Drain pump
        • EnergyLight waste water heat recovery system
        • Quadruple filtration system
        • Clouding sensor
        • Connected wash technology
        • Automatic start-up and shut-down timer

        Product Benefits

        First-Class Wash Results

        Removes even the toughest dirt with certified cleanliness and hygiene. The powerful wash system and advanced filtration ensure excellent results.

        Absolute Reliability

        Built with innovative technology and high-quality materials, the PT Series is designed for long-lasting durability and minimal errors.

        Highly Economical

        Uses less water, energy, and chemicals, making it a cost-effective choice for commercial kitchens.

        Simple to Use

        Intuitive operation, ergonomic design, and practical functionality make the PT Series user-friendly for kitchen staff.

        Technical Information

        • Clear entry height: 440 mm
        • Dimensions (WxDxH): 735 x 750 x 1705-2300 mm
        • Rack Dimensions: 500 x 500 mm, 500 x 600 mm
        • Rinse Water Consumption: 2.2L per cycle

        Water Connection

        • Connection Point: 3/4 inch (19mm)
        • Flow Pressure: Min. 1.0 bar
        • Flow Rate: 4 L/min
        • Max. Inlet Temperature: 60°C
        • Wastewater Connection: 23.6 mm

        Electrical Specifications

        • 3 Phase (Standard): 415V 3P 50Hz - 20amp (TCL 9.7Kw)
        • 3 Phase (Optional): 415V 3P 50Hz - 25amp (TCL 11.5Kw), 415V 3P 50Hz - 32amp (TCL 15.7Kw)

        General Data

        • Cycle Times: 50/80/110 Seconds (Adjustable)
        • Noise Emission: 62dB(A)
        • Tank Capacity: 35L
        • Weight (Net/Gross): 172/202 kg

        Standard Inclusions

        • 1x 1m Flexible Waste Hose
        • 1x 1m Flexible Water Connection Hose
        • 1x 3-phase Lead
        • 2x 500 x 500 Racks (1x Flat, 1x Plate)
