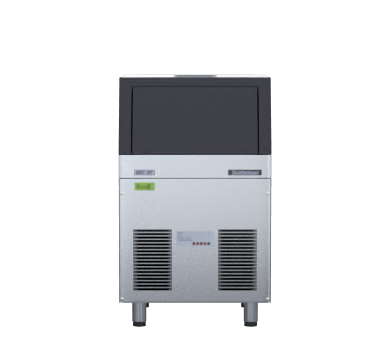

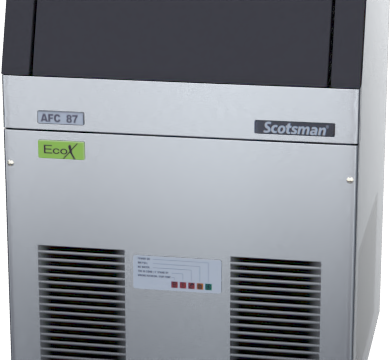

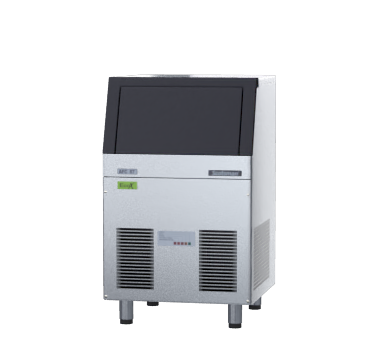

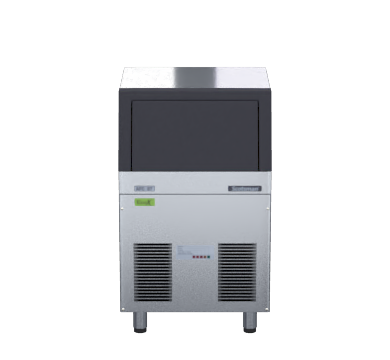

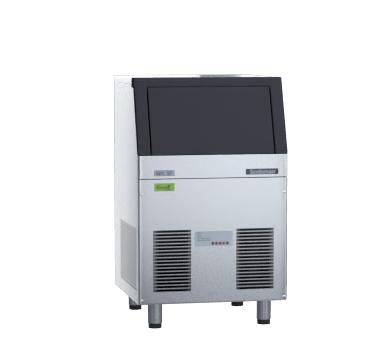

Scotsman AFC 87 AS OX - 70kg - Self Contained Cubelet Ice Maker

Description

Dimensions
W: 535mm D: 619mm H: 891mm

Packed Weight: 58kg
Product Features
  • 70kg daily production rate
  • 25kg storage bin capacity
  • W 16mm x D 15mm dia x H 7 - 8mm, 1g ice cube
  • Air cooled version
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX model uses hydrocarbon R290 refrigerant gas
  • XSafe - Natural Sanitation System
  • Ice evaporator stainless steel auger
  • Simple, reliable electromechanic controls
  • Built-in storage bin
  • Easy access front condenser air filter for easy clean
  • Resistant stainless steel exterior
  • External indicator lights to show operation status and maintenance alert
  • Includes removable air filter, ice scoop, water & drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: AFC 87 AS OX In Stock

$5,602.54 $7,571.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $10.16/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN AFC 87 AS OX
    Product Dimensions 535(W) x 891(H) x 619(D)mm
    Warranty 2 year parts and labour

    Product Documents

    Description

    Dimensions
    W: 535mm D: 619mm H: 891mm

    Packed Weight: 58kg
    Product Features
    • 70kg daily production rate
    • 25kg storage bin capacity
    • W 16mm x D 15mm dia x H 7 - 8mm, 1g ice cube
    • Air cooled version
    • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
    • EcoX model uses hydrocarbon R290 refrigerant gas
    • XSafe - Natural Sanitation System
    • Ice evaporator stainless steel auger
    • Simple, reliable electromechanic controls
    • Built-in storage bin
    • Easy access front condenser air filter for easy clean
    • Resistant stainless steel exterior
    • External indicator lights to show operation status and maintenance alert
    • Includes removable air filter, ice scoop, water & drain hose

    All Ice machines MUST be maintained to ensure high performance.

    The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

    This maintains the quality of the ice shape and thickness.

    This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

    If your ice machine is not maintained, your warranty may be void.

    6 Monthly Maintenance Program

    • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
    • Sanitise water reservoir, distribution tubes, and bin interior.
    • Clean and flush condenser coils (air-cooled units).
    • Inspect condenser fan motor and blades.
    • Check inlet water valve, float, and filters for correct operation.
    • Verify ice thickness probe or sensor calibration.
    • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
    • Test compressor amperage and general performance.
    • Inspect water pump operation and clean pump housing.
    • Check harvest cycle operation (heater or hot gas valve).
    • Inspect electrical connections, relays, and contactors.
    • Replace inline water filter cartridge.
