Dimensions
W: 650mm D: 690mm H: 870mmPacked Weight: 77.5kg
Product Features
98kg daily production rate
37kg storage bin capacity
W 10mm x D 22mm x H 28mm, 6g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front in and out air flow designed for placement in tight spaces
Ergonomic access to ice with sliding disappearing door
One touch cleaning for time and labour saving
Built-in storage bin
One touch button for easy cleaning
Easy access front condenser air filter for easy clean
Resistant stainless steel exterior
External indicator lights to show operation status and maintenance alert
Includes removable air filter, ice scoop, water and drain hose
Optional extras: SC8700000200 - Optional leg kit (NU 100/ NU 150/ NU 220 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
Sanitise water reservoir, distribution tubes, and bin interior.
Clean and flush condenser coils (air-cooled units).
Inspect condenser fan motor and blades.
Check inlet water valve, float, and filters for correct operation.
Verify ice thickness probe or sensor calibration.
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
Test compressor amperage and general performance.
Inspect water pump operation and clean pump housing.
Check harvest cycle operation (heater or hot gas valve).
Inspect electrical connections, relays, and contactors.
Replace inline water filter cartridge.
Dimensions
W: 386mm D: 600mm H: 695mmPacked Weight: 45kg
Product Features
31kg daily production rate
12kg storage bin capacity
21mm dia x H 25 mm, 8g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
PWD-Progressive water discharge pumps excess water up to 15 meters
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Resistant stainless steel exterior
Routine maintenance visible alarm light on front panel
Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
Front access condenser air filter, removable and washable
Includes removable air filter, ice scoop, water and drain hose
Optional Extra:
SC65067005 optional leg kit (EC 47 / EC 57 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 386mm D: 600mm H: 645mmPacked Weight: 44kg
Product Features
24kg daily production rate
9kg storage bin capacity
30mm dia x H 34mm, 20g ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
EcoX hydrocarbons R290 refrigerant gas
XSafe - Natural Sanitation System
PWD-Progressive water discharge pumps excess water up to 15 meters
Horizontal Ice evaporator spray-system technology
Simple, reliable electromechanic controls
Built-in storage bin
Resistant stainless steel exterior
Routine maintenance visible alarm light on front panel
Ergonomically designed ice storage access with disappearing door and door closing movement dampening system
Front access condenser air filter, removable and washable
Includes removable air filter, ice scoop, water and drain hose
Optional Extra:
SC65067005 optional leg kit (EC 47 / EC 57 models)
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Product Description:70kg daily production ice maker with 25kg storage bin, producing 1g ice cubes (16mm W x 15mm D x 78mm H). Air-cooled system featuring stainless steel evaporator auger and simple electromechanical controls. Incorporates Agion Technology for microbial and odour resistance, XSafe natural sanitation system, and EcoX R290 hydrocarbon refrigerant for improved efficiency and sustainability.Condition of Equipment:Consignment unit is in good condition and presents well as a consignment return. Unit has been well used, with scratches and marks on the top panel, and small marks on the front and both side panels.Unit has NIL% protective plastics. It had been cleaned, checked and tested.Dimensions:W: 535mm D: 619mm H: 891mmSerial Number: DM002875-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:75kg daily production ice machine with 25kg built-in storage bin. Air-cooled with stainless steel evaporator auger and simple electromechanical controls. Agion antimicrobial protection and XSafe sanitation system. R134a refrigerant. Includes removable air filter, ice scoop, and water and drain hose connections.Condition of Equipment:Consignment unit is in good condition and presents well as a consignment return. Unit has been well used, with scratches and marks visible on the top panel and right-hand side panel. Unit has NIL% protective plastics remaining.It had been cleaned, checked and tested.Dimensions:W: 535mm D: 890mm H: 620mmSerial Number: DM002809-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Storage Bins Only. 406kg Maximum ice storage capacity with Stainless steel bin exterior with rotocast plastic hinged door. High density polyethylene insulation. Requires storage bin top covers CBT 48 EAMCD. Easy clean with removable gaskets.Condition of Equipment:Unit damaged in transit but is in great condition . It has damage to the rear panel, including a medium dent, plus a light long scratch on the left-hand side panel.No other damages noted. Unit has 100% protective plastics. It had been cleaned, checked and tested.Dimensions:W: 1237mm D: 868mm H: 1269mmSerial Number: AX7522All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Storage Bins Only. 243kg Maximum ice storage capacity with Stainless steel bin exterior with rotocast plastic hinged door. High density polyethylene insulation. Requires storage bin top covers CBT 30 52 AMCD. Easy clean with removable gaskets.Condition of Equipment:Tradeshow unit returned in good condition with some cosmetic damage includes scratches and dents on both side panels and two dents on the front panel. The rubber tape replaced and silicon damage repaired. It has been fully cleaned, checked and tested.Dimensions:W: 770mm D: 843mm H: 1268mmSerial Number: S2303222701242-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Storage Bins Only. 129kg Maximum ice storage capacity with Stainless steel bin exterior with rotocast plastic hinged door. High density polyethylene insulation. Requires storage bin top covers CBT 22EFCD. Easy clean with removable gaskets.Condition of Equipment:Used unit in good condition with some scratches aross the unit and on the metal ice slide. The top rubber seal is worn. It has been cleaned, checked and tested.Dimensions:W: 560mm D: 843mm H: 1045mmSerial Number: S2204222501335All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Storage Bins Only. 129kg Maximum ice storage capacity with Stainless steel bin exterior with rotocast plastic hinged door. High density polyethylene insulation. Requires storage bin top covers CBT 22EFCD. Easy clean with removable gaskets.Condition of Equipment:Showroom unit in good condition. A number of scratches and marks on the rear panel and top where the ice machine unit sits. No protective plastics remaining. It had been cleaned, checked and tested.Dimensions:W: 560mm D: 843mm H: 1045mmSerial Number: S2302222700395All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only ice maker. Air cooled condensing unit with 165kg daily production rate. 30mm dia x H 34mm, 20g Ice cube. R290 refrigerant gas. XSafe natural sanitation system. Vertical evaporator spray-system technology. Agion Technology resists microbe's growth and odours development.Condition of Equipment:Unit is in good condition, repaired with a replaced right-hand side panel. Presents well with marks and scratches on the top panel. No other damages. Retains 20% protective plastics. It has been cleaned, checked and tested.Dimensions:W: 773mm D: 705mm H: 721mmSerial Number: BK003009-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only ice maker. Air cooled condensing unit with 290kg daily production rate. W 10mm x D 22mm dia x H 28mm, 6g Ice cube. R404a refrigerant gas. XSafe natural sanitation system. Vertical evaporator spray-system technology. Agion Technology resists microbe's growth and odours development.Condition of Equipment:Used unit returned from a recent trade show in a great condition but without any protective plastic. It has a few small marks on the top. The unit comes with standard accessories. It had been fully cleaned, checked and tested.Dimensions:W: 760mm D: 620mm H: 575mmSerial Number: S2312222015847-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only ice maker. Air cooled condensing unit with 149kg daily production rate. 30mm dia x H 34mm, 20g Ice cube. R290 refrigerant gas. XSafe natural sanitation system. Vertical evaporator spray-system technology. Agion Technology resists microbe's growth and odours development.Condition of Equipment:Unit is in good condition, previously used as a training unit. Presents well with a few scratches on the top panel. No other damage. Retains 20% of its protective plastics. It has been cleaned, checked and tested.Dimensions:W: 568mm D: 721mm H: 704mmSerial Number: IA001134-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only ice maker. Air cooled condensing unit with 187kg daily production rate. Produces very dry flake ice - water content 12%. R290 refrigerant gas. XSafe natural sanitation system. Core ice system - stable Axial load evaporator system. Agion Technology resists microbe's growth and odours development.Condition of Equipment:Unit is in excellent condition and presents very well. There are very minor scratches on the top panel, with no other damage. Original protective plastics are no longer fitted. The unit has been cleaned, checked, and tested.Dimensions:W: 560mm D: 615mm H: 600mmSerial Number: IC001192-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only ice maker. Air cooled condensing unit with 187kg daily production rate. Produces very dry flake ice - water content 12%. R290 refrigerant gas. XSafe natural sanitation system. Core ice system - stable Axial load evaporator system. Agion Technology resists microbe's growth and odours development.Condition of Equipment:Unit is in excellent condition and presents very well. There are some scratches on the top panel, with no other damage. Original protective plastics are no longer fitted. The unit has been cleaned, checked, and tested.Dimensions:W: 560mm D: 615mm H: 600mmSerial Number: IC001159-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Head only Ice Maker with air cooled condensing unit. 310kg dialy production rate of 11mm dia x H 13mm, 1g ice cubes. R452a refrigerant gas with Xsafe - Natural Sanitation System. Agion Technology resists microbe's growth and odours development to produce pure, clear and transpartent ice cubes. Simple, reliable electromechanic controlCondition of Equipment:Stock unit in excellent condition. Presents very well with no damaged and 20% protective plastics. It has been cleaned, checked and tested.Dimensions:W: 538mm D: 663mm H: 645mmSerial Number: EC025265-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).
Product Description:Vertical evaporator spray-system technology with 45kg daily production rate and 20kg storage bin capacity. Air cooled condensing unit to produce to produce W 22mm x 22mm dia x H 22mm, 10g Ice cube. Agion Technology resists microbe's growth and odours development. One touch button for easy cleaning.Condition of Equipment:Unit in great condition from showroom demo. Light marks, scratches, and a small dent on top. Inner tub has stain marks bottom left. No other damage. Retains 80% protective plastics. It had been cleaned, checked and tested.Dimensions:W: 600mm D: 610mm H: 770mmSerial Number: S2410222010591-Z1All Moffat Warehouse Clearance products come with a 12-month spare parts and labour warranty (excluding accessories).

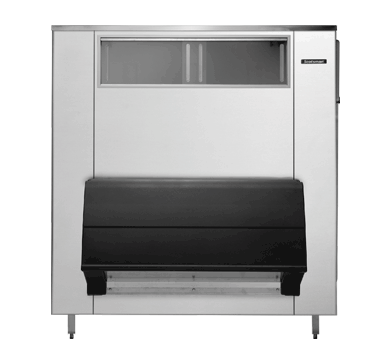

Dimensions
W: 1524mm D: 1125mm H: 1731mmPacked Weight: 230kg
Product Features
Storage bins only
812kg maximum Ice storage capacity
Upright front bins
Pre-cut top pane to accommodate multiple head units
High density polyethylene insulation
Easy clean with removable gaskets
Convenient multi-positioned Ice deflector, preventing Ice spills
Stainless steel bin exterior with front window view
Ice chute cut-out require upon installation
Includes Ice paddle, water & drain hose
Compatible with C 2148 ice maker head unit
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

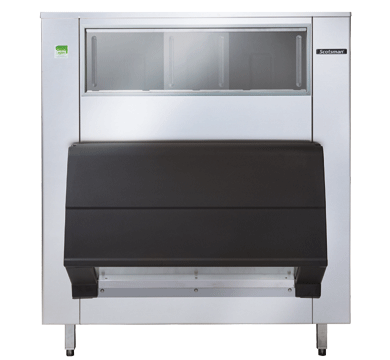

Dimensions
W: 1220mm D: 1128mm H: 1427mmPacked Weight: 169kg
Product Features
Storage bins only
553kg maximum Ice storage capacity
Upright front bins
Pre-cut top pane to accommodate multiple head units
High density polyethylene insulation
Easy clean with removable gaskets
Convenient multi-positioned Ice deflector, preventing Ice spills
Stainless steel bin exterior with front window view
Ice chute cut-out require upon installation
Single spring loaded bin door for safe usage and tight seal of storage compartment
Includes Ice paddle, water & drain hose
Compatible with C 1448, C 1848, NW 1008, NW 1408 , MFN 56, MF 59, MF 66, MF 69, MAR 76, MAR 79, MAR 106 ice maker head units
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

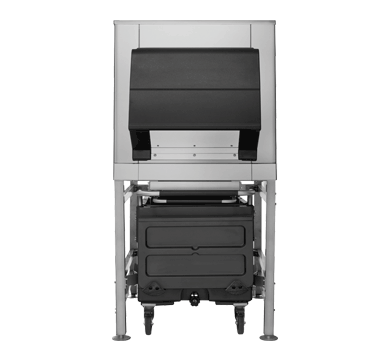

Dimensions
W: 885mm D: 1267mm H: 1803mmPacked Weight: 198kg
Product Features
Storage bins only
318kg + 73kg Ice cart maximum Ice storage capacity
Upright front bin
Includes 1 x 73kg Ice cart
Pre-cut top panel to accommodate multiple head units
First in first out concept
High density polyethylene insulation
Insulated top closed with lid on storage
Spring loaded storage compartment bin door
Pre-assembled heavy-duty fram with built-in drain for bin and cart (reversible)
Stainless steel bin exterior for both storage and frame
Ice chute cut-out require upon installation
Includes Ice paddle, water & drain hose
Compatible with MFN 46, MFN 56, MF 47, MF 56, MF 58, MF 59, MAR 76, MAR 79, MAR 106, ice maker head units
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

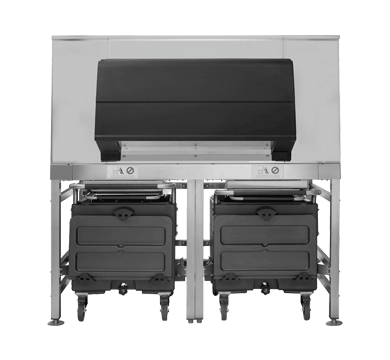

Dimensions
W: 1748mm D: 1267mm H: 1803mmPacked Weight: 390kg
Product Features
Storage bins only
613kg + 73kg + 73kg Ice cart maximum Ice storage capacity
Upright front bin
Includes 2 x 73kg Ice cart
Pre-cut top panel to accommodate multiple head units
First in first out concept
High density polyethylene insulation
Insulated top closed with lid on storage
Spring loaded storage compartment bin door
Pre-assembled heavy-duty fram with built-in drain for bin and cart (reversible)
Stainless steel bin exterior for both storage and frame
Ice chute cut-out require upon installation
Includes Ice paddle, water & drain hose
Compatible with MXG 437, MXG 638, MF 66, MF 69, MAR 76, MAR 79, MAR 106, ice maker head units
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.

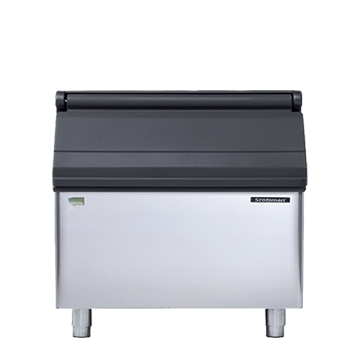

Dimensions
W: 769mm D: 849mm H: 800mmPacked Weight: 50kg
Product Features
Storage bins only
123kg maximum Ice storage capacity
Slope front bins
High density polyethylene insulation
Easy clean with removable gaskets
Convenient built-in scoop holder
Stainless steel bin exterior with rotocast plastic hinged door
Includes Ice scoop, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 560mm D: 610mm H: 662mmPacked Weight: 77kg
Product Features
Head only Ice maker
194kg daily production rate
W 29mm x D 22mm x H 28mm, 15g Ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R452a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Top air discharge - suitable for narrown space installation
Front evaporator access for easy servicing
One touch button for easy cleaning
T304 grade stainless steel exterior
Auto-alert indicator lights to show operation status and maintenance
Requires storage bin model NB 193, NB 393 with CBT 30 -52 AMCD cover (required cover when used NB 393), NB 530 with CBT 30-52 AMCD cover (required cover when used NB 393)
Includes removable air filter, water & drain hose
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance. If your ice machine is not maintained, your warranty may be void. 6 Monthly Maintenance Program Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. Sanitise water reservoir, distribution tubes, and bin interior. Clean and flush condenser coils (air-cooled units). Inspect condenser fan motor and blades. Check inlet water valve, float, and filters for correct operation. Verify ice thickness probe or sensor calibration. Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. Test compressor amperage and general performance. Inspect water pump operation and clean pump housing. Check harvest cycle operation (heater or hot gas valve). Inspect electrical connections, relays, and contactors. Replace inline water filter cartridge.
Dimensions
W: 760mm D: 620mm H: 1000mmPacked Weight: 145kg
Product Features
Head only Ice maker
600kg daily production rate
W 28mm x D 22mm x H 28mm, 15g Ice cubes
Air cooled version
Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
R404a refrigerant gas
XSafe - Natural Sanitation System
Vertical evaporator spray-system technology
Front evaporator access for easy servicing
One touch button for easy cleaning
T304 grade stainless steel exterior
Auto-alert indicator lights to show operation status and maintenance
Requires storage bin model NB 530, NB 948 with CBT 48 EAMCD cover (required cover when used NB 948), UBH 1100
Includes removable air filter, water & drain hose
*Image shown Ice maker with optional storage bin, Bin is sold separately
All Ice machines MUST be maintained to ensure high performance.The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.This maintains the quality of the ice shape and thickness. This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
Sanitise water reservoir, distribution tubes, and bin interior.
Clean and flush condenser coils (air-cooled units).
Inspect condenser fan motor and blades.
Check inlet water valve, float, and filters for correct operation.
Verify ice thickness probe or sensor calibration.
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
Test compressor amperage and general performance.
Inspect water pump operation and clean pump housing.
Check harvest cycle operation (heater or hot gas valve).
Inspect electrical connections, relays, and contactors.
Replace inline water filter cartridge.
