Description

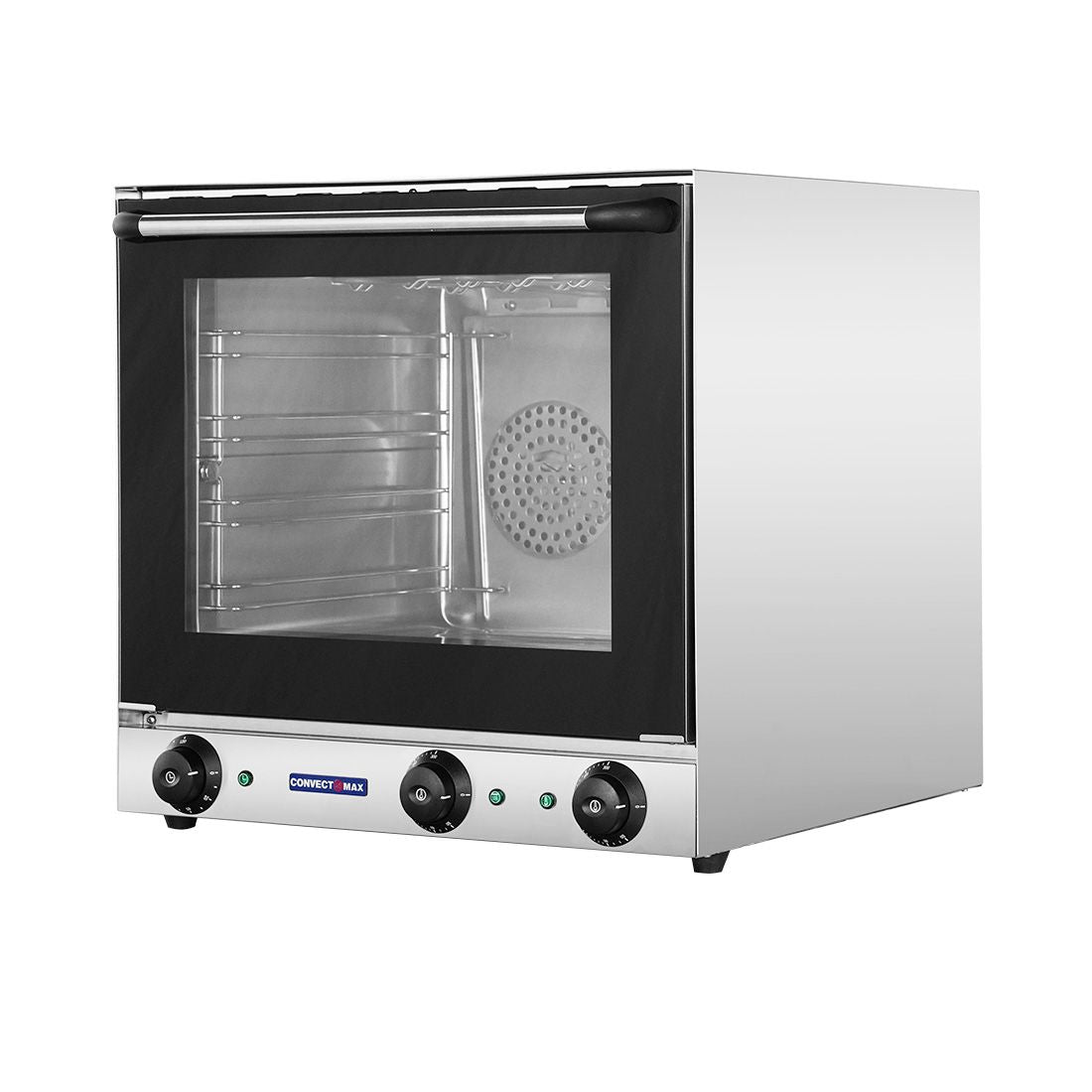

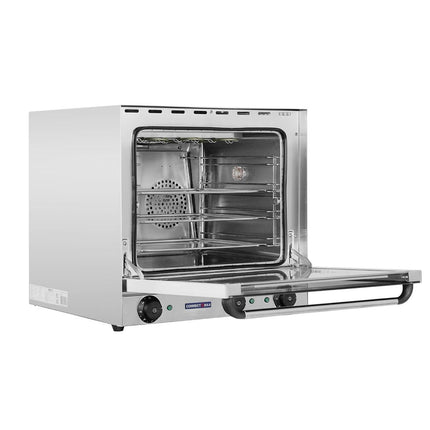

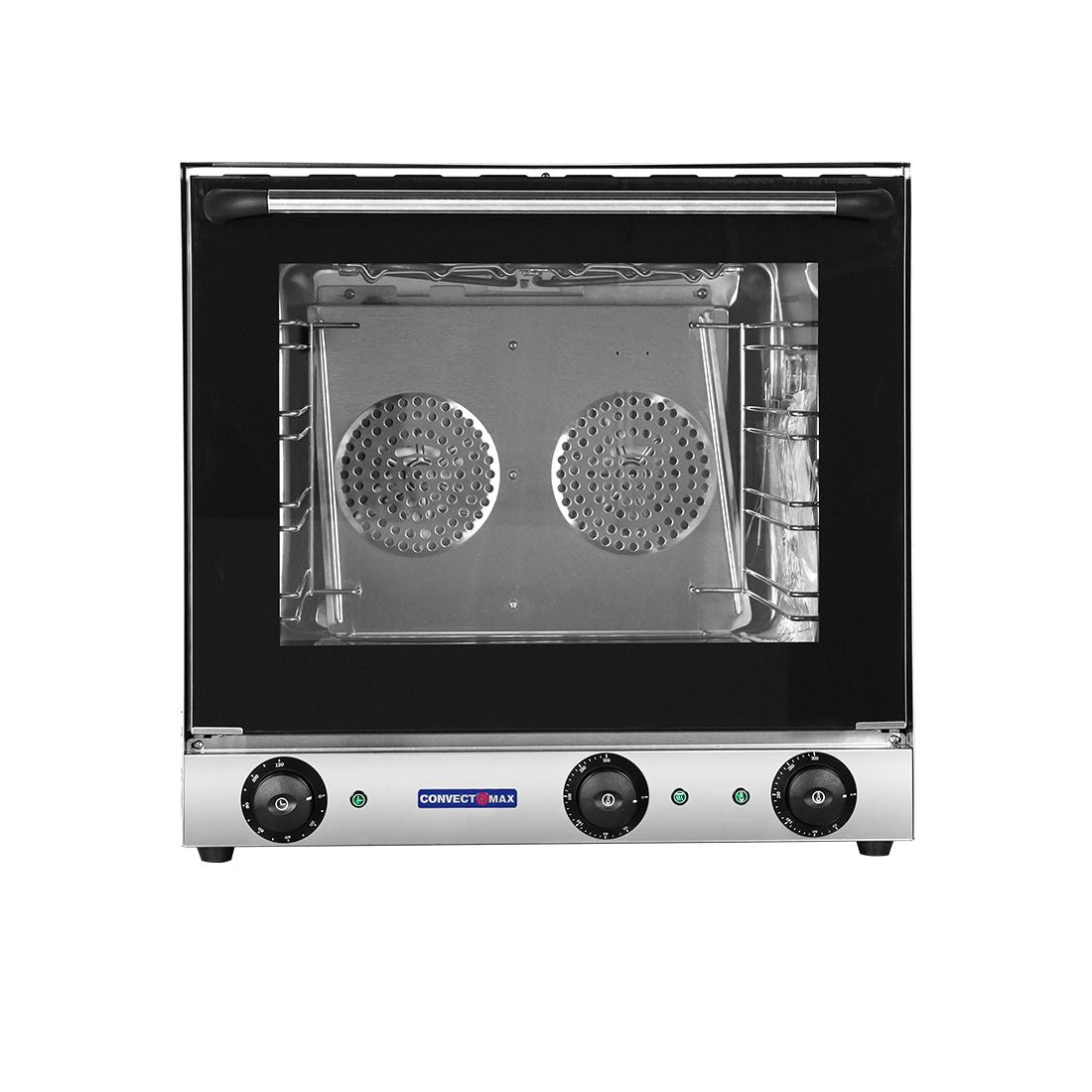

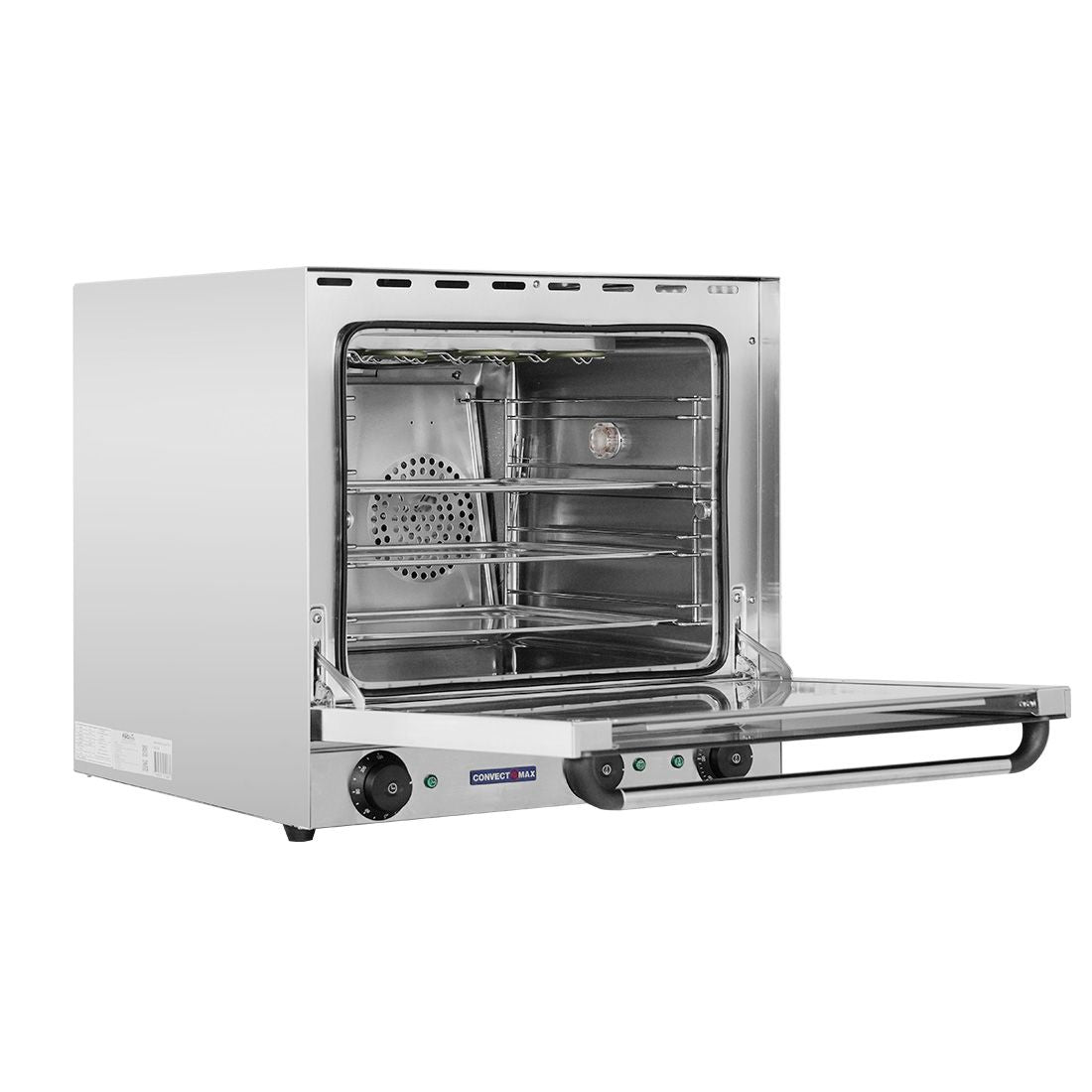

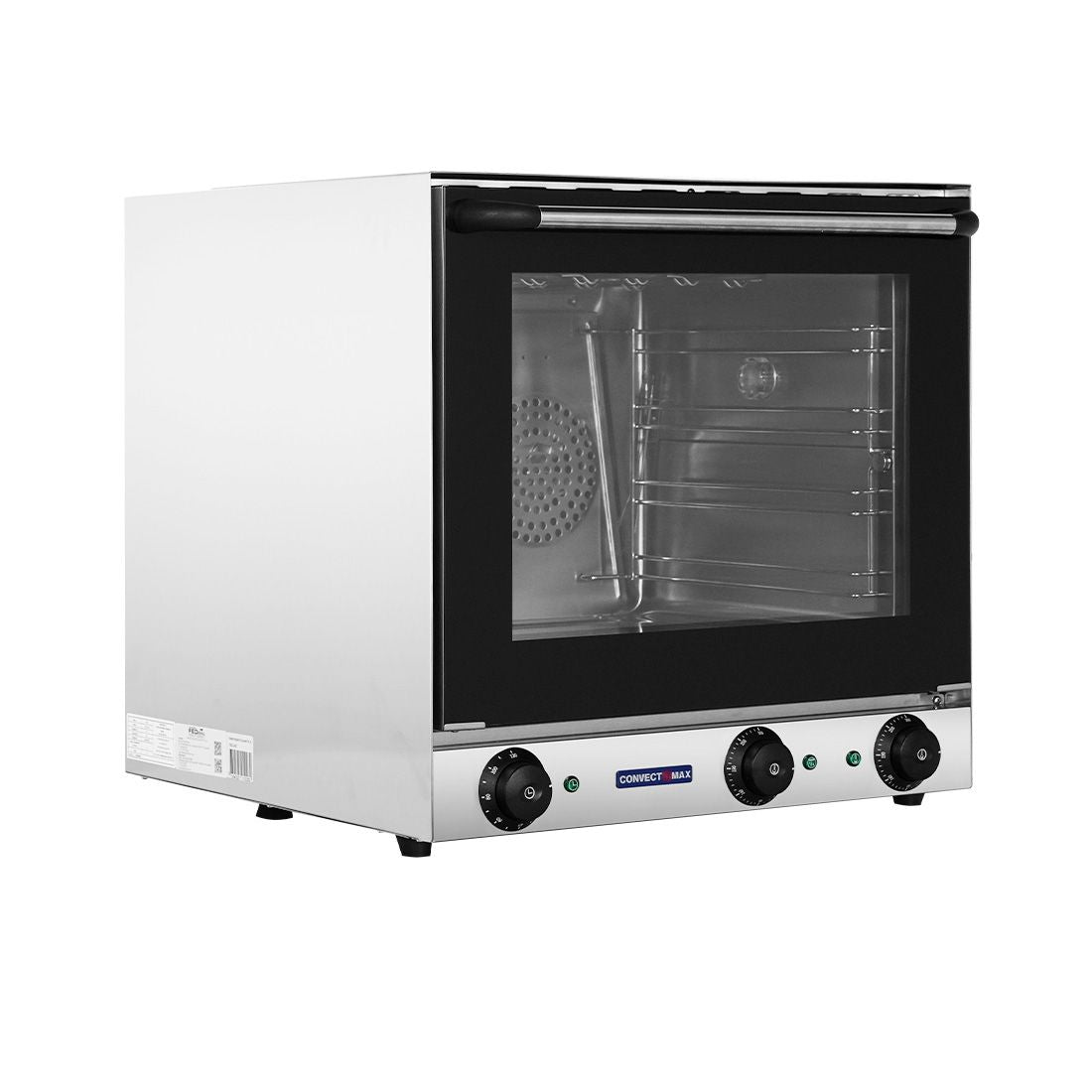

The ConvectMax YXD-3AE is an electric benchtop convection oven with a grilling function, built for cafes, bakeries and small commercial kitchens that need even, fan-forced baking from a compact 595mm-wide footprint.
Why operators choose the YXD-3AE
-
Dual heaters plus two high-speed motors — circulates heat evenly across every tray for consistent bakes and browning.
-

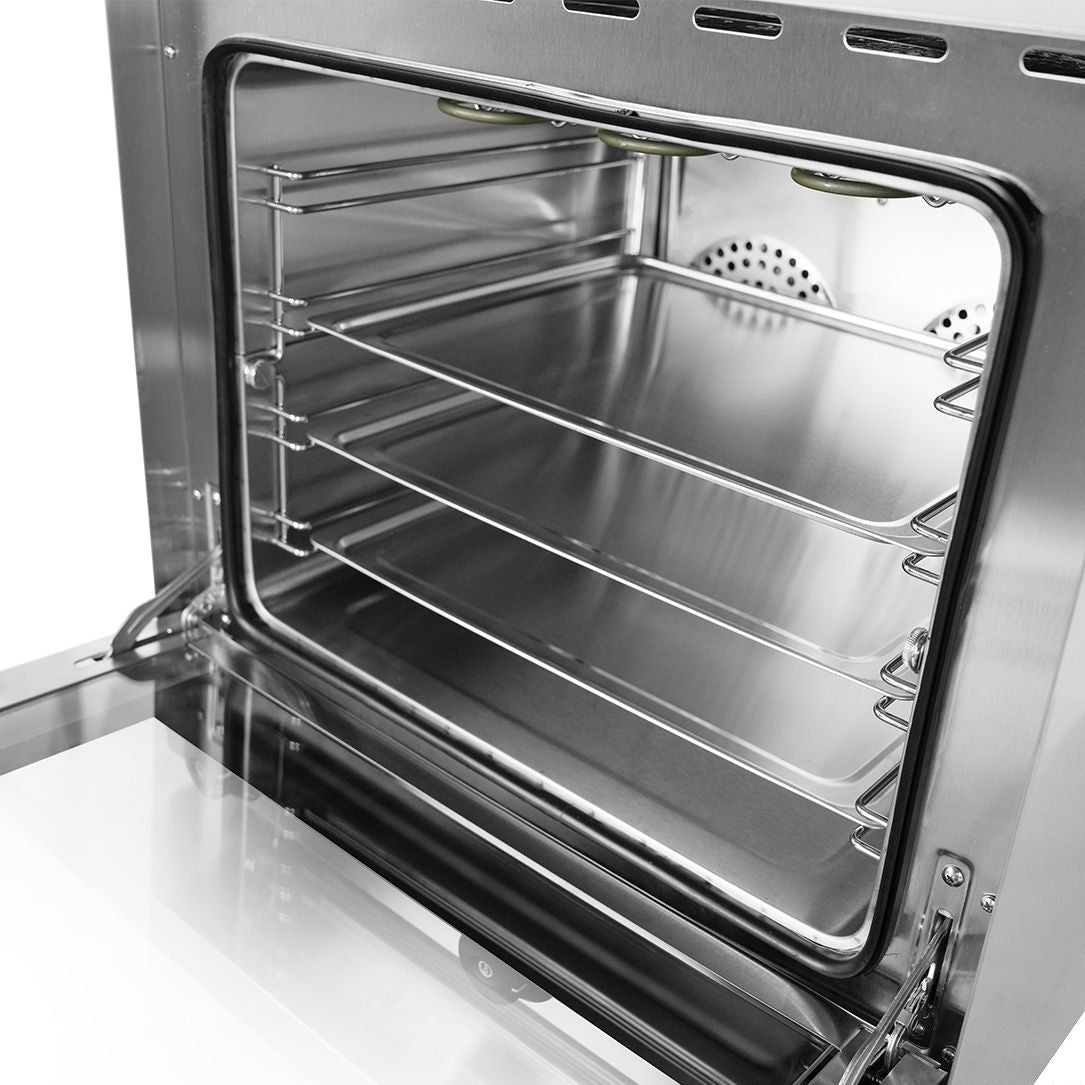

Four-tray capacity — bakes more per cycle with a 75mm gap between levels for good air flow and taller items.
-
Grilling function — one unit covers convection baking and grilling, saving bench space.
-
Stainless steel construction — interior and exterior wipe down fast and stand up to daily service.
-
Double-glazed tempered glass door — stays cool to touch and the chamber light lets staff watch the cook.
-
Simple analog control — three knobs with a 120-minute bell timer and 50-300 degC range, plus a 360 degC safety high-limit thermostat.
Specifications
| Brand |
ConvectMax |
| Model / MPN |
YXD-3AE |
| Type |
Convection Oven |
| Power Type |
Electric |
| Capacity |
4 Trays (325 x 450 mm), 62L |
| Temperature Range |
50-300 °C |
| Oven Chamber (Internal) |
460 x 375 x 360mm |
| Power |
240V, 2.4kW, 10A |
| Controls |
3 analog knobs, 120-minute timer with bell |
| Material |
Stainless Steel |
| External Dimensions |
595(W) x 595(D) x 585(H)mm |
| Net Weight |
39kg |
| Warranty |
2 Years Parts & Labour |
Venue suitability: Ideal for cafes, patisseries, sandwich bars and bakery counters that need reliable batch baking without a full-size floor oven. It sits on a bench, runs off a standard 10A single-phase outlet, and the grilling function makes it a flexible all-rounder for finishing and reheating. Browse more Convection Ovens or see the full ConvectMax range to compare tray counts and controls.
Installation & delivery: Plug-and-play on a standard 10A power point — no hardwiring or gas connection required. Dispatched Australia-wide.
Frequently asked questions
What is the cooking temperature range of the ConvectMax YXD-3AE? The YXD-3AE cooks from 50 to 300 degC and has a separate 360 degC safety high-limit thermostat.
How many trays does the YXD-3AE hold? It holds four 325 x 450mm aluminium baking trays, with a 75mm gap between each level.
What power supply does the YXD-3AE need? It runs on 240V single-phase power, drawing 2.4kW through a standard 10A outlet, so no special wiring is needed.
Does the YXD-3AE have a grilling function? Yes — alongside fan-forced convection baking it includes a grilling function in the same chamber.
What are the external dimensions of the YXD-3AE? The oven measures 595mm wide x 595mm deep x 585mm high and weighs 39kg, making it a compact benchtop unit.
