Description
The ConvectMax YXD-1DI is a benchtop electric convection oven that bakes evenly across four trays using twin reversing fans, with digital control over a 50–300°C range.
Why operators choose the YXD-1DI
-
Twin reversing fans — circulate heat in both directions for consistent, even bakes tray to tray.
-

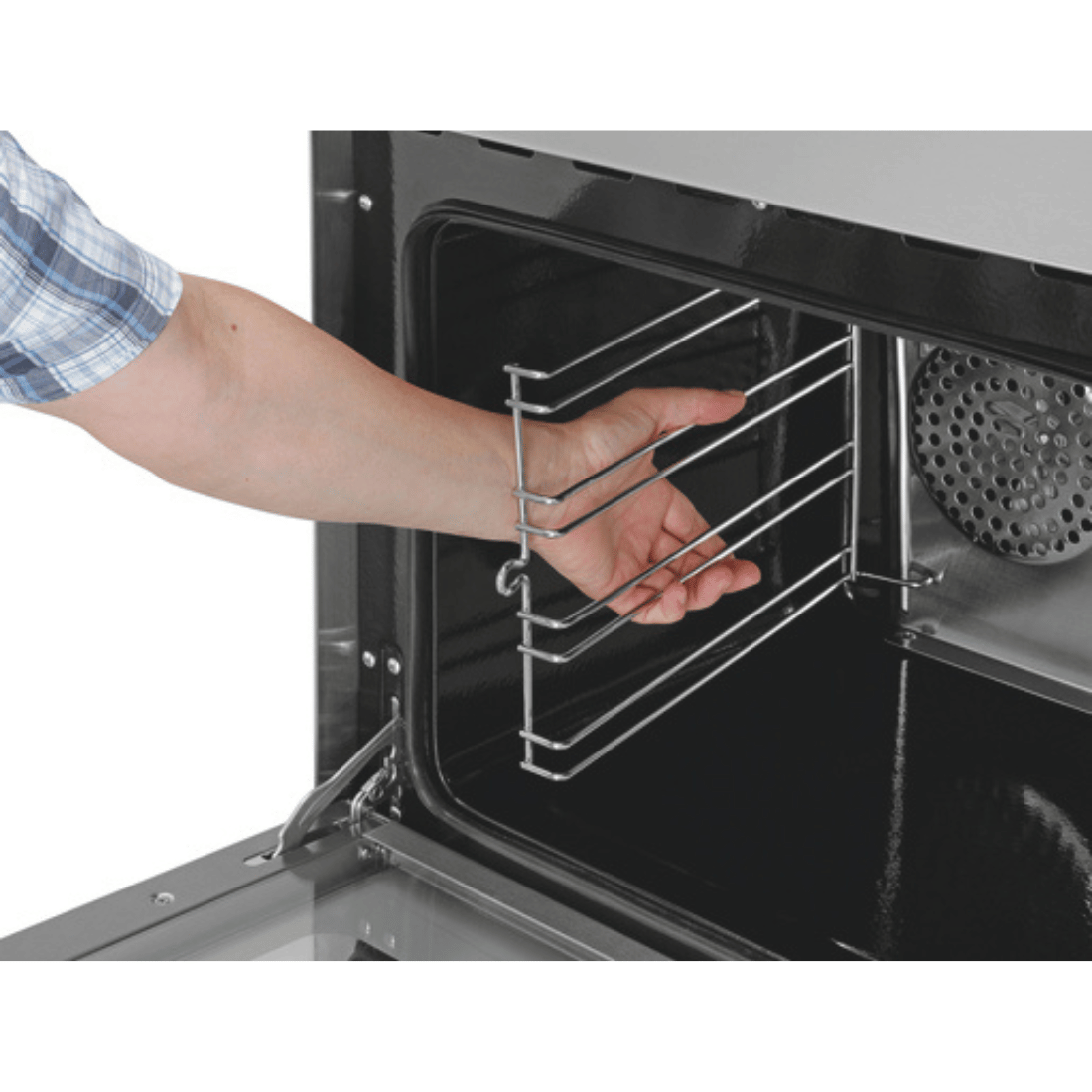

4-tray capacity — runs four 437 x 314mm trays on 80mm spacing, enough throughput for a cafe or small bakery.
-

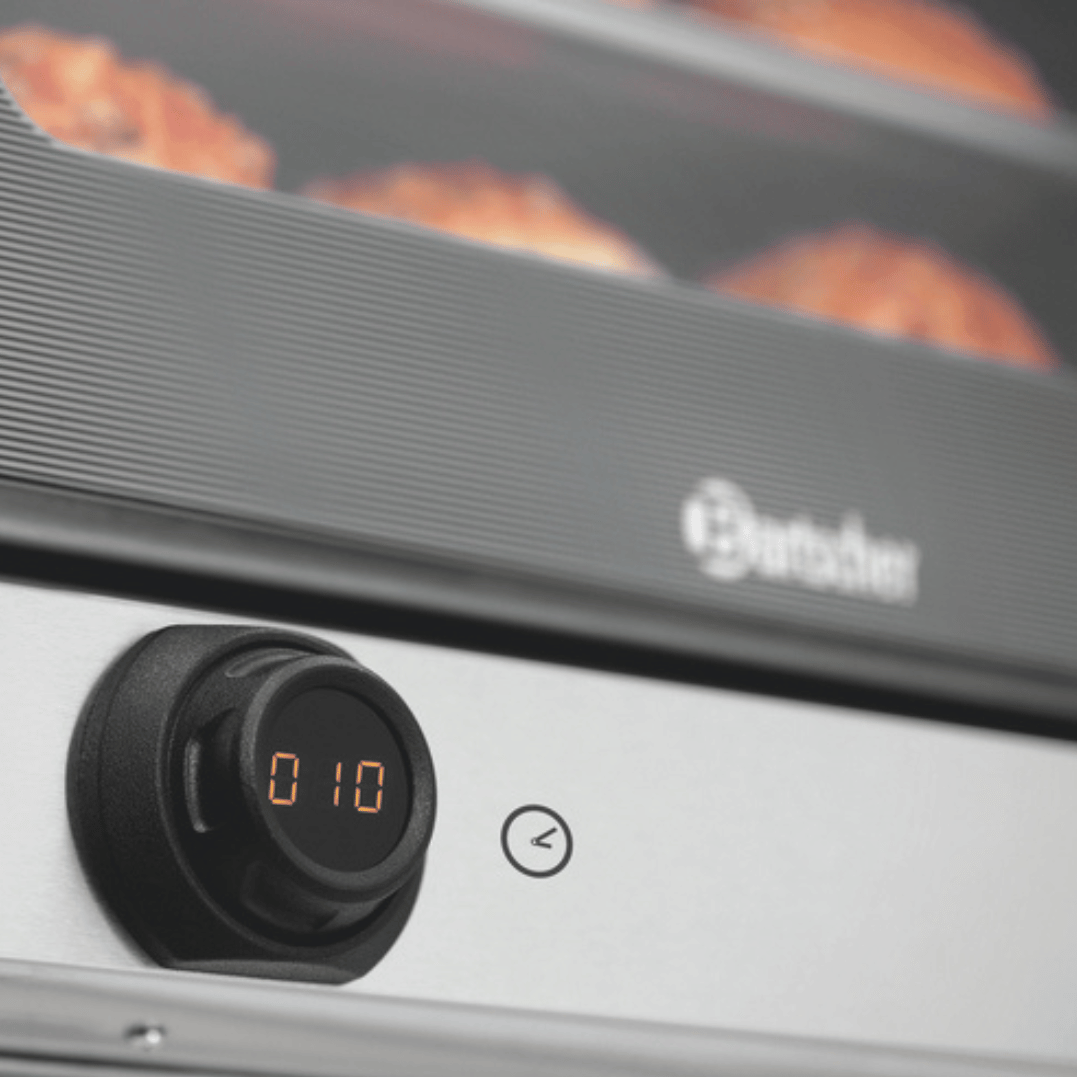

Digital control, 50–300°C — precise temperature setting with a 120-minute timer.
-
Enamel interior — wipes down quickly and resists baked-on grease.
-

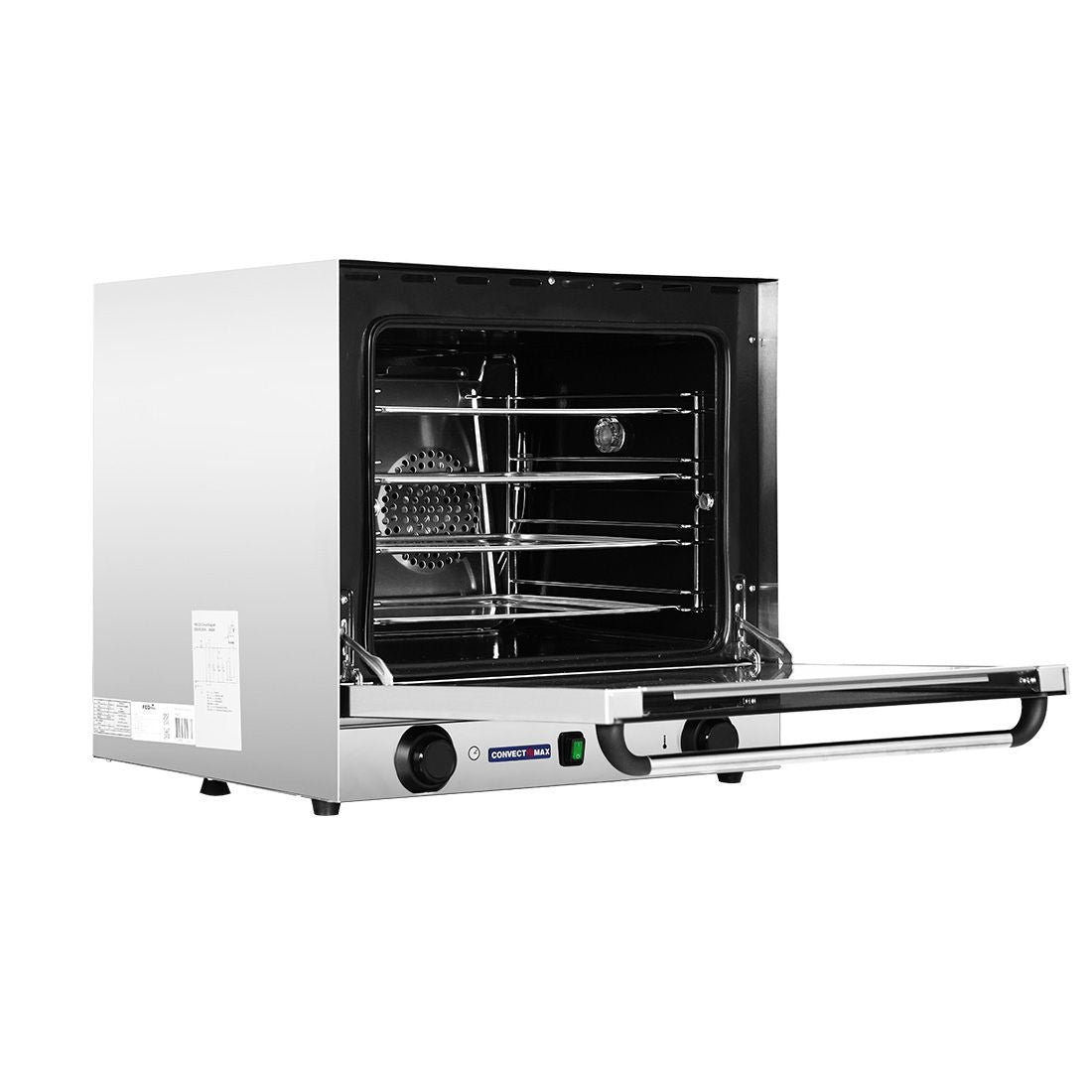

Double-layer glass door — opens forward and down, with auto-stop when the door is opened for safety.
-
Stainless steel construction — durable benchtop body suited to daily commercial use.
Specifications
| Brand |
ConvectMax |
| Model / MPN |
YXD-1DI |
| Type |
Convection Oven (electric, benchtop, digital) |
| Capacity |
4 x 437 x 314mm trays (80mm spacing) |
| Temperature Range |
50–300°C |
| Fans |
Two reversing fans |
| Interior |
Enamel |
| Door |
Double-layer glass, opens forward & down, auto-stop on open |
| Timer |
120 minutes |
| Controls |
2 knobs, digital |
| Power |
240V, 2.4kW, 10A |
| Internal Dimensions |
460 x 375 x 360mm |
| External Dimensions |
595 x 530 x 570mm |
| Net Weight |
38kg |
| Material |
Stainless Steel |
| Warranty |
12 months parts & labour |
Venue suitability: The compact footprint and 4-tray output make the YXD-1DI a fit for cafes, bakeries, patisseries and venues that need reliable baking without a full-size floor oven. Browse more in our Convection Ovens range, or see the full ConvectMax line-up for matching benchtop cooking equipment.
Installation & delivery: Plugs into a standard 240V 10A outlet — no special wiring required. Dispatched Australia-wide.
Frequently asked questions
What is the tray capacity of the ConvectMax YXD-1DI? It holds four 437 x 314mm trays on 80mm spacing, with aluminium trays included.
What temperature range does the YXD-1DI reach? The oven operates from 50°C to 300°C with digital temperature control.
Does the YXD-1DI need special wiring? No — it runs on 240V at 10A (2.4kW) and connects to a standard single-phase outlet.
What are the external dimensions of the YXD-1DI? The oven measures 595mm wide x 530mm deep x 570mm high, with an internal cavity of 460 x 375 x 360mm.
What warranty comes with the ConvectMax YXD-1DI? It is covered by a 12-month parts and labour warranty.
