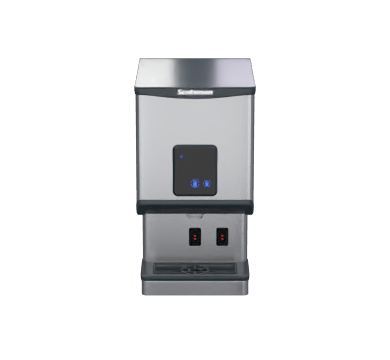

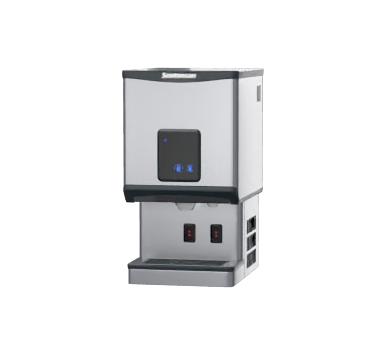

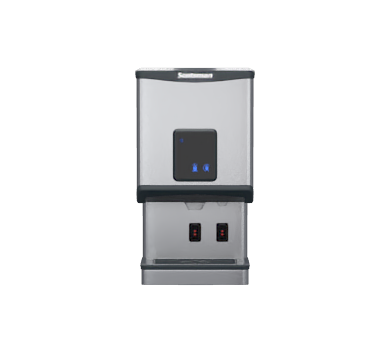

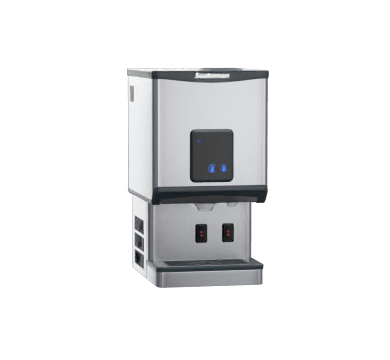

Scotsman DXN 187 AS - 125kg Ice Maker - Cubelet Ice & Water Dispenser

Description

Dimensions
W: 427mm D: 552mm H: 769mm

Packed Weight: 56kg
Product Features
  • 125kg daily production rate
  • 7kg storage bin capacity
  • W 16mm x 15mm dia x H 7 - 8mm, 1g Ice cube
  • Compact countertop ice and water dispenser

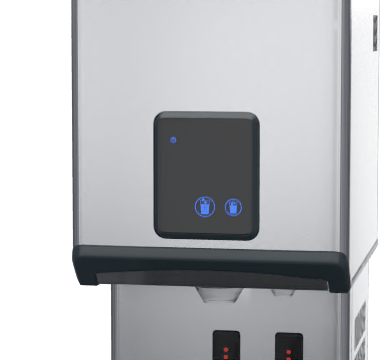

  • Touch screen control with touch-free or button activated
  • Programable dosage, ice or water dispensing or both
  • Agion Technology resists microbe's growth and odours development to produce pure, clear and transparent ice cubes
  • EcoX hydrocarbons R290 refrigerant gas
  • Compact countertop Ice and water dispenser
  • Ice evaporator with stainless steel auger
  • High grade stainless steel panels
  • External indicator lights
  • Fast friendly cleaning mode
  • Includes removable air filter, water & drain hose

All Ice machines MUST be maintained to ensure high performance.

The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.

This maintains the quality of the ice shape and thickness.

This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.

If your ice machine is not maintained, your warranty may be void.

6 Monthly Maintenance Program

  • Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler.
  • Sanitise water reservoir, distribution tubes, and bin interior.
  • Clean and flush condenser coils (air-cooled units).
  • Inspect condenser fan motor and blades.
  • Check inlet water valve, float, and filters for correct operation.
  • Verify ice thickness probe or sensor calibration.
  • Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary.
  • Test compressor amperage and general performance.
  • Inspect water pump operation and clean pump housing.
  • Check harvest cycle operation (heater or hot gas valve).
  • Inspect electrical connections, relays, and contactors.
  • Replace inline water filter cartridge.
Product form

ScotsmanSKU: DXN 187 AS In Stock

$8,041.58 $10,867.00

Excl. GST Incl. GST
Prices exclude GST
Free pickup in our shop(s)
    • Delivery Australia-wide, Tracking Included

    Guaranteed Safe Checkout

    • Visa
    • Mastercard
    • American Express
    • PayPal
    • Apple Pay
    • Shop Pay
    • Google Pay

    From $14.58/day

    Apply Now

    Specifications
    Brand Scotsman
    MPN DXN 187 AS
    Product Dimensions 427(W) x 769(H) x 552(D)mm
    Warranty 2 year parts and labour
